How Does an OpenHASP Display Work in Smart Home Projects?

An OpenHASP display functions as a network-controlled, open-source Human-Machine Interface (HMI) module purpose-built for ESP32 microcontrollers. Rather than embedding logic directly into firmware, it offloads all state management to a central home automation controller — such as Home Assistant or Node-RED — via MQTT. The display renders touch-reactive widgets defined in a page. JSONL configuration file, using the LVGL graphics engine. This decoupled architecture means engineers can update layouts, colors, and triggers dynamically without reflashing firmware, dramatically reducing development cycles in smart home and industrial automation environments.

Understanding the OpenHASP Display Technology

What Makes OpenHASP Different from Conventional HMI Firmware

One thing that makes an OpenHASP display unique is its "dumb display" concept. The section doesn't have any business logic built into it. It shows the state that the MQTT provider sends and sends back touch events upstream. Embedded coders and UI designers can work together without any problems because they are clearly separated. One team sets up the automation logic in Home Assistant while the other uses JSONL to improve the visual style. The LVGL 8.0+ engine provides smooth fonts, arc gauges, sliders, and image assets on standard ESP32 hardware, so you don't have to write custom C code for each UI change.

Communication Protocols and Software Ecosystem

OpenHASP devices talk to each other using MQTT, and the HTTP API can be used to handle files and send software over the air. The configuration map (pages.jsonl) lists all the widgets, like buttons, labels, and sliders, along with their style properties, which are like CSS. The Arduino IDE, ESP-IDF, MicroPython, and PlatformIO are some of the development environments that are supported. This gives OEM teams with different toolchains the cross-platform flexibility that they really value. The community drives updates for the open-source firmware, so known bugs are fixed right away instead of having to wait for a proprietary vendor's roadmap.

Comparing OpenHASP Display to Other Display Technologies in Smart Home Applications

Nextion screens come with their own writing runtime built right into the screen. That method lets logic run offline, but it also creates a bottleneck: every change to the user interface needs to be recompiled and sent as a new project file. When standard TFT panels are paired with LVGL, any changes to the way they look need to be made to the software. An OpenHASP display doesn't have to follow either of these rules. Send a single MQTT command, and the color of every button on all deployed panels changes at the same time. That feature means that OEMs who manage teams of wall-mounted control screens will save money on service calls after the sale.

Long-term reliability data from B2B deployments consistently show that ESP32-based panels are more reliable than lower-end microcontroller options. The two-core design lets you talk on WiFi and display graphics at the same time without any frame drops, which can happen with single-core SoCs when the network is busy. When it comes to costs, open firmware gets rid of the per-unit licensing fees that some proprietary HMI platforms charge when used on a large scale.

Step-by-Step Guide to Setting Up an OpenHASP Display for Smart Home Projects

Selecting Hardware and Flashing Firmware

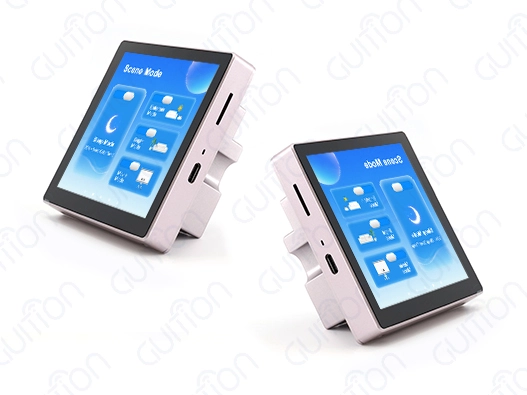

The GUITION ESP32-4848S040C_I_Y_1 is a hardware platform that works well for developing OpenHASP displays. It has an ESP32-S3R8 dual-core MCU that runs at 240 MHz, 8 MB of PSRAM, and 16 MB of Flash. This is a lot more than the 4 MB of Flash that the LVGL engine needs to create high-resolution images without memory fragmentation. The 480x480 capacitive touch IPS screen has a 1:1 square aspect ratio, which means that it looks good on symmetrical dashboards, circular gauges, and smart home control panels.

There is a clear order to set up:

• Get the most recent OpenHASP binary that works with the ESP32 Display Module from the official repository. Then, use the web-based installer or esptool to flash it.
• Use the captive site that shows up on the first boot to connect the module to your local WiFi network.
• You can use the built-in web tool to upload your pages.JSONL file—you don't need an IDE at this point.
• To connect the screen to Home Assistant, openHAB, or Node-RED, set up the MQTT broker credentials in the device settings.
• Check the communication by subscribing to the device's MQTT topic and making sure that touch events are sent correctly.

From unboxing to a live, interactive panel, these steps take a skilled engineer less than two hours altogether. The ESP32-4848S040C_I_Y_1's TF card slot makes it easy to store custom fonts and images, so dashboards with lots of graphics don't have to be limited by flash partitions.

Troubleshooting Common Integration Issues

Charged panel ghost touch events are almost always caused by an unstable power source. The WiFi radio on the ESP32-S3 uses a lot of short-term power, which causes voltage drops that hurt the touch sensor. Most of the time, this can be fixed by adding a 100 µF electrolytic capacitor across the 3.3 V rail. If you're having trouble connecting to MQTT, check the broker's Quality of Service settings and make sure the device's keep-alive interval matches the broker's timeout settings.

Customization and Advanced Features of OpenHASP Displays in Smart Homes

Templates, Scripting, and IoT Protocol Integration

When it comes to customization, an esp32 display module really stands out from rigid proprietary options. The color, opacity, text size, and border radius of a widget can all be changed using runtime MQTT messages. This means that the theme can be changed at runtime without having to update any code. Engineers can directly set automatic triggers. For example, when a button is pressed for a long time, it can send a specific MQTT payload that sets off an alarm or changes the temperature settings in a home's HVAC system.

Here are the main ways that the platform can be customized:

• Custom binary fonts (.bin): These have already been changed using the LVGL font translation tool and posted through the web interface. They can have character sets for multiple languages, such as Cyrillic, Arabic, and CJK.
• Image assets: Any gadget can use PNG or BMP files saved on the TF card or internal Flash as a background image or an icon layer.
• GPIO extensibility: The ESP32-4848S040C_I_Y_1's set-aside I/O ports let you handle PWM backlights, read local sensors, and directly control relays—all of which can be controlled by MQTT messages at the firmware level.
• Modular page structure: Multiple pages are set up within pages.jsonl. You can use context-sensitive UI views with JSONL, like a simplified view for the occupant and a detailed view for the technician to do diagnostics on the same physical panel.

Because of these features, the platform is perfect for OEM product lines that need brand-specific interfaces for different regional markets. This is a direct response to the needs that global smart home brands have for multiple languages and customization.

Procurement and Supplier Guidance for OpenHASP Displays

When looking for an OpenHASP display module for B2B production runs, you need to think about more than just the unit price. Firmware maintenance consistency, hardware revision stability, and quick expert help are all things that should be taken into account when making a purchase choice that will affect the costs of a product for years, not months.

GUITION is a vertically integrated OpenHASP display maker, which means that they do all of their own research and development, production, and sales. The range of products, from 1.28" to 21.5", means that buying teams only have to deal with one seller for all of their project needs. The ESP32-4848S040C_I_Y_1 comes with full technical documents, schematic files, and access to GUITION's own UI development software. This is a tool that speeds up interface design with drag-and-drop controls and one-click release, which cuts down on the engineering hours needed for new product versions.

With warranty coverage, over-the-air (OTA) remote upgrade support, and a dedicated after-sales engineering team, problems that happen after shipping can be fixed without having to send someone to your home. For OEMs that are putting panels in a lot of places, being able to do maintenance from afar directly lowers the total cost of ownership.

Conclusion

An OpenHASP display solves a real design problem in smart home engineering: it keeps the presentation of images and the code that controls them separate so that they can both grow on their own. It turns common ESP32 hardware into touch screens that can be set up by businesses. It does this by using the LVGL graphics engine and MQTT communication. With its dual-core 240 MHz processing, 8 MB PSRAM, 480x480 capacitive touch, and support for multiple development platforms, the GUITION ESP32-4848S040C_I_Y_1 has the hardware specs that make OpenHASP applications stable at production scale. This platform cuts down on both the time it takes to develop products and the costs of maintaining them after they've been sold. It can be used to make wall panels, industrial monitors, or smart appliance interfaces.

FAQ

1. Does an OpenHASP display work offline?

At boot, when the computer is not connected to the internet, the OpenHASP display shows the interface set up in pages.jsonl. But because the business logic is in the MQTT broker, interactive functions can only change local GPIO until the network connection is restored.

2. How does OpenHASP compare to ESPHome with LVGL?

To change the UI layout or style on ESPHome, you have to rebuild and flash the software from scratch. During development, an OpenHASP display can accept live changes to the layout through MQTT commands or file uploads. This cuts the time it takes to make changes from hours to seconds.

3. What smart home platforms does OpenHASP support?

Standard MQTT lets OpenHASP work with Home Assistant, openHAB, and Node-RED right out of the box. An OpenHASP display can be controlled by any platform that supports MQTT publish/subscribe. No special software is needed.

4. Can the GUITION ESP32-4848S040C_I_Y_1 handle complex animations?

With 8 MB of PSRAM and 16 MB of Flash, the ESP32-S3R8 can handle multi-screen transitions, anti-aliased fonts, and image assets without any noticeable lag. It meets the minimum hardware profile that LVGL suggests for high-fidelity interfaces.

5. How are multi-language interfaces handled?

You can easily send custom font files that have the needed Unicode glyph ranges to the device's Flash or TF card. When you change languages during gameplay, all you need is an MQTT command to change the text and font settings.
