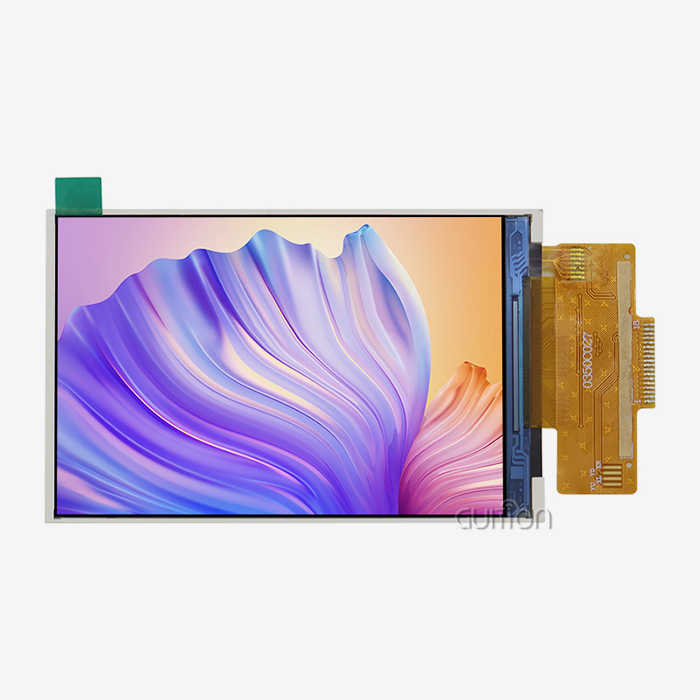

SPI LCD Display

Brand: GUITION
Model: JC1060P470C_I_W_Y
This LCD module uses ESP32-P4 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can reach 360MHz,768 KB HP L2MEM,32 KB LP SRAM, 128 KB HP ROM , 32M PSRAM,Flash size is 16MB, The display resolution is 1024*600, Capacitive touch. The module includes 7 inch LCD display screen, backlight control circuit,
touch screen control circuit . Reserve the TF card interface ,IO port interface, this module supports development in arduino IDE, ESP IDE, Micropython and Guition.

Brand: GUITION
Model: JC8012P4A1C_I_W_Y
JC8012P4A1C_I_W_Y LCD module uses ESP32-P4 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can reach 360MHz,768 KB HP L2MEM,32 KB LP SRAM, 128 KB HP ROM , 32M PSRAM,Flash size is 16MB, The display resolution is 800*1280, without touch or
Capacitive touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit . Reserve the TF card interface ,IO port interface, this module supports development in arduino IDE, ESP IDE, Micropython and Guition.

Brand: GUITION
Model: JC-ESP32P4-M3-DEV
It is an JC-ESP32P4-M3-DEV module with integrated ESP32P4 and
ESP32-C6, supporting Wi-Fi 6 and Bluetooth 5 wireless connectivity.
It provides rich HCI interfaces including MIPI-CSI (Integrated Image
Signal Processor ISP), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM,
RMT, ADC, UART, TWAI and so on. In addition, USB OTG 2.0 HS is
supported.The ESP32-P4 adopts a 400MHz dual-core RISC-V
processor, supports up to 32MB PSRAM, and is equipped with
peripherals such as USB 2.0, MIPI-CSI/DSI, H.264 encoding, etc.,
which meets the needs of low-cost, high-performance and
low-power multimedia development. In addition, ESP32-P4
integrates digital signature peripheral and dedicated key
management unit to ensure data and operation security
