ESP32-P4 Display Module Guide: Features, Uses, and China Sourcing

The esp32p4 display module represents a breakthrough in human-machine interface development, combining Espressif's advanced ESP32-P4 chip with integrated ESP32-C6 wireless connectivity. This powerful development platform addresses the core challenges facing embedded engineers and product managers: achieving high-resolution multimedia performance without the complexity and cost of Linux-based systems. With its dual-core RISC-V processor running at 400MHz, native MIPI-DSI interface, and comprehensive peripheral set including H.264 encoding, this module delivers professional-grade HMI capabilities for industrial controls, smart devices, and interactive displays. Whether you're developing medical monitoring equipment or industrial control panels, this solution accelerates time-to-market while maintaining cost efficiency and system reliability.

Understanding ESP32-P4 Display Module Specifications and Core Features

Processor Architecture and Performance Capabilities

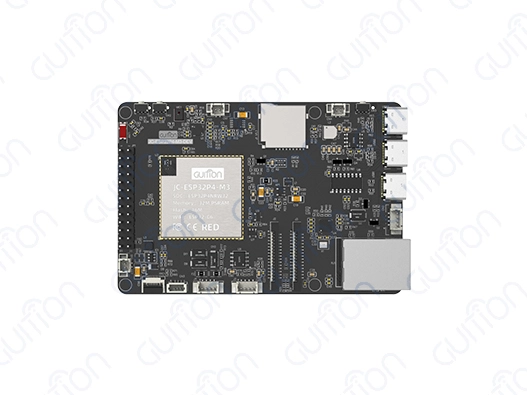

In the middle of Guition's JC-ESP32P4-M3-DEV module is a 400MHz dual-core RISC-V processor that works best for multimedia and edge computing chores. This design can handle complicated UI rendering, video processing, and real-time data display all at the same time, unlike older versions of the ESP32 that had trouble with high-resolution graphics. The combination with ESP32-C6 makes a one-of-a-kind dual-chip design. The P4 takes care of processing and managing the display, while the C6 handles Wi-Fi 6 and Bluetooth 5.0 connections on its own. This split keeps network traffic from slowing down the user interface, which is very important for industrial uses where display lag can make operations less safe. The module works with up to 32MB PSRAM, which is a lot of memory for buffering frames and making transitions smooth, even on displays with 24 bits of color depth. This setup gets rid of the frame rate slowdowns that happen with SPI-based display solutions, so R&D managers can check out processing power without any problems. It also gives steady 60fps performance at sizes up to 1280x800.

Interface Richness and Display Connectivity Options

The JC-ESP32P4-M3-DEV module is different from other microcontroller solutions because it has a lot of different interface options. The MIPI-DSI two-lane interface lets high-resolution LCD panels output without flickering. It works with screens of all sizes, from small 4.3-inch screens to huge 10.1-inch touchscreens. With this built-in DSI support, you don't need any extra display drivers. This cuts down on the cost of the bill of materials and makes PCB design easier. The MIPI-CSI interface has an integrated picture Signal Processor that lets camera-based apps handle picture data directly without using separate ISP chips. The different interfaces, such as SPI for external memory, I2C for sensor integration, I2S for audio output, and USB OTG 2.0 for fast data transfer and firmware updates, are well liked by product managers. The module has TWAI (CAN bus compatible) for networking in cars and factories, LED PWM for controlling the backlight, and MCPWM for controlling the motor. System builders can use this entire set of interfaces to make full HMI solutions without having to use extra interface converter chips. This speeds up supply lines and makes products more reliable in the long run.

Security Features for Connected Applications

When designing the ESP32P4 display module, hardware security is given a lot of thought. This helps solve problems that happen a lot with IoT and related industrial devices. The built-in digital signature peripheral provides cryptographic authentication, which makes sure that the device can only run firmware that has been authorized. The separate key management unit keeps encryption keys in hardware-protected storage, so attackers can't get to them even if they get physical access. This security design meets the needs of people who make medical devices that need to follow data protection rules and people who make industrial equipment that needs to protect their intellectual property. Secure boot features help technical founders who are making smart home goods because they stop illegal firmware changes. This protects both the manufacturer's code and end users' privacy. The encryption hardware works separately from the main computers, so the system stays fast while security methods are being used. With these features, the module goes from being a simple display controller to a secure edge computing platform that can be used for applications that deal with sensitive data or need to work without being tampered with.

How to Connect and Program ESP32P4 Display Modules

Hardware Connection and Wiring Best Practices

When connecting the JC-ESP32P4-M3-DEV module, you need to pay attention to how the power and signals are sent. When there are differences in impedance or electromagnetic interference, the MIPI-DSI interface can pick them up. Embedded engineers should run DSI lines as 100-ohm differential pairs and make sure that the lengths of each pair are within 5 mm of each other to avoid signal skew. The power source design of the module can handle the highest current needs during wireless transfer and updating the display. We suggest a separate 5V source that can provide at least 2A and has filters for both the analog and digital power domains. The USB OTG 2.0 HS link needs the D+ and D- lines to have the right impedance matching so that the data path stays at 90 ohms differentially. When adding touch functionality, the I2C interface usually works at 400kHz for capacitive touch controllers. To reduce touch response latency, GPIO interrupt lines should connect directly to the ESP32-P4. When working with bigger screens, HMI designers should use the right grounding methods. Star grounding is one way to stop ground loops that can add noise to sensitive analog signals like audio outputs or ADC inputs.

Development Environment Setup and Programming

To start programming, you have to pick from a number of different development tools, each of which is best for a different amount of experience and project needs. The Arduino IDE is the fastest way to start prototyping, and Espressif keeps support packages for the ESP32-P4 board up to date. ESP-IDF shows all of the hardware's features, including advanced RTOS features and direct register access, which is helpful for embedded engineers who know how to do professional development. For teams that don't have a lot of experience with embedded programming, Guition's unique development tools is a game-changer. With this visual development environment, HMI designers can use drag-and-drop to make full user interfaces, and the code for the ESP32P4 display module is automatically optimized. The software comes with a large library of pre-made controls, such as buttons, scales, gauges, and charts, that work perfectly with the software's core logic. Cross-platform coding lets you try interfaces on desktop computers before putting them on hardware, which cuts development iteration time by a huge amount. The environment naturally supports UTF-8 encoding, which makes it easier to create multilingual user interfaces for products that are meant to be sold around the world. Project managers like this method because it lets UI/UX designers help directly with interface execution and doesn't require specialized embedded programming skills.

Common Integration Challenges and Solutions

Several technical problems often come up during implementation, which can cause projects to be late. When more than one device is on the same bus, incorrect SPI or I2C pull-up resistor settings are often to blame for display initialization problems. For standard-speed operation, the ESP32-P4's I2C port needs external pull-ups of 4.7kΩ. For a fast-mode 400kHz connection, it needs 2.2kΩ. Another common problem is calibrating touch panels, since different makers use different touch controller methods. System engineers should make sure that touch works smoothly across the whole screen, looking for "ghost points" or "dead zones" that could mean there are problems with the wiring. When you update firmware, you need to pay close attention to how the flash is partitioned. Over-the-air updates are possible with this module, but implementations must include ways to undo failed updates that could otherwise brick devices in the field. If the display output is jumbled or has color artifacts, engineers should check the timing and startup settings of the PSRAM. This is because wrong memory access speeds can damage the contents of the frame buffer. Optimizing the amount of power used becomes very important for battery-powered devices. The ESP32P4 display module has a number of sleep modes, but to manage power effectively, the lighting dimming, processor sleep states, and wireless radio power-down processes need to be coordinated so that the least amount of current is drawn without affecting the user experience.

Procurement and Sourcing ESP32P4 Display Modules from China

Manufacturer Landscape and Supplier Selection

There are several ways to get display modules based on ESP32-P4 technology in China's ecosystem for making electronics. The JC-ESP32P4-M3-DEV module is made by Guition, a specialized HMI solution provider. It has display screens, touch overlays, and supporting circuits that are all built in. When compared to buying individual parts, this "turnkey" method makes purchasing easier. The business runs factories that use ISO 9001 quality management systems and make sure they follow the RoHS environmental rules needed for markets in Europe and North America. When purchasing managers look at suppliers, they should look at more than just the prices of parts. In industrial settings where products last between five and ten years, long-term supply reliability is very important. Guition promises that its products will be available for longer, and it will continue to source parts and make products for existing lines. The quality of technical help changes a lot between suppliers. Some sellers only give out basic paperwork, while others offer full support for application engineers, reference designs, and customization services for large orders. Modules that are going to be sold in regulated markets should come with certification paperwork like CE, FCC, and UL test reports. Being able to provide these certificates shows that you are a good engineer and makes it easier for product makers to follow the rules.

Cost Analysis and Volume Purchasing Strategies

ESP32P4 display module prices are based on a number of factors, such as the size of the display, the type of touch technology used, and the number of orders placed. Evaluation kits, which cost between $50 and $80 each, are often the first step in small-scale prototyping. These kits include full development tools with debugging interfaces and documents. When a lot of work is committed, the price of production goes down a lot. When you buy 100 to 500 units, you can usually get 20 to 30 percent off the price of an evaluation kit. If you buy more than 1,000 units, you can get even better deals based on an annual purchase commitment. Aside from module prices, system designers should think about the total cost of ownership. Using integrated solutions like Guition's platform, which has visual development tools and a lot of control libraries, can make up for the slightly higher cost of parts compared to making displays from separate parts because it saves time during development. Logistics costs have a big effect on the total landing cost. Air freight is faster, but it costs $5 to $15 more per unit, depending on the size and weight of the module. For large sales, sea freight cuts down on shipping costs by a lot, but wait times grow by 4 to 6 weeks. Companies that make automation equipment and have regular production schedules can benefit from consignment inventory arrangements. This is when suppliers keep stock at local warehouses, which cuts down on lead times and inventory carrying costs.

Quality Assurance and Compliance Verification

By checking the quality of a product before starting to make a lot of it, you can avoid expensive problems in the field and damage to your image. Manufacturers with a good reputation give First Article Inspection Reports that show how accurate the measurements are, how the parts are checked, and how the product works. Medical device makers need very strict quality paperwork, such as reports on the materials used and biocompatibility test results for parts that will be touching patients. Environmental testing proves that something will work in the real world. For industrial uses, the temperature range needs to be very large, usually from -20°C to +70°C. Vibration testing that follows IPC guidelines makes sure that mechanical parts will last in motor or transportation applications. Specifications for a display panel should include measures of the panel's brightness, its viewing angle, and its LED backlight's lifetime, which is usually between 30,000 and 50,000 hours at half brightness. Through double-tap testing, which is usually limited to at least 1 million touches, touch panel longevity testing shows how long the panel is expected to last. Verification of electrostatic discharge protection stops failures caused by static electricity, which happens a lot in dry manufacturing environments. According to IEC 61000-4-2 standards, good suppliers give test reports that show ESD immunity to ±4kV contact discharge and ±8kV air discharge. These quality control steps set professional makers apart from commodity providers, and they have a direct effect on how reliable the product is in the field and how much the warranty costs.

Making Informed Decisions: ESP32P4 Display Module Selection Criteria

Matching Technical Specifications to Application Requirements

Module choice is based on the technical requirements of the different uses. Industrial control panel designers make sure that the displays can be read in a variety of lighting conditions. For outdoor use, these displays need to be brighter than 500 nits. Displays with wide color gamuts and calibrated color reproduction are needed for medical monitoring equipment that relies on color accuracy for showing diagnostic images. Smart home apps balance the performance of displays with the amount of power they use, since battery-powered devices need low-power modes to last longer. The 400MHz dual-core RISC-V design has enough processing power to handle difficult tasks, such as real-time video streaming with H.264 encoding. This means that security panel apps can show camera feeds without the need for extra video processor chips. Developers of energy management systems can connect directly to current sensors and voltage monitors without using extra signal processing circuits because the device has a lot of analog inputs. Agricultural automation systems use a wide range of operating temperatures and ruggedized display options that can handle being wet and dusty in greenhouses or the field. The USB OTG interface is used by commercial terminal applications to connect barcode readers, payment terminals, or receipt printers. This makes it possible to build full point-of-sale systems around a single display module base.

Evaluating Software Ecosystem and Development Support

The hardware development setting has a big effect on the success of a project and how long it takes to get to market. The full development lifecycle is covered by Guition's complete software ecosystem. The visual development tool gets rid of the problems that come with low-level programming, so product managers and industrial designers can quickly make prototypes of interfaces that work. Demonstrating working samples during customer demos speeds up the sales process, making this feature very useful. The program automatically makes optimized C code, and expert embedded engineers can add custom methods to it to make it do specific things. Multi-platform compatibility with the Arduino and ESP-IDF frameworks makes sure that developers can use their current code tools and skills on new projects right away. One big problem with spread deployments is that upkeep can't be done remotely. The platform fixes this problem. Firmware updates that lower service call costs are useful for equipment that is used in more than one place, like medical devices in hospitals or industrial controls in factories. Over-the-air updates use cryptographic proof to make sure the updates are real and rollback security to keep devices from getting bricked. Support for multiple languages and UTF-8 encoding makes localizing products easier. Brands of consumer goods that sell all over the world can switch between languages without having to redesign user interfaces. All they have to do is load different text files. The quality of technical documentation varies a lot between suppliers. Full datasheets, application notes, design examples, and reference code speed up development and make it easier for engineers to help with problems.

Building Supplier Partnerships for Long-Term Success

Strategic ties with suppliers go beyond just buying parts; they also include working together to help products improve over time. Setting up direct lines of contact with engineering teams speeds up the process of answering technical questions and having talks about customization. Customers who buy a lot of things often discuss service level agreements that spell out how long it takes to answer technical support questions and get permission to send things back. When suppliers offer customization services, intellectual property protection becomes important. Clear agreements about who owns the design, obligations not to disclose, and limits on selling customized goods to rivals protect investments in making products stand out. When demand for a product is unclear, its manufacturing capacity and ability to grow are important. Suppliers who can make changes to their production methods can handle small amounts at first and quickly increase production if the market responds better than expected. Using different ways to source goods can help keep the supply chain running smoothly. While building relationships with primary suppliers, keeping qualified backup sources for key components on hand protects against production delays or shortages of those components. Product makers can look forward to new features and plan for future versions of products by talking about the roadmap together. Suppliers that invest in new technology, like Guition's work on visual programming tools, give their partners a competitive edge by giving them early access to features that set them apart.

Conclusion

Embedded system makers can use the ESP32P4 display module ecosystem instead of standard microcontroller displays or pricey Linux-based platforms. The JC-ESP32P4-M3-DEV module from Guition is designed to meet the needs of industrial equipment makers, IoT solution providers, and smart device developers. It does this by providing powerful processing power, a wide range of ports, and built-in wireless connectivity. The dual-chip architecture strikes a mix between multimedia performance and network features while keeping costs low. When working with well-known suppliers who show they are committed to technical support and long-term availability, China's manufacturing capabilities allow for competitive prices without sacrificing quality. The visual development environment makes it easier to make HMIs, which speeds up time-to-market and reduces the need for specialized embedded computer knowledge. As edge computing and connected devices become more common in many fields, product developers can take advantage of market opportunities more quickly with solutions that combine secure processing, a lot of multimedia features, and easier development workflows.

FAQ

What display sizes work with ESP32P4 modules?

The ESP32P4 design works with screens of all sizes, from small 2.8-inch panels to big 10.1-inch screens. The MIPI-DSI link works well with screens up to 1280x800. SPI interfaces are often used for smaller screens, but DSI interfaces work better. Guition has combined solutions for all screen sizes, from 1.28" to 21.5", so engineers can choose the right screen size for the job without having to rethink the interface electronics.

Can existing ESP32-S3 code be ported to ESP32-P4?

When moving code, you need to pay attention to changes in the architecture. The ESP32-P4 uses the RISC-V instruction set, but the S3 uses Xtensa, so they need to be recompiled. Since P4 uses MIPI-DSI instead of parallel RGB interfaces, the display driver code needs to be changed. It's pretty easy to send peripheral code for SPI, I2C, and UART. The development tools from Guition hide these differences from the UI code, which makes transfer easier.

How does wireless performance compare to standalone modules?

The built-in ESP32-C6 offers Wi-Fi 6 and Bluetooth 5.0 with communication units that meet their performance. Network stack processing can't affect display refresh rates because it is separate from the main processor. The shape of the antenna has a big effect on the wireless range. Professional modules come with better antenna matching and optional external antenna connections for longer-range needs.

Partner with Guition for Your ESP32P4 Display Module Needs

Working with a specialized ESP32P4 display module source that knows your technical and business needs can shorten the time it takes to make a product. Guition offers full HMI solutions instead of just parts because it blends factory knowledge with advanced development tools. Our engineering team helps with your applications at every stage of the development process, from the first design consultation to the production ramp. The JC-ESP32P4-M3-DEV module comes with full instructions, reference diagrams, and example code that make prototyping go faster. Customers who buy in bulk can get services that let them change things like the size of the screens, the way the interface works, and the logos that appear on the startup screens. Email our technical sales team at david@guition.com to talk about the specifics of your project, get review samples, and get accurate prices for large orders. We provide reliable parts and quick help to embedded engineers, system designers, and product managers who work in medical devices, smart homes, commercial terminals, and industrial automation.
