Can a Round lcd display arduino Simplify Your User Interface?

Absolutely. A round LCD display Arduino can dramatically simplify your user interface by offering intuitive visual presentation that matches the natural ergonomics of dials, gauges, and rotary controls. These circular modules eliminate the visual clutter of rectangular screens in applications where radial information display makes more sense—think analog-style meters, smartwatch interfaces, or industrial gauges. With modern driver ICs like the GC9A01 and straightforward 4-wire SPI communication, integration becomes remarkably simple. Your development team spends less time wrestling with complex display configurations and more time perfecting the user experience. The circular form factor naturally guides user attention to the center, reducing cognitive load and improving readability at a glance.

How to Use and Interface Round LCD Displays with Arduino

Depending on how easy it is to integrate, your development timeline will either stay on track or get pushed back, which will cost you money. The way your microprocessor and the spi display module talk to each other follows standard SPI protocols, but you need to pay close attention to some implementation details.

Wiring Configuration and Pin Identification

Serial Clock (SCK), Master Out Slave In (MOSI), Chip Select (CS), and Data/Command (DC) are the four main connections that make up the 4-wire SPI interface. You'll also need a VCC (usually 3.3V) and GND link, and you can add a RST (Reset) pin for hardware restarts if you want to. The backlight control circuit is linked to a GPIO pin that can handle PWM. This lets the brightness be changed from 0% to 100% duty cycle.

Different Arduino models have different pin assignments. Normally, on an Arduino Uno, SCK is connected to pin 13, MOSI is connected to pin 11, and CS and DC are connected to any digital pins that are free. Software-defined SPI pins in ESP32 systems give you more freedom, so you can make the most of your PCB layout restrictions. Always check the voltage compatibility—many circuit display units work at 3.3V logic, so they need level shifters or voltage dividers to connect to 5V systems.

Signal quality is affected by the length of the cable at faster SPI speeds. When working at maximum clock speeds, keep all links less than 15 cm away. For less electromagnetic interference, SPI speeds must be slowed down, or twisted-pair wire must be used for longer cable runs. This is especially important in industrial settings where motor drives and switching power sources are close by.

Software Libraries and Development Tools

There are a number of libraries that support circular display integration, and each one has its own benefits. The Adafruit GFX library has a lot of graphics primitives and text drawing methods, but it needs to be changed to work with circular screen coordinates. Waveshare has libraries that work best with GC9A01-based modules and come with examples that are already set up for common Arduino boards.

This whole process is made easier by the Guition programming tool. Our own Guition software lets you design a drag-and-drop interface and see what it will look like in real time, so you don't have to do the time-consuming coordinate calculations that are usually needed for circular layouts. You can design your interface visually, put controls in a way that makes sense, and export code that is optimized straight to your Arduino development environment. This method cuts development time from weeks to days, which is especially helpful for engineering teams that are working on multiple versions of a product at the same time.

Cross-platform debugging lets you try how the interface works on your development PC before sending it to the hardware. This way, you can find layout and timing issues early in the development process. The built-in model does a good job of simulating circle display rendering, right down to changing brightness and viewing angle effects.

Common Integration Challenges and Solutions

Flickering screens usually mean that the power source isn't decoupled enough. Put a 100µF electrolytic capacitor and a 0.1µF ceramic capacitor close to the power pins on the module. PWM frequency issues are a common cause of brightness problems. To get rid of the flashing, change the backlight control frequency to between 1kHz and 5kHz.

When communication fails, blank screens or jumbled pictures show up. The GC9A01 works in SPI Mode 0 (CPOL=0, CPHA=0), so make sure that the polarity and phase settings for the SPI clock match what your driver IC needs. Lower the SPI speed briefly while you're fixing. Initialization at 4MHz that works confirms the integrity of the wires, which lets you then optimize for higher speeds.

These steps will fix 90% of the integration problems that our technical support team sees. This will help engineering teams get past the initial setup problems and get to work on developing applications faster.

Comparing Round LCD Displays with Other Display Technologies for Arduino

Picking the right technology has a big effect on how well a project turns out. Things like cost, power use, exposure, and development difficulty are all affected by picking the right display type for your needs.

LCD vs. OLED: Performance Trade-offs

By controlling each pixel's emission separately, round OLED screens have very high contrast ratios (100,000:1 vs. 1000:1) and true black levels. When showing mostly dark surfaces, OLED is better for power usage because black pixels don't use any power. This benefit is lost on bright white screens, tho, and OLEDs use a lot more power than backlit LCDs.

Cost is a big reason why LCD technology is preferred. A 1.28-inch round LCD module usually costs 40–60% less than similar OLED options. This can affect projects that need to stay within budget or manufacturing scenarios that need to make a lot of units. Concerns have also been raised about the duration of OLED screens. Organic materials break down over time, especially blue pixels, which causes color shifts after 10,000 to 20,000 hours of use. After more than 50,000 hours of use, LCDs still look the same.

TFT and E-Ink Alternatives

Performance at different temperatures varies a lot. Below 0°C, LCD response times slow down a lot because the liquid crystals get slower. Even tho it costs more, OLED is better for uses that need to work in harsh environments because it stays responsive over a bigger temperature range.

Traditional TFT screens have a higher color depth (262K colors) and frame rates higher than 60Hz, making them perfect for watching videos or playing games. However, round TFT modules are still hard to find and more expensive than rectangular ones. This limits the number of suppliers available and raises the cost of procurement.

E-Ink technology offers a completely different set of benefits, including using almost no power (only when updating the screen) and being able to read in direct sunlight. But because the refresh rate is so slow (usually 2–5 seconds for full-screen changes), E-Ink can't be used for real-time tracking. E-Ink works great for battery-powered status screens that show information that doesn't change often, like those in environmental sensors or room occupancy indicators.

LCD technology offers the best value for money when it comes to industrial control screens that work in real time, smart home systems, and wearable tech that needs to show smooth animations and get updates quickly. For large-scale installations, the established supply chain and stable production processes make sure that the product is always available at a fair price.

Practical Project Ideas and Use Cases Featuring Round LCD Displays in Arduino Systems

Understanding abstract capabilities doesn't mean much if you can't show how they're used in the real world. These use cases show how our customers have actually put our products to use in the industries we work with.

Industrial Control and Monitoring Systems

In factories, circular screens are used as easy-to-read process monitors to show things like motor speeds, tank levels, and pressure readings in the form of familiar gauges. The Guition JC2424S012N_I module is built into control panels that let workers keep an eye on several factors at once. Compared to digital-only numerical SPI Display Modules, the circular format makes it less likely that the information will be misread. A partially filled circular indicator lets you know what the status is at a glance without having to think about what the numbers mean.

These screens are used in irrigation controllers and greenhouse climate systems as part of agricultural automation systems. Farmers like interfaces that look like old-fashioned analog tools because it makes the switch from mechanical to smart automation easier. The IP-rated casings we suggest keep screens safe from the dust and moisture that are common in farming settings.

Wearable and Portable Devices

Fitness tracker designs often have circular screens because that's how wrist-mounted devices are naturally shaped. The 240x240 resolution gives you enough pixels to see clear text and smooth pictures on a screen that is only 1.28 inches in diameter. Low power use extends battery life, which is important for wearable tech that users don't want to have to charge all the time.

Medical device designers who are prototyping portable diagnostic equipment like those circular modules, can have coatings that are resistant to chemicals and bezels that can be sterilized. Circular displays make it easier to see important information. For example, vital sign trackers, glucose monitors, and handheld pulse oximeters put important data in the middle and show trends or alerts on the edges.

Consumer Electronics and Smart Home Products

More and more smart thermostats have circular screens that look like regular round thermostats. This makes them easier for people to learn how to use. The familiar shape communicates function naturally, so users know right away how to use the device without having to read the manual. The luxury look that circular screens offer is also good for room controls for music, lighting, and HVAC systems.

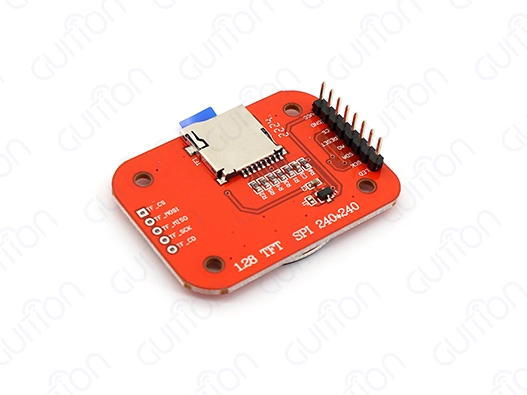

Our modules come with an SD card slot that lets you store a lot of pictures for product branding and unique icons. This will help your smart home product stand out in a crowded market. With UTF-8 encoding, multilingual support can reach markets around the world without needing different hardware versions for each area.

Procurement Guide: Sourcing Quality Round LCD Displays for Arduino Projects

Finding trustworthy suppliers is what separates successful product launches from costly delays and poor quality. When buying displays, procurement teams have to think about more than just comparing prices.

Evaluating Suppliers and Manufacturers

The circular display market is made up of well-known hobbyist sellers like Adafruit and SparkFun, as well as industrial-grade makers like Guition and Waveshare and specialized component dealers. Wholesalers offer savings for large orders, but they may have minimum order numbers (MOQs) of 100 to 1000 units. Retail suppliers give you options for prototyping, but they don't have the technical support you need for production integration.

When looking at possible partners, you should ask for detailed datasheets that include electrical specifications, mechanical drawings, and documentation for the driver IC. Suppliers with a good reputation give a lot of technical information, like interface guides, application notes, and sample code. A lot of projects have been held up because the modules we bought didn't come with enough documentation, so engineers had to figure out how they worked by reverse-engineering the interface protocols.

Lead times are very different. In-stock items ship within days, but tailored versions with different connector types, built-in touch screens, or changed lighting circuits may take 4 to 8 weeks. Disruptions in the global supply chain have made lead times more variable. This makes supplier dependability and communication responsiveness very important when evaluating.

Key Selection Criteria for Technical Requirements

Compatibility is more than just being able to connect an Arduino. Check to see if the library works with the Arduino IDE, PlatformIO, ESP-IDF, or STM32CubeIDE that you are using for development. The Guition app lets you work on projects in a number of different ways, so it doesn't force your team to change the way they do things.

The durability specifications tell you if it will work in your application environment. For industrial use, you need approved MTBF (Mean Time Between Failures) data, increased temperature ratings, and vibration protection. Consumer goods put a high value on visual uniformity and coatings that don't scratch. Biocompatibility approvals and sterilization compatibility are needed for medical equipment.

Cost Optimization Strategies

Warranty coverage and assistance after the sale are what set true technology partners apart from commodity providers. We offer a guarantee that lasts for two years and ongoing technical support, which includes help with drivers and interface issues. This support is very helpful when unexpected compatibility issues come up during certification testing or deployment in the field.

Volume savings have a huge effect on the cost per unit. When you buy more than 500 units, the price usually goes down by 15 to 25 percent, and it goes down even more at 1000 and 5000 units. To find the right balance between inventory holding costs and volume prices, you need to carefully look at your cash flow and product demand expectations.

The price of a module is only one part of the total cost of ownership. When you do your economic analysis, you should take into account the time you save on development. For example, when you compare Vision's quick development tools to low-level coding methods, they cut engineering hours by 40–60%. Faster iteration cycles and less time spent fixing speed up time-to-market, letting you make money earlier and increasing the project's return on investment (ROI).

Long-term relationships with suppliers make it easier to negotiate prices and give priority to certain parts when they are in short supply. To build these kinds of relationships, both sides need to be able to communicate clearly, make accurate predictions about numbers, and respect each other's business needs.

Conclusion

By bringing digital interfaces into line with natural analog paradigms, circular Round LCD displays on Arduino completely change how people use embedded systems. Modern modules like our JC2424S012N_I have technical features that make them easier to use, like high resolution, simple SPI integration, and strong driver support. These features have removed historical barriers to adoption. Now, procurement teams can get in touch with dependable providers who offer low prices, thorough paperwork, and quick technical support. With development tools like Guition's visual design platform, development times can be cut from weeks to days while still allowing for the flexibility needed for custom implementations. When you're making industrial control panels, wearable tech, or smart home tools, circular displays make the user experience better in ways that regular screens can't. These modules are becoming more and more important in modern embedded system design because they are easier to use, look good, and are simple to integrate.

FAQ

1. What Arduino boards work with circular LCD displays?

Through SPI transmission, most versions of Arduino can work with circular LCD panels. The Arduino Uno, Mega, Nano, ESP32, ESP8266, and STM32 boards can all connect to the Guition JC2424S012N_I module without any problems. Make sure the voltages work with each other. For example, many circular screens need level shifters to work with 5V boards because they use 3.3V logic. The bare minimum of four SPI pins and power leaves enough GPIO for sensors, buttons, and other add-ons in complicated projects.

2. How difficult is programming circular display interfaces?

How hard programming is depends on how you do it. Managing pixel coordinates, drawing primitives, and refresh timing is hard for circular geometries when you use direct low-level coding. With its visual design tools and automatic optimization of code, the Guition development platform gets rid of this confusion. Using our libraries and sample code, most developers can set up simple interfaces in just a few hours. Developers with basic Arduino experience can still use advanced custom graphics, tho they may need to learn more.

3. Can circular displays operate outdoors in direct sunlight?

Good circle LCD panels, like our JC2424S012N_I, have a brightness of 350+ nits, which is bright enough to see outside in indirect sunlight and shade. Depending on the viewing point, direct, strong sunlight may make it harder to read. For uses that will be in full sunlight for a long time, reflective LCD screens or screens with higher brightness levels (500+ nits) are better. For the best outdoor performance in a range of lighting conditions, think about getting sensors that measure ambient light and automatic brightness adjustment.

Streamline Your Next HMI Project with Guition Round Display Solutions

Picking the right circular display supplier will speed up the development of your product and ensure its long-term dependability and support. Guition is an expert at providing full HMI solutions that work well with your embedded systems. We do this with the help of our own development platform, which gets rid of the usual complexity.

Our JC2424S012N_I model shows that we are dedicated to offering industrial-grade parts that are easy for hobbyists to integrate. GC9A01 driver optimization, a full set of software tools, and quick technical help put your project in a good situation to succeed from the first prototype to mass production. When it comes to making industrial equipment, IoT solutions, medical device prototypes, and smart home products, we work with embedded engineers, product managers, and research and development teams.

Guition is your best choice for a Round LCD display Arduino provider because we offer more than just hardware components; we also offer full ecosystem support. The drag-and-drop design tools, cross-platform debugging, and efficient code output in the Guition development software speed up the process of making UIs. Built-in WiFi and Bluetooth make it possible to do online repair and over-the-air (OTA) updates, which lower the cost of support and extend the life of products.

Our expert team is ready to help you with driver integration, making custom interfaces, and fixing problems as you work on your project. We know how hard it is for tech teams to meet tight deadlines and stick to a tight budget. Email us at david@guition.com to talk about your unique needs, ask for samples, or get prices for your next production run in bulk.
