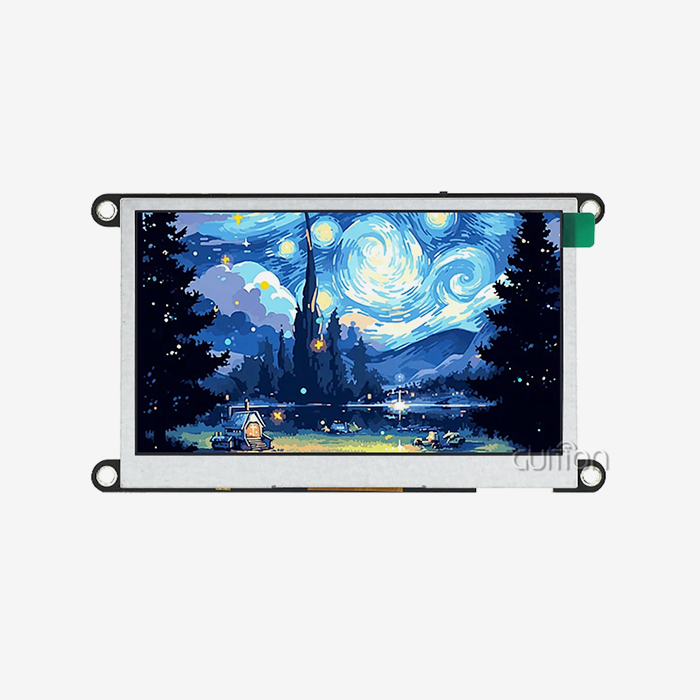

ESP32 S3 module LCD

Name: ESP32 S3 module LCD
SKU: N/A

Brand: GUITION
Model: ESP32-4827S043R
This LCD module uses ESP32-S3R8 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can reach 240MHz, 512KB SRAM, 384KB ROM, 8M PSRAM,Flash size is 16MB, The display resolution is 480*272, resistance touch. The module includes 4.3 inch LCD display screen, backlight control circuit, touch screen control circuit . Reserve the TF card interface ,IO port interface, this module supports development in arduino IDE, ESP IDE, Micropython and Mixly

Send Inquiry

Download

Product Description

ESP32 S3 Module LCD - High-Performance Display Solution for Your Smart Projects

Looking for a powerful display solution? Our ESP32 S3 module LCD combines cutting-edge technology with user-friendly design. This 4.3-inch shrewdly display module highlights the ESP32-S3R8 dual-core processor, conveying remarkable execution for your intuitively ventures. With coordinates Wi-Fi and Bluetooth network, this product makes it simple to construct associated gadgets. The module runs at 240MHz, incorporates 8MB PSRAM and 16MB Streak capacity, guaranteeing smooth operation for requesting applications. Whether you're a specialist or proficient designer, you'll appreciate the adaptable advancement alternatives through Arduino IDE, ESP IDF, and MicroPython platforms.

Technical Specifications

Parameter	Details
Brand	GUITION
Model	ESP32-4827S043R
Display Size	4.3 inch
Resolution	480×272 pixels
Main Controller	ESP32-S3R8 (Dual-core)
CPU Frequency	Up to 240MHz
RAM	512KB SRAM + 8MB PSRAM
Flash Memory	16MB
Display Driver	ILI6485
Color Support	16-bit RGB (65K colors)
Touch Type	Resistive touch
Effective Display Area	95.04 × 53.86mm
Module Dimensions	105.5 × 74mm
Viewing Angle	>45°
Operating Voltage	5V DC
Power Consumption	Approximately 260mA
Wireless Connectivity	Wi-Fi + Bluetooth
Expansion	TF card slot, GPIO interface
Development Support	Arduino, ESP IDF, MicroPython, Mixly

Key Features

Powerful Processing Capability

The dual-core ESP32-S3R8 processor conveys strong execution for your applications. You get dependable multitasking and quick reaction times.

Vibrant Display Quality

Experience wealthy, dynamic colors with 16-bit RGB bolster. The 480×272 determination guarantees fresh, clear visuals for your client interface.

Wireless Connectivity Built-in

Connect your ventures easily with coordinates Wi-Fi and Bluetooth. No extra modules needed.

Flexible Development Options

Choose your favored advancement environment. We bolster Arduino IDE, ESP IDF, MicroPython, and Mixly platforms.

Ready to Use

Save time with pre-loaded test programs. Fair plug in and begin investigating right away.

Expandable Storage

The TF card opening lets you include additional capacity for pictures, textual styles, and information files.

One-Click Programming

Upload your code easily with our simplified programming interface. No complicated setup required.

Professional Touch Interface

The resistive touch screen provides accurate input for your interactive applications.

Why Choose Our ESP32 S3 Module LCD

Comprehensive Software Support

Our Guition interface advancement computer program makes UI creation basic. You can construct proficient interfacing rapidly through instinctive drag-and-drop controls. Cross-platform online investigating spares your improvement time.

Remote Update Capability

Update your ventures remotely without physical get to. This highlight is idealize for sent installations.

Multi-language Support

Create global-ready applications with UTF-8 encoding and multi-language support built-in.

Rich Control Library

Access a total set of ready-to-use controls. Basically press to include and customize as needed.

Applications

Our ESP32 S3 module LCD works perfectly across various industries:

3D Printers: Construct natural control panels
Smart Domestic Gadgets: Make rich control interfaces
Medical Hardware: Plan clear, proficient displays
Automotive Frameworks: Create instrument clusters and charging station interfaces
Industrial Mechanization: Screen and control fabricating processes
Security Frameworks: Construct available control panels
Audio Gear: Plan cutting edge client interfaces
Handheld Gadgets: Make versatile control solutions
Commercial Kitchen Hardware: Create strong control panels
Air Quality Screens: display real-time information effectively

Applications

Key Advantages

Military-Grade Reliability

We fabricate to military-grade handle guidelines. Your ventures will run steadily for the long term.

Complete Development Resources

Get get to to comprehensive Arduino library capacities and test programs. Begin creating quickly with our documentation.

Flexible Customization

Need something particular? Our group gives personalized customization for structure, UI, computer program, and equipment concurring to your requirements.

Professional Technical Support

Our experienced R&D and benefit groups are prepared to help you all through your extend journey.

Why Choose Us

Shenzhen Jingcai Intelligent specializes in human-computer intuitively display arrangements. We're a fast-growing innovation venture with total R&D, generation, and deals capabilities.

Our product range covers displays from 1.28" to 21.5", giving you options for any project size. The proprietary Guition software platform streamlines your development process significantly.

We understand your challenges. That's why we've made our product both powerful and accessible. You don't need to be an expert to create professional results.

guition company

Quality Assurance

Every module undergoes rigorous testing before shipment. We maintain strict quality control throughout the manufacturing process. Your satisfaction is our priority.

Our products comply with industry standards and deliver consistent performance. We stand behind the reliability of every ESP32 S3 module LCD we produce.

Quality Assurance
