Why Is a Knob Display Module Replacing Traditional Controls?

Knob display modules are taking the place of conventional controls because they combine physical rotary input with real-time visual feedback, removing the element of guessing that comes with mechanical interfaces. Unlike regular knobs that don't show the state, these built-in devices put high-resolution circular screens right into the control surfaces. This lets engineers and workers see parameters right away while keeping the natural feel they trust. This coming together of analog precision and digital intelligence solves some major problems: it lowers operator error, allows for multi-function programming in small spaces, and supports remote diagnostics. These are features that traditional potentiometers and encoders just can't match in today's smart equipment ecosystems.

Understanding Knob Display Modules: What They Are and How They Work

The Architecture Behind Intelligent Rotary Controls

Human-Machine Interface (HMI) components like Knob display modules are very advanced. They combine a rotary encoder mechanism with a rotating TFT LCD or OLED display built into the control cap. This dual-feedback design changes the way users interact with systems in a basic way. The rotary encoder can accurately measure changes in angle up to 0.1 degrees, and the built-in display, which has a diameter of 1.28 to 2.1 inches, shows changing information visually through number values, color-coded status signs, and graphical options. The basic idea behind how it works is that the module and host microprocessor can talk to each other in both directions. The encoder sends quadrature signals through UART, SPI, or I2C connections when the knob is turned. At the same time, the host system sends rendering orders to the display driver, which updates the visible output in milliseconds. More advanced versions have capacitive touch features that let you do things like press to pick and move, which add more control options than just rotating.

Core Components and Integration Benefits

Modern knob display modules usually have more than one function packed into a small space. The screen's IPS technology allows for wide viewing angles, which is very important when workers are coming up to controls from different places. Backlight control circuits change the brightness on the fly, making sure that the screen can be read in a variety of lighting conditions, from dim control rooms to industrial panels that are in direct sunlight. When people touch the screen directly, capacitive signals are processed by the touch screen control circuits. This idea of unity is shown by Guition's GUITION JC3636W518C_I_Y. The ESP32-S3 dual-core MCU running at 240MHz is at the heart of this 1.8-inch circle module, which has a 58x58mm size but a resolution of 360x360. The ESP32-S3 design has 512KB of SRAM and 16MB of Flash, which is enough to store complex GUI code locally. The built-in WiFi and Bluetooth radios let you connect wirelessly without any extra parts, and the reserved TF card interface lets you store media. The Arduino IDE, ESP-IDF, MicroPython, and Guition's own GUI maker can all be used for development, so it can fit a wide range of engineering processes.

This level of integration has real benefits, such as lower bill-of-materials (BOM) costs because there are no longer any separate display drivers and encoder boards, easier PCB routing, and faster time-to-market thanks to standard mounting procedures. The module method also improves reliability. Fully laminated touchscreens don't let water in, and sealed encoder housings can handle shaking and temperature changes that weaken separate component assemblies.

Limitations of Traditional Controls and the Rise of Knob Display Modules

Why Mechanical Knobs Fall Short in Modern Applications

Mechanical potentiometers and basic encoders, which are examples of traditional rotating controls, have basic design flaws that make them less useful for modern equipment. Because there is no visible input, operators have to depend on outside signs, which makes their work harder and increases the number of mistakes they make. When a production line worker wants to change the speed of a mixer, for example, they have to look back and forth between the knob position and a faraway digital readout. This adds delay and confusion to important timing choices. A big problem that comes up again is mechanical wear. Potentiometers break down when the contact resistance changes because the carbon or wire-wound tracks corrode. Most lifespan rates are only 30,000 to 50,000 cycles, which isn't enough for high-use situations like HVAC thermostats or audio mixing machines where hundreds of changes are made every day. The cost of replacement keeps going up, especially for protected equipment that needs technicians to come out and cause downtime.

Traditional settings are even less flexible because of limits on configuration. As soon as you add a mechanical knob, it will always work in the same way and have the same reaction curve. To make tools work for different purposes, the hardware has to be redesigned, new panel cuts have to be made, and parts have to be swapped out. This lack of adaptability goes against the modular, software-defined design that modern product managers want for equipment groups that can grow as needed.

How Display-Integrated Controls Address Industry Pain Points

Through clever design, Knob display modules address these problems. By embedding the display, external readouts are eliminated, putting all state information at the point of contact. As soon as operators change a setting, they can see the new setpoint right there on the knob when they turn it to change the temperature. Ergonomics studies show that this direct feedback loop cuts the time needed for adjustments by 30 to 40 percent while also lowering the number of mistakes that happen in process control settings. Newer recording technologies have made things last longer. Premium modules with magnetic Hall-effect sensors don't need direct touch, so they can last for more than a million cycles without breaking down. The case of the encoder keeps out dust and water, so it stays accurate in tough conditions that would normally damage potentiometers. Maintenance times get a lot longer, which lowers the cost of running equipment that is placed in rural or hard-to-reach places.

Programmability changes tools that only do one thing into interface elements that can do many things. Through software updates, a knob display module can change how it works. For example, it can be set to control the volume while playing music and to adjust the equalizer when the user enters settings mode. The detent feel, the scaling of spin speed, and the graphic styles all change on the fly. Because of this, makers can lower the number of SKUs they keep on hand by standardizing on multipurpose parts instead of keeping application-specific mechanical versions on hand.

Key Applications and Industries Benefiting from Knob Display Modules

Smart Home and Consumer Electronics

Smart thermostats are a completely new way to use circular display buttons. Wall-mounted temperature controls need to look good and be easy to use at the same time. A Knob display module has a simple design, and users like the familiar rotary motion for changing the temperature. The built-in screen shows current readings, setpoint goals, and operating mode icons. The high-contrast screen can still be read in dimly lit hallways, and the sealed design means that years of handling won't damage the surface. More and more connected products use these platforms. Coffee makers have rotating screens that let you choose the strength of the brew and show you the extraction time and temperature curves while the machine is running. Air purifiers have buttons that show real-time AQI values and filter life percentages. This makes the user more interested by being more open. The small size fits on high-end utility panels where regular button rows or touchscreens would break up the design flow.

Industrial Control and Automation Systems

Knob display modules in operator control desks are very helpful for manufacturing equipment. These devices are used on CNC machine interfaces to change the feed rate. The worker turns the knob while seeing numerical updates to the spindle speed and visual load signs right where their hand is. This "eyes-free" feature is useful for precise tasks where workers need to focus on the behavior of the item instead of the control screens. In chemical and energy plants, rotary display buttons are used to manage setpoints in process tracking systems. When engineers change the temperatures or flow rates of reactors, they need to know right away that their orders are being carried out properly. Visual input keeps people from miscommunicating, which could be dangerous, and customizable detents provide tactile stops at important levels. Modules with wireless connection, like the GUITION JC3636W518C_I_Y, let you watch parameters from afar, so supervisors can check changes from the control room without having to go to the floor.

Medical and Laboratory Equipment

Diagnostic and analytical tools are increasingly asking for buttons that are built into the monitor. These buttons are used to change the gain and depth of an ultrasound machine. Sonographers change the settings while keeping their eyes on the patient and the screen. The sealed design meets strict cleanliness standards and can survive being wiped down with disinfectant many times without losing control. Programmable detents allow for haptic input, which lets workers confirm their actions even when they are wearing gloves. The ability to set more than one function is useful for laboratory centrifuges and heat cyclers. One knob changes the settings for speed, temperature, and time, and the screen updates to show the right units and ranges for each setting. This simplified interface cuts down on the time it takes to train research staff and the number of mistakes that happen when handling high-stakes samples.

Comparing Knob Display Modules with Alternative Interfaces

Functional and Ergonomic Differentiation

When judging interface systems, you need to look at their performance in a lot of different ways. Touchscreen panels are the most popular type of consumer gadgets because they are so flexible. Software updates can totally change how buttons are laid out and what they do. But touchscreens can be hard to use in commercial settings. Accidental activations happen in places that shake a lot, and wearing gloves or dealing with wet hands makes capacitive sensors hard to use. Display glare in direct sunlight makes it hard to see, and users have to take their attention away from their main jobs to make sure their inputs went through properly because there is no physical feedback.

Knob display modules keep the good things about mechanical functions for your body while adding visual information. Kinesthetic input is provided by the physical turn. Operators can feel changes in parameters by moving their hands, which helps them stay aware of their surroundings. Detent mechanisms that can be programmed through software make clear "clicks" at interval borders. This lets users change settings without seeing the screens by counting tactile pulses. This feature is very important in medical tools and automotive uses where operators can't take their eyes off the main tasks they need to do.

Traditional button arrangements with separate LED or LCD screens provide solid input, but they take up too much space on the panel. To do the same things that can be done with two programmable knob modules, a control station might need six buttons and a center monitor. The smaller size is important for equipment that needs to have a lot of panel room for things like safety interlocks, airflow, and connector arrays.

Economic Considerations for Procurement Decisions

Lifecycle economics is part of cost research, not just unit price. Basic mechanical encoders cost between $2 and $5 per unit, which makes them seem appealing at first. But this savings seems to go away when you consider the cost of external display parts ($8–15 for small LCDs), extra PCB space, assembly work, and complicated wiring. These parts are put together in a knob display module, which lowers the total cost of installation and increases dependability by having fewer mechanical contacts and connection points.

Maintenance costs are much lower for combined parts. Traditional potentiometers need to be replaced every 30,000 cycles, which adds to the costs of maintaining equipment. This is especially true for protected equipment, where service calls require taking apart the panel, replacing the cover, and recalibrating it. Magnetic encoder-based display units can work for longer than the equipment's working life, so there is no need to spend money on replacements. Buyers should think about this when comparing quotes: suppliers who offer full warranty support and advance replacement plans lower buying risk.

Prices for large orders of esp32 display module change from one seller to the next. For orders over 500 units, well-known makers offer tiered discounts, and they also offer customization services such as branded boot screens, modified mounting brackets, and software that is already installed. To make true total-cost-of-ownership comparisons, buyers should ask for detailed quotes that include lead times, minimum order amounts, and terms for after-sales support.

How to Procure and Integrate Knob Display Modules in Your Product Line

Supplier Evaluation and Selection Criteria

The first step in a successful buying process is to evaluate the supplier's technical skills, manufacturing security, and support infrastructure. Buyers should make sure that providers keep their ISO 9001 approval and use strong methods for managing quality. Ask for proof of the testing methods used. Reliable suppliers test modules for rotational life (making sure they can withstand more than 100,000 cycles), environmental stress (such as thermal shock, humidity exposure, and salt spray resistance), and EMI/EMC validation to make sure they won't interfere with sensitive RF components in host equipment. Transparency in lead times separates trustworthy partners from shady sellers. Standard Knob display modules should ship within two to three weeks for orders of less than 100 units. This time frame can go up to six to eight weeks for personalized versions that need software changes or mechanical tweaks. Suppliers who keep large product buffers show that they are committed to meeting customer supply plans. For high-volume orders, ask about consignment stocking programs. Qualified sellers will place goods at regional delivery centers, which allows for just-in-time processing and lowers your carrying costs.

Integration Best Practices and Development Workflows

For mechanical coupling to work, panel cutout tolerances and attachment retention must be taken into account. knob display modules usually define mounting hole patterns with an accuracy of 0.1 mm. For this level of accuracy, make sure that the processes used to make the panels are laser cutting or CNC machining. Punch operations may produce results that aren't uniform, so each one needs to be checked for fitting. Different types of retention exist. Threaded bezels offer safe mounting, but they need to be compatible with panel thickness. Snap-fit designs allow for easy assembly without tools, but they don't fight shaking as well. Standard microcontroller interface methods are used for electrical connection. Most UART links work at 115200 baud, which is fast enough for 10 to 20 frames per second of GUI changes. When showing video or complicated images, SPI connections let you get faster refresh rates. Designers should make sure that the MCU has enough processing power to display the GUI. Modules with built-in graphics drivers, like the ESP32-S3 in Guition's product line, take care of this task, freeing up host CPU resources for application logic.

Conclusion

The switch from old-fashioned mechanical controls to Knob display modules is part of a larger trend toward smart, software-defined interfaces that make things easier for users and lower costs over time. These built-in devices get around some of the biggest problems with traditional designs by giving you instant visual feedback, programmable features, and better longevity that meet the needs of modern tools. Industries like medical devices, smart home products, and industrial systems all know that these units can help them run more efficiently and save money. As procurement managers and design engineers look at next-generation HMI solutions, Knob display modules offer great value because they combine multiple functions into one module, make integration easier, and can be used in any future situation, which mechanical interfaces can't do. The technology is now stable enough to be used by most people, with the help of dependable sources that offer full development ecosystems and global support infrastructure.

FAQ

What specific advantages do knob display modules provide over traditional rotary encoders?

Knob display modules show parameter values, operating modes, and state signs right at the control point, so there is no cognitive gap between input and feedback. Operators can check changes right away without having to look at multiple screens, which cuts down on mistakes and speeds up work. Programmability lets a single gadget do more than one thing for different types of products, which simplifies stocking.

How difficult is integration into existing product designs?

Modern modules use the same ports that embedded programmers use every day, like UART, SPI, and I2C. For mechanical mounting, standard panel cutouts are used, which usually call for holes with a width of 22 mm to 30 mm and standard holding methods. GUI development tools, such as Guition's platform, which lets you create interfaces with drag-and-drop and launch them with just one click, make software integration a lot easier.

What warranty and support should buyers expect?

Usually, reputable sellers offer 12 to 24-month warranties that cover flaws in the manufacturing process and broken parts. Support should include thorough technical documents, example designs, and quick help from application engineers during the merging stages. During the supplier review process, make sure you understand the return policies, advance replacement choices, and regional service centers.

Partner with Guition: Your Trusted Knob Display Module Supplier

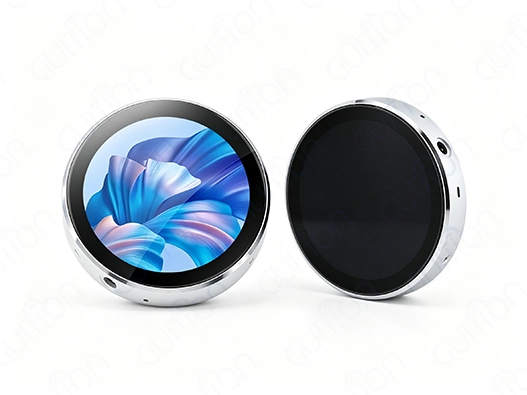

Guition specializes in providing advanced HMI display solutions that shorten the time it takes to make a product and make engineering simpler. The GUITION JC3636W518C_I_Y, which has an ESP32-S3 processor, is an example of one of our Knob display modules. It has WiFi, Bluetooth, and 360x360 resolution all in a small, developer-friendly box. We offer secondary programming in Arduino, ESP-IDF, and MicroPython environments. Our own Guition software supports drag-and-drop interface creation and remote over-the-air (OTA) updates. Our expert team can help you from the beginning, from prototyping to mass production, whether you're an automation systems integrator looking for reliable industrial controls or a smart device maker looking for scalable HMI solutions. Contact david@guition.com right away to talk about your application needs, get personalized samples, and find out why top makers around the world choose Guition as their Knob display module producer for mission-critical interface applications.
