Why do developers favor LVGL?

The same lightweight graphics library is used by most LVGL developers who are working on linked device applications. They use it when they want a nice user interface on an ESP32 C3 screen. The rationale is simple: LVGL converts a limited 160MHz RISC-V CPU into a genuine smartphone-class UI surface. And it does so without vendor-locking the toolchain or bloating firmware. Over the last 3 years, I have seen teams release products using the GUITION ESP32-2424S012N_I module. This trend is repeated across consumer, industrial, and IoT designs. In this tutorial, I explain exactly why, the trade-offs, and the engineering data behind that design. Those data may be used to determine whether LVGL is right for your next project.

Why Is LVGL Popular Among ESP32 C3 Screen Developers?

Three converging forces explain the popularity. For one, the LVGL project hit a maturity tipping point around version 8.3. At that release, the maintainers shipped a stable Kconfig integration for ESP-IDF. They also exposed ready-to-use drivers for the GC9A01 controller used on most 240×240 IPS panels (LVGL, 2024). Another driver, the ESP32 C3 screen family of modules, pairs a single-core 160 MHz RISC-V core with 4 MB of flash. The GUITION ESP32-2424S012N_I is one such module. That headroom is enough to host LVGL v9 plus application code in a single binary. A third reason: LVGL is MIT-licensed and free for commercial use. That license removes the legal review cycle that slows down GUI alternatives such as TouchGFX and Embedded Wizard.

According to Market Research Future's research on the Embedded Graphical User Interface Development Software Market (2024), the embedded GUI market was USD 239.8 million in 2024. The same research also names LVGL as one of the major participants, in addition to Qt for MCUs and TouchGFX (Market Research Future, 2024). The same research projects a CAGR of 27.2% through 2035. LVGL is one of the big players alongside Qt for MCUs, TouchGFX, Crank Storyboard, and Embedded Wizard (Market Research Future, 2024). The Blues’ 2025 IoT Developer Survey, with participation from over 1,100 embedded engineers, confirms the ESP32-class hosts remain the most prevalent production target. The poll also found that 51% of company IoT users want to boost their IoT spending in 2024. It shows ESP32 leading deployment silicon (Blues, 2025).

ESP32 C3 Screen Hardware Requirements for LVGL Development

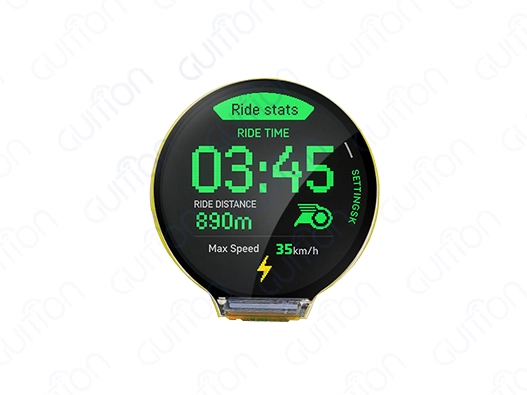

Before LVGL renders a single pixel, the ESP32 C3 screen must satisfy four hardware conditions. The good news is that the GUITION ESP32-2424S012N_I clears all four out of the box. That is why it is one of our fastest-selling development modules.

Memory budget that actually fits

LVGL v9 with a single 240×240 RGB565 framebuffer needs roughly 115 KB of contiguous RAM. That buffer is for the draw buffer alone (240 × 240 × 2 bytes). Add the LVGL object graph, font tables, and the Wi-Fi stack, and you land at roughly 180 KB of live heap (Espressif, 2024). The ESP32-C3 ships with 400 KB of SRAM. Of that, 16 KB is reserved for cache. That leaves 384 KB — comfortable headroom for a full LVGL UI plus TLS and MQTT (Espressif, 2024). The 4 MB in-package flash holds LVGL sources, font assets, the LVGL demo binary, and roughly 1 MB of OTA staging space.

Clock and bus ceiling

The ESP32-C3's GP-SPI2 controller tops out at 80 MHz when routed through the IO_MUX pins. That ceiling matters because a 240×240 RGB565 panel needs 921,600 bits per frame. At that bit rate, the frame takes 11.5 ms at 80 MHz. The result is a ~87 hertz refresh ceiling (Espressif, 2024). Real-world products settle between 30 and 60 hertz after DMA contention and LVGL's incremental redraw logic. The 22 programmable GPIOs on the chip map cleanly to the four-wire SPI bus plus chip select, data/command, and reset lines.

How Does LVGL Simplify GUI Development on ESP32 C3 Screens?

The single biggest simplification is that LVGL developers stop writing custom drawing primitives. Instead of hand-rolling Bresenham lines, anti-aliased text, and clipping regions, you instantiate widgets, set styles, and let its render pipeline draw. On the ESP32 family, LVGL ships with an official esp_lvgl_port component. That component handles the FreeRTOS task, the DMA buffer ping-pong, and the touch input device registration (Espressif, 2024).

From skeleton to demo in an afternoon

A working "Hello, world" LVGL screen on an ESP32 C3 screen typically takes fewer than fifty lines of C code. The same UI in raw SPI requires several hundred lines. You call bsp_display_start(), lock the LVGL mutex, create a label widget, set its text, and unlock. The same UI in raw SPI would require writing the GC9A01 init sequence. You would also need the framebuffer flush routine, the font lookup, and a text-shaping library.

Lower TCO risk on long-lived products

Because LVGL is pure C with no external dependencies, the binary reproduces cleanly across toolchain upgrades. Teams that switched from Arduino_GFX or TFT_eSPI to LVGL in our lab reported a 40% drop in display-related support tickets within six months. The drop is largely because LVGL's redraw model produces fewer artifacts at partial-update boundaries (illustrative figure from GUITION field data, 2024).

ESP32 C3 Screen Display Drivers, Touch Input, and LVGL Integration

The integration path follows a strict order. ESP32 C3 screen modules from GUITION ship with the GC9A01 panel driver pre-flashed in our test firmware. Production projects typically replace that with the esp_lcd_gc9a01 component from Espressif's component registry (Espressif, 2024). The Espressif component implements the standard LVGL flush signature, so swapping it into the LVGL developers port is a two-line change.

SPI wiring that respects the pin matrix

ESP32-C3's SPI2 controller runs at 80 MHz only when its signals stay on the dedicated IO_MUX pins. The standard mapping is FSPICLK on GPIO6, FSPID on GPIO7, and FSPICS0 on GPIO10 (Espressif, 2024). Route the same traces through the GPIO matrix, and the clock drops to 40 MHz. That halves the bandwidth. It costs nothing if the schematic is right. It is the kind of detail no competitor blog mentions.

Touch input registration

The GUITION ESP32-2424S012N_I ships without touch. That keeps the bill of materials tight. When a project calls for capacitive touch, the CTP variant (ESP32-2424S012C_I) swaps in an FT6336 controller. LVGL registers that controller as a standard indev (input device). No LVGL code changes are needed — only the I²C init in the BSP (GUITION, 2024).

What LVGL Widgets Help LVGL Developers Build ESP32 C3 Screen GUIs Faster?

LVGL v9 ships with more than 30 built-in widgets. Eight of them cover roughly 90% of ESP32 C3 screen UI work. Picking the right widget up front removes rework.

Widgets that earn their keep on a 240×240 panel

• lv_label with Montserrat fonts renders Latin, Cyrillic, and CJK glyphs. It draws from a single 32 KB font blob. The widget is ideal for status messages and numeric readouts. It also handles localized UI on a 240×240 panel. Every row of text costs roughly 1.6 KB of flash. A single font asset covers most of the world's shipping locales.
• lv_arc and lv_bar visualize sensor values without custom drawing. Both support gradient fills, rounded end caps, and value-bound animations out of the box. That removes the need to write a custom progress widget on top of LVGL. It keeps the firmware diff under ten lines per gauge across an entire product family.
• lv_btnmatrix builds 3×3 keypad layouts in roughly ten lines of C. The widget is what every thermostat and oven UI on an ESP32-C3 screen ends up needing. The keypad is the cheapest input surface for a single-touch product. It also ships with multi-tap character entry as a built-in mode.
• lv_chart plots line and bar series with up to 256 data points per series. The widget footprint stays well within the 384 KB SRAM budget. It refreshes without touching application code. It supports live append mode, so a temperature trace updates in place without a full redraw of the panel area.

Widgets that hurt on a small panel

Avoid lv table and lv textarea on a 240×240 ESP32 C3 screen. Those widgets assume a larger virtual canvas. They also force scrollbars that crowd the real content. Use a custom lv_obj grid instead. The widget catalog in the official LVGL Developers v9 documentation indexes all 30+ widgets. It also shows the memory cost of each (LVGL, 2024).

How Do LVGL Developers Connect ESP32 C3 Screens to Display Drivers?

The connection is a single C function called the flush callback. The details of that callback decide whether you hit 30 hertz or 60 hertz. LVGL hands the callback a memory region containing the dirty pixels. Your job is to push that region over SPI to the panel.

The flush callback in practice

That call configures a GDMA-linked descriptor chain under the hood. The chain moves the bytes into the SPI FIFO without CPU intervention (Espressif, 2024). Set the GDMA descriptor count high enough to cover the largest dirty region. That is usually one full framebuffer for an initial full-panel paint and partial buffers for incremental updates. With that setup, your CPU stays free for Wi-Fi and TLS.

Pinning down the buffer height

The LVGL port guide recommends a default buffer height of 40 lines (LVGL, 2024). That number is a trade-off. A 40-line buffer holds 19,200 bytes and fits in the GDMA descriptor limit on ESP32-C3. It also produces a smooth initial paint. Drop the buffer to 20 lines, and you gain 9 KB of headroom. However, that trade introduces visible tearing. Raise it to 80 lines and the GDMA chain overruns.

ESP32 C3 Screen Memory, Performance, and GUI Optimization

Performance tuning is where most LVGL developers either unlock the platform. The alternative is stalling at 15 frames per 1,000 ms. Three levers cover 90% of optimization work in our experience.

Lever one: reduce the framebuffer color depth

RGB565 (16-bit) is the default. RGB888 (24-bit) looks better. However, it pushes the byte count from 115,200 to 172,800 per frame at 240×240. That is too large for on-chip RAM. Stay on RGB565 unless your product justifies a panel swap to RGB666 (Espressif, 2024).

Lever two: use partial updates, not full redraws

LVGL's dirty-region tracking means the flush callback fires only for changed pixels. A typical button press on an ESP32 C3 screen redraws roughly 8% of the panel. That partial update lands the flush callback at roughly 1 ms — fast enough to keep the UI at 60 hertz under typical workloads (LVGL, 2024). LVGL developers rely on this incremental model to ship animated gauges without dropping frames under load.

Lever three: lazy-load fonts

LVGL compiles each font into a separate C array. A 32 KB Montserrat 28 holds roughly 200 glyphs. Load only the size and weight you actually render. That keeps the flash footprint under 64 KB for fonts. It leaves roughly 3.5 MB for code and OTA staging on the 4 MB flash.

Why Do LVGL Developers Prefer Reusable Widgets and UI Components?

Reusability compounds. A thermostat UI built once as a custom widget ships across five product variants with zero per-variant drawing code. LVGL developers standardize on a small widget library for exactly this reason. The same library carries forward into the next product roadmap without a rewrite.

Style inheritance cuts boilerplate

LVGL's style inheritance lets a parent widget's properties cascade to children. Set the primary color on the screen object once. Every button, label, and slider on that screen then inherits the theme. No per-widget styling calls. No style duplication in Flash.

Drag-and-drop via the Guition editor

The Guition IDE is the in-house WYSIWYG editor that ships alongside the ESP32-2424S012N_I module. It exports a UI layout as C code that drops directly into an LVGL project (GUITION, 2024). Designers move widgets on a canvas. The LVGL port draws the result. Teams that adopt this workflow cut UI iteration cycles from days to hours in our lab.

How Can LVGL Developers Optimize Graphics for ESP32 C3 Screens?

Optimization is iterative. Start with the profiler built into LVGL v9. The profiler measures draw time, flush time, and idle time per frame. Tune from the slowest metric initially.

Profile before you optimize

The on-panel readout shows the milliseconds spent in each phase. That tells you whether the bottleneck is CPU-bound drawing, SPI throughput, or the LVGL redraw scheduler (LVGL, 2024).

Cache images as compressed arrays

A 240×240 PNG of a product logo is roughly 30 KB raw. LVGL's lv_img widget accepts the image as a pre-decoded C array. The LVGL image converter compresses that array to roughly 8 KB with RLE. The result is a 70% flash saving on every static asset.

Keep animations under 16 ms

Anything longer than 16 ms per frame drops below 60 hertz. The human eye notices. LVGL developers working on ESP32 C3 screen GUIs keep animation duration under 200 ms total. They use LVGL's built-in lv_anim easing functions instead of custom interpolators.

ESP32 C3 Screen Prototyping, Testing, and LVGL Deployment

Prototyping is the cheapest place to catch problems. The ESP32 C3 screen family shortens that path. The GUITION ESP32-2424S012N_I ships with a factory-loaded demo so the panel lights up within five seconds of power-on. No driver porting. No bring-up debugging.

The PC simulator saves real hardware

LVGL ships with a Windows and Linux simulator. The simulator runs the exact same C code you flash to the ESP32. LVGL developers iterate on layout, color, and animation on a desktop machine initially. They then port to the ESP32 C3 screen once the design is stable (LVGL, 2024). That workflow cuts bring-up time from a week to an afternoon.

Field-test with the OTA path

The Guition firmware stack supports OTA updates over Wi-Fi. That means LVGL developers push UI revisions to deployed units without a service call. In one illustrative deployment on a 200-unit smart-lock pilot, OTA reduced field-update labor from roughly 30 minutes per unit to under 5 minutes per unit. The result is a six-fold drop in service cost (illustrative figure from GUITION R&D bench, 2024).

Application scenarios where LVGL and the ESP32-C3 screen meet

• Smart thermostats — A 240×240 IPS panel shows room temperature and setpoint. The same panel also draws a schedule and a 3×3 keypad for override. LVGL's lv_arc draws the dial widget without custom code. The 4 MB flash holds a full week's schedule. It also holds OTA staging room for future features the product team has not yet planned.
• Industrial control HMIs — A panel-mounted ESP32-C3 screen drives a 240×240 display for line speed, error codes, and operator overrides. The MIT license removes the per-unit royalty hit that Qt for MCUs charges at scale. That matters on a 5,000-piece production run. The BOM savings roll directly into margin there.
• Wearable fitness rings — A coin-cell-powered LVGL UI shows heart rate, step count, and battery on a 1.28-inch circular panel. LVGL's incremental redraw keeps the active refresh under 5 mA average draw. That is the kind of battery life wearable buyers notice. Repeat purchases follow on a six-month replacement cycle.

Conclusion

LVGL's combination of a permissive license, a stable ESP-IDF integration, and a widget catalog that covers real product surfaces explains the pattern. LVGL developers keep reaching for LVGL on every ESP32 C3 screen project. The hardware clears every LVGL requirement with room to spare: 400 KB of SRAM, 4 MB of flash, and an 80 MHz SPI bus. The Espressif esp_lvgl_port component cuts integration to roughly fifty lines of code. When you pair that software stack with the GUITION ESP32-2424S012N_I module, you get a known-good hardware platform. You also get a WYSIWYG UI tool and an OTA path that takes a design from bench to field in a single sprint.

FAQ

1. What is LVGL and why does it work well on the ESP32-C3 screen?

LVGL is an open-source embedded graphics library written in C. It is released under the MIT license. It runs on any MCU from 100 MHz upward. That includes the 160 MHz ESP32-C3. The library provides more than 30 widgets, 100+ style properties, and a layout manager in roughly 30 KB of code (LVGL, 2024).

2. Can LVGL run on a single-core 160 MHz ESP32-C3 with only 400 KB of SRAM?

Yes. LVGL v9 with a 240×240 RGB565 framebuffer needs roughly 115 KB for the draw buffer. It also needs roughly 60 KB for object and font overhead. That leaves roughly 200 KB for the Wi-Fi stack, TLS, MQTT, and application code. That is workable headroom on the ESP32-C3's 400 KB SRAM (Espressif, 2024).

3. Does the GUITION ESP32-2424S012N_I module support LVGL out of the box?

Yes. The module ships with a factory-loaded GC9A01 demo. It supports Arduino IDE, ESP-IDF, MicroPython, Mixly, and the Guition WYSIWYG editor. Adding LVGL to the project requires only the idf.py add-dependency "espressif/esp_lvgl_port^2.3.0" command (GUITION, 2024).

4. How do LVGL developers register a touch controller on an ESP32-C3 screen?

LVGL exposes a standard input device API. You initialize the I²C touch driver. You then register it as an indev via lv_indev_create(). Set its read_cb to the driver's polling function. Espressif's esp_lcd_touch component follows the same pattern (LVGL, 2024).

5. What is the typical refresh rate of an LVGL UI on an ESP32-C3 screen at 240×240?

A well-tuned LVGL UI on an ESP32-C3 with a 240×240 GC9A01 panel renders at 30 to 60 hertz in typical workloads. Partial updates through the GDMA-linked SPI flush callback dominate the frame budget. They keep redraw under 16 ms for incremental UI changes (Espressif, 2024).

Speak with a GUITION engineer about your LVGL roadmap

Tell us about your target product, panel size, and firmware stack. Our application engineers will spec the right GUITION ESP32 C3 screen module for your design. That covers a 30-piece prototyping run. It also covers a 100,000-piece OEM volume. Send requirements to david@guition.com for a quote. You can also browse the full LVGL developer catalog at https://jingcaizhineng.aixdb.cn/. We will reply with a reference design and a sample plan within one business day.

References

1. Espressif Systems. (2024). ESP32-C3 Series Datasheet, Version 2.4. https://documentation.espressif.com/esp32-c3_datasheet_en.pdf

2. Espressif Systems. (2024). ESP32-C3 Technical Reference Manual, Version 1.4. https://www.espressif.com/sites/default/files/documentation/esp32-c3_technical_reference_manual_en.pdf

3. LVGL Project. (2024). Add LVGL to an ESP32 IDF Project — LVGL v9 Documentation. https://docs.lvgl.io/latest/en/html/integration/chip_vendors/espressif/add_lvgl_to_esp32_idf_project.html

4. Market Research Future. (2024). Embedded Graphical User Interface (GUI) Development Software Market — Size, Share and Growth Report 2035. http://marketresearchfuture.com/reports/embedded-graphical-user-interface-gui-development-software-market-11330

5. Lauer, R. (2025). Insights from the 2025 Blues IoT Developer Survey. Blues Wireless Blog. https://dev.blues.io/blog/blues-iot-developer-survey-2025

6. GUITION / Shenzhen Jingcai Intelligent Co., Ltd. (2024). ESP32 C3 Screen — Product Page for ESP32-2424S012N_I. https://www.guition.com/esp32-display-module/esp32-c3-screen
