OEM Guide to 1.28 Inch ESP32C3 Display Modules

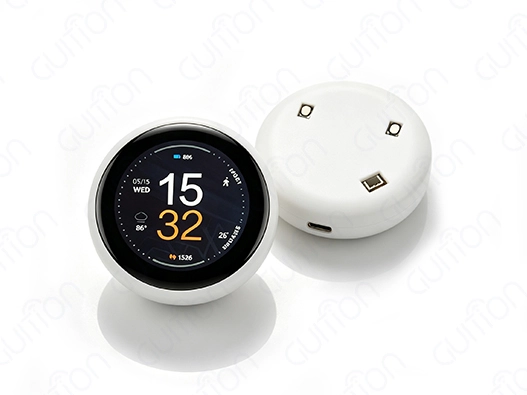

If you are sourcing a compact, wireless-capable HMI component for your next product line, the 1.28 inch ESP32C3 display module deserves serious evaluation. The GUITION model ESP32-2424S012C_I_Y(W) integrates an ESP32-C3-MINI-1U single-core RISC-V processor, a 240×240 IPS circular LCD with capacitive touch, Wi-Fi, and Bluetooth 5.0 LE — all within a white-shell enclosure smaller than a coin. With 4MB Flash, 400KB SRAM, and support for Arduino IDE, ESP-IDF, MicroPython, and Mixly, this module gives OEM teams a real head start on product development without heavy low-level coding investment.

Understanding the 1.28 Inch ESP32C3 Display Module

Display Technology and Core Specifications

The 240×240 IPS screen is powered by the GC9A01 driver IC through a 4-wire SPI interface. It has a contrast ratio of about 1:1,000 and a brightness range of 350 to 400 nits. The 1.28 inch ESP32C3 display module circular display can work in temperatures between -20°C and +70°C, making it suitable for both semi-industrial and market product settings. As its main part, the ESP32-C3 RISC-V processor can go as fast as 160MHz. This gives embedded engineers enough working power for LVGL-based user interface drawing.

Interface Options and Physical Form Factor

For display data, the module mostly talks over SPI, and for the CST816S sensitive touch driver, it talks over I2C. Its small, round shape works well with round-face enclosures, which makes mechanical design easier for things like smart knob controllers, circular instrument panels, and wearable tech. System builders have a choice when it comes to linking to external sensors or expansion boards thanks to standard IO port headers.

Reading Datasheets and Programming Environments

The Espressif ESP32-C3 Technical Reference Manual and the GC9A01 display driver documentation should be read by OEM developers to understand register maps and SPI timing standards. The module comes with test firmware that has already been programmed, so teams can check the display output right away. Supported IDEs include Arduino, ESP-IDF, MicroPython, and Mixly. This makes it easier for teams with different software tastes to learn how to use the esp32 display module. Sample libraries are also available for quick prototyping.

How to Effectively Integrate 1.28 Inch ESP32C3 Displays into Your Product

Defining Requirements Before Integration

Plan your power budget carefully before you commit the 1.28 inch ESP32C3 display module to a schematic. During busy Wi-Fi RF bursts, the ESP32-C3 can draw up to 350mA peak. This means that your LDO regulator needs to be able to safely handle over 500mA to keep the power from going out. Make sure that the module can work in temperatures between -20°C and +70°C, and check to see if a conformal PCB layer is needed for high-humidity placements.

PCB Layout and Signal Integrity Best Practices

Good choices for PCB structure have a huge effect on how well a show works. Don't make SPI lines too long or too short. This will help keep the signals straight at 80MHz clock speeds. Put buffering capacitors close to the VCC pins on the module to stop voltage spikes when the RF is active. To keep electromagnetic interference from getting into your product, put a ground pour between the antenna area and the analog signal traces if it works near electric motors or switching power supplies. Here are the core integration practices recommended for this display module:

• SPI DMA flushing: Enable the ESP32-C3's SPI DMA channel when using LVGL to achieve 30+ FPS without stalling the main application loop, which matters for real-time industrial gauge displays.
• Double buffering: Allocate two LVGL draw buffers in SRAM to prevent screen tearing during fast data updates, a common issue in MQTT-driven IoT dashboards using this circular LCD module.
• I2C touch polling rate: Set the CST816S polling interval correctly. Too much polling wastes CPU cycles, and too little polling makes touch lag noticeable in smart home products that people use.

If you regularly follow these three steps, you'll cut down on testing times and after-sales support costs, which are both very important for OEM teams that have to meet tight production deadlines.

Firmware Optimization for Stable Performance

You should use optimized display libraries like Arduino GFX or LVGL instead of general graphics libraries. SPI traffic is cut down a lot when the active screen refresh area is limited to only changed areas. For battery-powered items, use the ESP32-C3's deep sleep mode, which uses less than 5µA, along with the CST816S controller's wake-on-touch signal to make the field device battery last longer.

Comparing 1.28 Inch ESP32C3 Display Modules: Selecting the Best Option for Your IoT Project

OLED vs. IPS TFT vs. LCD for This Form Factor

In dark places, OLED screens have a lot of contrast, but they can get burned in static-display industrial gauges. For rectangular panels, standard TFT LCD modules usually use the ST7789 driver. For circular panels, the GC9A01-based module in the GUITION ESP32-2424S012C_I_Y(W) offers wide viewing angles and consistent color reproduction, making it better for instrumentation and smart knob UIs where off-axis readability is important.

Supplier and Brand Landscape

Waveshare and Makerfabs both have GC9A01-based circular display breakout boards, but they need an external MCU, which adds to the number of parts needed and takes up more space on the board. LilyGO's TTGO line combines ESP32 with screens, but they are made for a different size range. The GUITION 1.28 inch ESP32C3 display module has an MCU, a display, wireless connectivity, and capacitive touch all on a single PCB, which cuts down on the number of parts needed and makes managing suppliers easier for teams that buy in bulk.

Procurement Considerations: MOQ, Pricing, and Sourcing

When buying from an OEM, checking MOQ levels early on helps keep production schedules safe. When you buy directly from a manufacturer of 1.28 inch ESP32C3 display modules like GUITION, you can usually get better pricing and more customization options than you would from a marketplace reseller. Check to see if the seller offers documents in more than one language, long-term supply guarantees, and over-the-air (OTA) firmware upgrades. These are all things that affect the total cost of ownership, which is different from the unit price.

Optimizing Performance and Longevity of 1.28 Inch ESP32C3 Display Modules

Power Management Strategies

Controlling power actively increases product life and lowers display damage caused by heat. The most efficient way to save power is to set the backlight PWM to the lowest brightness that works in the lighting conditions. When you combine the ESP32-C3's deep sleep (<5µA) with display sleep mode, battery-powered smart devices can work for weeks on a single charge while still being able to reconnect to Wi-Fi.

Driver and Library Optimization

When you use the right version of the GC9A01 driver, drawing errors on the circular monitor are avoided. Set the SPI bus clock to 80MHz and make sure DMA is on for LVGL deployments. When only a data value changes, don't redraw the whole screen. Partial refresh greatly lowers bus load. When testing, these firmware choices are often ignored, but they become very important when making a lot of these 1.28 inch ESP32C3 display modules.

Environmental Protection for Industrial Deployment

Waterproofing is not part of the standard ESP32 Display Module. To get IP65 ingress protection for outdoor or wet areas, coat the PCB with a conformal layer and think about optical bonding for the glass. Working in the recommended temperature range of -20°C to +70°C keeps the contrast of the IPS screen from fading and the solder joints from wearing out. Before the final design freeze, procurement teams should check this detail with their mechanical design counterparts.

Purchasing Guide: How to Buy 1.28 Inch ESP32C3 Display Modules Confidently

Evaluating Supplier Specifications and Capabilities

Verify that public specs, such as flash size, SRAM, SPI clock, and touch controller model, can be compared to official component datasheets when evaluating a supplier of 1.28 inch ESP32C3 display modules. Not just marketing sheets, but production-level paperwork should be asked for from suppliers. For example, GUITION's ESP32-2424S012C_I_Y(W) model makes it clear that it has 4MB Flash, 400KB SRAM, the GC9A01 driver, and the CST816S touch controller. This gives procurement engineers exact information for the bill of materials (BOM) and risk assessment.

Warranty, Support, and Customization Options

The speed of development is directly linked to the quality of technical help. Make sure the supplier provides clear documentation, example code for IDEs, and quick engineering support. If you are working on an OEM project, find out if PCB-level customization, private marking, or changed IO setups are possible. Long-term supply reliability, which includes backup plans for getting components, is a must for companies that make goods that have sales cycles that last more than one year.

Managing Lead Times and Bulk Order Logistics

Get written promises of production wait times before making large orders. Make sure the packaging meets the requirements to avoid ESD or mechanical damage during international shipping. In comparison to third-party reseller platforms, a reliable 1.28 inch ESP32C3 display module sold directly from the factory usually has shorter wait times and better quality tracking.

Conclusion

The GUITION ESP32-2424S012C_I_Y(W) is a small chip that has a 160MHz RISC-V processor, a 240×240 IPS circle display, capacitive touch, Wi-Fi, and Bluetooth 5.0 LE all in one. This 1.28 inch ESP32C3 display module, as an advanced ESP32 Display Module, eliminates the need for multiple separate components and reduces development time and BOM complexity for OEM teams working on industrial automation, medical devices, smart homes, and IoT applications. Instead of just looking at unit price, you should judge sellers on how clear their specifications are, how good their support is, and how reliable their supplies are. This will help your product get off to a good start when it hits the market.

FAQ

Q1: Can I achieve 30+ FPS on this display module using LVGL?

Yes. Set the SPI rate to 80MHz and turn on the ESP32-C3's SPI DMA channel. For real-time data displays, use double buffering in LVGL to keep update rates smooth and stop tearing on the 1.28 inch ESP32C3 display module.

Q2: Does the ESP32-C3 in this module support Bluetooth Classic for audio?

No, the ESP32-C3 only works with Bluetooth 5.0 Low Energy (BLE). It's good at sending data, but it doesn't work with Bluetooth Classic BR/EDR audio streaming.

Q3: How is the circular display area handled in software?

In the eyes of the GC9A01 driver, the screen is just a 240×240 square buffer. Make sure all of the user interface's parts are within 120 pixels of the screen's center so that the content fits inside the visible circular area.

Q4: Is this module suitable for outdoor applications?

The basic section does not keep water out. To get IP65+ protection against dust and humidity, the PCB needs to be coated with a conformal layer, and the monitor needs to be optically bonded.

Q5: What development environments does this module support?

The GUITION ESP32-2424S012C_I_Y(W) works with Arduino IDE, ESP-IDF, MicroPython, and Mixly, which are the main embedded programming workflows that professional engineering teams use.
