Why Choose a 7 Inch TFT LCD Display Module for OEM Projects?

One of the components that always draws the attention of engineering teams looking for the ideal display component for industrial, medical, and consumer industries is the 7 inch TFT LCD display module. This is a sweet spot for practicality — big enough to be able to display complex UI elements in a legible way, yet small enough to fit within enclosures when space is at a premium. GUITION JC1060M070N_I model has an 800×480 resolution, 16.7M color depth, MIPI DSI interface, and a reliable JD9165 driver IC, all in a footprint of 164.9×100mm for demanding OEM settings.

Understanding the Advantages of 7 Inch TFT LCD Display Modules for OEM Use

The Right Size for Real-World Applications

A 7-inch TFT LCD display module is just in the productive middle ground between tiny integrated screens and huge panel displays. This form factor is popular among engineers who build 3D printers, charging stations, and medical aesthetics equipment because it offers enough pixel density without needing large enclosures. “Global industrial HMI procurement sees 7-inch panels in the top three most-specified sizes, according to IHS Markit's display market analysis.”

Color Performance That Holds Up Under Scrutiny

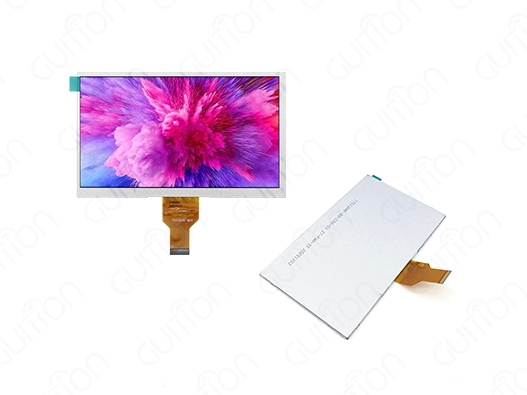

The TFT active-matrix screen of the GUITION JC1060M070N_I displays 16.7M colors. This color depth makes sure that UI gradients, status indicators, and diagnostic charts will appear correctly. In medical aesthetic devices and industrial control panels, misreading color signals may have direct consequences on results; thus, color fidelity is not a cosmetic issue – it is a practical need.

Durability Across Operating Conditions

This display module may be operated within a temperature range of -20 °C to 70 °C. This criterion is important in agricultural automation systems and outdoor charging stations where the ambient temperature might fluctuate substantially. The backlight system includes 27 LEDs, designed to provide a consistent dispersion of light, reducing hot spots and greatly extending backlight life compared to consumer-grade equivalents.

These performance features have made the 7-inch TFT LCD display module the typical standard for engineers involved in industrial automation, medical device research, and smart appliance manufacture.

How to Select the Right 7 Inch TFT LCD Display Module for Your OEM Project

Match the Interface to Your Architecture

The choice of interface determines the design of the whole system. The GUTION JC1060M070N_I features a MIPI DSI interface, which minimizes the number of IO pins needed on your microcontroller and provides high-speed data transfer with less electromagnetic interference than parallel RGB buses. If your platform is ESP-IDF, Arduino, or a custom embedded Linux stack, MIPI DSI integration is clearly documented and widely supported.

Evaluate Resolution Against Your UI Complexity

This 7 inch TFT LCD display module has 800×480 pixels, enough to accommodate most industrial HMI layouts without scaling sacrifices. You may show sensor data, navigation menus, and status overlays all at once, live, without clutter. For projects where a greater density is required – for example, detailed waveform displays – you may have to look at 1024×600 or 1280×800 versions, but for most of the control panel and charging station interfaces, WVGA resolution works nicely.

Consider Environmental and Certification Requirements

OEM projects frequently have regulatory responsibilities. The minimum criteria target RoHS and REACH compliance for industrial-grade TFT LCD panels. If you are requiring a 7-inch display module for medical device integration, ensure your supplier can provide material declarations and batch traceability. Guition’s product documentation contains the compliance data, therefore lowering the administrative strain on your engineering and procurement teams.

Well-defined upfront = no expensive mid-project swaps and keeps your development schedule on pace.

Integration and Programming Essentials for 7 Inch TFT LCD Modules

Pin Configuration and Interface Wiring

The JD9165 driver IC on the JC1060M070N_I talks with a MIPI DSI interface in either a two-lane or four-lane configuration, depending on your host controller. It minimizes overall wire count compared to 24-bit RGB parallel connections and reduces the complexity of board architecture. Engineers designing tiny PCB solutions may lessen their routing load using the MIPI DSI interface on this 7-inch TFT LCD display module.

Platform Compatibility and Driver Support

Guition is compatible with several programming environments, including Arduino, ESP-IDF, and its own Guition UI development tool. This platform-agnostic technique means your embedded engineer will not need to rebuild display drivers when switching host microcontrollers between product generations. Guition software ecosystem has built-in cross-platform online debugging to reduce the time required to identify startup faults or refresh rate problems.

Practical Troubleshooting During Bring-Up

Typical challenges with integrating TFT LCD modules include the backlight not coming on, improper pixel clock settings, and display inversion. Guition offers the entire secondary development documentation for the initialization processes at the driver register level of the JD9165. And having a well-organized technical reference at the component level cuts bring-up time from days to hours, which has a direct impact on your time-to-market timetable.

Incorporating a 7-inch TFT display into your product becomes a predictable, organized engineering effort with the correct documentation, not a shot in the dark.

Bulk Procurement and Customization Opportunities for OEM Clients

Volume Pricing and Lead Time Planning

OEM procurement teams should understand the manufacturing capacity, minimum order quantities, and lead times of a 7 inch TFT LCD display module supplier before committing to a product roadmap. Guition provides a constant supply for the whole spectrum of display sizes from 1.28” to 21.5”, so your procurement team can consolidate display sourcing under a single supplier relationship, instead of many vendor accounts.

Requesting Samples Before Full Commitment

Samples enable your hardware team to test mechanical fit, electrical compatibility, and optical performance before committing to a mass buy order. The 164.9×100mm module dimensions of the JC1060M070N_I are straightforward to test in conventional 7-inch enclosure tooling. It also allows your UI designer to check if 16.7M color rendering is consistent with your design specs under your intended ambient lighting circumstances.

Customization Options Available Through Guition

Most OEM projects will need modifications beyond the normal module spec. Guition offers secondary development and modification at the level of software and hardware. This 7-inch TFT LCD display module manufacturer brings you the main customizable features as follows:

• Interface adaptation: The MIPI DSI interface may be adapted to the lane count and data rate needs of your host controller, minimizing the need for extra interface conversion gear.
• Software UI modification: The Guition development tool has drag-and-drop controls and supports multiple languages with UTF-8 encoding. It also has OTA remote upgrade functionality, so your product can get UI upgrades in the field without physical access.
• Temperature & Compliance Setup: For projects that need longer temperature ranges or special certifications, Guition’s technical staff may provide panel and backlight combinations to match your design target operating conditions.

These avenues to customisation mean that product managers and system architects may create distinct end products without the expense of starting from a blank piece of hardware.

Future Trends and Innovation in 7 Inch TFT LCD Display Modules

Higher Brightness and Power Efficiency

The industry is pushing backlight brightness above 1,000 nits for outdoor-readable displays while simultaneously reducing power draw through more efficient LED driver ICs. For OEM clients specifying 7-inch TFT LCD display modules in outdoor kiosks or field equipment, this trend means better sunlight readability without increasing battery or thermal management requirements.

IoT and Smart Connectivity Integration

Display modules are no longer passive output devices. Guition's product line integrates built-in WiFi and Bluetooth modules, enabling the display unit to participate directly in IoT data exchange. This architectural approach reduces BOM count by eliminating separate wireless modules and simplifies firmware maintenance through Guition's remote OTA upgrade support.

Modular Design for Long-Term Supply Assurance

The 7-inch display panel size uses mainstream glass masks from established panel manufacturers, which supports supply continuity of five to seven years — a critical factor for industrial equipment manufacturers who cannot afford mid-production lifecycle component substitutions. Guition issues Product Change Notifications in advance, giving your engineering team adequate time to qualify any future pin-compatible replacements.

Conclusion

The 7 inch TFT LCD display module earns its place in OEM product design through a consistent combination of practical screen real estate, broad interface support, and industrial-grade reliability. The GUITION JC1060M070N_I model, with its JD9165 driver IC, MIPI DSI interface, 800×480 resolution, and 16.7M color output, addresses the real technical requirements that engineers face in 3D printers, charging stations, medical equipment, and industrial control panels. Backed by Guition's development software, cross-platform compatibility, and OTA upgrade capability, this display module supports faster product development cycles and lower long-term maintenance costs.

FAQ

1. What resolution does the GUITION JC1060M070N_I support?

The JC1060M070N_I delivers 800×480 (WVGA) resolution across its 7.0-inch active area. This resolution supports clean rendering of industrial HMI layouts, status dashboards, and multi-parameter displays without requiring high-end GPU processing on the host controller.

2. Does this 7-inch TFT LCD display module include touch functionality?

No. The JC1060M070N_I is a display-only module without an integrated touch panel. If your OEM project requires touch input, you can pair it with an external capacitive or resistive touch overlay matched to the module's physical dimensions.

3. What interface does this module use, and which platforms support it?

The module uses a MIPI DSI interface driven by the JD9165 IC. Guition provides driver support for Arduino, ESP-IDF, and the Guition UI development environment, covering the most common embedded development platforms used in industrial and consumer OEM projects.

4. How does industrial-grade TFT LCD differ from consumer-grade panels?

Industrial-grade panels operate from -20°C to +70°C, carry backlight ratings exceeding 50,000 hours, and guarantee longer-term component availability. Consumer panels typically cap at 60°C and have shorter supply windows, which creates substitution risk in long-lifecycle OEM products.

5. Can Guition support multi-language UI for global deployments?

Yes. Guition's development software supports multi-language switching and UTF-8 encoding, which allows a single firmware build to serve different regional markets without separate UI development cycles.

Partner with Guition for Your Next OEM Display Project

Your OEM project deserves a display partner with proven hardware and accessible engineering support. Guition's 7-inch TFT LCD display module — the JC1060M070N_I — is available for sample evaluation and bulk order pricing. As a trusted 7 inch TFT LCD display module manufacturer, Guition covers everything from initial specification to remote OTA field updates. Contact our team at david@guition.com to request a sample or discuss your project requirements today.
