What Touchscreen Options Suit a 7 inch ESP32S3 display module?

When you choose a 7 inch ESP32S3 display module for a display project based on ESP32-S3, the selection is contingent upon the application environment, touch accuracy requirements, and development duration. It supports multi-touch, high sensitivity and easy integration with ESP32-S3’s I2C peripheral. Resistive touch is still a good option if you want to use a stylus or wear gloves. GUITION ESP32-8048S070C Reference Platform GUITION ESP32-8048S070C is a robust reference platform with integrated capacitive touch.

Understanding 7 Inch ESP32S3 Display Modules and Their Touchscreen Capabilities

Before you evaluate touch technologies, it’s useful to understand what the hardware can really accomplish and why this is relevant to your buying decision.

Core Hardware Architecture of the ESP32-S3 Display Platform

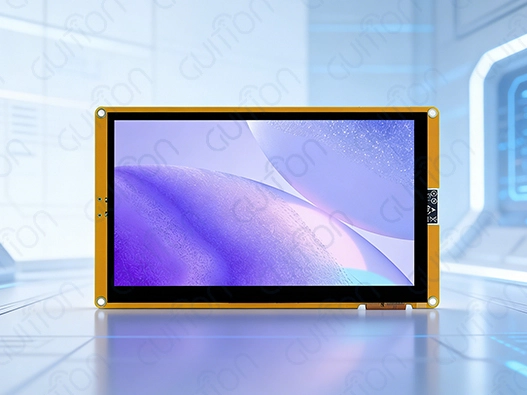

The GUITION ESP32-8048S070C is driven by ESP32-S3-WROOM-1 brain, two Xtensa LX7 processors (240 MHz). The device comes with 16MB Flash, 512KB SRAM, 384KB ROM and 8MB PSRAM. The parallel RGB interface allows the 800x480 LCD panel to run at frame rates over 30 FPS, bypassing the SPI latency that prevents smaller displays from reaching such speeds. This really allows the 7 inch ESP32S3 display module to run LVGL based user interfaces with fluid transitions.

Interface Protocols That Touch Controllers Use

This type of module's touch controls talk to each other over I2C (400 kHz standard, 1 MHz fast mode). The GUITION ESP32-8048S070C uses a GT911 processor that can handle up to five points of touch and is connected to two separate GPIOs, which are SDA, SCL, INT, and RST. The module officially works with four programming environments: Arduino IDE, ESP-IDF, MicroPython, and Mixly. This wiring setup has been well-documented in all of them.

Capacitive vs. Resistive: What the Hardware Allows

There is no resistive touch ADC peripheral on the ESP32-S3. For resistive screens to work, they need an external ADC or a driver IC like the XPT2046, which increases the number of parts needed. The ESP32-8048S070C and other production-grade modules are made with capacitive touch because it simplifies the bill of materials and speeds up development.

Factors to Consider When Choosing a Touchscreen for a 7 Inch ESP32S3 Display

When engineers pick the wrong touch technology, they often don't think about how much it will cost to redo work. There are three areas of review that regularly separate smart choices from costly ones.

Environmental Conditions and Durability

Agricultural automation terminals and industrial control panels such as the 7 inch ESP32S3 display module are exposed to chemicals, vibrations, dust, and water. They can work in temperatures ranging from -20°C to +70°C and have tempered glass edges that are at least 2.5D. The bezels are rated IP65. Resistive panels can still be used with a stylus while wearing thick gloves, but they get scratched more easily and stop working after a while of pressure cycles. Antimicrobial coatings are usually needed on medical monitoring equipment. These coatings can be found on PCAP glass overlays but not on regular resistive film.

Protocol Compatibility and Firmware Support

Every time a deep-sleep wake cycle occurs, a 7 inch ESP32-S3 display board's touch driver must be properly configured. Before the I2C bus can be used again, the GT911 needs to be restarted by pulling the RST pin. Many of the example sketches skip this step, which is the most common reason why touch doesn't work after sleep. It will save you hours of troubleshooting if you make sure that the platform you're considering has reset logic built into its board support package.

Procurement Constraints: Price, Lead Time, and Customization

The minimum order quantities, shipping wait times, and the availability of private-label or custom firmware choices should all be considered when assessing 7 inch ESP32S3 display module suppliers. When modules come pre-programmed with test apps, like the GUITION ESP32-8048S070C does, they take less time to check when they arrive. The TF card slot and open IO headers also lower the cost of integration by getting rid of the need for additional extension or storage boards.

Comparing Popular Touchscreen Options for 7 Inch ESP32S3 Displays

Not all touch technologies perform equally across application scenarios. Here is how the main options compare in practice.

Projected Capacitive Touch (PCAP)

PCAP is the standard choice for consumer electronics, smart home devices, and commercial kiosks. It supports multi-touch gestures (pinch, swipe, tap), requires no calibration, and operates at up to 120 Hz report rates on GT911. Glass surface hardness of 6H or above resists scratching in daily use. The GUITION ESP32-8048S070C ships with PCAP as its integrated touch layer, making it production-ready without additional sourcing.

Resistive Touchscreen

Resistive panels respond to any physical object—stylus, gloved finger, or pen—making them appropriate for environments where bare-finger operation is impractical. They cost roughly 20–35% less per unit than equivalent PCAP panels. However, they are single-touch only, require periodic recalibration, and have shorter mechanical lifespans (typically 1 million actuations vs. unlimited for glass PCAP). For energy management terminals or agricultural equipment where operators wear thick gloves, resistive touch may still be the right call.

LCD With PCAP Overlay vs. OLED With Touch

Most 7 inch ESP32S3 display module designs use IPS LCD because 7-inch OLED panels at 800×480 carry significantly higher unit costs and face burn-in risk in static-display applications like industrial dashboards. IPS LCD with a PCAP overlay delivers 300–400 nits brightness, wide viewing angles (±85°), and long backlight lifespans (>30,000 hours). These are the specifications embedded in the GUITION ESP32-8048S070C, making it well-suited for both bright office environments and dimly lit factory floors.

These technical differences directly affect total cost of ownership, maintenance schedules, and end-user satisfaction. Selecting the right combination from the start avoids mid-production redesigns.

Integration and Programming Guide for 7 Inch ESP32S3 Touchscreens

To get a touch screen to work right on the first try, you need to follow a clear setup process. Take a look at these important steps and common mistakes.

Pinout Mapping and Initial Connection

The GUIDE ESP32-8048S070C lets you use touch via I2C on pins that are clearly marked. I2C transmission is handled by the Wire package in the Arduino IDE. The i2c_master driver is the right place to start in ESP-IDF. Connect the INT pin to a GPIO that is set up as an input and has a built-in pull-up. Polling mode works even when the INT pin is not connected, but it uses more CPU power.

Touchscreen Calibration and Responsiveness Tuning

PCAP panels with GT911 don't need to be calibrated by the user in most situations. The GT911's internal flash stores configuration data. If touch coordinates are off after installing a custom overlay, you can fix the active area mapping by updating the configuration file with the GT911 setup tool. You can find instructions on how to do this in the GT911 programming guide. It takes less than 10 minutes.

Troubleshooting Common Issues

When engineers put together a 7 inch ESP32S3 display module, the three most common problems they see are: (1) touch not responding after deep sleep; this can be fixed by flipping the RST pin on and off when the screen wakes up; (2) GT911 uses either 0x5D or 0x14 for the I2C address, based on the state of the INT pin when the power is turned on; (3) ghost touches can be fixed by making sure the FPC wire is shielded and the PCB ground plane is continuous under the touch controller.

Making the Right Decision: Which Touchscreen Option Fits Your Project?

When looking at the details, the choice generally comes down to three types of situations.

Industrial Automation and Medical Monitoring

PCAP on tempered glass with the GT911 processor is the best way to go for industrial control screens and medical tracking gear. The GUIDE ESP32-8048S070C can handle this situation because it has an integrated PCAP layer, an 800x480 IPS panel, and Wi-Fi and Bluetooth built in for sending data from afar.

Consumer Electronics and Smart Home Devices

Multitouch gestures and smooth glass surfaces make smart home control screens and displays for smart appliances better. This time, PCAP wins. UI makers can make quick prototypes without moving toolchains because the module works with both Arduino IDE and MicroPython.

Rapid Prototyping and SME Product Development

A pre-programmed module with IO headers and TF card expandability speeds up the time it takes for expert leaders and R&D teams to make first-generation products. The burn-in and bring-up step is taken out of the development timeline because the GUITION ESP32-8048S070C ships ready to test.

Conclusion

Your operating system, firmware capability, and procurement priorities all play a role in selecting the best touchscreen for a 7 inch ESP32S3 display module. Most industrial, medical, and consumer uses can be met by PCAP over I2C with the GT911 controller. Resistive touch still works in places where people use gloves or styluses a lot. At the hardware level, the GUITION ESP32-8048S070C fixes most of these problems by coming with production-grade PCAP already built in, as well as a lot of IDE support and test firmware already loaded. This means that for business-to-business buyers, the set-up time is faster, the risk of integration is lower, and the supply chain is more predictable from a well-known hmi display module maker.

FAQ

What is the difference between capacitive and resistive touch on an ESP32-S3 module?

With capacitive touch, a bare finger can change the electrical field, and it can handle multiple touches. Resistive touch can tell when you press on it with your finger or a pen, but it can only sense one touch. The ESP32-S3 display board is 7 inches. PCAP links over I2C and doesn't need an ADC, but resistive screens do and need an external ADC chip, which makes wiring more complicated.

Can I program the GUITION ESP32-8048S070C touch interface in Arduino IDE?

Yes. You can use Arduino IDE, ESP-IDF, MicroPython, and Mixly with this package. The GT911 touch device and the Wire library talk to each other over I2C. Community libraries like LVGL and TouchLib work with each other and have clear documentation.

Where can I source 7 inch ESP32S3 display module units in volume?

Buy the ESP32-8048S070C straight from GUITION. It is available for purchase. Typically, the program and complete instructions are already installed on your computer when you make a bulk purchase.

Why does my touch stop responding after deep sleep?

After the ESP32-S3 wakes up from deep sleep, the RST pin must be used to power down the GT911 driver. If you reset the controller but then re-initialize the I2C bus, the controller is in an unknown state. To fix this, add a GPIO switching sequence to your wake stub.

Ready to Source Your 7 Inch ESP32S3 Display Module? Contact Guition Today

The ESP32-8048S070C from GUITION makes it easy for product teams to go straight from the prototype to production. Guition, a certified 7 inch ESP32S3 display module manufacturer, offers bulk orders, firmware customization, over-the-air (OTA) upgrades, and UI configurations in multiple languages. The dual-core 240 MHz processor, 800x480 PCAP display, and wide IDE support of the module all deal with the real technical problems that hold up product launches. To get a sample or a formal quote today, email david@guition.com with your project details or go to https://jingcaizhineng.aixdb.cn/.

References

1. Espressif Systems. ESP32-S3 Technical Reference Manual. Espressif Systems, 2023.

2. Goodix Technology. GT911 Capacitive Touch Controller Programming Guide. Goodix Technology, 2022.

3. LVGL Project. LVGL Documentation: Display and Touch Driver Integration. LVGL, 2024.

4. Lacamera, G., & Abreu, J. "Performance Benchmarking of ESP32-S3 Graphical Interfaces Using LVGL." IEEE Embedded Systems Letters, 2023.

5. Display Supply Chain Consultants (DSCC). Global Small and Medium Display Panel Market Report. DSCC, 2023.

6. Espressif Systems. ESP-IDF Programming Guide: LCD and Touch Panel Drivers. Espressif Systems, 2024.
