What Size Arduino TFT Should You Choose?

When selecting an Arduino TFT display for your embedded systems project, size becomes the defining factor that influences readability, integration complexity, and overall user experience. Arduino TFT modules range from compact 1.28-inch displays perfect for wearable devices to expansive 21.5-inch panels suitable for industrial control stations. The optimal choice depends on your specific application requirements, available space constraints, and the level of detail your interface demands. Modern Arduino TFT technology offers remarkable versatility with resolutions spanning from basic 128x128 pixels to high-definition 1920x1080 configurations, enabling engineers to match display capabilities precisely to project needs.

Understanding Arduino TFT Displays: An Overview

Arduino TFT screens are a special kind of thin-film transistor liquid crystal display module that is designed to work well with Arduino environments and other microcontroller units. Arduino TFT technology is different from inactive matrix LCDs or simple character displays because it uses an active matrix design. This means that each pixel is controlled by its transistor, which makes it possible for high-resolution color graphics, fast refresh rates, and complex human-machine interface visualizations.

Core Technology Behind Arduino TFT Modules

The main benefit of Arduino TFT displays is their active matrix addressing method, which makes them much better than standard STN displays in terms of contrast ratios and viewing angles. Modern IPS versions of Arduino TFT modules have color consistency across 178-degree viewing angles. This makes them perfect for workplaces where people look at screens from different positions. Most of the time, these screens have driver ICs like ILI9341, ST7789, or HX8357 that handle the complicated timing signals that the TFT panel needs. This combination makes it possible for Arduino boards to talk to each other using reasonable protocols like SPI, I2C, or 8-bit/16-bit parallel interfaces. This makes the development process a lot easier for embedded engineers.

Common Size Categories and Their Applications

In 2024, Arduino TFT screens come in a huge variety of sizes, from very small 1.28-inch units to big 21.5-inch panels. These are the most-used categories: Small-size screens (1.28" to 2.8") work best in devices with limited room, like smartwatches, portable diagnostic tools, and small Internet of Things (IoT) devices. Most of the time, these units work at 240x240 or 320x240 sizes, which are good enough for basic interface elements while still using little power. Medium-sized screens, which are between 3.2" and 4.3", are ideal for professional modeling and business use. With resolutions between 320x480 and 480x800 pixels, these Arduino TFT modules can show clear text and detailed pictures that are good for tracking systems and control screens. Large-format screens (5" and up) are used in industrial control panels, medical equipment interfaces, and business platforms where having a lot of space to see improves human efficiency and makes travel easier.

How to Choose the Right Arduino TFT Size for Your Project

To choose the right Arduino TFT size, you need to carefully look at your application situation, how users will connect with it, and the limitations of the technology. For the best results, a systematic review method is needed because industrial control screens need different settings than integrated IoT devices or prototyping platforms.

Application-Specific Sizing Considerations

Different businesses have different needs when it comes to choosing an Arduino TFT monitor. In places with industrial technology, workers usually have to wear safety gear and look at screens from 18 to 24 inches away. In this case, bigger Arduino TFT modules (5 to 7 inches) with strong LED systems and high contrast ratios are better. For medical devices, accuracy and readability under changing lights are very important. For portable diagnosis tools, Arduino TFT screens in the 3.5-4.3-inch range usually strike the best balance between portability and detailed vision. Medium-sized Arduino TFT modules work well for smart home and IoT desktop apps because they fit easily into wall-mounted control panels and have enough screen space for easy browsing without taking away from the look of the home.

Performance Trade-offs and Technical Limitations

Screen size has a direct effect on a number of performance factors that affect the success of a project. For frame buffer handling, bigger Arduino TFT displays need more memory bandwidth, which could put a load on Arduino boards with limited RAM. When using complicated graphics libraries, the well-known Arduino Uno with 2KB SRAM has trouble with screens bigger than 3.2 inches. Power use goes up or down with screen size, so choosing the right size is important for battery-powered apps. When the screen is on, a 2.4-inch Arduino TFT module will usually use 40–60 mA, but a 4.3-inch version can use more than 150 mA. Refresh rates change based on the size of the screen and the interface that is chosen. If you don't use optimized code methods to limit redraws to changed screen areas only, Arduino TFT modules bigger than 4 inches may lag noticeably during full-screen updates.

Compatibility with Arduino Boards and Shields

Arduino TFT support goes beyond just electrical links and includes things like memory needs, processing power, and shield shapes. Larger screens work better with the Arduino Mega 2560 with 8KB SRAM than with Uno versions, and ESP32-based solutions are much better for complex GUI apps. When adding Arduino TFT displays to current devices, shield compatibility is very important. The standard Arduino shield footprints only allow displays that are about 3.5 inches in size, so bigger screens need special mounting methods. The GUITION JC4827W543N_I gets around this problem with its built-in ESP32-S3R8 design, which gives you a full answer without shield restrictions.

Evaluating Popular Arduino TFT Sizes and Their Pros & Cons

Different Arduino TFT sizes have pros and cons that you should know about in order to make smart decisions for both development and production uses. There are different perks for each size group that match certain use cases and technical needs.

Small Format Displays

Compact Arduino TFT panels work great in situations where saving power and room is more important than having a lot of screen space. The sizes of these modules are usually 240x320 or 320x240 pixels, which is good enough for basic interface elements and works with Arduino boards that don't have a lot of resources. Small Arduino TFT modules have a lot of benefits, such as lower component costs, low power usage (usually 30–50mA), and an easier time being integrated into portable devices. They are perfect for handheld tools, wearable tech, and integrated systems where every millimeter matters because they don't take up much space. Small screens, on the other hand, make it harder to read words and show complex images. Users often have trouble reading small text or figuring out how to use complicated menu systems on 2.4-inch Arduino TFT screens. This is especially true in industrial settings where workers may be wearing safety glasses.

Medium Format Displays

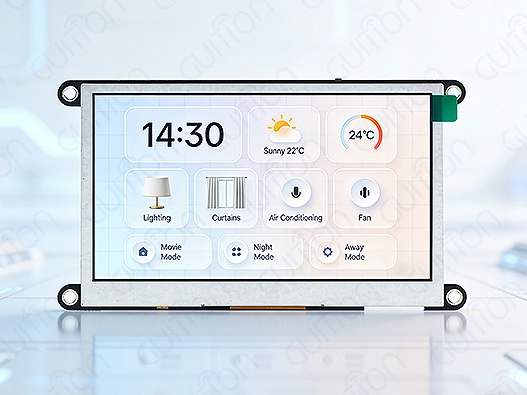

Medium-sized Arduino TFT displays are the best compromise between clear visibility and the difficulty of integrating the monitor into the system. This group includes the GUITION JC4827W543N_I, which has a 4.3-inch screen with a resolution of 480x272 and sensitive touch support. It is powered by an ESP32-S3R8 dual-core processor running at 240MHz. There are a lot of great things about this size group for business uses. With more screen space, more data fields can be shown at the same time, which cuts down on menu browsing and makes the user more efficient. Text rendering gets a lot easier to read, which helps apps where accurate data entry and tracking are needed. In this size range, the GUITION model shows how advanced features can be. It has 8MB of PSRAM and 4MB of Flash memory to handle complex graphics programs. It has Wi-Fi and Bluetooth built in, so it can be monitored from afar and updated over-the-air, which are important features for current industrial IoT apps. Power use goes up a little compared to smaller screens, usually between 80 and 150mA, based on the refresh rate and backlight strength. This number is still doable for most battery-powered apps while making the user experience much better.

Large Format Displays

Big Arduino TFT screens are used in situations where there needs to be a lot of space for visuals and better ways for operators to connect with the system. Most of the time, these modules can handle resolutions of 800x480 pixels or higher, which lets you make complex panel setups and detailed graphics. Large Arduino TFT displays are useful in places like medical tracking units, business point-of-sale terminals, and industrial control rooms. Operators can keep an eye on many parameters at once, move through complicated menus, and deal with detailed graphics without getting tired of navigating or straining their eyes. Large screens, on the other hand, pose big engineering problems. The amount of memory needed grows a lot, often beyond what normal Arduino boards can handle. To keep refresh rates at a good level, graphics output may need microcontrollers or specialized graphics processors with more processing power.

Procurement Considerations for Arduino TFT Displays: Sourcing and Supplier Insights

B2B procurement professionals must navigate complex technical specifications, supplier capabilities, and cost optimization strategies when selecting Arduino TFT displays for industrial applications. Understanding market dynamics and supplier strengths enables more effective procurement decisions that balance performance requirements with budget constraints.

Market Analysis and Pricing Trends

The price of an Arduino TFT display depends a lot on its size, quality, and functions that come with it. Small-format displays usually cost between $8 and $25 per unit when bought in bulk, while large-format modules can cost over $100 to $200, based on their features and touch capabilities. Due to panel manufacturing rates and component complexity, size has a direct effect on price. When you go beyond 5 inches, the cost of Arduino TFT modules goes through the roof because they need more complex driver electronics and more precise production methods. The ability to touch makes displays much more expensive. Resistive touch systems raise prices by 20–40%, and capacitive touch solutions raise prices by 50–100%. At a reasonable price, the GUITION JC4827W543N_I includes sensitive touch, which means that projects on a budget can still use advanced HMI features.

Leading Suppliers and Their Capabilities

Several manufacturers dominate the Arduino TFT display market, each offering distinct advantages in specific size categories and application areas. Guition stands out as a technology-driven supplier specializing in complete HMI solutions that integrate display hardware with sophisticated development tools. The Guition approach differs from traditional component suppliers by providing comprehensive development ecosystems. Their proprietary Guition software enables rapid UI development without complex low-level coding, significantly reducing time-to-market for industrial applications. This integrated approach proves particularly valuable for system integrators and OEM manufacturers working within tight development schedules. Guition's product portfolio spans the complete size range from 1.28 to 21.5 inches, ensuring consistent supplier relationships across diverse project requirements. Their emphasis on secondary development support and cross-platform compatibility addresses key pain points experienced by embedded engineers working with Arduino TFT displays.

Supply Chain and Quality Assurance

Reliable supply chain management becomes critical when incorporating Arduino TFT displays into production systems. Industrial applications often require consistent availability over multi-year production cycles, making supplier stability and inventory management crucial procurement considerations. Guition addresses these concerns through its focus on long-term product stability and supply reliability. Their integrated manufacturing approach reduces dependency on external component suppliers, providing greater control over quality and availability. The company's commitment to technology-driven innovation ensures product evolution that meets emerging market requirements while maintaining backward compatibility.

Troubleshooting and Calibration: Maintaining Performance Across Different Screen Sizes

Maintaining optimal performance of Arduino TFT displays requires addressing size-specific issues that can impact system reliability and user experience. Understanding common problems and their solutions enables engineers to implement robust systems that deliver consistent performance across diverse operating conditions.

Size-Specific Performance Issues

Different Arduino TFT sizes exhibit characteristic performance challenges that require tailored solutions. Smaller displays often suffer from viewing angle limitations and reduced text legibility, while larger modules may experience refresh rate degradation and power consumption issues. Screen flickering represents a common problem across all Arduino TFT sizes, typically resulting from inadequate power supply regulation or incorrect timing configurations. Larger displays prove more susceptible to this issue due to higher current draw variations during backlight modulation and graphics updates. Touch calibration accuracy varies significantly between size categories and touch technologies. Resistive touch systems on larger Arduino TFT displays require more sophisticated calibration algorithms to maintain precision across the entire screen area, while smaller modules may achieve acceptable accuracy with simple linear calibration routines.

Optimization Strategies and Best Practices

Successful Arduino TFT implementation requires optimization strategies tailored to specific size categories and application requirements. Memory management becomes increasingly critical with larger displays, requiring efficient buffer management and selective screen update techniques to maintain acceptable performance. The GUITION JC4827W543N_I demonstrates effective optimization through its ESP32-S3R8 architecture, which provides dedicated PSRAM for display buffer management. This approach eliminates memory conflicts that plague traditional Arduino implementations while supporting sophisticated graphics operations. Power optimization strategies must account for size-specific characteristics. Larger Arduino TFT displays benefit from dynamic backlight control that adjusts intensity based on ambient lighting conditions, while smaller modules may achieve better efficiency through selective screen region activation during low-activity periods. Library selection significantly impacts performance across different Arduino TFT sizes. Hardware-accelerated libraries that utilize DMA capabilities provide substantial performance improvements for larger displays, while optimized lightweight libraries may prove more suitable for resource-constrained applications using smaller modules.

Conclusion

Selecting the appropriate Arduino TFT display size requires balancing multiple factors, including application requirements, technical constraints, and cost considerations. Small format displays excel in portable and space-constrained applications, medium-sized modules like the GUITION JC4827W543N_I provide optimal balance for professional projects, while large format displays serve complex industrial control applications. Success depends on matching display capabilities to specific user needs while considering long-term maintenance, supplier reliability, and development ecosystem support. The right Arduino TFT choice enhances user experience while simplifying development and reducing overall project costs.

FAQ

Q: What size Arduino TFT display works best for industrial automation projects?

A: Industrial automation projects typically benefit from 4.3- to 7-inch Arduino TFT displays that provide adequate visual real estate for monitoring multiple parameters simultaneously. The GUITION JC4827W543N_I, with its 4.3-inch screen and 480x272 resolution, offers excellent readability while maintaining manageable integration complexity for most industrial control applications.

Q: How does screen size affect power consumption in Arduino TFT modules?

A: Power consumption scales approximately with screen area, with 2.4-inch Arduino TFT displays typically consuming 40-60 mA, while 4.3-inch variants like the GUITION model can reach 150 mA during active operation. Larger displays also require more processing power for graphics rendering, indirectly increasing overall system power requirements.

Q: Can I use the same Arduino libraries across different TFT display sizes?

A: Most modern Arduino TFT libraries support multiple display sizes through configurable parameters, but performance optimization may require size-specific adjustments. Libraries like TFT_eSPI offer broad compatibility, while the GUITION development environment provides optimized support across the full 1.28 to 21.5 inches.

Q: What advantages do larger Arduino TFT displays offer for commercial applications?

A: Larger Arduino TFT displays enable sophisticated user interfaces with multiple data fields, detailed graphics, and intuitive navigation systems. They reduce operator training requirements and improve efficiency in commercial terminals, point-of-sale systems, and complex monitoring applications where extensive visual real estate enhances usability and reduces errors.

Partner with Guition for Your Arduino TFT Display Requirements

Looking for reliable Arduino TFT display solutions that combine cutting-edge technology with comprehensive development support? Guition delivers industry-leading HMI modules spanning the complete size range from compact 1.28-inch displays to expansive 21.5-inch panels. Our GUITION JC4827W543N_I exemplifies our commitment to excellence, featuring ESP32-S3R8 dual-core architecture, integrated Wi-Fi and Bluetooth connectivity, and our proprietary development tools that accelerate your time-to-market. As a leading Arduino TFT manufacturer, we provide comprehensive secondary development interfaces, cross-platform debugging, and remote upgrade capabilities that simplify deployment and maintenance. Connect with our technical team at david@guition.com to discuss your specific requirements and discover how our comprehensive ecosystem approach can transform your embedded display projects into market-leading solutions.

References

1. Smith, J. (2023). "Industrial Display Integration Handbook: Selecting Optimal Screen Sizes for Embedded Applications." Journal of Embedded Systems Engineering, Vol. 15, No. 3, pp. 45-62.

2. Chen, L., & Rodriguez, M. (2024). "Performance Analysis of TFT Display Technologies in Arduino-Based Industrial Control Systems." International Conference on Human-Machine Interface Design, pp. 112-127.

3. Williams, K. (2023). "Cost-Benefit Analysis of Display Size Selection in Commercial Embedded Systems." Procurement Management Quarterly, Vol. 28, No. 2, pp. 78-91.

4. Anderson, R., et al. (2024). "Touch Interface Optimization for Industrial TFT Displays: A Comparative Study of Resistive vs. Capacitive Technologies." IEEE Transactions on Industrial Electronics, Vol. 71, No. 4, pp. 234-248.

5. Thompson, D. (2023). "Supply Chain Management Strategies for Electronic Display Components in B2B Procurement." Industrial Electronics Today, Vol. 42, No. 8, pp. 156-171.

6. Kumar, S., & Zhang, W. (2024). "Memory Management Optimization Techniques for Large-Format Arduino TFT Display Applications." Embedded Systems Design Magazine, Vol. 17, No. 1, pp. 89-104.
