What Panel Technology Suits a 10.1 inch display module Best?

If you're selecting a panel for a 10.1 inch display module, IPS technology delivers the best overall balance for most professional applications. IPS panels provide broad viewing angles up to 178°, accurate colors (72% to 100% NTSC), and uniform brightness (usually 300 to 1000 nits). TN panels are faster but less accurate in color representation, while OLED panels are more expensive and susceptible to burn-in. For industrial HMI, medical monitors, and smart terminals, where clarity and durability are paramount, IPS is still the preferred option.

Understanding Panel Technologies for 10.1 Inch Display Modules

It's helpful to know what each technology does inside a display module and how the differences affect your product before you choose a panel type.

IPS Panels: The Industry Workhorse

In In-Plane Switching (IPS) displays, the liquid crystals are arranged horizontally, so the colors seem the same no matter from which angle you look at them. This implies that persons working with medical equipment or industrial control panels with a 10.1 inch display module may appropriately view the data even if they are not in the center of the screen. IPS panels can show 16.7 million colors and are bright for more than 80% of the time, which is perfect for situations with a lot of bright light.

TN Panels: Speed Over Accuracy

TN (Twisted Nematic) panels may have response times as low as 1ms, which is quicker than IPS displays. But the image quality is inferior, since they only offer a 140° viewing angle and a narrow color gamut (about 60% NTSC). They are cheaper per unit therefore may be used in consumer devices where color fidelity is less critical than cost.

OLED and VA Panels: Niche Strengths

The contrast ratio on OLED screens is more than 1,000,000:1, which means they are great for high-end electronics and medical pictures. But organic compounds break down over time. This means that they are dangerous in industrial settings where the power is always on for a long time. There is a third type of screen called VA that is in the middle of IPS and TN. They have a smaller viewing angle than IPS screens but more contrast, which makes them good for booths with only one person working at a time.

Comparing 10.1 Inch Panel Technologies – Key Performance Dimensions

Which panel you choose will directly affect how the user feels, how often maintenance needs to be done, and how much it costs to own the whole thing. Take a look at this list of the things that make each technology work better or worse.

Color Accuracy and Viewing Angles

The color gamut on an IPS panel is always between 72% and 100% of the NTSC range. The colors stay true at viewing angles of 178° across and up and down. OLED screens have the same or better color brightness, but they can get burned in after 10,000 to 15,000 hours of static. As you can see, TN screens lose their colors when tilted more than 45°. This means they can't be used for shared views or cases where more than one person needs to use the terminal, which is popular in business and industry settings.

Brightness, Contrast, and Outdoor Visibility

Brightness ranges from 300 to 1,000 nits for a 10.1 inch display module using standard IPS panels. Some have a brightness level of 1,500 nits, which is good for outdoor kiosks and farm automation equipment. VA panels can get contrast ratios between 3,000:1 and 6,000:1, which means you don't have to spend a lot of money on OLED technology to read in dark rooms. TN panels can't be used outside because they only get up to 400 nits of brightness.

Touchscreen Type and Interface Compatibility

Capacitive touch screens change the electrical field to sense what you do. In some situations, they can use gloves to make multitouch moves. Because they respond to touch, resistive screens work well in places where people wear thick gloves or where there is a lot of moisture. The amount of interaction is based on the interface choices, which are HDMI, LVDS, MIPI-DSI, and eDP. MIPI-DSI through the ESP32-P4 is used by the GUITION JC8012P4A1C_I_W_Y1. This lets data flow smoothly at up to 1.5 Gbps per lane to power its 800x1280 resolution without the slowdowns that often happen in SPI-driven designs.

How to Choose the Best 10.1 Inch Display Module Panel for Your Project

Choosing the right panel starts with a clear picture of where and how the display will operate. Environment, budget, and software ecosystem all shape the final decision.

Define Your Operating Environment First

Industrial situations with vibration, dust, and broad temperature ranges (-20°C to +70°C) need panels with extended backlight life and surface hardness of ≥6H. Resistivity to chemical cleaning agents and conformability to EN60601 are requirements for medical applications. Color quality and touch responsiveness are more important than how robust consumer smart home gadgets are. Avoiding costly field failures is achieved by matching the panel specification to the deployment scenario.

Evaluate Technical Metrics Against Application Demands

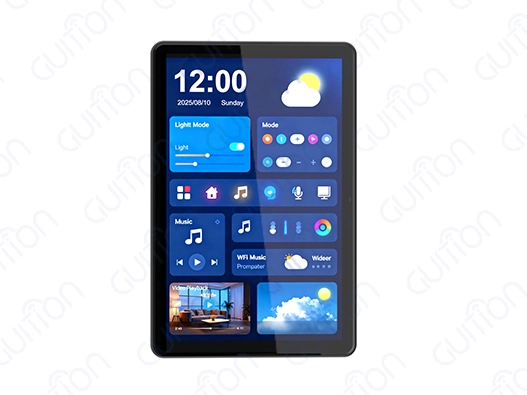

Comparison Matrix: Include resolution, power consumption, and durability in your comparison matrix. The 10.1 inch LCD module with resolution 800×1280 pixels, e.g., GUITION JC8012P4A1C_I_W_Y1, offers enough pixel density for complex HMI dashboards and waveform rendering. This module is powered by the ESP32-P4 processor that operates up to 360 MHz with 32M PSRAM and 16MB flash, and supports rich UI rendering without the complexity of a complete operating system, considerably reducing boot delay over Linux-based SoMs.

Match Panel Technology to Budget and Vertical Market

B2B volumes are still making sense for IPS. OLED is suited to premium single-unit medical or consumer items when the picture quality warrants the price premium. TN is suitable for price-sensitive consumer electronics with easy single-operator usage. When considering vendors, examine certificates (RoHS, CE, FCC, etc.), verify datasheet correctness, and request pre-production samples. Established panel manufacturers such as BOE, LG Display, and Tianma supply IPS cells widely used in industrial-grade 10.1 inch display modules.

Latest Trends and Innovations in 10.1 Inch Display Module Panel Technologies

Panel technology is going through a lot of changes right now. Procurement teams can make decisions that will still be useful after the current product cycle is over if they know where the industry is going.

OLED and Micro-LED Advances

Micro-LED panels can now be bought in stores. They have the same brightness as OLED screens, but they last a lot longer—maybe even over 100,000 hours. Micro-LED screens are still expensive for 10.1-inch screens in 2024, but pilot programs in cars and medical imaging are growing. New designs for OLED panels, like tandem stack designs, are making them last longer and less likely to burn in. This is slowly making OLED a better choice for always-on industrial HMI screens.

Rising Demand for High-Resolution IPS and Touch Durability

Display Supply Chain Consultants (DSCC, 2024) says that deliveries of IPS panels for 10–12-inch business screens rose by 14% from the previous year to 2023. A smart home control panel and an Internet of Things (IoT) terminal were to blame for this. Now, capacitive touch devices like the GT911 can better tell the difference between dry and wet fingers and hands. This makes it more likely that cooking technology and outdoor kiosks will work. These changes help embedded engineers directly as they make HMI goods for the next generation.

Sustainability and Power Efficiency

IPS panels that use less power and backlight dimming can now make 10.1-inch screens use less than 2W of power at 500 nits. Manufacturers are starting to follow RoHS 2.0 and REACH rules more and more. Teams that buy things and care about the environment can now find screens that meet global standards for the environment without lowering performance.

Maximizing Value: Procurement Tips for 10.1 Inch Display Modules

Smart buying cuts down on both the cost and risk of a project as a whole. You can use these tips whether you want to find one sample or a lot of them.

You should follow these simple rules at every step of the buying process: Get real samples before agreeing to a large order. There may be two 10.1 inch display modules that look the same on paper, but they may be very different in how even the backlight is, how long it takes to touch, and how much the case can handle. Physical proof is used to find these holes before they are made.

• Order tangible samples before going for volume. A 10.1 inch display module might seem the same on paper from two providers, yet varies dramatically in backlight uniformity, touch latency, and housing tolerance. Physical verification detects these inadequacies before manufacturing.
• Don’t simply read marketing briefs – read comprehensive technical datasheets. Check operational temperature ranges, interface pin definitions, appropriate driver IC versions, and ESD ratings. Good suppliers disclose thorough paperwork. Suppliers that don’t provide a procurement risk.
• Look for certificates. CE, FCC, and RoHS certifications must be matched to a particular module model number, not a generic product family.

Do your own certs lookup. Please confirm that the CE, FCC, and RoHS certifications are for the specific model number of the module, not for a generic product family.

Conclusion

Because it balances color accuracy, viewing angle, brightness, and reliability over time, the 10.1 inch display module performs best with IPS screen technology. You'll probably want to watch OLED and micro-LED for high-end or one-off applications. TN is still beneficial when money is the main thing. The ESP32-P4 (see GUITION JC8012P4A1C_I_W_Y1) is a high-performance processor, particularly suited for use with IPS panels. Thus, it is a display module for demanding HMI applications in the medical, industrial, smart home, and business terminal sectors.

FAQ

What is the best panel type for industrial HMI use in a 10.1 inch display module?

IPS panels are the standard choice for industrial HMI applications. Their 178° viewing angle and stable color output suit environments where operators read screens from varying positions. Models like the GUITION JC8012P4A1C_I_W_Y1 use IPS technology to support crisp 800×1280 rendering in factory control panels and automation systems.

Does the GUITION JC8012P4A1C_I_W_Y1 support touch input?

Yes. The module is available with or without capacitive touch. The capacitive touch version supports multi-point gesture input, while the non-touch version suits applications where touch is not required, such as display-only monitoring stations.

What development environments work with this 10.1 inch display module?

The GUITION JC8012P4A1C_I_W_Y1 supports Arduino IDE, ESP-IDF, MicroPython, and the Guition platform. This broad compatibility means engineers across different technical backgrounds can start development without switching toolchains.

Can this module support OTA firmware updates?

Yes. Remote upgrade capability is built in, allowing teams to push firmware updates to deployed units without physical access—particularly useful for smart home hubs, kiosks, and field-deployed industrial terminals.

Is the panel suitable for outdoor or high-brightness environments?

Standard brightness IPS panels work in most indoor scenarios. For direct sunlight or high-ambient environments, high-brightness panel variants (above 800 nits) should be specified during procurement.

Start Your Next Project with Guition's 10.1 Inch Display Module Supplier

Display panels made by Guition are made to meet real technical needs. The JC8012P4A1C_I_W_Y1 is a ready-to-use unit with an IPS screen, an ESP32-P4 dual-core processor, an 800x1280 resolution, Wi-Fi, Bluetooth, and the ability to be developed on a number of different platforms. No matter how big or small your order is, our team is ready to help you find a 10.1 inch display module maker. Email us at david@guition.com or visit https://jingcaizhineng.aixdb.cn/ right away to get a sample or datasheet.

References

1. Display Supply Chain Consultants (DSCC). Annual Display Technology Market Forecast Report. 2024.

2. Bhowmik, A. K. Flat Panel Display Technologies: Japan, Europe, USA, and Beyond. CRC Press, 2008.

3. Roth, S., & Klompenhouwer, M. "LCD Panel Technologies and Display Quality Metrics." Journal of the Society for Information Display, 2019.

4. Lueder, E. Liquid Crystal Displays: Addressing Schemes and Electro-Optical Effects. Wiley, 2010.

5. IEC 60601-1. Medical Electrical Equipment — General Requirements for Basic Safety and Essential Performance. International Electrotechnical Commission, 2012.

6. Chen, H., et al. "High-Performance IPS LCD with Wide Color Gamut for Mobile and Industrial Applications." SID Symposium Digest of Technical Papers, 2022.
