What Makes a 3.5 inch ESP32 display module Worth Buying?

Due to the fact that it integrates computing power, wireless connectivity, and touch interaction into a single small board, a 3.5 inch esp32 display module is advantageous to purchase. The amount of time needed for development is substantially reduced by this kind of module for product teams and engineers that are working on Internet of Things devices, industrial panels, or smart home systems. The GUITION ESP32-3248S035C, for example, runs on a dual-core MCU at 240MHz with built-in Wi-Fi and Bluetooth, a capacitive touchscreen, and support for multiple development environments — all in a single, ready-to-deploy package that ships pre-loaded with test firmware.

Understanding the Core Features of a 3.5 Inch ESP32 Display Module

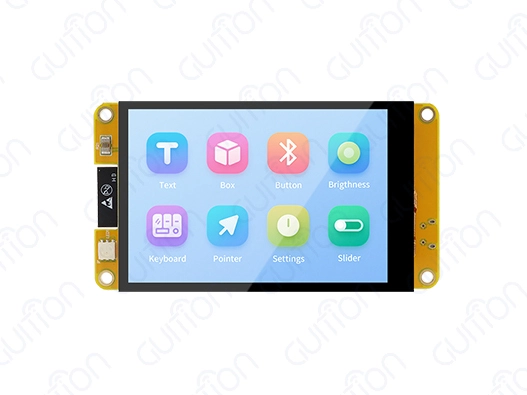

It's helpful to know exactly what's inside any HMI part before agreeing to it. The GUITION ESP32-3248S035C is a well-specified ESP32 display module that was made to meet real-world engineering needs.

Processing Power That Matches Real-World Demand

This part works with the ESP32-D0WD-V3 dual-core MCU, which can go as fast as 240MHz. The processor has 4MB of onboard Flash, 520KB of SRAM, and 448KB of ROM. It can handle complicated GUI rendering, sensor polling, and wireless connection without any problems. This is important for devices that need to update info all the time, like energy meters or medical monitors.

Display and Touch Interface

The 3.5-inch TFT LCD has a resolution of 320x480 pixels and supports 65K colors. It is driven by the ST7796 driver chip. The sensitive touch joystick works well with finger movements, which makes the interface feel natural. The touch sensitivity can be changed through firmware for industrial applications that need to be used with gloves on.

Integrated Peripheral Circuits

The large number of features built into this ESP32 HMI module makes it stand out. There is a photosensitive sensor circuit, an RGB-LED control circuit, a backlight control circuit, and a speaker driver circuit on the board. It also has a TF card slot for extra storage, a serial port, a DHT11 temperature and humidity sensor interface, and GPIO ports that are set aside for specific uses. You get a full embedded display platform that doesn't require you to put together any extra parts.

Comparing 3.5 Inch ESP32 Display Modules: What Sets the Best Apart?

Not every ESP32 tablet gadget works the same. Specifications that are next to each other show big differences in both what they can do and how much they cost.

TFT vs. OLED Technology

TFT LCDs, like the one in the GUITION ESP32-3248S035C, have a wide color gamut (65K colors), are cheap when bought in bulk, and have brightness that stays the same across the whole screen. If you use a lot of dark apps, OLED panels use less power and have better contrast ratios, but they cost more and break down faster when you only show static images. It is still more practical to use TFT for industrial control panels and smart appliance interfaces.

Resolution and Refresh Performance

When used in professional HMI applications, 3.5 inch ESP32 display modules must have a resolution of 320x480. This resolution has enough pixels per inch to make text readable, support icon-based navigation based on icons, and data charts. With DMA-accelerated SPI transfers, the ST7796 driver keeps frame rates smooth, which is good for LVGL-based GUIs.

Built-In Connectivity vs. Add-On Modules

The cost and complexity of the bill of materials (BOM) go up when many rival boards need an extra Wi-Fi or Bluetooth gadget. Both wireless methods are built right into the ESP32-3248S035C. This is very helpful for purchasing managers who need to figure out the total cost per unit for a batch of hundreds or thousands of devices.

How to Choose the Right 3.5 Inch ESP32 Display Module for Your Project

You need to make sure that the specifications of the embedded display module you pick are compatible with the environment and the timeline of your project before you can make your selection. The following is a list of the most essential considerations that product managers and engineers need to take into account:

• Environment of operation: The ESP32-3248S035C is capable of maintaining stable functioning over the common temperature ranges seen in industrial settings. Check to see that the supplier discloses operational temperature specifications and applies quality-grade PCB manufacturing standards if the location where your deployment will take place is one that experiences persistent heat, vibration, or humidity.
• interoperability with the development framework with: Determine whether or not the module supports the toolchain that your team prefers to use. In addition to being compatible with the Arduino IDE, ESP-IDF, MicroPython, and Mixly, the GUITION board is designed to accommodate both professional firmware developers and those who choose block-based or visual programming, respectively.
• The peripheral match involves determining if the built-in interfaces of the module are compatible with the sensor and I/O needs that you have. This board is compatible with a broad variety of external gear without the need for extra breakout circuits since it has a DHT11 header, a serial interface, and GPIO expansion.
• The documentation quality of the supplier: The lack of adequate documentation is one of the primary reasons why embedded initiatives are delayed. Your team will be able to proceed fast from the prototype stage to the production stage while using GUITION since it offers complete secondary development interfaces, technical manuals, and sample code.

When all of these elements are taken into consideration, the likelihood of having to replace the 3.5 inch ESP32 display module hardware in the midst of a project, which can be costly in terms of both time and money, is reduced. The decision to source this display module from a reliable vendor that is well-documented and can function in a range of situations is one that will pay off in terms of the product's speed and stability.

Step-by-Step Guide: Connecting and Programming Your 3.5 Inch ESP32 Display Module

It's easy to get started with the GUITION ESP32-3248S035C, even if you've never made an ESP32-based HMI before.

Hardware Setup and Pinout

Demo firmware has already been put into the module; thus, the first thing you need to do is power it on via the USB port in order to ensure that the display and touch function properly. Following that, you may connect your external devices by using the GPIO extension pins, the DHT11 header, or the serial interface that is already labeled. As a result of the PCB layout being clearly indicated, the likelihood of making wiring errors during the first integration process is significantly reduced.

Library Installation and Display Initialization

Installing the TFT_eSPI or LVGL library and configuring the driver in such a way that it is compatible with your ST7796 chip and SPI pins is necessary for those who use the Arduino Integrated Development Environment (IDE). Make sure that the display driver component is configured in the ESP-IDF component editor for those individuals who utilize ESP-IDF. There are functioning sample drawings available for both methods, which will help speed up the first display bring-up.

Advanced Programming: Touch, OTA, and Multi-Language

Through the use of I2C, the capacitive touch controller on the 3.5 inch ESP32 display module is able to communicate with other devices and is compatible with the touch drivers that are included in LVGL projects. You are able to adjust the intensity of the backlight via PWM, which is beneficial for applications that are attempting to save power. When it comes to industrial or agricultural systems that are put up in the field, it is helpful to be able to transmit firmware modifications to deployed equipment without having to physically touch them. Additionally, the firmware is compatible with UTF-8 encoding, which enables you to design user interfaces for markets all over the globe without having to redo the font pipeline.

Procuring 3.5 Inch ESP32 Display Modules: Buying with Confidence

When buying a lot of ESP32 display panels, the terms of the deal and the reliability of the seller are just as important as the specs.

Evaluating Supplier Reliability

Standardized manufacturing processes help GUITION, which is made by Jingcai Intelligence, keep the quality of its products high. Their range of products includes display modules from 1.28" to 21.5", so procurement teams only have to deal with one supplier for all project sizes. Long-term supply dependability is a real issue in embedded hardware. Working with a well-known ESP32 display module maker with a history of production lowers the chance that the component will stop being made.

Bulk Order Considerations

In order to prevent delays, business-to-business customers who place bulk orders should discuss unit costs, wait periods, and packaging needs at the outset of the transaction. GUIDANCE provides direct assistance with concerns pertaining to bulk purchasing and provides comprehensive technical documentation to assist with the process of vendor qualification.

Conclusion

Because it's a truly full hardware platform, the GUITION ESP32-3248S035C deserves to be used in professional embedded projects. The 3.5 inch ESP32 display module has two cores running at 240MHz, a capacitive touchscreen with 320x480 pixels, built-in Wi-Fi and Bluetooth, and a lot of other interfaces for connecting to other devices. It also comes with multi-environment development tools and remote OTA support. This board simplifies the bill of materials (BOM) and speeds up time to market for teams making IoT devices, industrial panels, medical monitors, or smart home products without limiting their technical options.

FAQ

What development environments does the GUITION ESP32-3248S035C support?

The board supports Arduino IDE, ESP-IDF, MicroPython, and Mixly. This makes it accessible to both beginners and professional firmware engineers working across different toolchains.

Does the ESP32 display module support remote firmware updates?

Yes. The module supports OTA (over-the-air) firmware updates, allowing teams to push changes to deployed devices without physical access. This is particularly useful for field-installed industrial or agricultural systems.

What touch technology does the module use?

The ESP32-3248S035C uses capacitive touch technology, which responds to direct finger gestures with accuracy and speed. The touch controller communicates over I2C and integrates with standard LVGL touch driver implementations.

Can I expand the storage on this module?

Yes. The board includes a TF card slot that accepts standard microSD cards. This allows you to store image assets, font files, and application data externally, expanding the effective storage beyond the 4MB onboard Flash.

Is the module suitable for global product deployments?

Yes. The firmware supports UTF-8 encoding and multi-language switching, making the ESP32 HMI module practical for products targeting multiple regional markets without requiring separate firmware builds.

Partner with GUITION for Your Next ESP32 Display Project

Your team needs a 3.5 inch ESP32 display module provider that can keep up with you. The ESP32-3248S035C from GUITION has hardware that has already been tried, full secondary development support, and compatibility with multiple platforms. It has everything a product team needs to quickly go from idea to production. We are ready to help you buy from a trusted ESP32 display module maker, whether you need a single sample or a lot of them. You can email us at david@guition.com or go to https://jingcaizhineng.aixdb.cn/ to get prices and detailed information right away.

References

1. Espressif Systems. ESP32 Series Datasheet. Espressif Systems, 2023.

2. Kolban, N. Kolban's Book on ESP32. Leanpub, 2022.

3. LVGL Documentation: Open-Source Embedded Graphics Library. LVGL Project, 2023.

4. Monk, S. Programming the ESP32 with MicroPython. McGraw-Hill, 2022.

5. Schwartz, M. Internet of Things with ESP8266 and ESP32. Packt Publishing, 2021.

6. Techopedia Editorial Team. "Human-Machine Interface (HMI) Design Principles for Embedded Systems." Techopedia, 2023.
