Small LCD Display Module Buying Guide for Global Procurement Teams

If your team is looking for display components for industrial, medical or smart-device applications, then this guide is for you. A Small LCD Display Module is a compact, integrated visual output component which integrates an LCD panel, backlight unit, driver IC, and flexible printed circuit into one ready-to-deploy device. “These modules provide consistent image quality, low power consumption and wide interface compatibility across platforms, which is why more and more global procurement teams are relying on them. This book tells you what to look for, how to shop sensibly and what warrants your attention.

Understanding Small LCD Display Modules

Before you make an order, it’s useful to know precisely what’s within these modules, and why the technological choices are relevant for your project.

Core Components and Size Range

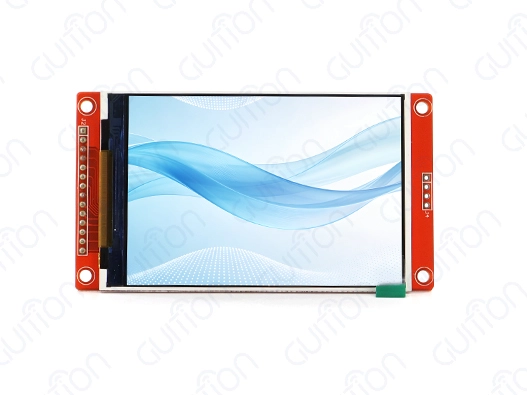

Standard small LCD display module with built-in LCD screen, LED backlight assembly, driver IC and FPC connection. Sizes vary from 0.96 inches for personal technology to 7.0 inches for built-in HMI panels. GUITION JC3248S035N resolution is 320x480 and its practical size is 3.5 inches. It is a suitable option for portable equipment and smart home control panels when screen area is tight but readability still counts.

Display Technology Comparison

The B2B directory presently covers three key panel technologies: TFT-LCD, STN, and OLED. TFT panels are the most frequent kind of HMI used in industry due to its full color, quick refresh and broad viewing angles. STN panels are inexpensive and only display in black and white, but they don’t function well in locations where color is vital. OLED panels are known for their deep blacks and narrow profiles, but they cost more per unit and are prone to burn-in with static content, which is a major issue for kiosks or monitoring devices.

Touchscreen vs. Non-Touch Options

Purchasing teams typically ask themselves whether to implement touch control. Resistive touch panels (RTP) are inexpensive per unit and perform well even with gloves on. CTP or Capacitive touch panels enable many touches and have cleaner glass surfaces. The GUITION JC3248S035N does not have touch by default, but engineers may select to have it that way if they wish to. This way the developers may make the module operate properly for their requirements without having to pay extra for things they don’t need.

Key Factors to Consider Before Purchasing

Picking the incorrect display module for a production run is a costly error. These are the specification categories that procurement teams need to check before they start dealing with any supplier.

Resolution, Color Depth, and Visual Output

Resolution is directly proportional to the amount of info a person can see at a glance. The ILI9488 driver IC of the Small LCD Display Module JC3248S035N provides 18-bit color depth, which displays 262,144 colors on a 320x480 TFT screen. For medical diagnostic panels or industrial dashboards where operators read out numeric values and status indications, this level of color fidelity lowers eye strain and increases mistake detection. Always ask for a display datasheet and evaluate the pixel density against your minimum readability requirement at the viewing distance you plan to use.

Interface Protocols and GPIO Efficiency

The communication interface defines how well a module may be integrated into your MCU. The JC3248S035N employs a 4-wire SPI protocol and only needs a few GPIO pins, usually four or five lines. This low pin count is a real engineering win. It frees up the other microcontroller resources for sensor input, communication stacks or power management procedures etc. It reduces hardware complexity on your PCB layout.

Environmental and Power Specifications

Industrial grade tiny LCD display modules must work consistently at temperature ranges that conventional consumer panels cannot withstand. Select modules with proven working limits of -20°C to +70°C at least, with storage ratings down to -30°C. The GUITION JC3248S035N is constructed to military process standards and passes thermal shock and high-humidity validation methods, which is a must for factory floor equipment, outdoor terminals and agricultural monitoring devices.

How to Choose the Right Small LCD Display Module for Your Project

Once you have the specs, the following step is to match the product with your real procurement situation.

Match Interface to Your Development Platform

Not all tiny LCD display modules are compatible with all microcontroller ecosystems. The JC3248S035N is compatible with Arduino, ESP-IDF and Guition development environment. If you’re already writing firmware in ESP-IDF for WiFi linked IoT devices, this module integrates right into that process and doesn’t need you to transfer platforms. GUITION also offers example code and test scripts so your engineers may concentrate on product logic rather than driver setup.

Standard vs. Custom Module Configurations

Standard modules are quicker to provide and cheaper per unit, but high-volume manufacturing runs need customized configurations – altered FPC pinouts, specified backlight brightness levels, or optical bonding. GUITION offers secondary development with full API documentation and extensive customisation. The Small LCD Display Module JC3248S035N’s built-in SD card slot further enhances the module’s versatility. Image assets, fonts and configuration data may be stored on-device without requiring additional memory ICs.

Supplier Credibility and Long-Term Supply

If a display module provider discontinues a panel and there is no pin-compatible alternative, your manufacturing line might be shut down. GUITION, a brand of Jingcai Intelligence, has a complete product range from 1.28 inches to 21.5 inches, and incorporates supply continuity into its development plan. When dealing with any tiny LCD display module provider, ask about the source of the panel glass, the driver IC brand and their EOL replacement policy before signing a volume agreement .

Procurement Process and Best Practices for Global Buyers

It's not enough to just know what to buy. The other half is getting it right.

Sampling Before Volume Orders

Always purchase a working sample unit before you commit to a production quantity. The JC3248S035N comes with test tools that your technical team may use straight immediately to examine signal integrity, color output and temperature behavior. This may help uncover integration issues early, before they have become too costly to address, rather than after tooling or PCB modifications have been made.

Certifications and Quality Assurance

All items that are sold in the US market or that are integrated into medical and industrial equipment must have compliance paperwork. Check your small LCD display module suppliers RoHS and CE certification records. Quality-controlled manufacturing lines should be tested for dependability on a continuous basis. These tests should consist of 72 hours of high and low temperature switching, 60°C and 90% RH humidity for not less than 240 hours and ESD testing on the driver IC. These tests ensure that the module is not going to fail too early in the application environment.

Logistics, Lead Times, and Negotiation

When making production plans, global procurement teams should take into account shipping times, customs paperwork, and minimum order amounts. When it comes to OEM configurations, direct manufacturer channels usually have shorter lead times and more negotiation room than third-party distributors. Getting in touch with GUITION directly through their technical team gives purchasing managers access to discounted prices for large orders and dedicated engineering support after the sale.

Troubleshooting and Long-Term Maintenance Tips

Sometimes, even well-designed display units need to be fixed. Knowing the most common types of loss can help you avoid a lot of downtime.

Diagnosing Common Display Faults

Most of the time, unreliable SPI clock signals or not enough power source decoupling near the module cause screens to flicker. Most of the time, dead pixels mean that there was actual damage during PCB manufacturing. Before filing a warranty claim, check the supply voltage levels, use an oscilloscope to make sure the SPI lines are working properly, and look at the ILI9488 datasheet to see what the initialization sequence needs to be. GUITION offers technical support at the driver level to help engineering teams quickly fix these problems.

Warranty and After-Sales Support

You can only tell how good a supplier's help is after a product fails in the field. Technical help is built into GUITION and is not an extra that you have to pay for. Because they can be upgraded remotely, firmware-level fixes can be made to deployed units without having to physically reach them. This saves a lot of money for products that are used in energy management systems or distributed farm automation equipment.

Datasheet Utilization for Preventive Planning

The ILI9488 datasheet has timing diagrams, electrical absolute maximum ratings, and initialization command sequences. When the procurement and engineering teams look over this document during the design phase, they can avoid making mistakes during integration and keep the module's input voltage tolerances from being overstressed. Use the datasheet as a guide, not just a file for reference.

Conclusion

Choosing the right small LCD display module for a B2B application requires attention to panel technology, interface protocol, environmental ratings, and supplier reliability. The GUITION JC3248S035N—a 3.5-inch TFT module with a 320×480 resolution, ILI9488 driver IC, and 4-wire SPI interface—addresses the core needs of embedded engineers, HMI designers, and product managers who need a display that integrates quickly, performs reliably, and scales across production volumes. Apply the evaluation criteria in this guide to every module you consider, and your procurement decisions will stand up to technical and commercial scrutiny.

FAQ

What makes the 4-wire SPI interface preferable for embedded projects?

Only four or five GPIO pins are needed for SPI. This means that most of your microcontroller's I/O resources can be used for communication modules, sensors, and other peripherals. This lowers the cost of the bill of materials and makes the PCB simpler.

Can the GUITION JC3248S035N be used without a touch panel?

Yes. There is no touch on the module when it is shipped. For apps that need human input, a touch configuration is available as a choice. This gives procurement teams power over unit cost and feature set.

How does resolution affect display performance?

More pixels per inch means more resolution at the same screen size. This makes text and icons clearer. A 3.5-inch screen with a resolution of 320x480 makes instrument readouts and menus easy to see without using too many GPU resources from the host MCU.

What certifications should I require from a small LCD display module supplier?

Ask for RoHS and CE paperwork at the very least. For medical uses, find out more about IEC 60601 compliance testing. Check the working temperature test records for business use.

What is the risk of sourcing a display module without an EOL replacement plan?

If the driver IC or glass panel goes out of production, your production line stops until you find a substitute that meets the same standards. Ask your Small lcd display module seller what their End of Life (EOL) policy is and if there are any pin-compatible alternatives available.

Partner With Guition for Your Next Display Project

When it comes to prototyping and mass production, engineering teams trust the display modules that Guition makes. The JC3248S035N is one of a line of products that range in size from 1.28 inches to 21.5 inches. All of them come with full documentation, support for multiple platforms, and direct technical support. Get in touch with our team whether you need a single sample to test or a large order for your next production run. To request pricing and samples from a reliable Small lcd display module manufacturer, email us at david@guition.com or go to https://jingcaizhineng.aixdb.cn/.

References

1. Display Technology Handbook: Principles and Applications — Society for Information Display (SID), 2021.

2. ILI9488 TFT LCD Driver IC Datasheet — Ilitek Technology Corporation, 2020.

3. RoHS 3 Directive (EU) 2015/863 — European Commission, 2015.

4. ISO 13406-2: Ergonomic Requirements for Flat-Panel Displays — International Organization for Standardization, 2001.

5. Global HMI Market Report: Industrial Display Modules and Embedded Systems — MarketsandMarkets Research, 2023.

6. Embedded Systems Design: Interfacing Microcontrollers with LCD Modules — Newnes/Elsevier, 2019.
