Key Benefits of a Custom 10.1-Inch Display Module

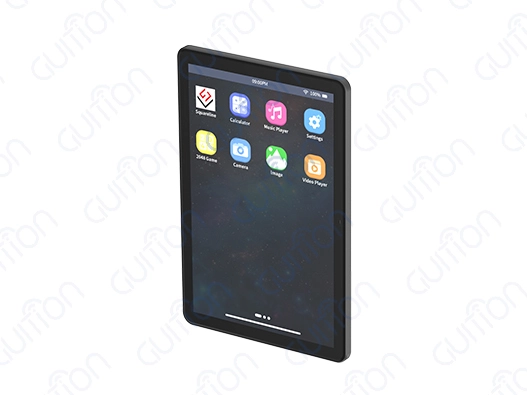

When engineers and product managers search for the right display solution, the 10.1-inch display module consistently emerges as a top contender. It sits at a practical intersection of screen real estate and compact footprint — large enough to render complex HMI dashboards, yet compact enough for embedded control panels and portable instruments. The GUITION JC8012P4A1C_I_W_Y1 exemplifies what a purpose-built 10.1 inch display module can deliver: an ESP32-P4 dual-core processor running at up to 360MHz, an 800×1280 IPS panel supporting 16.7 million colors, 32MB PSRAM, 16MB flash, and integrated Wi-Fi and Bluetooth—all in one cohesive, development-ready package.

Understanding the Core Specifications of 10.1-Inch Display Modules

Knowing what the numbers mean for your programme is the first step in choosing the right display.

Resolution, Brightness, and Panel Technology

The JC8012P4A1C_I_W_Y1 has an IPS panel with a resolution of 800x1280. With IPS technology, colors stay true across a wide range of viewing angles. This is a clear benefit over regular TFT screens, which can change color tone at angles other than the viewing angle. This difference is critical for industrial control panels and medical tracking equipment where workers can see screens from different angles. The module can handle 16.7 million colours, allowing you to create complex graphics applications without losing quality.

Interface Compatibility and Expandability

The module sets aside a TF card interface and an IO port interface, which gives engineers a lot of options for logging data, storing assets, and connecting to peripherals. It works with the Arduino IDE, ESP-IDF, MicroPython, and the Guition platform, which is its own development environment. This range includes the ones that most embedded engineers already use. This wide range of support makes it easier to get started and saves investments you've already made in toolchains.

Touch and Interaction Options

The JC8012P4A1C^_I_W_Y1 can come with or without capacitive touch, so procurement teams can choose the configuration that works best for them, whether they need an industrial touch screen that can be used with gloves or a read-only display for dashboards.

Advantages of Choosing a Custom 10.1-Inch Display Over Standard Modules

Off-the-shelf parts rarely exactly match the needs of a specific application. A special 10.1-inch monitor module perfectly fills that hole.

These are the main reasons why this gadget is better than common alternatives:

• Optimised visual performance: The IPS panel on the JC8012P4A1C_I_W_Y1 provides consistent contrast ratios and color accuracy that standard TFT modules cannot match at comparable price points, particularly in environments with variable ambient lighting.
• Purpose-built processing power: The ESP32-P4 dual-core MCU with 768KB HP L2MEM, 32KB LP SRAM, and 128KB HP ROM enables the module to handle complex LVGL-based graphical interfaces and concurrent IoT data streams without bottlenecking — something underpowered generic modules struggle with.
• Reduced development overhead: Pre-loaded test applications mean the module ships ready to evaluate. Engineers do not spend the first day of a project just establishing a baseline.
• Energy-conscious design: For battery-powered applications, the backlight control circuit allows dynamic brightness management, contributing to lower overall power consumption compared to modules without granular backlight control.

Better visual performance: The JC8012P4A1C^_I_W_Y1's IPS screen offers constant contrast ratios and color accuracy that standard TFT modules at similar price points can't match, especially in places where the natural lighting changes.

The ESP32-P4 dual-core MCU has 768KB of HP L2MEM, 32KB of LP SRAM, and 128KB of HP ROM. This gives the module the processing power it needs to handle complex LVGL-based graphical interfaces and multiple IoT data streams at the same time without slowing down, which is something that generic modules that aren't powerful enough have trouble with.

Procurement Considerations for Custom 10.1-Inch Display Modules

There's more to choosing a 10.1-inch display module provider than just looking at spec sheets. Dependability of lead times, quality of documentation, and technical access after the sale all affect the total cost of the project.

Evaluating Supplier Capability

GUITION is a technology company run by Jingcai Intelligence that combines research and development, production, and sales. It has products ranging from 1.28" to 21.5", and the JC8012P4A1C^_I_W_Y1 is its mid-range to high-end HMI. The business created the Guition UI development platform on its own. It lets users design interfaces with drag-and-drop tools and supports cross-platform online debugging and over-the-air (OTA) remote upgrades. These features aren't common among sellers of display modules, and they make it cheaper to provide help after the sale.

Documentation and Technical Support

For the JC8012P4A1C^_I_W_Y1, you can find full datasheets, circuit diagrams, and development guides that are specific to your device. Engineers can find instructions for the Arduino IDE, ESP-IDF, and MicroPython processes, which makes it easier to understand how to integrate them. For people who work in procurement, this level of paperwork shows that the provider is mature and lowers the chance that specification gaps will be found in the middle of a project.

Bulk Ordering and Long-Term Supply

If you need to buy a lot of something, GUITION has a stable, consistent supply that meets strict manufacturing standards. The module is made using military-grade standards, which means that the product should last a long time. This is an important factor for industrial and medical device developers who need to make sure they have a steady supply for many years.

Application Scenarios Highlighting the Impact of Custom 10.1-Inch Displays

It's easy to see how useful a well-designed 10.1-inch display module is when you look at it in different deployment settings.

Industrial Automation and Control Panels

In workplace automation settings, HMI screens need to be able to handle vibrations, changes in temperature, and constant use. The ESP32-P4-based design can display data from PLCs and devices in real time without any delays. The module's IO port interface lets control gear connect directly, and the TF card slot lets you store data locally.

Medical and Portable Instruments

The people who make medical devices need screens that show vital sign data clearly and reliably over long job cycles. The 800x1280 IPS screen on the JC8012P4A1C_I_W_Y1 has the right number of pixels for showing waveforms and numbers correctly. For clinical settings, the optional capacitive touch layer lets you interact with the device while wearing gloves.

Smart Home and Commercial Terminals

The built-in Wi-Fi and Bluetooth connectivity makes it easy for IoT ecosystems to connect to smart home control panels and commercial kiosks. With full UTF-8 encoding and support for multiple languages, a single firmware build can be used for global deployments. This reduces the translation work for consumer goods brands that sell in more than one market.

Future-Proofing Your Display Investment with Custom Solutions

Embedded systems are moving faster through their technology cycles. Buying a display platform that can be upgraded and broken down into modules saves development resources from hardware that stops working.

The JC8012P4A1C_I_W_Y1 supports over-the-air (OTA) software changes, which let product managers add new features and update the user interface to units that are already in use without having to physically access them. This feature is becoming more and more common in IoT-connected products, and it makes maintenance much cheaper after the sale. Because the Guition platform works with Arduino, ESP-IDF, and MicroPython, projects built on this module can be moved to new programming toolchains without having to redo all the hardware.

Strong relationships with suppliers are also important for the long-term success of a product. Because GUITION is dedicated to technology-driven development and owns its own software platform, the ecosystem around this 10.1-inch display module will keep changing to meet market needs and not stay the same.

Conclusion

Custom 10.1-inch display modules are better than stock ones in several ways, including better visual performance, faster development processes, lower long-term upkeep costs, and real scalability. These advantages are integrated into the GUITION JC8012P4A1C^_I_W_Y1, which is a single, well-documented, multi-platform module based on the ESP32-P4 architecture. This module gives you a solid base for building professional HMIs, whether you're working on industrial automation, medical devices, smart homes, or business platforms.

FAQ

What is the difference between IPS and TFT display panels in a 10.1-inch display module?

When viewed from a wide angle, usually up to 178 degrees, IPS (In-Plane Switching) screens keep the colours and brightness the same. When viewed from directions other than straight on, standard TFT screens can change colours and lose contrast. IPS panels provide a clear performance boost for HMI applications where operators interact from different positions. The JC8012P4A1C_I_W_Y1 has an IPS screen that can handle 16.7 million colours.

How do I verify that a custom display module is compatible with my existing hardware platform?

Compare the module's available work platforms and interfaces to the ones you already have. The JC8012P4A1C_I_W_Y1 works with the Arduino IDE, ESP-IDF, and MicroPython, which are the three most popular platforms for embedded software. Before placing a large order, GUITION gives you platform-specific instructions and sample code to make sure that everything works together.

What are the primary cost drivers when procuring a custom display module?

The main things that affect cost are volume, screen technology, touch setup, and how hard it is to integrate. The unit cost goes up with capacitive touch, but the number of external components goes down. Unit prices are usually better for larger initial orders. OTA support and cross-platform capability can lower the total cost of ownership by reducing the cost of integration work over the product's lifespan.

Partner with Guition for Your Next 10.1-Inch Display Module Project

GUITION is a partner relationship that blends deep R&D, a proprietary UI development platform, and a dependable supply chain. The JC8012P4A1C^_I_W_Y1 is a tried-and-true 10.1-inch esp32p4 display module option that is ready for use in medical, industrial, and IoT settings. Contact our tech team at david@guition.com to get your datasheet or talk about a custom setup.
