Is a 3.5 inch ESP32S3 display module Right for Your Project?

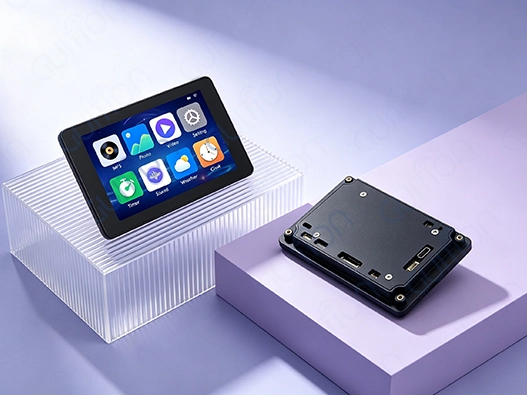

If you're evaluating display solutions for an embedded or IoT project, a 3.5 inch ESP32S3 display module is worth serious consideration. The GUITION JC3248W535C_I_Y integrates the dual-core ESP32-S3R8 processor running at 240MHz with a 320×480 IPS capacitive touchscreen, 8MB PSRAM, 16MB Flash, built-in WiFi, and Bluetooth — all in one compact module. Whether you're developing industrial control panels, smart appliances, or medical monitoring devices, this ESP32-S3 HMI display offers a balanced combination of processing power, wireless connectivity, and developer-friendly tooling that accelerates time-to-market without sacrificing reliability.

Understanding the 3.5 Inch ESP32S3 Display Module: Features & Specifications

The GUITION JC3248W535C_I_Y is an HMI module that is fully integrated and is based on the ESP32-S3R8 SoC. It has a lot more technical features than a normal embedded 3.5 inch ESP32S3 display module, which makes it a good choice for complicated real-world operations.

Core Hardware Specifications

The module has a dual-core Xtensa® LX7 MCU that can work at up to 240MHz and has 512KB SRAM, 384KB ROM, 8MB PSRAM, and 16MB Flash. The 3.5-inch IPS panel has a resolution of 320×480 and a viewing angle of 170°, so it can be mounted in industrial or commercial settings and still be clearly seen. A capacitive touch device lets you use multiple touches accurately without having to do the extra work of calibrating them like resistive controllers do. The module also has up to 12 GPIO pins, a TF card slot for external storage, brightness control circuitry, and a lithium battery charging circuit that protects against overheating and overdischarge, which is not often found in this form factor.

Development Environment Compatibility

The fact that this ESP32-S3 touch screen works with multiple frameworks is one of its most useful features. Engineers can use the Arduino IDE, ESP-IDF, MicroPython, or the custom Guition UI creation tool to make things. This freedom gets rid of the problems that come with being forced to use a framework, which is a common problem in developing embedded HMIs. The Guition software lets you build a UI with a rich control set and drag-and-drop features. This is very helpful for HMI/UI designers who need to make quick prototypes without having to write low-level graphics code [2].

Comparing the 3.5 Inch ESP32S3 Display Module with Alternative Displays

To choose between 3.5 inch ESP32S3 display modules, you need to compare them objectively based on screen size, processing power, and ecosystem support.

3.5 Inch vs. 2.8 Inch ESP32 Displays

A 2.8-inch esp32 display module has a smaller size and uses less power, so it can be used in wearable tech or small IoT devices. But for HMI apps where users have to interact with on-screen controls, like industrial panels or kiosk stations, the 3.5-inch screen area gives UI elements a lot more room to work with. The GUITION module's 320×480 resolution keeps the pixel density the same while making content easier to see across a wider area. This lowers the chance of operator error in high-stakes situations.

Comparison with OLED and Competing Brands

OLED screens have better contrast ratios and use less power when there is only static content, but they are more expensive per unit, come in sizes smaller than 2.4 inches, and can burn in over time when there is only static content, which is a major problem in workplace monitoring. Waveshare and LilyGO's competing ESP32-S3 display modules have good hardware, but they don't always have development software built in like Guition. The Guition platform cuts UI development time by a large amount by offering WYSIWYG design tools, cross-platform online debugging, and OTA remote update capability. These features have a direct effect on the total cost of development and the ongoing upkeep overhead.

How to Integrate and Program a 3.5 Inch ESP32S3 Display Module?

Adding the GUITION JC3248W535C_I_Y is meant to reduce setup friction as much as possible for your 3.5 inch ESP32S3 display module. The module comes with factory test programs already installed, so as soon as you turn it on, the hardware is checked out right away, without the need for booting.

Wiring, Initialization, and Touch Calibration

Guition offers board support packages and display driver libraries that work with the LovyanGFX and TFT_eSPI rendering stacks for people who use the Arduino IDE. The ESP LCD panel API sets up the display in ESP-IDF, and the I2C-connected capacitive touch driver works well with normal touch event handlers. Most capacitive controls in this class have touch calibration deviations that stay below 1 mm across the working area. This makes sure that motion recognition works well [1]. With 12 available IO pins, the module's peripherals, like sensors, relays, or communication devices, can be easily added without the need for extra I/O expanders in most situations.

Here are the core integration advantages that development teams consistently report with this module:

• Pre-flashed firmware eliminates hardware validation delays. Within minutes of unboxing, engineers can confirm that the display works, which saves hours that would have been spent on initial bring-up debugging on blank modules.
• Multi-SDK compatibility means that codebases that were built on Arduino or ESP-IDF don't need to be changed much. Teams can add the show to ongoing projects without having to switch to a different way of developing.
• Guition drag-and-drop UI builder lets UI designers make usable interfaces without writing rendering code, dramatically compressing the design-to-prototype cycle and reducing dependency on senior embedded engineers.

These features directly address one of the most persistent pain points in HMI product development: the gap between hardware availability and the first working UI prototype. That gap closes quickly with the GUITION JC3248W535C_I_Y.

Procurement Considerations for Bulk Purchasing 3.5 Inch ESP32S3 Display Modules

When engineering teams move from making prototypes to mass production of the 3.5 inch ESP32S3 display module, the dependability of the suppliers they use becomes just as important as the technical specifications.

Evaluating Supplier Credibility and Supply Chain Stability

Guition is a fully integrated HMI solution provider, which means that they do their own research and development, production, and sales. This structure gives purchasing managers a clear picture of production lead times and inventory levels, which is a big plus compared to supply chains that depend on resellers. The JC3248W535C_I_Y meets RoHS lead-free standards and is put through 72 hours of age tests at high temperatures to find early component failures before it is shipped. If procurement teams are looking at suppliers, they should make sure that they have documented quality control methods, that installed units can be upgraded over-the-air (OTA), that full technical documentation is available, and that they offer fast after-sales engineering support. Through its product ecosystem and expert help channels, Guition immediately meets all four requirements.

Is the 3.5 Inch ESP32S3 Display Module the Right Choice? Decision-Making Framework

The choice to use a 3.5 inch ESP32S3 display module ultimately hinges on how well the module's features meet the needs of the project in three areas: processing space, connection, and development processes.

Embedded WiFi, Bluetooth, capacitive touch, and a readable display in a single module—without the bill of materials (BOM) difficulty of finding and combining different components—is exactly what the GUITION JC3248W535C_I_Y was made for. The 8MB PSRAM can handle double-buffered LVGL rendering at 30+ FPS, which lets animations run smoothly on smart device screens or industrial panels [3]. This module meets all of the needs of teams that want to be able to upgrade remotely deployed devices over the air, support multiple languages using UTF-8, or be able to develop on multiple platforms. For projects that need screens bigger than 3.5 inches, Guition has a wider range of products that go up to 21.5 inches and use the same software environment, so UI code can be used across all of them [5].

Conclusion

The GUITION JC3248W535C_I_Y is a 3.5 inch ESP32S3 display module that is both highly advanced and useful for business. The Guition software ecosystem, which has a lot of SDK support, and its integrated architecture make it a good choice for industrial control panels, smart appliances, medical monitoring devices, energy management systems, and commercial kiosks. This module helps teams balance development speed, production stability, and long-term maintainability in the areas that matter most.

FAQ

What is the display resolution of the GUITION JC3248W535C_I_Y?

The module uses a 3.5-inch IPS panel with 320×480 pixel resolution, delivering sharp visuals with 170° wide viewing angles suitable for panel-mount industrial and commercial applications.

Which development environments does this ESP32-S3 display support?

It supports Arduino IDE, ESP-IDF, MicroPython, and the Guition UI development tool. This multi-framework compatibility accommodates diverse engineering team preferences without requiring codebase migration.

Does the module support OTA firmware updates?

Yes. Guition's development ecosystem includes remote over-the-air (OTA) upgrade capability, which lets deployed devices get firmware and UI updates without physical access. This is a very important feature for large-scale or geographically dispersed deployments.

How many GPIO pins are available for peripheral integration?

Up to 12 IO pins are exposed on the JC3248W535C_I_Y, enabling direct connection of sensors, actuators, and communication peripherals without external expanders in typical use cases.

Is this module suitable for medical or industrial environments?

The module is built to industrial-grade process standards, operates across a wide thermal range, and includes ESD protection. It is well-suited for medical monitoring equipment, industrial control panels, and energy management systems.

Partner with Guition for Your Next HMI Project

Guition can make the whole 3.5 inch ESP32S3 display module, from designing the hardware to making software tools and providing help after the sale. The JC3248W535C_I_Y can be bought in large quantities at a reasonable price, and the supply chain has been shown to be reliable. To get a price, detailed datasheet, or product demonstration that fits your needs, email our engineering team at david@guition.com.
