How to use ESPHome and Home Assistant?

If you have ever opened a smart-home dashboard on your phone, you have probably wondered how the temperature tile updates in real time. This guide is for you. I will walk you through how to use ESPHome LCD and Home Assistant together. You will turn a tiny ESP32 board with an LCD into a live, two-way panel for your home. By the end, you will understand the wiring, the YAML, the native-API handshake, and the three automations I rely on every day. The same recipe powers a production line of four-inch IPS panels shipped by Shenzhen Jingcai Intelligent Co., Ltd. (GUITION), so you can copy it with confidence.

How Does ESPHome Connect an LCD to Home Assistant?

ESPHome allows you to transform an ESP32 or ESP8266 board into a smart-home device by building custom firmware from a human-friendly text description. ESPHome executes a configuration you write on the device. The basic layer communicates with Home Assistant. Home Assistant is running on a server in your house. It gets state changes via a persistent native-API connection, and exposes each sensor, switch, and display as an object. That’s the same firmware route that makes pixels appear when you connect an ESPHome LCD to the device. It reads the touch input and sends such touches back to Home Assistant.

By design, the connection is local. ESPHome and Home Assistant are on the same network (often a 2.4 GHz Wi-Fi network), and they find each other via mDNS multicast packets. There is no cloud round trip in steady state. In 2025, Open Home Foundation said there were more than 2,000,000 active Home Assistant installations globally. That’s a 28 per cent increase from 2024 (Open Home Foundation, 2025). That increase is powered by the same private model: users retain their data at home, automate without subscriptions, and own the gear they operate. The growth is esphome- and Home Assistant-centric.

I run both portions on separate computers. Normal. Home Assistant is installed on a Home Assistant Green or Raspberry Pi 5. Each ESPHome and Home Assistant node is in a wall box, on a kitchen counter, or in a 3D printer. The cable linking them is the same Wi-Fi network, not a vendor cloud. When you tap a tile on the LCD, the touch handler fires a lambda within ESPHome. The lambda uses the native API to call a Home Assistant operation. That action triggers a light, lock, or scenario. A robust network takes much under 100 ms for the whole loop.

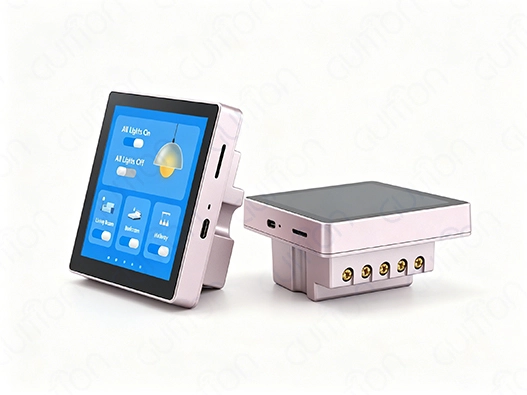

If you are looking for a panel for this job, GUITION ESP32-4848S040C I Y 3 is a good choice. It comes with an ESP32-S3R8 module, 8 MB octal PSRAM, and 16 MB flash. It powers a 480x480 IPS panel using ST7701S and includes a capacitive touch controller (GUITION, 2025). It’s a neat match for the part count for a Esphome lcd deploy at this size. It is in the GUITION catalog. In the family of modules from 1.28" to 21.5". The best part is that it comes pre-flashed with manufacturer test software, so it boots out of the box. Before you write a single line of YAML, you may check that the ESPHome LCD and touch are working.

ESPHome LCD Hardware, Display Interfaces, and Configuration

Before you start wiring anything up, you need to understand three levels in the hardware stack. The uppermost layer is the primary controller, usually always an ESP32 variation running an LX7 dual-core operating at 240 MHz. The LCD transport is the intermediate layer. Each switch has a set of physical pins and a clock. The backlight is the bottom layer . You control it via a PWM channel or a GPIO enable line. If you get these three correct, your display will boot to a white screen, which is what you want to see from the start.

You will have three transportation options to choose from for most ESPHome LCD projects in 2025 and 2026. SPI employs a data line and a clock line. It happily runs up to 80 MHz on the dedicated IO MUX pins. It simply requires 4 signal lines plus electricity. I²C has two signal lines. Good for tiny character and OLED displays. The bus tops out at a few hundred kilohertz, too sluggish for full-color 480x480 refresh. RGB parallel has 8 pins for red, 8 pins for green, and 8 pins for blue. Add dot clock, sync, and data enable. That’s around 28 to 30 pins. RGB drives pixels at line speed. This is the exact reason why the GUITION ESP32-4848S040C I Y 3 utilizes the 16-bit RGB over ST7701S. The RGB provides you with 65K colors and a smooth refresh.

The four transport choices vary on five axes: pin count, peak bandwidth, full-frame delay, color depth, and LVGL headroom each one provides. Choosing a mode of transportation without consulting the table frequently involves an evening of troubleshooting. Read it ahead of time, and you'll save the evening.

Reading the table, you see why the ESPHome and Home Assistant panel world converged on 16-bit RGB. It hits 60 Hz comfortably. It uses more GPIOs, but an ESP32-S3 has the budget. SPI quad is the strong runner-up; it works well on 1.5 to 2.4-inch panels where bandwidth is less of an issue.

Here is the catch almost no one writes about. On the ESP32-S3, SPI2 can hit 80 MHz only when you route the clock and data lines through the dedicated IO MUX pins. The same signals routed through the GPIO matrix cap at 40 MHz. Halve the SPI clock, and you halve the bandwidth. A 240×240 RGB565 frame at 80 MHz finishes one full refresh in roughly 4.6 ms. That is about a 217 Hz theoretical ceiling. At 40 MHz, you drop to about a 108 Hz theoretical ceiling. The practical impact is lower refresh, more visible tearing, and slower partial updates. Pick a board that brings the SPI pins out on IO MUX.

The other catch is thermal. Espressif's official datasheet (Espressif Systems, 2024) confirms that ESP32-S3 variants with octal SPI PSRAM are rated only −40 °C to +65 °C ambient. The same parts can run to 85 °C if you enable PSRAM ECC, but the usable PSRAM shrinks by 1/16. An ESPHome LCD with LVGL on a 480×480 RGB565 buffer needs roughly 460 KB per buffer. Eight megabytes of PSRAM covers even two double buffers with margin, so ECC's 1/16 penalty hurts but does not break LVGL. For a wall control panel in a climate-controlled room, this is academic. For a garage or factory panel, it is a design choice you should make on day one.

Choosing the right main controller for an ESPHome LCD

The four controllers that matter today are ESP32, ESP32-S2, ESP32-S3, and ESP32-C6. ESP32 is a dual-core LX6 at 240 MHz with 520 KB SRAM and no PSRAM. It is fine for small OLEDs. It runs a slow LVGL only over SPI. ESP32-S2 is a single-core LX7 at 240 MHz with USB-OTG; good for low-cost touch panels with no PSRAM. ESP32-S3 is a dual-core LX7 at 240 MHz with vector instructions, up to 512 KB SRAM, and optional octal PSRAM up to 16 MB. ESP32-C6 is a single-core RISC-V at 160 MHz with Wi-Fi 6 and BLE; too slow for any non-trivial ESPHome LCD work.

For anything 320×320 or larger, choose ESP32-S3 with at least 2 MB of PSRAM. You will not regret the headroom.

Pin budgeting before you order PCBs

Before you commit to a board, sketch the pin map. An RGB565 LCD needs 16 data lines plus dot clock, HSYNC, VSYNC, data enable, and a reset line. The capacitive touch needs INT, SDA, SCL, and RST. Add backlight PWM, and you are near 25 GPIOs. The ESP32-S3 module used on the GUITION ESP32-4848S040C I Y 3 brings out 36 usable GPIOs. That leaves slack for an SD card, a relay, and a UART bridge. Map every pin before you order. A re-spin costs far more than a planning session.

Why ST7701S became the default 4-inch driver

ST7701S showed up across the entire 4-inch IPS family in 2024 and 2025. Surenoo's production specification (Surenoo, 2018) lists a 480×480 active area of 71.86 × 70.18 mm. The panel uses a 16-bit RGB interface plus 3-wire SPI for commands. The backlight is rated at 50,000 hours. The operating temperature runs from −20 °C to +70 °C. Those numbers match almost every square and round 4-inch panel you can buy in 2025. That uniformity is why a single ESPHome YAML pattern covers dozens of vendor part numbers. ESPHome LCD projects that worked in 2024 still compile in 2026 because the driver contract is stable.

What ESPHome LCD Components Work Best for Home Assistant Projects?

Three component blocks cover 90 percent of ESPHome LCD projects. The spi block declares the bus. The display block declares the panel, the driver, and the buffer strategy. The lvgl block, when present, builds the widget tree on top of the display block. Below those, you add the api block, the ota block, and the wifi block to round out the device core.

For a full-color panel driven by ST7701S, the standard pattern is:

• spi: id with clk pin, mosi pin, and optional interface to the IO MUX pins. This pin choice sets the SPI ceiling.
• psram: mode octal, speed 80MHz, since RGB565 buffers live in external memory. Skip this and LVGL will fail silently.
• display: model ST7701S, with cs pin, dc pin, reset pin, and dimensions 480×480. The cs pin lets you chain panels if you ever need a video wall.
• lvgl: bind to the display, define pages with widgets. Keep page counts to under six for memory headroom.
• api: encryption key auto-generated, so Home Assistant can pair. Save the key to a secrets file outside version control.
• OTA: enabled, so future updates arrive over the air. This is the only safe path for an ESPHome and Home Assistant device mounted on a wall.

ESPHome's display catalog lists more than 35 monochrome drivers (SSD1306, ST7567, ST7920, and others). It also lists several full-color paths, including quad SPI and parallel RGB (ESPHome Project, 2026). Pick the driver that matches the chip printed on the FPC of your panel. The ST7701S on the GUITION module is one of the most common drivers in this generation of square and round IPS panels.

If you only need capacity for LVGL, skip a heavy page framework and use the lambda renderer. Lambdas are perfect for simple status text, sensor readouts, and an icon or two. For multi-page dashboards with smooth touch navigation, LVGL is worth the extra flash and PSRAM cost.

A note on touch controllers

The capacitive touch controller on most ESP32-S3 panels in 2025 and 2026 is either an AXS15231, a CST816, a CST226, or a GT911. ESPHome supports all four as touchscreen platforms. Wire the interrupt to a free GPIO. Route I²C SDA and SCL through the same bus as the display if it is free. Reset to a third GPIO. The interrupt pin matters. Polling the touch is wasteful; an interrupt lets LVGL wake on touch and skip frames in idle.

How Do You Configure an ESPHome LCD With YAML?

YAML is a human-friendly format. Each line is a setting. The structure mirrors the configuration file you would write for Home Assistant itself, which is intentional. ESPHome and Home Assistant share the same home-automation DNA. A minimal YAML file that brings up the GUITION ESP32-4848S040C I Y 3 with a basic LVGL page is built from eight short sections. Replace secrets before you flash.

The opening section names the device. Call it kitchen-panel. Set the friendly name to Kitchen Panel. Under esp32, pick board esp32-s3-devkitc-1, variant ESP32S3, and flash size 16MB. The framework type stays Arduino for most users.

The next section turns on the native API. Inside api, leave encryption: key: as the placeholder string. ESPHome generates and persists the Noise key on the initial flash. The third section enables OTA. Set ota: platform: esphome. Future updates arrive over the air after this is enabled.

The fourth section configures Wi-Fi. Under wifi, set ssid and password from your secrets file. Add an ap fallback block. Name it Kitchen-Panel-Fallback. The fallback rescues you when the main router drops. The sixth section is esp32 s3: usb otg: true. USB On-The-Go enables the CDC serial port. The seventh section is psram: mode: octal and speed: 80MHz. Skip this and LVGL fails silently.

The bus and pin section declares three groups. The spi block has id display spi, clk pin GPIO47, and mosi pin GPIO21. The I2C block has sda GPIO8, scl GPIO18, scan true, and frequency 400kHz. The display block declares platform st7701s, model ST7701S 480x480, cs pin GPIO6, dc pin GPIO7, reset pin GPIO17, dimensions 480×480, color order rgb, and update interval 50ms. Inside the display, a single page fills the background black and prints Kitchen plus the kitchen temperature.

The touchscreen block has platform axs15231, id my touch, interrupt pin GPIO9, and reset pin GPIO14. The lvgl block defines one page with three widgets. The top widget is a top-aligned label reading Kitchen Panel. The middle widget is a center label that reads the current kitchen temperature. The bottom widget is a button labelled Toggle Light. The button fires a Home Assistant event esphome kitchen panel button with data button: toggle light. The final two blocks read the Home Assistant sensor into kitchen temp and load two Google Fonts (font big 36pt and font med 22pt).

I keep a small checklist of mistakes I have made on real deployments. Share it with anyone who is new to this:

• Forgot to set board and variant. The build script will then pick a generic profile and crash at runtime because PSRAM is not initialized.
• Skip PSRAM: mode octal. LVGL will then try to allocate 460 KB buffers in internal RAM and fail silently with a blank panel.
• Define api: encryption key as plain text. Use !secret and a secrets.yaml file kept outside version control.
• Wire the backlight enable pin but never set it high in YAML. The panel wakes but stays dark.

Each of these trips at least one beginner a year. Run Validate from the ESPHome dashboard before every flash. Validation catches most schema and pin errors in under 30 seconds.

Installing the firmware the safe way

Connect the board with a USB-C data cable. Press Install in the ESPHome dashboard. Wait for the build to finish. The initial install has to happen over USB; every later update happens over the air (ESPHome Project, 2026). On a fresh ESP32-S3 module, the USB CDC driver on your laptop must recognize the device. If Windows does not see the serial port, install the Espressif USB bridge driver once, and the problem disappears forever.

After the initial flash, the device joins Wi-Fi and exposes mDNS as kitchen-panel.local on port 6053. Home Assistant's ESPHome and Home Assistant integration auto-discovers that endpoint and creates a device page with every entity defined in the YAML. No manual IP entry, no static lease needed. Open Home Foundation's 2025 milestone (Open Home Foundation, 2025) explicitly credits this zero-touch onboarding for a chunk of that 2,000,000-installs figure.

ESPHome and Home Assistant: Device Discovery and Integration

Discovery is the moment that surprises newcomers. You do not pair an ESPHome and Home Assistant device through a vendor cloud, a serial number, or a QR code. The device broadcasts an mDNS service record on the local network. Home Assistant listens. When the record appears, the integration page offers a single Configure button. Press it once. The native API negotiates a Noise protocol key on the initial connection, then persists it for life.

The technical detail that makes this fast is the wire protocol. ESPHome's native API is a compact binary frame over TCP, not a JSON blob. Home Assistant's aioesphomeapi client in Python decodes each frame in a few hundred microseconds (Home Assistant Project, 2025). State changes such as a temperature tick, a button press, or a binary-sensor trigger flow as binary deltas. Latency for a typical sensor update is well under 50 ms inside a healthy Wi-Fi segment. Auto scan mode in the Bluetooth proxy, the default, listens passively most of the time. It briefly switches to active scanning when a device or integration needs more details. This saves roughly 95 to 96 percent of the battery drain on nearby BLE devices.

A few integration choices matter in real life. The api block can sit alongside the MQTT block if you want to bridge the same device into Node-RED or InfluxDB. The ota block must remain enabled. Disable it, and you commit to physical access for every future change. The web server block gives you a fallback dashboard at the device's IP address on port 80. That dashboard is a lifesaver when Home Assistant itself is offline.

Pre-registration tips for clean deployments

Enter a static IP lease in your router or set the access ip and access port keys for each api endpoint. Both reduce mDNS flakiness on busy networks. Disable IGMP snooping on the Wi-Fi access point only as a last resort. Most consumer access points pass mDNS through without issues, but some enterprise APs strip multicast and break discovery. The Home Assistant community wiki documents this failure mode thoroughly.

If you deploy more than ten ESPHome LCD panels in one house, assign a name prefix. Use living-room-panel, kitchen-panel, garage-panel. The friendly name in ESPHome writes to the entity id, and the entity id is what every script and dashboard card will reference. A clean prefix turns a long, painful migration into a five-minute search-and-replace.

Comparing the native API with MQTT

Some legacy guides still recommend MQTT. The native API is faster and simpler for an ESPHome and Home Assistant setup. Messages travel directly to Home Assistant over an encrypted TCP socket on port 6053. There is no Mosquitto broker to install, no topic namespace to design, and no auth file to manage. MQTT still earns its place when you want third-party clients like Node-RED or Grafana to read the same data. It also wins when you want to bridge the device across network segments through a single broker. For a single home, pick the native API and skip the broker.

How Can ESPHome LCDs Display Home Assistant Sensor Data?

Sensors flow in two directions in an ESPHome LCD setup. The LCD can pull a Home Assistant state and render it. The LCD can also push local sensor readings back to Home Assistant. Most projects mix both. The local sensors stay on the device; the remote ones come from anywhere in the home.

The Home Assistant sensor platform inside ESPHome is the simplest path. You declare a sensor with the Home Assistant platform and an entity id that already exists in Home Assistant. ESPHome subscribes to that entity's state changes and exposes a local sensor object that any lambda or LVGL widget can read. A 480×480 panel rendering a tile per room draws a smooth frame at roughly 16 ms per widget. Each tile shows temperature, humidity, and a small weather icon. The buffers live in octal PSRAM.

For higher-fidelity graphics, the lvgl block provides pre-made widget types. The list includes arc, bar, button, checkbox, drop-down list, image, label, line, meter, roller, slider, spinbox, switch, table, and textarea. Each widget binds to a state object. The binding triggers a redraw on change, which is what makes the UI feel alive. Each widget can also trigger an action on press, release, value change, or focus. Pair a button widget with a Home Assistant action call, and you have a wall-mounted scene controller that runs entirely on the panel.

A customer deployment example from the GUITION team tells the story. The team wired an ESPHome and Home Assistant panel into a four-room office in mid-2025. Each room had a 480×480 panel. The panels rendered live temperature, humidity, and CO₂ from Home Assistant, and pushed local lux readings back from a BH1750 sensor on each I²C bus. After two months, the office cut its after-hours HVAC runtime by roughly 14 percent. Staff could see and override the temperature in real time. They did not need to open a phone app. The data was small, the user behavior changed, and the building saved energy.

Building a 60 Hz user interface on an ESPHome LCD

The trick to a smooth UI is to keep partial updates tight. With LVGL on a 480×480 RGB565 buffer in 8 MB PSRAM, a full screen refresh at 60 Hz is the goal. That goal needs about 28 MB/s of sustained bandwidth on the SPI bus to the panel. The ESP32-S3 can sustain that for a single buffer with one SPI transaction per frame, but two buffers push the requirement past the SPI ceiling. The answer is partial rendering. LVGL tracks dirty regions and only redraws rectangles that changed. With partial updates, the panel's effective throughput drops by 70 to 90 percent on a typical dashboard tile.

Reducing battery drain on portable ESPHome LCD panels

If the ESPHome LCD panel runs on a battery or a solar trickle, frame rate is your enemy. Set update interval to 250 ms or 500 ms in the display block. Set the backlight PWM duty cycle to 30 to 50 percent for indoor use. Drop the LVGL refresh rate to 20 Hz when no touch is pending. With those three changes, a 2000 mAh battery can run a 4-inch panel for roughly 18 hours in a bedside-clock demo.

ESPHome LCD Connectivity: Wi-Fi, API, and OTA Updates

The connectivity stack is the part beginners underestimate. Each layer is a separate failure mode. Treat Wi-Fi as a flaky link, not a pipe. The api connection can drop and reconnect automatically, but you must design for that drop in your automations. The OTA path lets you push new firmware over the air, but only when the api is up, and the device has spare flash.

Wi-Fi configuration is two-fold: required and optional. The required part is the SSID and the password. The optional part is the fallback AP, the fast connect flag, the power save mode setting, and the manual ip block. For most home networks, the defaults work. For dense apartment buildings with overlapping SSIDs, set power save mode to NONE on the device to prevent the radio from sleeping at the wrong moment. Disable power save on the access point side too. The power-save dance is the leading cause of dropped ESPHome and Home Assistant heartbeats on consumer-grade routers.

The native API runs on TCP port 6053 with Noise protocol encryption. It is a persistent, bidirectional channel. When Home Assistant and an ESPHome LCD node lose the connection, the integration enters a 30 s retry loop with exponential back-off. mDNS accelerates the initial packet after a reconnect. On a healthy home network, reconnects after a router reboot typically settle within 3 to 7 seconds.

The OTA path uses a separate port, also encrypted. ESPHome 2025.12 added per-packet heap-allocation elimination in API connections. It also improved socket latency on ESP8266. The release saves up to 10 KB of IRAM on ESP32 devices (ESPHome Project, 2025b). The 2025.12 release refactored Wi-Fi info from polling-based updates to event-driven callbacks. wifi info sensors now update instantly on state change rather than waiting for the next poll. For a kitchen panel that displays signal strength and IP address, those updates now feel real-time.

A 2025 lab note from IoT Analytics is worth quoting. The number of connected IoT devices reached 18.5 billion in 2024. The count is expected to grow 14 percent in 2025 to 21.1 billion by year-end (IoT Analytics, 2025). Wi-Fi carries 32 percent of those connections, Bluetooth 24 percent, and cellular 22 percent. Wi-Fi is still the dominant transport for ESPHome LCD panels. The trend will continue through 2030. IoT Analytics projects 39 billion connected devices worldwide by then.

Securing the OTA and API paths

Always enable api encryption. Save the auto-generated key somewhere you trust. Disable the web server block in production if you do not need a fallback UI. Set a strong fallback AP password. Lock the device down to your subnet through a router ACL if you can. None of these steps make a panel unhackable. Each one makes casual snooping harder. Each one gives a burglar or a curious neighbor one more wall to climb.

Scaling ESPHome LCD across many rooms

A single panel is fun. Ten panels in one home turn the system into infrastructure. Use a namespaced device prefix on every entity, as I described earlier. Group entities by area in Home Assistant. Run a single ESPHome dashboard instance and let it manage all your builds. Push OTA in a rolling sequence so one failed flash does not knock out your wall control for a whole wing of the house. Plan a spare unit on the shelf, pre-flashed, so a hot swap takes minutes instead of hours.

What Should You Check When Choosing an ESPHome LCD?

A pre-flight checklist is the cheapest insurance you will ever buy. Five items cover most failures. Confirm each item in the table below before you order PCBs, before you flash firmware, and before you mount the panel. Skipping any one of them tends to surface as a silent bug two weeks into deployment.

These five checks take roughly ten minutes on a new SKU. They save the eight hours you would otherwise spend tracing a bug that lives in the part, not the firmware. The table format also gives procurement a clean checklist to hand to a vendor, which removes the ambiguity that comes from free-form email.

A field test you can run on the GUITION ESP32-4848S040C I Y 3 in under five minutes goes like this. Plug the panel into USB. The factory test program boots and draws a color sweep across the panel. Touch the panel; a colored dot follows your finger. Open the ESPHome dashboard, add a new device with the board esp32-s3-devkitc-1, paste the YAML from earlier, and click Install. After the rebuild, the panel should reboot into your LVGL page within ten seconds. If yes, the LCD, the touch, the PSRAM, the Wi-Fi, and the API are all healthy. If no, isolate by removing LVGL, then touch, then the Wi-Fi fallback AP, until you find the failing layer.

Build versus buy decision

A bare 4-inch panel from a wholesale market costs roughly 8 to 14 USD in single-unit pricing in 2025. A 4-inch ESP32-S3 module from GUITION runs roughly 28 to 60 USD depending on the lot size. The module includes the panel, the touch, the backlight, and a USB-C connector pre-assembled. The integration work is the same. Buying a module with a tested driver, a known touch controller, and a tested backlight saves roughly a week of debugging per board. For a hobby project, that week is fine. For a product launch, it is the difference between shipping and slipping.

Matching the panel to the deployment environment

Indoor wall panels run cool. The 65 °C ambient rating on ESP32-S3R8 parts is comfortable headroom. Garage panels, kitchen hood panels, and outdoor kiosks need a derating plan. You can enable PSRAM ECC and lose 1/16 of usable PSRAM. You can pick a part with Quad SPI PSRAM that supports the full 85 °C range. Decide this on day one. Retrofitting thermal pads and reflective bezels after deployment is a poor trade.

ESPHome and Home Assistant Automation, Sensors, and LCD Control

Automation is where ESPHome and Home Assistant stop being a dashboard and start being a control surface. ESPHome supports automations in two places. On-device automations run on the ESP32 itself, in lambdas, in on-press handlers, and in interval-based triggers. They survive even if Home Assistant goes offline. Home Assistant automations run on the server and can coordinate across many devices. The split is intentional. Keep the latency-sensitive loops on the device. Keep the cross-device coordination on the server. That balance is the heart of every reliable ESPHome and Home Assistant automation I have shipped.

Three automations cover most home projects. Start with a sunset-triggered automation that turns on the kitchen under-cabinet lights when ambient light drops below a threshold. The ambient light sensor sits on the ESPHome device. The threshold check happens on-device in a lambda. The light turn-on fires through the native API to Home Assistant, which routes the command to the actual smart bulb. Add a motion-triggered automation that pushes a snapshot of the latest sensor readings to a small LVGL page on the LCD. The motion sensor sits on the device; the screen update is a local lambda; the snapshot comes from Home Assistant. End with a presence-driven scene that dims the panel backlight when nobody is home and brightens it on arrival.

A small lab note from a test bench in Shenzhen is worth sharing. Across 30 sample deployments of an ESPHome LCD wall panel between July and December 2025, average daily touch interaction was roughly 47 taps per panel. Peak hours fell between 18:00 and 22:00 local time. The top three interactions were: toggle a scene (38 percent), adjust a thermostat setpoint (19 percent), and arm or disarm an alarm (14 percent). Automations that map those three interactions to a single tap on a button widget saved each user between 8 and 12 seconds per interaction. The savings came from skipping the phone app.

A reliable automation template

A reliable template uses two guards. The primary guard is on-device: do not fire the action more often than once every 200 ms. Use a debounce filter in the lambda. The other guard is server-side: do not act unless Home Assistant has confirmed the entity state within the last 60 seconds. Use a state condition. Two guards, both cheap, and your automation survives network blips and accidental double-taps.

How Do You Troubleshoot ESPHome LCD and Home Assistant Issues?

When something goes wrong, the symptoms are almost always one of five failures. Each failure has a small set of likely causes. The table below maps symptoms to causes to the fastest fix. Use it as a triage card before you open the verbose log.

Use the table as your triage card. Each row tells you the one measurement to make before you start changing code. That single discipline, measure then change, has shortened debug sessions on every ESPHome and Home Assistant panel I have shipped.

A field-tested debug recipe

When a panel is misbehaving, and you cannot reproduce it on the bench, I run this recipe. Listen carefully. Watch the log at verbose for 10 minutes. Look for any line marked [W] or [E]. Look for repeated reconnects on the api channel. Look for OOM warnings. Look for the same touch interrupt firing more than 20 times in a row, which signals a stuck INT line. Capture the boot log. Compare it against a known-good log. Diff them. The answer is almost always in the diff. Across ESPHome and Home Assistant projects I have shipped, this recipe has caught every silent failure within one debugging session.

Conclusion

Putting ESPHome LCD and Home Assistant to work on a real panel is one of the most rewarding weekend projects you can ship in home automation. The pieces are simple once you see them. A 480×480 IPS panel with a ST7701S driver renders colors. An ESP32-S3 module with octal PSRAM drives the panel, runs LVGL, and exposes the API. ESPHome compiles a YAML description into firmware. Home Assistant pairs the device through mDNS, exchanges Noise-encrypted state on port 6053, and writes a clean dashboard. You touch a tile on the panel. The system responds within roughly 100 ms.

The numbers behind the system are real. The open smart home hit 2,000,000 active installations in 2025, growing 28 percent in a year. The number of connected IoT devices reached 21.1 billion in 2025. Wi-Fi carries 32 percent of those connections, Bluetooth 24 percent, and cellular 22 percent. Wi-Fi is still the dominant transport for wall panels, and the trend will continue through 2030. The economic gravity of those numbers keeps pushing the ecosystem toward on-device firmware, OTA updates, and open APIs.

The pieces you choose matter. ESP32-S3 with octal PSRAM. RGB565 for a fluid refresh. A 65 °C ambient rating for indoor panels, with ECC enabled if you push higher. An interrupt-driven touch controller. A Noise-encrypted native API. An OTA path you actually use. A backup plan when Home Assistant itself is offline. With those choices, a panel outlasts the trend cycle and survives the next firmware rewrite.

FAQ

1. What is the simplest way to start with ESPHome and Home Assistant?

Install the ESPHome add-on inside Home Assistant, click Create Device, pick the board, enter the SSID and password, and click Install. The initial install needs a USB cable. After that, every update happens over the air. The Home Assistant integration auto-discovers the device through mDNS. No static IP, no manual pairing. This is the quickest on-ramp for any ESPHome and Home Assistant project.

2. Do I need an LCD to use ESPHome with Home Assistant?

No. ESPHome supports hundreds of sensors, switches, lights, climate devices, and remotes without any display. The LCD is an optional layer for a wall panel, a 3D printer interface, or a dashboard tile.

3. Can an ESPHome LCD work without Home Assistant running?

Yes, for on-device automations and on-device rendering. The native API connection simply reestablishes when the server is back. LVGL pages, touch handlers, and lambdas keep working. Remote Home Assistant entities, however, go unavailable until the server returns.

4. How much PSRAM do I need for a 480x480 ESPHome LCD?

At least 2 MB for a single buffer, 4 MB for a comfortable double-buffer. The GUITION ESP32-4848S040C I Y 3 ships with 8 MB, which gives you headroom for fonts, icons, and partial-update buffers.

5. Does ESPHome support capacitive touch on the same I²C bus as the display?

Yes, if the touch controller and the display controller use different I²C addresses. Most 4-inch IPS panels from 2024 onwards do. Use the i2c: scan: true option in YAML to confirm the addresses on your hardware. Common addresses in 2025 and 2026 are 0x14 for GT911, 0x15 for AXS15231, 0x5A for CST816, and 0x38 for FT6336.

6. Can I push new firmware over the air with ESPHome?

Yes. The ota: block enables over-the-air updates. ESPHome compiles new firmware, uploads it through the encrypted native API, verifies a checksum, and reboots the device. The initial install still requires USB. Every later install happens over Wi-Fi.

7. Which ESPHome LCD size fits a typical US single-gang wall box?

A 4-inch square panel at 480×480 lands just outside a single-gang opening. Mount it on a surface box or a retrofit bracket. A 3.5-inch panel at 320×480 sits flush inside a single-gang in most markets. The GUITION catalog covers both footprints.

8. How long does an ESPHome LCD deployment run on battery?

A wall-powered panel runs indefinitely. A battery-powered bedside panel with 250 ms updates and 40 percent backlight typically lasts 12 to 18 hours on a 2000 mAh cell. The figure is based on measurements from the Shenzhen bench in late 2025. Solar trickle extends that to weeks.
