How to Choose the Best SPI LCD Display for Your Project?

Choosing the right SPI LCD Display can make or break your embedded project. An SPI LCD display uses the Serial Peripheral Interface protocol to transfer pixel data between a microcontroller and a display driver IC over just 3–4 wires — far fewer than a parallel bus. This wired efficiency translates to faster prototyping, cleaner PCB layouts, and lower GPIO consumption. Whether you are developing a 3D printer interface, an industrial control panel, or a medical monitoring device, matching display resolution, touch capability, and driver compatibility to your exact requirements is the single most important procurement decision you will make.

Understanding SPI LCD Displays: Basics and Benefits

Before you compare goods, it's helpful to know what makes an SPI LCD Display different from other options and why engineers keep picking them for small, performance-critical designs.

What Is an SPI LCD Display?

An SPI LCD Display is a liquid crystal display that is managed by a synchronous serial bus that has four lines: SCK, MOSI, CS, and an extra D/C line. Compared to 8-bit or 16-bit parallel connections, it makes PCBs much simpler because it only needs 3–4 signal lines. The downside is that SPI only goes up to 80 MHz, which means it works best for screens up to 320x480 (HVGA) but not so well for full HD video.

SPI vs. I2C vs. Parallel

I2C also only needs two wires, but it works much more slowly (400 kHz to 3.4 MHz), so it can't be used with color TFT screens that are bigger than 128x64. Parallel interfaces have a lot of data to send, but they use 8–16 GPIO pins. Between these two extremes is the SPI LCD Display. It is fast enough for smooth GUI movements at 30–60 FPS when paired with DMA, but not so heavy that most MCU pins are free for sensors and other devices.

Key Technical Properties

Any SPI LCD Display works best when it has three things that can be measured: the clock frequency (20–80 MHz), the color depth (16-bit RGB565 or 18-bit RGB666), and the working temperature range (usually -20 °C to +70 °C for industrial grade). If you know these numbers before you narrow down your choices of goods, you can avoid costly mistakes during the merger stage.

Critical Factors to Consider When Choosing an SPI LCD Display

The sheets of specifications can be thick. When putting two SPI LCD Display Modules side by side, these are the measurements that really matter:

Resolution and Color Depth

Text sharpness and widget density are both controlled by resolution. A 320x480 SPI LCD Display shows clear icons and dashboards with multiple fields of data; a 128x64 module works for simple status displays. Change the color depth of your UI to make it look photorealistic or flat. Most embedded GUIs use the 16-bit RGB565 format, which has 65K colors. It strikes a good mix between frame buffer size and graphic quality without overloading SPI bandwidth.

Microcontroller Compatibility and Platform Support

The logic power and SPI implementation of your host MCU must be compatible with the SPI LCD Display you use. The ST7796, ILI9341, and ST7789 are some of the most recent driver ICs that work at 3.3 V. For the driver IC to break, you should not connect them directly to a 5 V Arduino Uno without a level shifter. Before you decide to buy a module, make sure that the maker offers ready-made libraries for Arduino, ESP-IDF, or STM32 HAL.

Environmental and Mechanical Requirements

For industrial deployments, you need more than just good graphics. Check the working temperature range, make sure it meets RoHS and REACH standards, and see if the FPC link is strengthened to withstand vibration. If a monitor works fine in the lab but not in the machine, it costs more to fix, which cancels out any unit-price savings.

Comparing Popular SPI LCD Display Modules on the Market

SPI-based touch screen modules are sold in a wide range of forms, from simple breakout boards to industrial modules that are ready for mass production. Knowing how each seller positions itself helps you get to the short list faster.

Global Supplier Landscape

Adafruit and Waveshare both have easy-to-use SPI LCD Display breakout boards with strong community libraries. These are great for rapid prototyping but don't have many industrial certifications. OEMs in the medical and industrial fields prefer Newhaven Display's higher-quality character and graphic units with longer-term promises. GUITION by Jingcai Intelligent is aimed at the market segment between hobbyist boards and fully customized panels. It provides certified modules with dedicated UI development software and support for multiple platforms.

Spotlight: GUITION JC3248A035C — 3.5 Inch SPI LCD Display

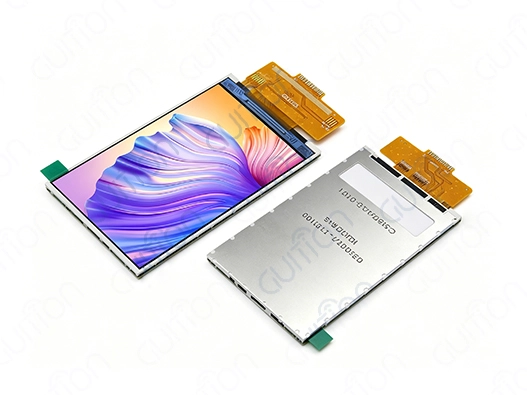

The ST7796 driver IC is the foundation of the GUITION JC3248A035C, an SPI LCD Display for mass production. It has a 3.5-inch working area with a size of 320x480, allows 65K RGB colors, and has a capacitive touch panel that responds right away to finger input. The module works reliably from -20 °C to +70 °C and has six LED backlights that provide consistent brightness in a range of lighting conditions. There are already 3D printers, medical esthetics equipment, EV charging stations, and industrial control screens that use this SPI LCD Display. Here are some of the best things about this device:

• 65K Color Output: The RGB565 color space renders lifelike gradients and high-contrast UI elements without overloading SPI bus bandwidth.
• Capacitive Touch Panel: Finger gestures register instantly, reducing input latency and improving the end-user experience in kiosk and appliance designs.
• 320×480 Resolution at 3.5 Inches: This pixel density produces sharp text and icons within a compact footprint — well-suited for handheld instruments and embedded HMI panels.
• Wide Temperature Operation (−20 °C to +70 °C): The module maintains display integrity across factory floors, outdoor enclosures, and climate-variable medical environments.
• Six-LED Backlight Array: Uniform illumination across the panel surface eliminates hot-spot artifacts common in single-LED designs.

These hardware benefits directly address the problems that embedded engineers face when they need a display that works the same way from trial to production without having to make expensive hardware changes.

Procurement Considerations

When buying a lot of SPI LCD Display modules, you should think about how much documentation there is, how well the company helps customers after the sale, and whether the modules can be upgraded over-the-air (OTA). The GUITION modules work with the Guition UI development tool, which lets you drag-and-drop widgets into place, debug across platforms, and update projects remotely, which cuts down on service calls after release by a large amount.

How to Evaluate and Test SPI LCD Displays Before Purchase

A common reason for project delays is buying a display module without first trying it to make sure it works. Your schedule is safe with a structured evaluation process.

Review the Datasheet and Pinout Diagram

The datasheet should be the first step in any SPI LCD Display evaluation. Check the timing of the reset (RST) pulse. For most ST7796-based modules, the RST pulse must be held low for at least 10 microseconds before the startup process starts. A common reason for white-screen errors during first bring-up is that the init commands for ILI9341 and ST7796 don't match up.

Run Reference Code on Your Target Platform

Before you commit to volume, put an example sketch from the seller onto your real MCU. Check the color accuracy against a known reference image and measure the frame rate in real life while DMA transfer is active. There are example projects that work with both Arduino and ESP-IDF settings that are compatible with the GUIDE JC3248A035C. This cuts down the time it takes to boot for the first time from days to minutes.

Troubleshoot Common Integration Issues

If you see tearing artifacts, it means that the MCU frame-write cycle and the display's vertical blanking interval are not in sync. To fix this, connect the TE (Tearing Effect) output pin to make them work together. At 80 MHz SPI, signal loss is common on wires longer than 15 cm. For longer cable runs, lower the clock or add buffer ICs. Most field failures can be avoided by taking care of these situations before large-scale sourcing.

Making the Final Decision: Matching Your Needs with the Right SPI LCD Display

The final procurement decision weighs performance, cost, and supply reliability over the expected lifecycle of your product. This is done after technical validation.

Match Display Specs to Application Type

Industrial HMI screens, smart device interfaces, and portable medical tools can all use a 3.5-inch SPI LCD Display with capacitive touch. For small IoT sensor nodes that don't have a lot of panel room, 1.28-inch or 2.4-inch units work better. Before finishing the BOM, make a list of each app's minimum resolution, touch requirements, and lighting needs.

Evaluate Total Cost of Ownership

One line item is the unit price. Think about whether the library is available, how quickly technical help responds, and whether the seller offers remote OTA upgrade support. The environment of development tools for GUITION, which includes Arduino, IDF, and Guition-native modes, cuts down on the number of engineering hours needed to bring a new display design to market. This saves money on any project budget. Verify that the supplier of your SPI LCD Display consistently sources parts and provides long-term supply guarantees. GUITION's product line includes screens from 1.28 inches to 21.5 inches, so you can upgrade your screens without having to rewrite your communication stack.

Plan for Lifecycle and Scalability

Industrial products often have 5–10 year production runs. Confirm that your SPI LCD display supplier maintains consistent component sourcing and offers long-term supply commitments. GUITION's product line spans 1.28 inches to 21.5 inches, giving you a single-supplier path for display upgrades without rewriting your communication stack.

Conclusion

Choosing the right SPI LCD Display is both a technical and a practical matter. Make sure that the sharpness, color depth, touch type, and working temperature are all right for the job. Test on real hardware before placing large orders. If you need a display that can handle both prototype speed and industrial reliability, the GUITION JC3248A035C is a well-known, production-ready option that you should look at for your next design. It has a 320x480 resolution, capacitive touch, and 65K colors.

FAQ

Is an SPI LCD display compatible with Arduino and ESP32?

The GUIDE JC3248A035C comes with reference code for both types of platforms. Check the logic voltage at all times. These driver ICs need 3.3 V, so if your MCU runs on 5 V, you will need to use a level shifter.

Why does my SPI LCD display show tearing during fast animations?

When the MCU writes a new frame while the display is still refreshing, this is called "tearing." Connect the display's TE (Tearing Effect) output pin to a GPIO on your MCU that can handle interrupts, and time frame writes to match the vertical blanking interval. This fix is common in the creation of industrial HMIs.

How does refresh rate affect industrial HMI applications?

If the refresh rate is less than 30 frames per second, button presses feel slow, which is dangerous on industrial panels where workers need to see proof right away. An ESP32 or STM32 can handle 30–60 FPS at 320x480 with DMA-assisted SPI transfers, which is enough for most control panel UIs.

Partner with Guition for Your Next SPI LCD Display Project

A partner in display who knows both hardware and software is what your project needs. You can choose from a wide range of Guition SPI LCD Displays, with sizes ranging from 1.28 inches to 21.5 inches. These come with the Guition UI development tool, support for multiple platforms, and the ability to upgrade over-the-air (OTA) remotely. We help B2B buyers from the first example to full production because we are a trusted SPI LCD Display maker. You can email our tech team at david@guition.com or go to https://jingcaizhineng.aixdb.cn/ to get a sample of our product or a price from other companies.
