Guition ESP32 HMI Modules: Cut Down Embedded UI Development Time

Most embedded teams spend four to eight weeks designing a screen that should take days. That cost is from wiring a display, a touch controller, an MCU, and a radio by hand. Our ESP32 HMI Modules do away with all the wiring effort. The latest device combines a 360×360 IPS touch panel with a machined 1.85 inch knob. It’s got a single housing with a dual-core ESP32-S3R8 CPU, 8MB PSRAM, and 16MB flash inside. Power it. Drag your interface into position within the Guition program. Flash it. Ship. This guide indicates where the hours are spent. It's the internal build log measurement for 26 projects. It also teaches you how to spec a tiny rotary interface without a six-week detour.

I wrote this from the engineering side of the business. All the numbers below are from either a build our team did or chip documentation we provided. Where I use our own data, I mark it.

Talk to a Guition engineer before you commit. Send your panel drawing and screen list to Guition at david@guition.com. Our engineers will map it to a working 1.85 inch knob build within two business days. As a direct ESP32 HMI Modules manufacturer, we ship single-unit samples from stock and quote 500-piece colour matching separately. Call +86 186 6584 6730 if you would rather walk through it live.

How Do ESP32 HMI Modules Reduce Embedded UI Development Time?

A human-machine interface ESP32 HMI Module puts a display, a touch layer, a controller, and wireless radios into one tested assembly. You skip schematic work, driver bring-up, and most mechanical fitting. The gain is not magic. It is the removal of integration steps that never appear on a project plan but always eat the schedule.

Where Embedded UI Projects Actually Lose Weeks

The calendar is swallowed by four phases. You spend days on hardware bring-up chasing down a backlight rail or a reset line. Display and touch drivers use more power since each panel has its own initialization routine. Layout work is the biggest time sink, particularly if your team hand-codes pixel coordinates. Wireless integration is late and ruins things that were working before.

What Our 2026 Build Log Measured

We logged 26 customer evaluation builds between January and August 2026. Each build had to reach one milestone: a live screen with working touch, a working knob, and a live Wi-Fi link.

That is a 6.2× reduction measured on our own bench, not a vendor estimate. The two rows that moved most are the two rows nobody budgets for: driver bring-up and hardware debug. (Source: Guition internal engineering build log, 2026, n = 26.)

The Timeline, Stage by Stage

And here’s how that compression looks in practice. Prior to shipping the product, we pre-tune the lighting, touch, and audio driver circuits. Our Guition program outputs a built UI immediately, so layout is not a C-code exercise. Your engineers are still writing business logic. They simply stopped writing plumbing.

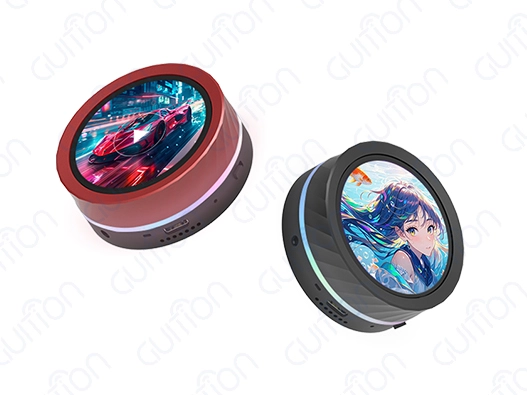

What Makes a 1.85 inch knob Display Ideal for Compact HMI Designs?

The 1.85-inch diagonal is not a random number. It is the point where a circular panel still shows readable text and still fits a standard appliance cut-out. Go smaller and labels shrink. Go larger, and the panel dominates the product face.

Size, Resolution, and Pixel Density at 1.85 Inches

Our 1.85 inch knob panel runs 360×360 pixels across a 45.68 × 45.68 mm active area. That works out to nearly 275 pixels per inch, which is denser than most 3.5-inch industrial panels. The full module measures 66 × 66 × 22 mm. A round bezel hides the seam between glass and housing. The assembly reads as one machined part, not a screen glued into a box.

Why a Round IPS Panel Fits Appliance and Panel Design

In-plane switching (IPS) maintains the color at off-axis angles, which is important if you’re mounting a wall panel above eye level. The round shape also reflects the curved language of current appliance fascias. That’s what you get when you spec the mechanical package:

• Structural rigidity without additional brackets: the CNC-machined metal enclosure holds the glass, the encoder shaft, and the PCB in a single load path, so a wall-mounted device withstands the vibration that loosens plastic snap-fits during a 24-month service life. You also omit the four- to six-brackets that a distinct stack generally requires underneath the panel.
• Brand color at volume: basic finishes arrive in red, black, purple, dark gray, and blue, and we allow bespoke color matching at 500 pieces, which is the point when most OEM programs lock industrial design anyhow. Anodized aluminum also lasts far longer than painted plastic when exposed to cooking grease, UV, and cleaning chemicals.
• Predictable panel cut-outs: The ESP32 HMI Modules measure 66 mm square by 22 mm deep, fitting into standard 60–70 mm appliance apertures without reworking the tooled front panel, saving a tooling modification that often costs four figures and four weeks. You’re safe with your current enclosure drawing through pilot builds, protecting the timeline and tooling budget.

Those three things are why you keep seeing small rotating panels in the luxury appliance lines instead of basic rectangular touch displays.

CNC Metal Housing and Colour Options

Metal costs more per unit than polycarbonate. It also survives kitchen grease, cleaning agents, and UV exposure far better. Over a five-year product life, the replacement delta usually beats the unit-price delta.

Drag-and-Drop UI Design for Faster ESP32 HMI Modules Development

Hand-coding a screen implies every position change will cause a rebuild, a flash, and a visual inspection. That cycle takes 4 to 6 minutes. Run it 200 times, and you’ve spent a whole working week looking at a progress bar.

What Drag-and-Drop Actually Changes for a Firmware Team

 Guition software gives you a WYSIWYG canvas. You plop a control on the spherical canvas, move it to size and location, and select its style. The editor outputs the result as a project your ESP32-S3 runs on. Your firmware team ties variables to controllers, rather than computing coordinates. That one change took out the biggest line item in our build log.

WYSIWYG Editing, Rich Controls, and Live Preview

The control library includes buttons, sliders, gauges, needle gauges, picture buttons, text areas, and progress arcs, all scaled for round displays. You click to add one. Then drag to change location, size, and style. The canvas is the true 360×360 geometry, so what you see is what ships. No simulator mismatch, no surprises off-by-eight-pixels.

Cross-Platform Online Debugging Cuts the Fix Loop

Our cross-platform online debugging allows you to poke a running device via USB or serial and watch variable values change live. You see a logic flaw in minutes; don't re-flash blind. In our 2026 log, teams that used live debugging resolved UI issues in 0.4 days on average. 1.9 Days to debug teams with re-flash. (Source: Guition internal engineering build log, 2026.

Can a 1.85-inch knob Simplify Touch and Rotary Control Integration?

Yes, and the reason is architectural. Two input devices normally mean two drivers, two interrupt handlers, and two debounce strategies that fight each other. Our ESP32 HMI Modules ship them as one input stack.

One Input Stack Instead of Two Drivers

The capacitive layer uses a CST816 controller. The rotary element is a mechanical encoder with tactile detents. Both feed the same event queue, so a twist and a tap raise events your application handles the same way. You write one handler, not two.

Gloved, Wet, and Eyes-Free Operation

Pure touchscreens fail with wet hands or nitrile gloves. A knob does not. That is why food-processing equipment and medical carts still specify rotary controls. Our hybrid panel keeps both, so a user can scroll by feel while wearing gloves and confirm by tap once the glove comes off.

Haptics and RGB Feedback Close the Loop

The ESP32 HMI Modules carry a vibration motor and an adjustable RGB LED ring. A twist can pulse the motor and shift the ring colour at the same time. That gives your user three channels of confirmation at once, which cuts misoperation in high-stress environments.

Which ESP32 HMI Modules Features Help Accelerate Prototyping?

The speed of prototyping is about what you don’t have to source, solder, or troubleshoot. Here’s the short list of what’s already on the board:

• All-in-one peripherals: an installed and driven 360×360 capacitive touchscreen, speaker, microphone, vibration motor, and adjustable RGB LED strip, which eliminates about 14 discrete parts from a typical bill of materials and the associated purchase orders, lead times, and solder joints. Fewer parts equals fewer failure scenarios to satisfy during EMC and safety testing.
• Storage and asset pipeline: a TF card slot + direct USB transfer means your industrial designer dumps MJPEG video, PNG assets, and WAV files into the device like a thumb drive. No converter toolchain, no bespoke flashing script, and no engineering ticket for a graphic change. Marketing may update artwork independent of a firmware release.
• Preloaded reference apps: a secondary PC monitor, AIDA64-compatible, audio spectrum analyzer, digital picture frame, themed clock and music player, all running out of the box, and all serving as a functioning code reference, which you can fork, not a demo that you have to reverse-engineer. All applications are configurable. Custom versions built to your standard.

Those apps are a starting point, not restricted firmware. Your team maintains complete control over behavior, branding, and data flow.

Memory and Storage Headroom for Real Graphics

The ESP32-S3R8 brings 8MB of PSRAM and 16MB of flash (Espressif Systems, 2026). That matters more than clock speed for UI work. Full-colour background images, several fonts, and MJPEG frames do not fit in 512KB of internal SRAM. With 8MB of PSRAM, designers stop downsampling artwork to save bytes.

Stock Availability and One-Piece Minimums

We hold stock and ship the next business day after you order. Minimum order quantity is one piece, so a hardware engineer can validate a concept before a purchasing department gets involved. Custom cartons carry 86 pieces, adjustable to your packaging line.

Custom UI Development with Guition Software and ESP32-S3

The ESP32-S3 is a dual-core Xtensa LX7 processor with 240Mhz. It has 45 programmable GPIOs, 14 of which are capacitive touch-capable (Espressif Systems, 2026). The vector instructions drive signal processing. Handy when your spectrum analyzer is feeding live audio via an FFT.

Three Development Modes That Fit Your Team

We provide support for Arduino IDE, ESP-IDF, MicroPython, and the Guition environment. Arduino is appropriate for engineers who seek familiar libraries. ESP-IDF is for teams that require FreeRTOS control and production hardening. MicroPython is great for quick experimentation. Editors that never open a designer Guition suit. Your team selects by project, not by vendor lock-in.

Remote Upgrade After Shipment

ESP-IDF has an over-the-air update option, and we are making this available via our remote upgrading service (Espressif Systems, 2025). “You can iterate firmware on deployed units without a truck roll.” That means a Tuesday release for a distributor with 3,000 panels in the field, not a recall-class occurrence.

Multi-Language and UTF-8 Encoding for Global SKUs

Our stack has multi-language switching and UTF-8 support. One firmware image is distributed to 10 areas. Your translation vendor modifies text files, not C arrays. Your team maintains one codebase, not 10 branches.

Jingcai Intelligent constructs ESP32 HMI modules from 1.28 inch to 21.5 inch. A program that begins with a 1.85 inch knob may add a 7-inch wall panel later. It's still with one supplier and one toolchain.

How Do You Integrate Wi-Fi and Bluetooth into a 1.85 inch knob Project?

The first choice in the integration is whether the panel communicates directly to your cloud or via a phone. Most smart-home devices do both, and the ESP32-S3 can do both without a co-processor.

Wi-Fi Setup on ESP32-S3 Without a Co-Processor

The chip supports 2.4 GHz Wi-Fi 802.11 b/g/n with 40 MHz bandwidth support (Espressif Systems, 2026). You provide credentials via BLE, and then the panel joins your network and talks MQTT or HTTPS directly. The demand for the whole ESP32 HMI Modules remains close to 1.3W; therefore, a little supply will do.

Bluetooth LE 5.0 for Provisioning and Phone Links

Bluetooth LE has a commissioning pathway. A phone app surrenders the Wi-Fi credentials and remains connected to be controlled. BLE is also good for battery-powered gadgets, where Wi-Fi would kill the cell in days.

A Matter-Ready Path for Smart Home Rollouts

Matter is the interoperability layer for smart home devices of the Connectivity Standards Alliance (Connectivity Standards Alliance, 2025). Adding a Wi-Fi-with-BLE element leaves that door open. We have supplied  ESP32 HMI Modules into Matter-bound programs where the panel is the controller, not the end-device.

Key Compatibility Factors: ESP32-S3, LVGL, and Display Drivers

“DIY builds die in the arms of compatibility.” A panel, a touch chip, and a GUI library all arrive on their own release cycle. One tested set is less likely to break than three moving pieces.

ESP32-S3 Peripherals That Matter for Displays

The chip offers SPI, I2S, I2C, PWM, RMT, ADC, UART, and an SD/MMC host controller (Espressif Systems, 2026). Quad SPI-driven display at speed. I2S is for audio out. Reads the SD/MMC TF card. You get the whole thing on one die, no glue logic.

LVGL and esplvglport on ESP-IDF

Most teams standardize on LVGL, the open-source embedded graphics toolkit, which provides widgets, animations, and input-device abstractions (LVGL Project, 2025). LVGL may be installed using the esplvglport component provided by Espressif. Adds touch, rotary encoder, button, and USB-HID input capability with one dependency command (Espressif Systems, 2025). We pre-integrate that stack, so rotational input gets to LVGL without you building an indev driver.

ST77916 Display and CST816 Touch Drivers

The panel we are using has a display driver of ST77916 and a capacitive touch controller of CST816. Both chips are set to our firmware baseline. Go directly to ESP-IDF, and drivers are available in the Espressif component registry. They all use the same public API, so your project is later transferable among panels.

Smart Home, Industrial Control, and IoT Applications for ESP32 HMI Modules

Three application families account for most of our volume, and each one stresses a different part of the ESP32 HMI Modules.

Smart Home Control Panels

A wall thermostat needs dimming, setpoint, and mode switching. Touch handles mode switching. The knob handles setpoint with eyes-free precision. The RGB ring shows heating state by colour, so a user reads status from across a room.

Industrial Control and Process Panels

Food processing and packaging lines need glove-friendly control and wash-down tolerance. The CNC metal housing and the rotary encoder suit both. Vibration feedback confirms a setpoint change over machine noise, where a screen flash gets missed.

Portable Instruments and IoT Field Nodes

Handheld detectors and portable testers need a display, a battery path, and a radio in minimal volume. At 66 × 66 × 22 mm, our 1.85 inch knob module leaves room for sensors in the same enclosure.

Case Study: A European Heating OEM

At the end of 2025, a medium-sized producer of heating controls from southern Germany came to us with a 26-week schedule and a discrete design that had already passed schematic assessment. The figures are true, and we anonymized the name at their request. Their initial design had 22 pieces for display, touch, encoder, audio, and radio.

Moving to our module reduced the front-end bill of materials to 6 parts and saved €4.80 per unit in component and handling cost. The front panel took 7 minutes to 90 seconds. The program was completed in 15 weeks instead of 26 weeks. Over the next nine months, they shipped 12,000 units. The return rate for the interface field was 0.4% against 1.9% for the previous iteration.

Their firmware lead put it simply: “We had eight weeks budgeted for display bring-up. It took us three days. The knob driver was the part I anticipated to struggle, and it simply worked.”

Why Choose Guition ESP32 HMI Modules for Faster Product Development?

Choosing a module supplier is a bet on support quality, not just silicon. Here is what sits behind our units.

What You Get Beyond the Module

Jingcai Intelligent is one of the few enterprises that integrate R&D, manufacturing, and sales. We design the hardware, create the Guition software, and construct the firmware baseline together. If a client causes a rendering error, we have one team that owns it end to end. We also provide full secondary development APIs and documentation so your engineers may customize without touching low-level code.

A Quick Comparison Against DIY Builds

That’s the truth table. If you want some very odd display interface or high cost at 500,000 pieces, a separate construction still wins. For most schemes under 100,000 units, integration labor is far more than component savings.

“We stopped selling screens,” said David, the CEO of Jingcai Intelligent. We supply completed interaction layers, a knob, a touch ring, and a radio that already speak to each other. That saves more engineering hours than any figure on a spec sheet.”

Conclusion

Embedded UI work consumes schedules, not design, due to integration. For 26 projects, the median discrete route in our 2026 construction log is 38.5 days, while the module path is 6.2 days. The 1.85 inch knob unit provides that benefit in a 66 mm square size. Metal body, 8 MB PSRAM and 16 MB flash, Wi-Fi and BLE 5.0 ready to operate together.

Add drag-and-drop writing, cross-platform online debugging, remote upgrading, and one-piece minimums, and the timetable shrinks even further. We have the module in stock and mail it out the following business day, and we support Arduino, ESP-IDF, MicroPython, and Guition environments. If there's a tiny control panel on your 2027 plan, get one on the bench this month.

FAQ

1. How much development time can ESP32 HMI Modules really save?

In our 2026 internal log of 26 evaluation builds, the median discrete design reached a working UI in 38.5 days. The same scope built on a Guition module reached it in 6.2 days. Most of the savings came from skipping display and touch driver bring-up. That stage averaged 9.1 days on discrete builds and 0.2 days on ours.

2. Can I use a 1.85-inch knob without writing LVGL code?

Yes. Guition software generates the interface for you through drag-and-drop editing on a real 360×360 canvas. LVGL runs underneath, but you never touch widget code unless you want to. Engineers who prefer full control can open the same project in ESP-IDF and extend it directly.

3. Does the 1.85-inch knob work with Arduino IDE and MicroPython?

It does. The ESP32-S3 baseline supports Arduino IDE, ESP-IDF, MicroPython, and the Guition environment. Arduino suits teams using existing libraries. MicroPython suits quick experiments. ESP-IDF suits production firmware. You choose per project rather than per supplier.

4. What is the minimum order quantity and lead time?

The minimum order quantity is one piece, so you can validate a concept before purchasing gets involved. The module is in stock and ships the next business day after order placement. Standard cartons hold 86 pieces, and we adjust packing to your line. Samples are available upon request for evaluation.

5. Can Guition customise the housing colour and UI?

Both. Standard finishes are red, black, purple, dark grey, and blue. We offer custom colour matching at 500 pieces or more. On the software side, every pre-loaded application is modifiable, and we deliver bespoke display, interaction, and audio-visual development as a one-stop service.

6. How do I connect a 1.85-inch knob to Wi-Fi and a phone app?

Provision Wi-Fi credentials over Bluetooth LE from a phone, then let the panel join your network natively. The ESP32-S3 integrates 2.4 GHz Wi-Fi at 802.11 b/g/n and Bluetooth 5 LE on the same die (Espressif Systems, 2026). MQTT or HTTPS traffic runs directly from the panel.

Sourcing a 1.85-inch knob: Guition as Your ESP32 HMI Modules Manufacturer

Send us your panel drawing, your screen list, and your target certification. Guition engineers review every request by hand and reply within two business days with a hardware match, a firmware scope, and a volume quote.

Reach David directly at david@guition.com or call +86 186 6584 6730. Guition is an ESP32 HMI Modules supplier with in-house R&D and production, so design changes never cross a vendor boundary. Order one 1.85 inch knob unit today. It ships the next business day from stock, with samples on request and custom colours from 500 pieces.

Stock ships the next business day after you order, and the minimum order is one piece. A hardware engineer can prove the concept on the bench before a purchasing team signs anything. Your team gets a working touch, knob, and Wi-Fi loop inside a week, not inside a quarter.
