ESP32 P4 Display Module with Touch: Worth It?

For industrial and business uses, the ESP32 P4 display module is a big step forward in HMI technology. This module, which is based on Espressif's dual-core 400MHz RISC-V processor, offers great multimedia performance at a low cost. The JC-ESP32P4-M3-C6 from Guition has both ESP32-P4 and ESP32-C6 chips built in. It has native MIPI-DSI interfaces, Wi-Fi 6 connection, and can handle images up to 800x1280. This option is a great value for engineers who want to build things quickly, have strong security features, and connect to other systems without having to deal with the complexity of Linux-based systems.

Understanding the ESP32 P4 Display Module with Touch

Modern HMI systems have changed a lot in terms of how they are built. Our development board has the latest processing power and full external support to help embedded engineers and product managers solve problems that come up in the real world.

Core Components and Architecture

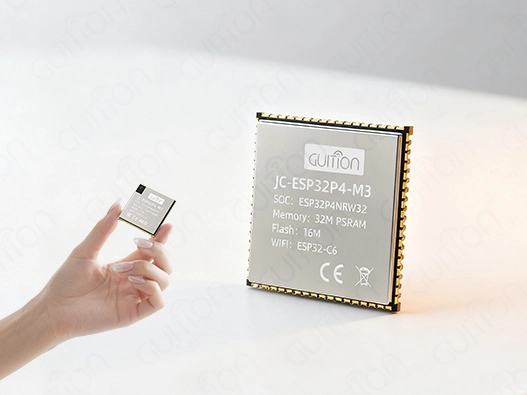

The JC-ESP32P4-M3-C6 from Guition is powered by a dual-core RISC-V processor running at 400MHz and the ESP32-C6 for wireless connection. When processing power and smooth network interaction come together, they make a powerful environment. The module can handle up to 32MB of PSRAM, which lets complicated graphics user interfaces run smoothly without frame drops or lag. The GUI delay problem that happens a lot in older microcontroller-based screens is fixed by adding a 2D Pixel Processing Accelerator. This display system is different from older ones because it has both MIPI-DSI and MIPI-CSI ports built in. Now, engineers can directly drive high-resolution screens without using external converters. This cuts down on bill of materials (BOM) costs and PCB complexity. Because it has a built-in Image Signal Processor, this module works well with camera inputs and is perfect for uses that need visual feedback, like medical tracking tools or quality control systems in factories.

Technical Specifications That Matter

In business settings, running costs are directly affected by the amount of power used. Our display module works well in a wide range of industrial temperatures and keeps its performance stable. The USB OTG 2.0 HS link lets you update firmware quickly and send data at speeds that are faster than traditional serial methods. The H.264 compression feature lets video playing go smoothly without putting too much strain on the processor in industrial control panels that need to be able to respond in real time.

Industry Applications and Use Cases

The secure boot features and specialized key management unit are appreciated by medical device makers because they keep patient data safe while the device is running. The digital signature device meets the needs of regulatory compliance without the need for extra security chips. Low-power design helps smart home device makers because it extends the battery life of portable control screens while keeping the touch displays responsive. The module's ability to handle multiple transmission methods at the same time is useful for people who put together automation systems. One unit can handle UART talks with PLCs, show real-time data through the MIPI-DSI interface, and send Wi-Fi alerts without slowing down any of these functions. The ADC devices are used by energy management systems to precisely track how much power is being used. Trends and outliers are shown through easy-to-use graphical user interfaces created with our Guition software.

ESP32 P4 Display Module vs Other Display Solutions — Making the Right Choice

To choose the right HMI system, you need to know how to balance speed, cost, and development difficulty. To help procurement teams make smart choices, we've looked at how our product stacks up against well-known options.

Performance Comparison with Traditional Options

Even though OLED screens have great contrast ratios, they can get burned in when used in static interface applications like factory control panels. Since it has been used for years, the ESP32 P4 display module with IPS TFT technology has always worked well. Unlike E-paper systems that can only show black and white or have slow refresh rates, our module can handle full-color graphics at frame rates that are good for multimedia use.

Integration Ease and Development Efficiency

Displays that work with ESP8266 are older technology that is limited by computer power. These old options have trouble with sizes higher than 320x240 and don't have built-in support for touch controllers. The module for Guition easily handles 800x1280 displays, processes sensor data, and handles network interactions all at the same time. The difference in speed is clear in apps that need to update dynamic content, where older systems show clear lag. For basic functions, traditional display options often need a lot of low-level coding. With its visual design tools, our Guition UI creation software gets rid of this problem. Engineers don't have to write boilerplate code to examine interfaces, change features, or drag controls around in real time. Using this method cuts production time from weeks to days, which greatly speeds up the time it takes to get a product on the market. Our service stands out because it supports testing across platforms. Teams don't have to change any hardware to test apps in Arduino, ESP-IDF, and Guition settings. Because of this, engineers with different levels of skill can work together, with junior writers using familiar Arduino frameworks and senior engineers using native ESP-IDF tools to optimize key paths.

Cost Analysis for B2B Procurement

The price of the tools at the start only tells part of the story. The total cost of ownership includes the time spent on creation, fixing bugs, and maintenance over the long run. The module makes engineering easier by giving engineers detailed instructions and examples that are ready to use. Field service costs are kept to a minimum by remote upgrades, which is a key factor for operations in multiple places. Structures that use volume prices make it easier to grow. When a manufacturer plans to make more than 1,000 units, they can take advantage of economies of scale and still get expert help for the whole lifecycle of the product. The stability and supply reliability of the module lower the purchase risk compared to buying separate parts from different sellers.

How to Connect and Program the ESP32 P4 Display Module: A Practical Guide

Giving practical merger advice speeds up project timelines. This part is set up to deal with common setup problems and make the development process easier. A Step-by-Step Guide on How to Connect and Program the ESP32 P4 display module:

Hardware Setup and Wiring Guidelines

Power delivery needs to be done with care. The module needs a regulated 5V source to work, and the amount of power it needs depends on the size of the display and how bright the backlight is. For setups with bigger panels, we suggest power sources that can give at least 2A. To keep noise from changing how sensitive your touch is, your ground links must be solid. The pinout design makes integration open. GPIO settings let you make changes based on the needs of your peripherals, and MIPI interface-specific pins make sure that signals stay stable at high data rates. Connecting a touch device is easy because it uses standard I2C protocols, which make it easier to connect to current sensor networks. To keep damage from happening, engineers should check the voltage levels when connecting to 3.3V or 5V computer systems.

Software Environment Configuration

Choosing the right programming platform is the first step in getting started. Users of Arduino like how easy it is to set up—just install the ESP32 board package and add our tools, and you can start prototyping in hours. The Guition program gives you a visual space where user interface elements can be snapped into place, and it automatically writes code that works best. This method works well for fast testing where speed is more important than low-level optimization. For systems that need to work quickly, ESP-IDF gives you fine-grained control. Our detailed examples show how to use touch calibration methods, control the display buffer, and integrate LVGL for more advanced graphics. There are debugging tools in the development environment that show how much memory is being used, how tasks are being scheduled, and real-time speed data. These ideas are very helpful when making applications work better before they are put into production.

Troubleshooting Common Integration Issues

Most of the time, wrong pin configurations or not enough power transfer cause displays to fail to initialize. Our expert documentation has diagnostic steps that make it easy to tell the difference between hardware and program problems. Problems with touch responsiveness are often caused by calibration factors. The Guition software has calibration tools that walk users through the process of making changes interactively. Problems with network connection in Wi-Fi 6 settings can sometimes be caused by routers that don't work well with each other. We've written down the best ways to set up access points so that connections are always stable. Most Bluetooth pairing problems can be fixed by properly managing security keys. Our security implementation guides, which can be accessed through technical help methods, go into great detail on how to do this.

Procurement Insights: Buying the ESP32 P4 Display Module for B2B Projects

More than just the original purchase price, strategic sourcing choices affect the success of a project. This part gives procurement workers useful information they can use to evaluate sources and plan logistics. Buying the ESP32 P4 display module for B2B Projects: What You Need to Know:

Supplier Evaluation and Brand Reputation

Guition, which is part of Jingcai Intelligence, is known around the world for providing solid HMI solutions. Our past work includes successful deployments in medical devices that had to follow rules, industrial equipment that had to work in harsh conditions, and consumer goods that had to have uniform quality. Unlike wholesalers who sell generic modules, we have direct control over the production process, which means that each lot is the same. Serious providers are different from commodity vendors because they offer technical help. Our engineering team does pre-sales consultations to make sure that design methods are sound. This lowers the chance of having to do expensive redesigns. After the sale, help includes fixing problems with the software, suggesting ways to make it work better, and responding quickly to problems in the field. When putting in place solutions where downtime means lost income, this level of involvement is important.

Pricing Structures and Volume Considerations

Minimum order amounts change based on how you want to customize your order. Standard setups come with MOQs as low as 10 units so that teams can test their ideas before committing to large-scale production. Volume price levels start at 100, 500, and more than 1,000 pieces, with savings that go up as production costs go down. Branding, pre-loaded code, and changed casings are all ways to customize. Lead times for these services range from four to eight weeks, based on how complicated they are. When making a budget, NRE charges should be taken into account when specifications are very different from normal offerings. Our sales team gives thorough quotes that include all costs up front, so there are no surprises when the job is being done.

Logistics and Supply Chain Management

Shipping times rely on where the package is going and how big it is. Standard air freight orders to the United States take 10 to 15 business days, but there are faster choices for those who need them right away. Our warehouse partners keep extras of common setups on hand, which cuts down on lead times for repeat orders. Forecasts should be shared by procurement teams every three months to make sure that supply matches production plans. The warranty covers production flaws and part failures under normal working conditions for 12 months from the date of delivery. Options for longer warranties give more safety for operations in tough environments. The claims process focuses on causing as little trouble as possible. As soon as failure reports are received, advance new units are sent out, and a full root cause analysis is given after the evaluation.

Is the ESP32 P4 Display Module with Touch Worth It for Your Projects?

Validation in the real world checks whether the specs translate into usefulness in the real world. We looked at different application situations to find the places where this technology really pays off. Is it worth it for your projects to buy the ESP32 P4 display module with Touch?

Return on Investment Across Sectors

Industrial equipment makers say that using these solutions cuts development times by an average of 40% compared to using standard display solutions on previous projects. When you combine Guition tools for UI creation with full peripheral support for ESP32P4 Display Module, you get rid of typical bottlenecks. One automation system designer cut the time it took to make a sample from six weeks to nine days, which made entering the market much faster. The security features that make compliance paperwork easier are very important to the people who make medical devices. Encryption and safe boot features that are built in make it easier for engineers to meet regulatory standards. Smart home gadget makers like the easy-to-use over-the-air (OTA) update feature. Adding new features and fixing bugs without having to call customer service saves money and makes users happier.

Addressing Limitations and Considerations

There is no right answer for every problem. Projects that need screens bigger than 21.5 inches are out of our current product line, so we have to find other ways to do them. Even though they have limited update rates, E-paper technologies might be better for applications that need to use very little power (microwatts or less). Even though the module has a lot of processing power for an MCU-based solution, it can't compete with Linux-based systems when complex computer vision or machine learning reasoning is needed.

Strategic Recommendations for U.S. Market

Planning for merging is affected by compatibility issues. Some older systems that use their own transmission methods might need extra interface hardware. Teams that have put a lot of money into competing ecosystems have to pay to move, which cancels out some of the efficiency gains. By honestly evaluating these factors during the planning phase, expectations won't be out of sync. American business-to-business clients value dependability, good paperwork, and quick assistance. Guition meets these needs by offering a wide range of professional materials, such as application notes, reference designs, and video lessons. Our promise to keep goods available for a long time gives manufacturers of products that take more than one year to make trust.

Because the module can do many things, it can be used for both testing and production. Before switching to improved ESP-IDF solutions that don't require hardware changes, engineering teams can test their ideas with Arduino frameworks. This road for growth lowers risk while keeping the schedule open. When a company makes more than one product line, having the same design across all display sizes makes teaching easier and cuts down on the cost of tools.

Conclusion

To evaluate the ESP32 P4 display module, you have to weigh its technical strengths against the needs of the project and your funds. The JC-ESP32P4-M3-C6 from Guition has a lot of processing power, a lot of connecting options, and development tools that speed up time-to-market. The speed of RISC-V, the networking of Wi-Fi 6, and the ease of use of Guition software all work together to solve major problems that embedded engineers and product managers in the medical, consumer electronics, and industrial sectors are having. Companies that want to grow quickly, keep their operations safe, and rely on suppliers for a long time will find that this option offers strong value that makes the investment worthwhile.

FAQ

What is the typical power consumption of the ESP32 P4 display module?

Power use depends on how the device is set up and how it is used. When the screen is on and Wi-Fi is turned on, active function usually uses 800 to 1200mA at 5V. Using sleep modes and lowering techniques can cut power use down to 150–300mA when the lights are not being used. Based on these numbers, the ESP32 P4 display module works best in situations where it will always have power, not in battery-powered portable devices that need to be able to run for several days.

Does the module support bulk ordering with custom firmware pre-installed?

When you buy more than 100 units, we can run unique firmware. This service includes starting your app, setting up network settings, and adding branding elements before shipping. For the process to work, tested software files and setup details must be sent at least three weeks before the delivery date that is wanted. Before handling the whole order, our team checks that the feature works across sample units to make sure it's consistent.

Can I integrate the ESP32 P4 display module with existing industrial equipment?

The module has many connectivity choices that make it easy to connect to most industrial systems. The UART, I2C, SPI, and TWAI (CAN) protocols let PLCs, sensors, and actuators that are popular in industrial settings talk to each other. It is important to check the voltage level compatibility and protocol time factors during the planning process. Based on the details of your tools, our expert team can help you solve unique integration problems.

Partner with Guition for Your Next HMI Project

The best thing that Guition does is provide complete HMI solutions that include cutting-edge hardware and strong development tools. We are an ESP32 P4 display module seller that can do more than just sell products. We can also provide technical support, customization services, and long-term partnerships. Our team knows how hard it can be to get new interfaces on the market, whether you're making industrial control panels, medical devices, or smart home goods. Contact david@guition.com to talk to our tech experts about the needs of your project. We offer in-depth technical advice, sample units for you to test, and personalized quotes that fit your production schedule. Discover how partnering with a technology-driven manufacturer accelerates your development while reducing the total cost of ownership.
