Can an SPI LCD Display Improve Embedded Interface Design?

An SPI LCD Display can meaningfully improve embedded interface design. By reducing the required signal lines to as few as four (SCK, MOSI, CS, and D/C), this display technology frees up GPIO pins on resource-constrained microcontrollers like the ESP32 or STM32. Compared to parallel bus interfaces that demand 8–16 data lines, an SPI LCD display simplifies PCB routing, lowers electromagnetic interference, and shortens development time. For teams building 3D printers, medical monitors, or industrial control panels, these advantages translate directly into faster prototyping and lower production costs.

Understanding SPI LCD Displays and Their Role in Embedded Systems

You should know what makes SPI-based screens different from other screens on the market before you choose a display module.

What Is the SPI Protocol in Display Communication?

A host microcontroller can talk to peripheral devices using a master-slave design and the Serial Peripheral Interface (SPI), which is a synchronous, full-duplex communication system. When it comes to displays, the MCU is in charge and uses a shared clock line to send pixel data and commands to the LCD driver IC. At moderate resolutions, this serial method keeps the number of wires low without lowering the data throughput.

Typical Pin Configuration and Interface Timing

SCK (clock), MOSI (data), CS (chip select), and D/C are the four active signal lines in a typical 4-wire SPI LCD Display. The D/C pin tells the difference between pixel data and setting directions, so there is no need for the extra bit-banging that comes with 3-wire setups. Reset and power lines are extras that don't do anything. Most driver ICs, like the ST7796 in the GUITION JC3248A035C, can handle SPI clock frequencies between 20 MHz and 80 MHz. This lets the UI run smoothly at 320x480 resolution.

Common Resolution Options and Application Fit

It is best for SPI connections to work with resolutions up to 320x480 (HVGA). When that level is reached, the serial bus starts to slow down the bandwidth. For handheld instruments, charging station panels, and medical beauty tools, HVGA resolution gives you enough pixels without makingoverloadingCU's SPI peripheral overloaded. For these uses, the 16-bit RGB565 color format, which can handle 65K colors, strikes a good balance between image quality and transfer speed.

Comparing SPI LCD Displays with Other Display Interfaces

Picking the right interface is both a professional and a financial choice. This is how SPI compares to other choices.

SPI vs. Parallel Bus Interface

Parallel bus connections (8080/6800) can send 8 or 16 bits at once, which means they can handle more data. But they use 8–16 GPIO pins, make PCB trace routing harder, and make electromagnetic pollution higher. Most embedded engineers are okay with the trade-off that comes with an SPI LCD Display: it has less output, but it saves a lot of pins and makes the board easier to work with.

SPI vs. I2C for Display Applications

I2C can only go as fast as 400 kHz in fast mode and up to 3.4 MHz in high mode. This is way too slow for rendering color images at good frame rates. The realistic choice for any color GUI program is an SPI LCD Display running at 40–80 MHz, which can give 30–60 FPS on HVGA content using DMA.

SPI TFT LCD vs. SPI OLED

OLED screens have better brightness and self-emitting pixels, but they cost more and can get burned in with static UI elements, which is a big problem for industrial panels. When bought in bulk, TFT LCD modules based on SPI, like the GUITION JC3248A035C, cost less per unit, can work in a wider temperature range (-20°C to +70°C), and have LED backlight panels that provide constant brightness. The lower cost per unit of TFT LCD makes it hard to ignore when buying in bulk for business-to-business use.

How SPI LCD Displays Solve Common Embedded Interface Challenges

Engineers who work on embedded products often run into design issues. Many of them are directly addressed by an SPI LCD Display.

Reducing GPIO Consumption on Low-Pin MCUs

You can share a limited number of GPIO banks on microcontrollers like the ESP32-S3 or STM32F103 "Blue Pill" with other sensors, motors, and transmission gear. It's not always possible to dedicate 8–16 pins to a parallel monitor. An SPI LCD Display only needs 4 active signal pins, so there is enough I/O space on the same board for Wi-Fi, Bluetooth, RS485, or analog sensor channels.

Accelerating PCB Layout and Reducing Trace Complexity

PCB plans are easier when there are fewer data lines. Four-wire SPI means that the author only runs four controlled-impedance lines instead of sixteen. This shortens the time it takes to plan, lowers the risk of signal integrity problems, and makes it easier to pass EMI pre-compliance testing. This saves weeks in the hardware revision cycle.

Compatibility with Arduino, ESP-IDF, and Cross-Platform Toolchains

Almost all modern microcontroller families come with built-in support for the SPI peripheral. There are ready-made drivers for popular driver ICs like the ST7796 in libraries like Adafruit GFX, LVGL, and TFT_eSPI. This means that the same display module can be tested on Arduino Uno (with a logic level switch to work with 3.3 V) and then moved to ESP-IDF or STM32 HAL for production without having to change any hardware.

Procurement Considerations for SPI LCD Displays in B2B Environments

When purchasing managers and R&D leads buy a lot of display modules, the total cost of ownership is determined by more than just the unit price.

Evaluating Resolution, Size, and Interface Compatibility

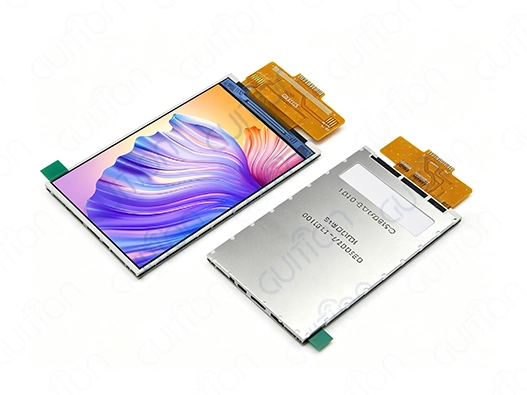

It is a 3.5-inch SPI LCD Display module that is powered by the ST7796 chip and has a resolution of 320x480. It also supports capacitive touch and outputs 65K colors. It works between -20°C and +70°C, so it can be used in industrial control screens, medical aesthetic equipment, and charging station interfaces. Six LED backlights make it possible to read in a variety of lighting conditions. Before making a deal with a seller, buyers should make sure they have these basic technology specs:

• • Driver IC: ST7796, which works with both 3-wire and 4-wire SPI modes
• • Resolution: 320x480 (HVGA), color depth: 16 bits RGB565
• • Touch type: capacitive touch panel for modern use
• • Operating temperature: -20°C to +70°C for industrial grade
• • Backlight: six LED units that make the brightness even.

Because of these features, the JC3248A035C is a great choice for companies that make medical devices, 3D printers, and smart home appliances and need a small, clear display module at a price that is competitive for large orders.

Assessing Supplier Reliability and Documentation Quality

As important as the hardware specs are, a supplier's readiness to offer detailed datasheets, initialization code samples, and quick technical help is also very important. Every module in Guition comes with extra development tools, full technical documentation, and cross-platform debug support. This means that engineers don't have to spend as much time fixing integration problems after the product has been delivered.

Customization and OEM Flexibility

Guition's engineering team can help with customization for OEM projects that need non-standard resolutions, custom FPC wire layout, or different types of touch panels. Before you finalize your BOM, email david@guition.com to talk about your volume needs and setup choices.

Programming and Implementation Guide for SPI LCD Displays

Getting a display module to work right the first time saves a lot of troubleshooting work later on.

Initializing the ST7796 Driver IC

A hardware reset sequence should be done first: pull RST low for at least 10 ms, then bring it high and wait 120 ms before sending software commands. The ST7796 needs a certain set of instructions to be initialized. These instructions cover power control, gamma adjustment, and pixel format files. The usual "white screen" failure that engineers hate during first bring-up can be avoided by using a confirmed init code from the official datasheet instead of a generic ILI9341 method.

Using DMA for Smooth Frame Rendering

Direct Memory Access (DMA) sends pixel buffers to the SPI peripheral without the CPU having to do anything. This lets the MCU handle application logic at the same time. The JC3248A035C can do 30 to 60 frames per second (FPS) on a 320x480 ESP32 running at 80 MHzan  SPI clock with DMA turned on. Effective frame rates are better for partial-screen updates, which are frequent in industrial dashboards. However, the total system power drops significantly.

Avoiding Signal Integrity Problems

SPI was made for links on the board. When cables are longer than 10 to 15 cm, they add parasitic capacitance that hurts the clock edges and can cause display artifacts or initialization failures. If you need to place the screen away from the MCU board, lower the SPI clock to 10–20 MHz, use protected flat-flex cable, and think about adding bus buffer ICs to get the signal margin back.

Conclusion

It is useful and tried-and-true to use an SPI LCD Display for integrated interface design in medical, consumer goods, and industrial settings. As shown by the GUITION JC3248A035C, a 3.5-inch TFT LCD module can provide 65K color output, fast capacitive touch, and industrial-grade dependability while leaving a small wire footprint. This group of display modules always meets the needs of engineering teams that need fast development processes, cross-platform flexibility, and reliable supplier support. Think about your pin budget, the quality you need, and the setting where you will be using it, and then make your choice.

FAQ

Q1: What is the main advantage of an SPI LCD display over a parallel interface?

In comparison to a parallel bus, an SPI LCD Display uses 3–4 data lines. This frees up GPIO pins, makes PCB layout easier, and lowers EMI, all of which are very important for small embedded designs.

Q2: Can I use the GUITION JC3248A035C with Arduino?

The module based on ST7796 works with 3.3 V logic. The logic on the Arduino Uno is 5 V, so the SPI lines need a level shifter; boards based on the Arduino Due and ESP32 work directly with each other, without any extra parts.

Q3: Why does my SPI LCD display show screen tearing?

When the MCU writes frame data that isn't in line with the display's vertical blanking time, tears happen. To get rid of the artifact, connect the display's TE output pin to an MCU interrupt line and time the writes so they happen at the same time.

Q4: Is the JC3248A035C suitable for medical device applications?

Yes. It can work in temperatures ranging from -20°C to +70°C and has a capacitive touch screen with a 65K color TFT output, which makes it suitable for medical aesthetic portable monitoring equipment. Before finalizing the plan, check with the supplier that the paperwork is in line with RoHS.

Q5: Where can I get technical support for Guition display modules?

You can email David at david@guition.com or go to https://jingcaizhineng.aixdb.cn/ to find datasheets, sample startup code, and engineering advice.
