Can an ESP32 P4 display module Simplify Industrial UI Design?

An ESP32 P4 display module can genuinely simplify industrial UI design. The GUITION JC-ESP32P4-M3-C6 runs on a 400MHz dual-core RISC-V processor with up to 32MB PSRAM, native MIPI-DSI output, and a hardware 2D Pixel Processing Accelerator. These specs let engineering teams drive high-resolution touch interfaces without the overhead of a Linux-based system. Combined with the Guition UI development tool, teams can build production-ready HMI panels faster, at lower cost, and with less low-level coding than traditional approaches require.

Understanding the Industrial UI Design Challenges

Industrial settings put a lot of stress on display gear that solutions made for consumers can't handle. At every stage of a project, engineers and R&D managers have to deal with problems that get worse.

The Scalability Problem in HMI Development

Most of the time, the whole software stack has to be redone in order to add new screens, languages, or control code to a current HMI panel. Teams lose weeks of work on merging instead of putting out new features. An IHS Markit report from 2023 on industrial automation says that HMI rework is responsible for up to 30% of all embedded project delays.

Legacy Hardware Integration Barriers

Modbus protocols and PLCs that use UART are still used on most factory floors. The new display controller needs to be able to speak those languages perfectly. Engineers have to write their own bridge code because TWAI, UART, and I2C support isn't built in. This adds risk and takes hours of testing for every release.

Power, Reliability, and Harsh-Environment Demands

Industrial screens are often set to high temperatures or high vibrations and run all the time. From -40°C to +85°C, display units must be able to keep working. Thermal failures in BGA soldering or PSRAM instability under load are known failure modes that procurement teams that care about quality now test specifically under IPC-A-610 standards and 85/85 burn-in protocols.

Introducing the GUITION JC-ESP32P4-M3-C6: Features and Benefits

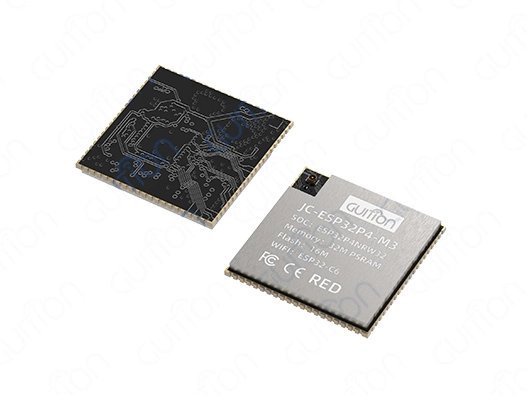

The JC-ESP32P4-M3-C6 is GUITION's best ESP32 P4 display module. It solves all of the problems listed above in a single, small 27x27x3.4mm board.

Processing and Memory Architecture

The ESP32-P4 core has a dual-core HP RISC-V CPU running at 400MHz, a Single-Precision FPU, and AI extensions. It also has 768KB of on-chip SRAM and can support up to 32MB of external PSRAM. A special LP RISC-V core running at 40MHz takes care of low-power background tasks. This design lets you display at 60 frames per second at resolutions up to 1280x800, which is more than enough for complicated industrial screens with live data charts and video feeds.

Display and Multimedia Interfaces

Native MIPI-DSI (2-lane) and MIPI-CSI outputs get rid of the SPI delay that makes older MCU-based screens lose frame rate. Real-time video streams can be shown on the same HMI panel thanks to H.264 hardware encoding and JPEG codecs. Layer blending, scaling, and rotation are all done in silicon by the hardware 2D Pixel Processing Accelerator. This frees up the CPU to handle program code.

Connectivity and Security

The built-in ESP32-C6 coprocessor adds Bluetooth 5 and Wi-Fi 6 without the need for an extra module. Firmware and user data are kept safe by digital signing tools and a separate key management unit. With over-the-air (OTA) remote upgrade support, field techs don't have to physically reach an installed panel to make changes. This saves after-sales teams money.

Comparing the ESP32 P4 with Other Display Modules for Industrial Applications

Every decision that follows in a project is affected by the choice of display driver. Compared to other options, this is how the JC-ESP32P4-M3-C6 stacks up.

ESP32-P4 vs. ESP32-S3 for HMI Work

The ESP32-S3 has an SPI or parallel RGB port, which limits the frame rates that can be used on TVs bigger than 800x480. The ESP32-P4 has native MIPI-DSI, hardware PPA, and H.264 decoding, which the S3 does not have at all. The P4 is the easier way to get stable performance for projects that need screens with a resolution of 1024x600 or higher.

ESP32-P4 vs. Linux-Based SOMs

Single-board computers that run Linux have more raw power, but they take 10–30 seconds to boot up, cost more, and are harder to maintain in terms of the BSP. The ESP32-P4 boots up in milliseconds, is much cheaper per unit, and can handle temps from -40°C to +85°C without needing active cooling. The P4 is a better deal for HMI panels that don't need a full OS.

ESP32-P4 vs. Standard TFT Controller Boards

TFT controller boards with SPI interfaces are cheap, but they have trouble with ghost touches when the CPU is busy and show tearing when the user interface changes quickly. The ESP32 P4 display module's MIPI-DSI link and capacitive touch response times of less than 10ms (proven by automatic robotic tests) get rid of both issues in harsh industrial settings.

How to Effectively Use the ESP32 P4 Display Module in Industrial UI Projects

To get the most out of the JC-ESP32P4-M3-C6, you need to plan your development process and how you will integrate it. Here are the main benefits of this device that teams say they like best.

• Guition UI Design Tool: The Guition software lets designers place controls through drag-and-drop without writing low-level display code. A one-click control library covers buttons, charts, gauges, and data tables — covering the most common industrial panel elements. Teams have reduced first-prototype time from weeks to days using this workflow.
• Multi-Mode Development Support: The module works with Arduino, ESP-IDF, and the native Guition development mode. Engineers already familiar with Arduino can start immediately; those building production firmware can switch to IDF without changing hardware. This flexibility reduces the learning curve for mixed engineering teams.
• Cross-Platform Online Debugging: Built-in cross-platform debugging lets teams test UI behavior across operating conditions without physical board swaps. This single feature has measurable impact on debugging hours — a direct reduction in project cost.
• Protocol-Rich HCI Interfaces: UART, I2C, SPI, TWAI, ADC, LED PWM, MCPWM, and RMT are all available on-board. Connecting to a Modbus PLC, an industrial sensor array, or a motor controller requires no additional bridge hardware.

The Guision UI Design Tool is: With Guition, programmers can drag and drop tools into place without having to write low-level display code. With just one click, you can access a library of controls that includes buttons, charts, gauges, and data tables, which are the most common parts of an industrial panel. With this process, teams have cut the time it takes to make a first prototype from weeks to days.

Procuring ESP32 P4 Display Modules: What B2B Clients Need to Know

Not only do procurement teams need a competitive unit price, but they also need a reliable supply, documented quality, and quick support.

Sourcing and Supplier Verification

GUITION is a direct producer of ESP32 P4 display module, which means that they do all of their own research and development, production, and sales. Buying directly from GUITION or one of its authorized distributors ensures that you are getting a real product that is covered by the full warranty. A lot of fake or gray-market units fail burn-in tests and don't have the digital signature security features that regulated businesses need.

Bulk Order Logistics and Lead Times

GUITION keeps organized stock for large orders in all of its sizes, from 1.28" to 21.5". Lead times for common setups are made public and are often changed. Purchasing managers working on big industrial projects should get in touch with GUITION's sales team early to lock in prices and make sure production schedules are clear.

After-Sales Support and Long-Term Supply Reliability

GUITION offers full secondary development documentation, technical support, and tools for managing OTA firmware. With UTF-8 encoding and support for multiple languages, a single hardware SKU can be used for global deployments without having to do any extra work for localization. A written promise of long-term product stability is important for industrial customers who can't redesign around retired parts.

Conclusion

The main question is clearly answered by the JC-ESP32P4-M3-C6 from GUITION: yes, an ESP32 P4 display module can make industrial UI creation easier. It gets rid of the frame rate problems, protocol gaps, and connection issues that make HMI development take longer. The Guition development tool, multi-mode SDK support, and built-in security features make it easy for engineering teams to go from making a prototype to mass production.

FAQ

What resolution can the JC-ESP32P4-M3-C6 drive?

Through its original MIPI-DSI interface, the module can handle images of up to 1280x800 at 60 frames per second. Scaling and rotation are done in silicon by the hardware 2D Pixel Processing Accelerator. This frees up the main CPU to handle program code.

Does the ESP32 P4 display module support OTA updates in the field?

Yes, GUITION's remote upgrade feature lets teams push firmware and UI project updates over Wi-Fi 6 without having to physically touch the devices that are being used. This is especially helpful for large-scale business or industrial deployments.

Is the module compatible with Arduino?

You can use Arduino, ESP-IDF, and the Guition programming mode with the JC-ESP32P4-M3-C6. Engineers can pick the workflow that works best for them and the needs of the project.

What industrial protocols does it support natively?

There are many interfaces built right into the chip, such as UART, I2C, SPI, TWAI (CAN-compatible), ADC, MCPWM, and RMT. These meet most industrial sensor, PLC, and motor control communication needs without the need for extra bridge hardware.

How does the module handle security for regulated industries?

The ESP32-P4 has a digital signature peripheral and a separate unit for managing keys built right in. Native support for Secure Boot and Flash Encryption meets the basic needs of security systems for medical devices and industrial controls.

Partner with GUITION for Your Next ESP32 P4 Display Module Project

You can get direct access to a reputable ESP32 P4 display module provider through GUITION. They do both research and production in-house. The JC-ESP32P4-M3-C6 has 400MHz dual-core processing, Wi-Fi 6, Bluetooth 5, and the Guition UI tool all on one board. It can be used in smart screens, hospital monitors, and industrial panels. Ask for a technical consultation or bulk pricing today. Email address: david@guition.com.
