Can a Knob Display Module Show Animations?

Today's product market is very competitive, so control systems need to do more than just work. They also need to be fun to use and accurate. Knob display modules, which combine tactile rotary input with vivid visual output, represent this development. Their ability to show animations improves operational control by giving clear, changing feedback that makes difficult tasks easier. This article is for procurement professionals, embedded engineers, product managers, and system integrators who work with businesses and want to find reliable and new HMI solutions. We look at the motion features of Knob display modules, break down the technical specs that affect performance, and give you useful buying advice. If you know how these modules can be animated, you can make decisions that are in line with project deadlines, budgets, and goals for user experience, whether you're making industrial control panels, smart home devices, or medical equipment.

Understanding Knob Display Modules and Their Animation Capabilities

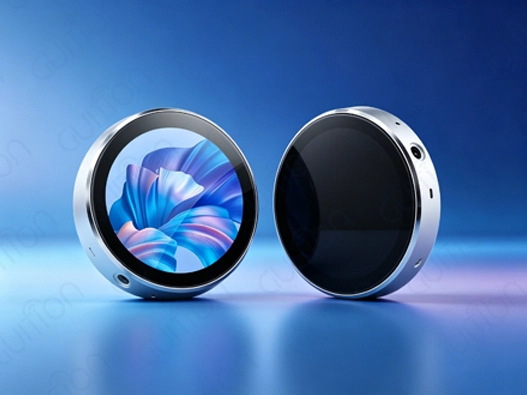

What Defines a Knob Display Module

A Knob display module is a high-tech HMI solution that combines a rotary encoder with a circular display in a way that works well together. Unlike regular potentiometers or static buttons, these modules allow contact in both directions: when users rotate or press on the center screen, they see right away that their action was recognized. By fitting many buttons and status markers into a small space, usually between 1.28 inches and 2.1 inches across, the integration solves important design problems.

Core Functional Principles

The operational design depends on several elements that work together. The rotary encoder picks up changes in the angle of the position and turns them into digital signals. The display driver gets information from the host microcontroller and puts pictures on the screen at the same time. The ESP32-S3 dual-core processor runs at 240MHz in advanced modules like the Guition JC3636W518C_I_Y. This gives it plenty of processing power to handle touch inputs, wireless connections, and peripheral interactions while generating animations. This powerful chipset has 512KB SRAM, 384KB ROM, 8MB PSRAM, and 16MB Flash storage, so it can handle complicated animation sequences without slowing down.

Industrial Application Contexts

There are places where these modules work really well where accuracy and durability are important. In smart home appliances, they can handle changes in humidity and temperature and show you clearly how to choose a program. Industrial control systems work better because their cases are IP-rated, which means they keep out dust and water. Medical device interfaces need to be reliable enough to work all the time, and the clarity of the motion has a direct effect on how easy it is to use during important processes. When competing with other goods on the market, consumer gadgets use their high-end looks and smooth tactile feedback to set themselves apart.

Technical Feasibility of Displaying Animations

Display technology and processing power are what make animation possible. LCD panels with IPS technology, like the 360×360 screen in the JC3636W518C_I_Y module, give you a wide viewing range and accurate color reproduction, which is very important for motion graphics. The sensitive touch layer makes the screen more interactive without making it less clear to see. Frame rates usually range from 30 to 60 frames per second, which is fast enough for smooth animations, transitions, and real-time data visualization. Color depth limits and refresh latency are the main problems that come up when working with very high-resolution assets. However, modern modules get around these problems by using faster graphics pipelines and hardware acceleration features that are built into modern microcontroller architectures.

Key Technical Dimensions Affecting Animation Performance

Display Resolution and Color Depth Impact

Resolution directly affects how clear and true to life the animation is. The special modules' 360x360 pixel count gives you enough detail to see clear buttons, smooth curves, and text that you can read even when you're moving. Color depth, which is usually 16 bits (65,536 colors) or 24 bits (16.7 million colors), changes how smooth gradients are and how rich the image looks. Higher bit levels stop banding flaws in moving backgrounds and make images look more like real photos. When procurement teams look at modules, they should make sure that the resolution requirements match the viewing distances and content complexity needs.

Processing Capability and Rendering Speed

The microcontroller's computing power determines how complex and responsive the animation is. One core of a dual-core processor like the ESP32-S3 is used to create graphics, and the other core handles transmission protocols and sensor data. Parallel processing keeps the UI from slowing while tasks are being done in the background. 240MHz clock speeds let you decompress compressed animation files in real time and make procedural images like audio spectrum displays on the fly. How quickly frame buffers are updated is controlled by the memory bandwidth between PSRAM and the display driver. This has a direct effect on how smooth changes seem.

Power Consumption Considerations

When compared to static displays, animation rendering uses more power, especially when large parts of the screen are updated often. The JC3636W518C_I_Y module strikes a balance between performance and efficiency by letting you program the backlight and having sleep modes that lower power use when the module is not in use. Frame rate slowing methods keep the quality of the image while extending the time that an application can run on a battery. Thermal management is important in enclosed installations where long-term animation rendering creates heat that could shorten the life of parts.

Installation and Calibration Methods

When mechanical integration is done right, the quality of the animation stays the same across all output units. Viewing angles and touch sensitivity alignment are affected by mounting tolerances. When the display panel and cover glass are optically bonded, there are no air gaps that could cause parallax errors during animated transitions. Calibration steps set correct color profiles and touch coordinate mapping, which stops drift that could make animated controls not match up with physical movement input. Together, these things determine whether animations look smooth and responsive in products that have been released.

Comparing Knob Display Modules to Other Interface Technologies

Functionality Comparison with Alternative Controls

Traditional rotary encoders can accurately sense position but don't provide visual input, so they need to be used with other signs or screens. Push-button arrays give you discrete input choices, but they take up a lot of panel room and don't give you much information about the context. Touchscreens allow for flexible setups, but users miss the physical confirmation they like for making important changes. The esp32 display module is the only one that combines these great features: it can be rotated physically to allow blind people to use it; it uses animations to show confirmation; and it has a small size. This hybrid method works especially well in car settings where hands-free control makes things safer and in industrial settings where wearing gloves requires strong mechanical interfaces.

Durability and Precision Benchmarking

Most mechanical rotary switches can handle between 30,000 and 100,000 rotating rounds before the detent feel starts to break down. With magnetic encoders, this can be done over a million times with little wear. The capacitive touch interface on the JC3636W518C_I_Y module gets rid of the need for moving parts on the display surface, which keeps failures from happening because of wear. However, the mechanical encoder part still needs to be tested over its entire lifecycle under a variety of environmental stressors, such as temperature cycling between -30°C and +80°C, vibration resistance according to automotive standards, and humidity exposure that tests the integrity of the contacts.

Animation Performance Metrics Across Vendors

Leading modules are different by their frame rates, the range of colors they support, and how well-developed their graphics libraries are. Products that support hardware sprite engines take over drawing jobs from the main processor, so the user interface stays smooth even when the computer is working hard. The Guition software ecosystem has drag-and-drop motion tools that get rid of the need for low-level code. This cuts development time from weeks to days. Compatible programming platforms, such as the Arduino IDE, ESP-IDF, and MicroPython, let engineers work with tools they already know instead of having to learn new proprietary toolchains. When looking at overall project costs and time-to-market pressures, these practical factors often come into play more than raw standard benefits.

Practical Applications and Benefits of Animated Knob Display Modules in B2B Contexts

Enhanced User Interfaces Through Dynamic Feedback

Animations change how users think about the quality and speed of a product. Animated level meters give you quick visual proof when you change the volume of an audio file, so you don't have to guess. Temperature control interfaces show moving thermometer pictures that make it easy to see when the setpoint changes. Animated status indicators on industrial machinery help operators by drawing attention to ongoing processes, pending alarms, or maintenance needs through color changes and pulsing effects. These changes make it easier to train people and cut down on mistakes, which leads to measured productivity gains in business deployments.

The Guition JC3636W518C_I_Y module is a good example of this because it has real-time spectrum visualization that animates audio frequency content, four themed animated clock displays for consumer products, and MJPEG video playback that can play advertising or educational animations. The computer's extra screen feature that comes with 18 pre-loaded AIDA64 styles shows how animations can be used to show complicated system monitoring data in a way that is easy to understand.

Brand Differentiation and Premium Experience

When the market for consumer goods is already very full, animated screens show that the product is new and high-end. Compared to competitors that use blinking LEDs, coffee machines with animated brewing progress displays show that they are more high-tech. Smart heaters with weather images and smooth transition effects are more expensive because people think they are worth it. This uniqueness also applies to business-to-business situations, like when OEM clients want unique user experiences that strengthen their brand identity in commercial settings, medical facilities, and industrial settings where the way equipment looks affects buying decisions.

Maintenance Challenges and Longevity Considerations

When it comes to upkeep, animated screens require extra attention. Backlights break down faster when they are used all the time, but LED technology makes good modules last longer than 50,000 hours. Burn-in risks happen when you show static elements in dynamic interfaces. These risks can be reduced by using content design techniques like screen savers or pixel-moving algorithms on a regular basis. To fix problems with how well animations work, you need diagnostic protocols that can tell the difference between software bugs and hardware limitations. With the ESP32-S3's WiFi connection and the ability to update software remotely, bugs in animations can be fixed without having to send a technician to the scene, which lowers the cost of lifetime support.

As a preventative measure, thermal monitoring lowers the complexity of animations when temperatures get close to critical levels, and power supply filtering gets rid of artifacts during electrical surges. These engineering factors make sure that animation features improve product reliability instead of hurting it over the five to ten years that it is expected to work in demanding business settings.

Procurement Guide for Animated Knob Display Modules

Essential Technical Specifications to Evaluate

When looking for modules for animation-heavy apps, make sure the display resolution matches the level of detail needed for the content. For example, 360x360 pixels works well for most circular designs while still being clear. Check the processor specs to make sure there is enough room for expansion. The ESP32-S3's 240MHz dual-core design is the best way to create responsive animations right now. How memory is used is important. For example, 8MB of PSRAM can buffer several animation frames, and 16MB of Flash storage can hold a variety of graphic assets without needing to connect to an external storage device. Having built-in connectivity choices like WiFi and Bluetooth makes it easier to update material remotely and connect IoT devices.

Cross-Platform Development Environment Compatibility

Flexibility in development shortens project timelines and frees up resources. Because the JC3636W518C_I_Y module works with Arduino IDE, ESP-IDF, MicroPython, and Guition software, it can be used by a wide range of engineering teams with different levels of skill. The drag-and-drop interface builder in Guition is especially useful for rapid prototyping because it lets designers make animated mockups without having to know how to code. Cross-platform testing makes it easier to find and fix problems across toolchains, and firmware downloads with just one click make production programming easier.

Commercial Terms and Supplier Evaluation Criteria

Different distributors and OEM sellers have very different minimum order amounts. Larger production runs are usually not necessary for established producers because they want to make sure everything works before committing to larger production runs. Lead times depend on how customized you want the solution to be. Standard modules ship within weeks, but customized solutions with custom animations or mechanical changes take 8–12 weeks. The way prices are set up takes into account bulk savings, with unit costs going down a lot after 1,000 pieces. For industrial-grade parts, warranty terms should last between 12 and 24 months and cover both hardware problems and software assistance.

Professional suppliers are different from component brokers because they offer integration support. Quality of technical documentation affects how quickly and easily something is built. Full datasheets, application notes, and reference designs shorten the time it takes for engineers to make changes. During the development process, responsive technical support channels like email help at david@guition.com and online forums are very helpful for solving problems. Evaluation samples let you see how well animation works in real-life situations before you make a final decision about what to buy.

Initiating Custom Solution Inquiries

When standard goods are missing certain features, you should involve suppliers early on in the planning process. Give specific details like examples of animation content, operating temperature ranges, expected production volumes, and a price range. Manufacturers with a good reputation, like Guition, work together on feasibility studies that balance technical needs with practical business issues. Common ways to customize are by making your own firmware, creating unique hardware mounting connections, and setting up the Guition software in your own way. Intellectual property rules and payment plans based on milestones are set up in prototyping agreements that protect both parties during joint development cycles.

Conclusion

There is a developed technology called Animated Knob display modules that can be used in medical devices, consumer electronics, and industrial automation. Their ability to combine precise tactile control with dynamic visual feedback solves basic HMI design problems and makes it possible for products to stand out. The Guition JC3636W518C_I_Y module shows what's possible now with its powerful ESP32-S3 processor, high-resolution 360x360 display, and full development ecosystem that works with many computer environments. Matching technical specs to application needs, checking how well a provider can help, and knowing the total cost of ownership, which includes gains in development speed from high-tech tools like Guition software, are all important parts of successful procurement.

FAQ

What Types of Animations Can Knob Display Modules Actually Render?

Currently available modules can handle many types of animation, such as bitmap sequences for pre-rendered graphics, vector-based procedural animations like progress bars and gauge sweeps, video playback in formats like MJPEG, and real-time data visualizations such as audio spectrum displays. For example, the JC3636W518C_I_Y module can show MP3 playback, have animated clock faces with different themes, handle photo frame slideshow transitions, and show live weather updates. The level of complexity is limited by the processor's speed and the amount of memory that is available. For example, simple icon transitions use very few resources, but playing a full-screen video needs optimized codecs and enough bandwidth between the storage and display driver.

Are These Modules Compatible with Arduino and Other Popular Development Platforms?

Yes, cross-platform compatibility is a top priority for good modules. The Guition JC3636W518C_I_Y works with the Arduino IDE, ESP-IDF, MicroPython, and its own software system called Guition. This lets engineers who are comfortable with different development environments work with it without having to change the toolchain. Arduino compatibility is great for fast prototyping and teaching uses, and ESP-IDF gives you low-level control for apps that need to work quickly. Guition software fills in the blanks by providing visual development tools that make code that works well with the base platforms. This way, both new and experienced coders can work together efficiently.

How Do Animations Impact Power Consumption and Device Longevity?

The instantaneous power draw goes up by the same amount as the screen update frequency and the number of pixels that have been changed. Full-screen animations at 30 frames per second use a lot more power than displays that stay still and only update every so often. This problem can be fixed by the JC3636W518C_I_Y module's configurable lighting dimming, sleep mode activation when not in use, and frame rate throttling methods. The backlight LEDs usually last more than 50,000 hours, which is a big part of how long a display lasts. However, using it continuously at full brightness speeds up the degradation process. Automatic brightness adjustment based on ambient light conditions increases operational life while maintaining visibility. This strikes a balance between user experience and component longevity in commercial deployments that run every day for years.

Partner with Guition for Your Next Knob Display Module Project

Guition is the only company you need to look for if you want to buy a solid Knob display module. Our JC3636W518C_I_Y model has a proven track record of animation performance thanks to its ESP32-S3 design and 360x360 IPS display. It also comes with a full set of development tools, such as our Guition software for quickly making interfaces. We know the problems that come with B2B procurement, like short development cycles, limited budgets, and the need for expert help. Our team offers quick technical help, flexible order numbers that can accommodate prototypes through production runs, and full paperwork that speeds up the process of integration. If you're making industrial control panels, medical devices, or consumer electronics, our modules can help. They can animate and work with the Arduino IDE, ESP-IDF, and MicroPython environments. Email our experts at david@guition.com to talk about your unique needs, get evaluation samples, or look into custom solutions that are made for your application. Find out how working with a specialized Knob display module maker can change the way you build HMIs.
