Can a 10.1 inch display module Deliver Clear Images in Bright Environments?

A 10.1 inch display module absolutely can deliver clear images in bright environments, but only when it meets the right specifications. Panels with IPS technology, 800 nits or higher brightness, anti-reflective coatings, and resolutions of 800×1280 or better are well-equipped to handle direct sunlight and indoor glare. The GUITION JC8012P4A1C_I_W_Y1, for example, pairs an 800×1280 IPS panel with an ESP32-P4 dual-core processor to produce sharp, consistent visuals across wide viewing angles — making it a practical choice for industrial, medical, and commercial HMI applications.

Introduction

Engineers and product managers have to deal with the same problem everywhere they work: how to keep a screen visible when the light isn't helping? People in the business-to-business (B2B) world like the 10.1 inch display module because it has a screen big enough for complex HMI panels but small enough for integrated setups.

But being big doesn't always mean being seen. There is a chance that a person could read important information in direct sunlight, but it depends on the screen's brightness, panel technology, surface coatings, and processing power. There are a lot of technical and buying factors that engineers, R&D managers, and system builders need to know in order to choose the best place to get things.

Understanding the Challenges of Display Visibility in Bright Environments

Increasing the brightness alone is not enough to make a computer work well in bright places. There are many technical and physical things that affect what the viewer sees.

Ambient Light and the Nit Threshold

Lux is a way to figure out how bright a room is. In direct sunlight, you can get over 100,000 lux. In that case, the 10.1 inch display module screen will look almost black if the brightness is only 300 nits. Display makers generally say that screens that can be read outside should be at least 800 nits bright, and for some business uses, 1,000 nits or more are needed.

Glare, Reflection, and Surface Treatment

That's what glare is—light bounces off the panel before it gets to the viewer's eyes. In a well-lit room, the surface of an LCD screen can reflect so much light that it's hard to read the text and buttons. Surface reflection drops from about 4% to less than 0.5% with anti-reflective (AR) coatings. This is a real gain that can be backed up by optical coating standards that are used to buy screens for the military and hospitals.

Viewing Angle and Panel Type

Many people think that a bigger screen can fix bad viewing angles, but this is not true. It doesn't. Like, TN-type LCD screens change colors a lot when they are tilted more than 45 degrees from the center. If you tilt an IPS screen 178 degrees up and down, it will still show the same colors and brightness. This is very important for shared control screens or kiosks that are placed on the wall.

Capacitive vs. Resistive Touch in Bright Conditions

Resistive touchscreens have a layer on top that is bendable and can bend light. This makes the screen a little less clear and bright. A layer of rigid glass on capacitive touch panels keeps the picture clear and lets you use different touch gestures. It's better to use capacitive touch that has an oleophobic coating in bright places where you don't need to wear gloves. This will make sure that the picture sharpness and touch sensitivity stay strong.

Technical Specifications That Enable Clear Images on 10.1 Inch Display Modules

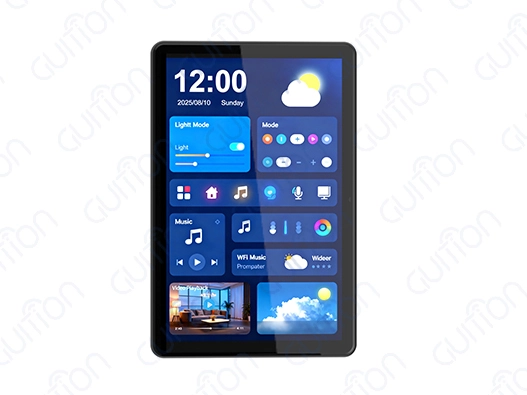

It is a custom-made hmi display module called the GUITION JC8012P4A1C_I_W_Y1 that was made to fix these viewing problems. The most important parts of it are based on what businesses and industries need.

When it comes to how well this part works in bright situations, these are the main technical specs for this 10.1 inch display module:

• Resolution: 800×1280 — 800x1280 is the resolution. This portrait-oriented resolution has a high pixel density that makes text and icons stand out even when you look at the screen from above or at an angle. It's better than the WXGA standard, which is 10.1 inches, and it works better with graphs, data tables, and visual tools.
• IPS Display Panel — IPS technology makes sure that colors look the same no matter how you look at them. When viewed off-axis, IPS panels don't change colors like LCD panels do. This is very important in places like medical tracking areas and control rooms where a lot of people see the screen from different angles.
• ESP32-P4 Dual-Core Processor at 360 MHz — That job is done by the ESP32-P4 dual-core processor running at 360 MHz. It has 32 MB PSRAM and 16MB flash memory. The power of this processor makes it possible for UI rendering to run smoothly, screen refresh to happen quickly, and real-time data to be shown without any lag. All of these things improve the clarity of the display.
• 16.7 Million Color Support — True-color rendering makes sure that alerts, status signs, and graphics data use true color patterns. This makes things easier to see when things are important.
• Backlight Control Circuit — The onboard backlight control circuit lets devs change the brightness of the panel output to suit the deployment.

All of these technology features work together to fix the sight problems we talked about earlier. A high-resolution IPS screen with an adjustable backlight and true-color output is the best choice for steady performance in bright places.

Comparing 10.1 Inch Display Modules for Industrial and Outdoor Use

An HMI display panel does not always work the same way. For buying teams to avoid mistakes that cost a lot of money, they need to know how different panel technologies work.

LCD vs. OLED in Bright Conditions

OLED screens have deep blacks and high contrast, but when there is a lot of light around them, the contrast can go away. Their self-emitting pixels can't handle high-lux settings as well as an LCD backlight that can. IPS LCD screens with brighter backlights work better than OLED screens when they need to be read outside in the sun.

Interface Compatibility and Embedded Integration

Show modules are often needed in factories to connect to controller boards, PLCs, or single-board computers that are already in use. The GUITION JC8012P4A1C_I_W_Y1 can be used with the Guition development platform, the Arduino IDE, and ESP-IDF. This means that embedded engineers don't have to write new driver code to use well-known toolchains. The program also saves the IO port and TF card connections for later use.

Supplier Reliability and After-Sales Factors

Procurement managers should examine more than just the hardware specs sheet when comparing 10.1 inch display module providers. It's also important for them to check the quality of the paperwork, the rules for firmware updates, and how quickly technical support responds. GUITION has full secondary development documents, over-the-air (OTA) upgrades that can be done remotely, and online debugging that works across platforms. These traits make the total cost of owning a thing less over its lifetime.

Procurement Insights: How to Source 10.1 Inch Display Modules That Perform in Bright Settings

There are some things you should think about before you buy a high-brightness HMI display panel.

People who want to buy something should make sure that the seller gives them certification data on the brightness (measured in nits under standard test conditions), whether the surface is treated to be anti-reflective, and whether the guarantee covers light degradation over time. The backlight should have a half-life of at least 20,000 hours for constant industrial use. The half-life is generally given in hours at 50% brightness.

Before agreeing to big deals, get some sample boxes if you're going to buy a lot. As you plan your production, make sure that the wait times don't get in the way and that the packaging stops electrostatic discharge while it's being shipped. It is already set up with test programs when GUITION's parts are sent out. The time it takes to inspect new code is cut down, and engineering teams can start integration testing right away.

Real-World Case Studies: Successful Deployment of 10.1 Inch Display Modules in Bright Environments

Industrial Automation Control Panels

People who work in automated workplaces have to read process data from control panels that are put in places with lots of light or near windows. When compared to teams that used TN-panel setups in the past, teams that use IPS-based 10.1 inch display modules report a lot fewer operator mistakes. This is said to be because the colors look better from all sides and the workers don't get as tired after long shifts.

Outdoor Kiosks and Commercial Terminals

High-nit IPS display modules with AR coatings are being used by commercial kiosk owners in retail and transportation to fix customer complaints that screens that face the sun are hard to see. Modules with adjustable backlight circuits let users change the brightness so that it is less bright at night and brighter during the day. This makes the backlight last longer.

Medical Monitoring Equipment

When medical device designers put a 10.1 inch display module into portable patient monitors, they pay attention to two things: the clarity of the images so that waveform readings are correct, and the chemical resistance of the panel surfaces so that they can be cleaned with disinfectant wipes. Both standards are met by IPS screens with oleophobic coatings and chemically strengthened glass (surface hardness ≥6H). The picture quality stays the same even when the room is lit up.

Conclusion

The hardware you choose for a 10.1 inch display module is very important because it can show accurate, clear images in bright places. A good IPS screen, enough lighting brightness, anti-reflective coatings, and processing power all help with watching in real life. The JC8012P4A1C_I_W_Y1 supports creation on multiple platforms, has an 800x1280 IPS screen, and is controlled by an ESP32-P4 dual-core. It meets all of these needs. For engineering teams and procurement managers who are making products that need to work reliably in low light, this lesson is a good technical foundation.

FAQ

What brightness level do I need for outdoor readability?

Fans of the subject always say that 800 nits is the very least for screens that can be read outside. Screens that have a value of 1,000 nits or more have a bigger window that lets in more sunlight. To be sure of the brightness data, you should always ask your provider for it instead of just going by the nominal specs.

How does IPS technology improve visibility in bright settings?

IPS panels don't change the colors or brightness when you look at them from up to 178 degrees away. When you look at the screen from the side or straight on, it will look the same. This is useful in public kiosks and open desks. You can see the color shift when you tilt a TN panel more than 45 degrees. This can make it harder to read the status lights.

Is a capacitive touchscreen reliable in bright environments?

Yes, as long as the screen is made of hard glass with a covering that keeps light from reflecting off of it. Capacitive touch doesn't need real pressure to work, so the touch layer doesn't change how clear the image is. Fingerprints that are spread out can make the screen look shiny. This can't happen because of oleophobic coatings.

Does the GUITION JC8012P4A1C_I_W_Y1 support OTA firmware upgrades?

Yes. The feature lets you update projects from afar using the Guition app. This means that units that are already in use can get firmware updates without having to be accessed physically. This helps with equipment that is put in places that are hard to get to.

Get Your 10.1 Inch Display Module Quote from Guition Today

All over the world, smart home makers, medical device creators, and industrial manufacturers can get engineered HMI display options from Guition. It comes with an IPS screen, ESP32-P4 dual-core processing, Wi-Fi and Bluetooth connectivity, and support for a number of different development platforms. The 10.1 inch display module JC8012P4A1C_I_W_Y1 is prepared for deployment. You can get a price from our team at david@guition.com or visit https://jingcaizhineng.aixdb.cn/. We are a reliable 10.1-inch display module maker.

References

1. Society for Information Display (SID). Information Display Magazine. 2022.

2. Espressif Systems. ESP32-P4 Technical Reference Manual. 2023.

3. IEC. IEC 61747-20-1: Measuring Methods for Liquid Crystal Display Modules. 2021.

4. SEMI. SEMI D63: Test Method for Measuring Luminance of Display Modules. 2020.

5. DisplaySearch / DSCC. Global FPD Market Quarterly Report. 2023.

6. IEEE. IEEE Std 2048.1: Standard for Display Metrology — Optical Performance of Display Devices. 2021.
