Best Knob Display Module Features for Industrial Equipment

When engineers and procurement managers search for the right knob display module for industrial equipment, they face a real challenge: finding a component that balances visual clarity, tactile precision, and platform flexibility. The GUITION JC3636W518C_I_Y knob display module answers that challenge directly. Built around the ESP32-S3 dual-core processor at 240MHz, this 1.8-inch IPS circular display delivers 360×360 resolution with capacitive touch, integrated WiFi and Bluetooth, and 16MB Flash — all in a compact 58×58mm footprint suitable for serious industrial deployment.

Understanding Knob Display Modules in Industrial Settings

A knob display module combines a rotary input mechanism with a circular digital screen. This way, workers can handle things by touching them and see real-time feedback on their actions all in one small unit. In the workplace, this combination is important because workers need to quickly change factors without having to go through complicated menu trees.

What Is a Knob Display Module?

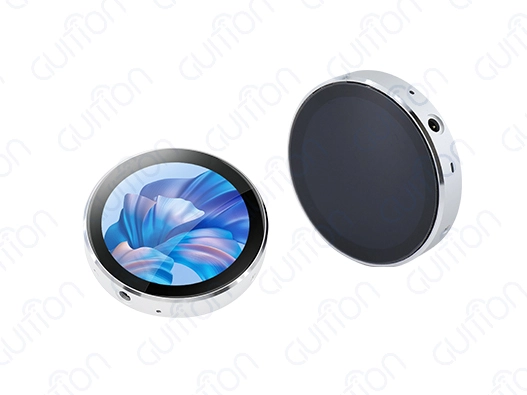

A knob display module is made up of a rotating encoder and an LCD or IPS display that is built in. The GUITION JC3636W518C_I_Y has a 58x58mm base and a 360x360 IPS screen with sensitive touch. The rotary encoder gives you direct control, and the screen shows you what the current state is. This takes away the need for guesswork on the plant floor.

Common Module Types in Industry

Industrial knob display modules can be broken down into two main groups: LCD/IPS types for detailed graphics output and LED-indicator types for easy status feedback. It is an IPS LCD, which means it can be seen from more angles and has more accurate colors than a standard TN panel. Some models, like the JC3636W518C_I_Y, can be set up wirelessly and have Bluetooth capabilities, which is useful for spread control systems.

Technical Specifications That Matter

The monitor resolution, working temperature range, communication link, and processing power are some of the most important specs that determine if something is suitable for commercial use. An ESP32-S3 MCU with 8M PSRAM and 16MB Flash powers the JC3636W518C_I_Y. It works with UART, SPI, and I2C protocols. It can store data locally on a TF card, and even on a 1.8-inch screen, its 360×360 resolution makes sure that text and images stay clear.

Core Features Driving Industrial Knob Display Module Performance

There are more factors than just screen resolution that affect performance in the workplace. A good knob display module should have stable connectivity, consistent rotational feedback, and a lot of software compatibility with a lot of different development environments.

Processing Power and Connectivity

The ESP32-S3 dual-core processor in the GUITION JC3636W518C_I_Y can go as fast as 240MHz and has 512KB of SRAM and 384KB of ROM. This extra working power lets the module show real-time info, play MP3s at up to 320K bitrate, and render MJPEG videos all at the same time. The module has WiFi and Bluetooth built in, so it can be used in IoT-connected control panels without the need for extra connection gear.

Display Clarity and Touch Response

The 360×360 IPS monitor makes graphics that are clear and sharp even in a variety of workplace lighting conditions. The capacitive touch layer works correctly with both gloved and bare fingers, which is important in manufacturing settings. A separate circuit on the module controls the backlight, so you can change the brightness without putting too much stress on the main MCU. This was done on purpose to make the system more stable.

Cross-Platform Development Flexibility

One of the best things about this knob display module's performance is that it works with the Arduino IDE, ESP-IDF, MicroPython, and the company's own development tool, Guition. There is no one way that engineers have to work. The Guition software has features like drag-and-drop UI design, a built-in control library, over-the-air (OTA) changes, and multi-language UTF-8 encoding that make product creation much faster.

How Knob Display Modules Solve Industrial Challenges

Standard touchscreens don't work well in places where there is oil, moisture, or a lot of shaking. These problems can be fixed by a well-designed knob display module that combines physical rotation input with digital output, making the interface more fault-tolerant.

Solving the Panel Real Estate Problem

Industrial control panels often don't have a lot of room. Instead of having separate buttons, status LEDs, and a screen, a single knob display module combines them all into one 58x58mm part. The GUITION JC3636W518C_I_Y has 18 pre-loaded AIDA64 display styles and can show the spectrum of an audio signal in real time. This means that a single module can do more than one monitoring and control task at the same time.

Reducing Development Time and Cost

For traditional HMI creation, you need to know a lot about low-level graphics code. That changes with the Guition development tool, which lets designers see where controls are placed and remotely push firmware updates. Cross-platform testing and downloading programs with just one click have made the normal development cycle much shorter. This means that R&D managers with tight plans can launch products earlier and spend less on engineering.

Supporting Modularity for Maintenance

In its design, the JC3636W518C_I_Y keeps display driver lines and encoder signal lines separate. This means that if something goes wrong with the display, the rotary input can still work on its own. This is a design concept that allows "limp mode" operation in important systems like medical tracking or energy management. Modular design also makes it easier to change parts in the field without using special tools.

Comparing Knob Display Modules with Alternative Solutions

When picking between a knob display module, a standalone touchscreen, or a bare rotary encoder, you have to weigh the costs, the accuracy, and the durability in harsh environments.

Knob Display Module vs. Touchscreen

There are a lot of ways to interact with touchscreens, but they can get phantom inputs from wet, dusty, or gloved hands. These problems don't happen with a rotary knob display module because it uses physical turning as its main entry method. The JC3636W518C_I_Y's sensitive touch layer works with the rotary interface instead of replacing it. This gives workers two different ways to enter information, while touchscreens only offer one.

LED Modules vs. LCD/IPS Modules

LED indicator modules are cheap and last a long time, but they only show binary status information. IPS LCD panels, such as the GUITION JC3636W518C_I_Y, show full-color images, numbers, clocks that move, weather information, and photo slideshows. For uses that need detailed feedback, like energy management dashboards or medical device interfaces, an IPS display's higher information density makes up for its higher unit cost.

Wired vs. Bluetooth-Enabled Modules

Less delay and easier security control are two benefits of wired modules. On the other hand, the JC3636W518C_I_Y's built-in WiFi and Bluetooth make wireless setup and over-the-air (OTA) software updates possible, which means that repair visits aren't needed as often. When used on a large scale across various production sites, the ability to update remotely lowers the cost of after-sales service.

Procurement Considerations for Industrial Knob Display Modules

Not just unit price should be used to choose the right knob display module provider; technical documentation quality, OEM support, and long-term supply stability should also be taken into account.

Evaluating Supplier Credentials

When looking for a knob display module, make sure the company that makes it gives you full datasheets, circuit files, and development guides. GUITION includes full technical documentation with all of its products, such as sample code for MicroPython, Arduino IDE, and ESP-IDF for its esp32 display module products. This level of clear documentation shows that a supplier is sure of their product and lowers the risk of integration for new buyers.

Customization and OEM Support

Customized enclosures, firmware, or UI themes are needed for many industrial applications. Open APIs and drag-and-drop UI tools on the Guition platform allow for secondary development. This means that OEM teams can create their own interfaces without having to rewrite the firmware from scratch. Direct inquiries can get you prices on bulk orders and choices for unique branding.

Warranty, Logistics, and After-Sales Service

A reliable knob display module supplier is different from a transactional one because they offer reliable support after the sale. GUITION backs up its modules with technical help channels and OTA features that let you do diagnostics from afar. Buyers should make sure that the guarantee covers what they want, that they know how long it will take to make a lot, and that they know if the seller keeps stock for quick repeat orders.

Conclusion

To choose the best knob display module for industrial equipment, you need to think about how much processing power it has, how good the display is, how flexible the communication options are, and how long the vendor will support the module. The GUITION JC3636W518C_I_Y has all of these features: an ESP32-S3 processor, a 360x360 IPS display, built-in WiFi and Bluetooth, and support for development on multiple platforms. This ESP32 Display Module gives you a technically sound base that makes it easier to build industrial control screens, medical monitors, or smart tools. It also lets you make changes to the product in the future.

FAQ

Q1: Can this knob display module work with Arduino IDE?

Yes. Along with ESP-IDF, MicroPython, and the Guition programming tool, the GUITION JC3636W518C_I_Y fully supports Arduino IDE. Without converter libraries, engineers can pick any technology that works with the way they work now.

Q2: What communication protocols does the module support?

The module has connections for UART, SPI, and I2C. Its ESP32-S3 processor also has built-in Bluetooth 5.0 and WiFi (802.11 b/g/n), so it can be connected to current industrial systems both wired and wirelessly.

Q3: Is the display readable under bright factory lighting?

The 1.8-inch IPS screen with a resolution of 360x360 keeps its contrast well in normal indoor workplace lighting. The separate circuit for controlling the backlight lets you change the brightness to match the lighting conditions.

Q4: Does the module support remote firmware updates?

Yes. Over-the-air (OTA) updates are built into the Guition platform. This lets engineers make changes to software and user interfaces on deployed units without having to physically reach them. This cuts the cost of field service by a lot.

Q5: What is the Flash and memory specification?

The JC3636W518C_I_Y has 512KB SRAM, 16MB Flash, 8M PSRAM, and 384KB ROM. This memory setup lets you play music, log data, and use rich UI assets through the onboard TF card interface.

Partner with Guition for Your Next Knob Display Module Project

When you buy a knob display module from GUITION, you get full technical instructions, cross-platform development support, and direct engineering help. The JC3636W518C_I_Y is ready to be tested. Get in touch with our team right away to talk about your needs, get samples, or look into our volume prices as a reliable knob display module provider. To begin, email us at david@guition.com or go to https://jingcaizhineng.aixdb.cn/.
