ESP32 P4 display module: Is It Ready for Next-Gen Products?

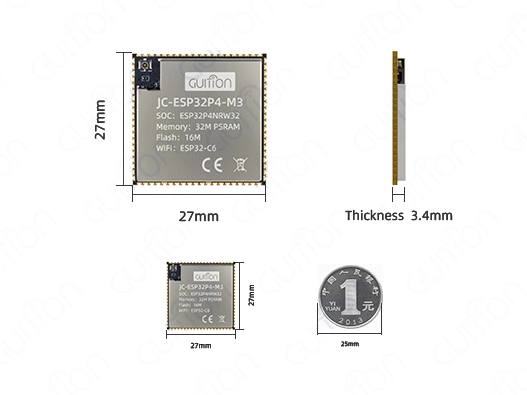

The ESP32 P4 display module has become one of the most talked-about embedded display solutions in 2024 and 2025. Built on Espressif's high-performance RISC-V architecture, the GUITION JC-ESP32P4-M3-C6 delivers a dual-core 400MHz processor, native MIPI-DSI output, Wi-Fi 6, Bluetooth 5, and up to 32MB PSRAM in a compact 27×27×3.4mm footprint. For engineers and product teams evaluating whether this ESP32 P4 display module fits their next-generation roadmap, the short answer is yes — and the evidence is compelling.

Understanding the ESP32 P4 Display Module: Features and Specifications

What Makes the Hardware Architecture Stand Out?

The GUITION JC-ESP32P4-M3-C6 has two chips: the ESP32-P4 SoC and the ESP32-C6 co-processor. Together, they make a dual-chip architecture that can handle both high-performance multimedia tasks and wireless communication at the same time. The HP RISC-V CPU has two cores and runs at 400MHz with a Single-Precision FPU. A low-power LP RISC-V core at 40MHz handles jobs in the background. This design keeps active power use low without slowing things down, which is important for industrial and medical embedded uses.

There are native hardware ports for USB OTG 2.0 HS, I2C, UART, SPI, I2S, ADC, TWAI, LED PWM, MCPWM, and RMT, as well as MIPI-DSI and MIPI-CSI with an integrated Image Signal Processor (ISP). These add-ons can be used for almost any kind of internal transmission without the need for extra bridge chips.

Display and Media Capabilities

The ESP32 P4 display module can handle resolutions of up to 800x1280 pixels through MIPI-DSI. It also has hardware H.264 video encoding and a 2D Pixel Processing Accelerator (PPA) for rotating, scaling, and blending layers. Since the PPA greatly lowers CPU load during complicated UI rendering, high-resolution screens can run at 60 FPS without any hiccups, which was a problem with older SPI-based MCU displays. The module can easily handle big framebuffers because it has 768KB of on-chip HP SRAM and can connect to external PSRAM up to 32MB.

Comparing ESP32 P4 Display Module with Other Popular Displays

How It Stacks Up Against Common Alternatives?

An awful lot of embedded teams have used screens that were powered by ILI9341, ST7735, or Nextion controls. In applications with lower resolution and throughput, these solutions did what they were supposed to do. The ESP32 P4 display module makes a big difference in the math. Because they don't have native MIPI-DSI and can only handle SPI bandwidth, ILI9341-based TFT screens can't handle images higher than 480x320 at smooth frame rates. ST7735 is aimed at very small, cheap screens that don't need a lot of processing power. Nextion gives you a scripted UI setting, but it makes it hard to make changes and do extra work.

The GUITION JC-ESP32P4-M3-C6 is compared in the following important ways:

• Processing power: The 400MHz dual-core RISC-V design works better than the 8-bit and 32-bit MCUs that are usually paired with ILI9341 or ST7735 panels. It can handle wireless communication, real-time data display, and touch event processing all at the same time without any frame drops.
• Display interface quality: Native MIPI-DSI gets rid of the throughput limit of SPI-based displays, allowing high-resolution panels to work at 60 frames per second (FPS). This is needed in medical monitoring equipment and industrial HMI panels where data density is important.
• Connectivity depth: Wi-Fi 6 and Bluetooth 5 through the built-in ESP32-C6 co-processor offer faster throughput and lower latency than Wi-Fi 4 found on most rival ESP32-based display solutions. This directly helps over-the-air (OTA) upgrade processes and IoT devices that are connected to the cloud.
• Security architecture: The ESP32-P4 has a digital signature device and a key control unit built right in. Most cheap display controllers don't have this kind of hardware-level security, which is becoming more and more important for medical and industrial certifications.

All of these benefits make the ESP32 P4 display module a link between cheap MCU displays and Linux-based MPU platforms that need a lot of resources. It offers performance close to that of an MPU at the cost and power of an MCU.

In contrast to OLED panels, the module can be used to make bigger screens while keeping the colours the same from any angle. As a bonus, the hardware PPA cuts down on the GPU-like work that OLED-driven systems usually give to the host CPU.

Procurement Guide: How to Source the ESP32 P4 Display Module for B2B Needs?

To get an embedded display module for mass production, you need to be sure that both the product is real and that you can keep getting it. As a maker of ESP32 P4 display modules, GUITION has a plan that combines research and development, production, and sales. This makes the supply chain simpler and allows engineers to work together directly. The company makes display modules that range in size from 1.28" to 21.5". The JC-ESP32P4-M3-C6 is designed for uses that need high throughput and wireless connectivity.

When B2B procurement teams work directly with GUITION, they can get OEM customisation, bulk discounts, and special technical support, which are benefits that can't be found through marketplace channels. Before committing to large orders, buyers should ask for datasheets, compliance documents, and trial units.

Evaluating ESP32 P4 Display Module for Next-Gen Product Integration

How quickly they can go from concept to production is one of the most important things for embedded teams to think about. The GUITION JC-ESP32P4-M3-C6 works with Arduino, ESP-IDF, and the company's own development platform, so it can be used by engineers of all skill levels without having to switch to a different set of tools.

You can create an interface with drag-and-drop, add controls with one click, and see a preview of the WYSIWYG layout with the Guition UI creation software. With this method, you don't have to write low-level graphics code from start, which cuts UI development times by a large amount. Cross-platform web testing cuts down on iteration cycles even more.

The platform supports remote over-the-air (OTA) upgrades, which let devices that have been launched get firmware changes without having to be physically accessed. This feature lowers the cost of service after the sale for large-scale industrial deployments or smart home systems that are spread out geographically. Global implementation is possible with UTF-8 encoding and support for multiple languages.

Secure Boot, Flash Encryption, and the hardware World Controller for trusted execution settings are all security features that are in line with the compliance standards that are becoming more and more important in medical device development and industrial automation approvals.

Conclusion

The GUITION JC-ESP32P4-M3-C6 ESP32 P4 display module provides teams developing next-generation HMI devices with a stable platform that is ready for production. It has a 400MHz dual-core RISC-V processor, native MIPI-DSI, hardware H.264 encoding, Wi-Fi 6, Bluetooth 5, and a security design built right in. These features fill in the main technical gaps that held back earlier MCU-based display options. When it comes to engineering, the Guition development environment lowers the bar without lowering the level of customising. This module is technically ready and can be sold, so it can be used for a variety of things, such as an industrial control panel, a medical patient monitor, a smart home dashboard, or an EV charging interface.

FAQ

What distinguishes the ESP32 P4 display module from earlier ESP32 display solutions?

The ESP32 P4 display module has a hardware 2D Pixel Processing Accelerator, native MIPI-DSI output, and H.264 video encoding, which previous versions of the ESP32 did not have. It has up to 32MB of PSRAM and 400MHz dual-core processing, which lets it handle resolutions and frame rates that were only possible with Linux-based application processors before.

Which development environments does the GUITION JC-ESP32P4-M3-C6 support?

Because it works with Arduino, ESP-IDF, and the Guition platform, the module can be used by engineers who prefer different ways of working.

Can this module support OTA firmware updates for deployed devices?

Yes. The Guition ecosystem includes a remote upgrade feature that lets you make changes to a project over-the-air without having to physically reach the device.

Is the ESP32 P4 display module suitable for medical device development?

Its hardware security features, like Secure Boot, Flash Encryption, and a separate key management unit, meet the needs for data integrity in medical applications. The ability to work reliably in temperatures ranging from -40°C to +85°C makes it useful in hospital settings.

What display resolutions does it support?

The module can drive panels with up to 800x1280 pixels via MIPI-DSI at 60 frames per second, making it good for high-density user interface (UI) uses in business and industrial terminals.

Partner with GUITION for Your Next ESP32 P4 Display Module Project

GUITION helps your team get HMI goods to market faster by combining in-house R&D, manufacturing, and expert support. We are a reliable source for the esp32p4 display module, and we offer OEM customisation, full documents, and quick tech support. To get samples, datasheets, or bulk prices for the JC-ESP32P4-M3-C6, email us at david@guition.com.

References

1. Espressif Systems. ESP32-P4 Technical Reference Manual. Espressif Systems, 2024.

2. Embedded Computing Design. RISC-V SoCs and the Future of Embedded HMI. Embedded Computing Design, 2024.

3. IPC Association. IPC-A-610 Acceptability of Electronic Assemblies. IPC, 2023.

4. Microcontroller Tips. Comparing Display Interfaces: SPI vs. MIPI DSI in Embedded Systems. Microcontroller Tips, 2023.

5. EDN Network. Wi-Fi 6 Integration in Industrial IoT Edge Devices. EDN Network, 2024.

6. Electronic Design. Security Architectures for Embedded Systems: Secure Boot and Flash Encryption. Electronic Design, 2023.
