Best 2.8 inch ESP32 display module for IoT Projects

September 8,2026

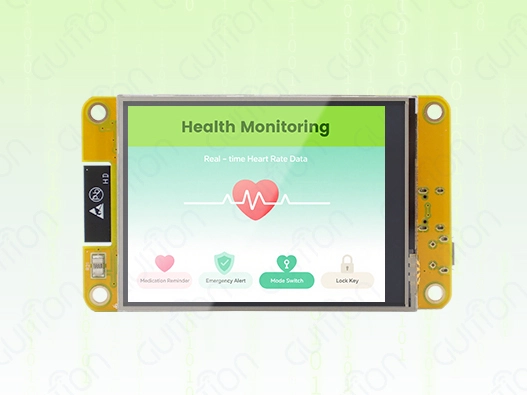

If you are searching for the best 2.8-inch esp32 display module for your next IoT project, the GUITION ESP32-2432S028R deserves your full attention. This compact yet powerful ESP32 display module integrates a dual-core MCU running at 240MHz, onboard Wi-Fi and Bluetooth, a 240×320 TFT LCD with resistive touch, and a rich peripheral set — all on a single PCB. Whether you are prototyping an industrial control panel or deploying a smart home device at scale, this module shortens your development cycle without compromising on reliability or visual quality.

Understanding the GUITION ESP32-2432S028R Display Module

Core Architecture and Technical Specifications

The GUITION ESP32-2432S028R has the dual-core Xtensa® LX6 processor from ESP32. It has a 240MHz clock, 520KB of SRAM, 448KB of ROM, and 4MB onboard Flash. The 2.8-inch TFT LCD has QVGA resolution (240x320 pixels) and supports 65K colors with a high-speed SPI interface. The resistive touch (XPT2046 controller) gives you reliable data entry with a pen or gloved hands – a practical benefit in industrial and medical environments where capacitive screens may fail when they become filthy.

The module has a backlight control circuit, speaker driver circuit, photosensitive ambient-light sensor, RGB-LED control circuit, TF card slot for expandable storage, DHT11 temperature/humidity sensor interface, serial interface, and reserved GPIO ports. This degree of integration removes the “spaghetti wiring” clutter associated with manufacturing separate components and allows developers to concentrate on application logic instead of hardware assembly.

Supported Development Environments

One of the amazing things about this ESP32 touchscreen module is that it can operate with a variety of different platforms. Engineers may write the firmware in Arduino IDE, ESP-IDF, MicroPython, or Mixly, depending on the environment the engineers already know how to utilize. GUITION also provides extensive sample code and library functions so that even the most complex HMI examples are up and running in hours, not days. For teams researching LVGL-based interfaces, the dual-core architecture of the ESP32 allows one core to run Wi-Fi/Bluetooth stacks while the other runs seamless UI rendering at >30 FPS.

Comparing Display Options for ESP32 IoT Projects

TFT LCD vs. OLED vs. Alternative Sizes

Choosing the right display technology shapes both development cost and long-term maintenance. Here is how the 2.8-inch TFT LCD format competes against common alternatives:

2.8-inch TFT LCD (ESP32-2432S028R): Delivers a typical brightness of 250–300 nits, 65K colors, and reliable visibility outside. The resistive touch controller adds almost no BOM cost and can work with any pointing object, making it the preferred choice for industrial diagnostics and agricultural automation terminals.
OLED displays (0.96"–1.3"): Offer superior contrast and deep blacks at minimal power, but their small physical size limits UI complexity. They suit single-metric readouts rather than multi-widget dashboards.
3.5-inch TFT 2.8-inch ESP32 display modules: Provide more screen real estate but increase PCB footprint by roughly 35%, which can conflict with compact enclosure requirements common in smart appliances and wearable gateways.

The 2.8-inch form factor sits at a practical crossroads — large enough for a functional multi-element GUI, small enough to fit inside standard DIN-rail enclosures or wall-mounted control panels. For B2B buyers managing diverse product lines, this versatility reduces SKU complexity.

Top Picks: Best 2.8 Inch ESP32 Display Modules for IoT Projects

Why the GUITION ESP32-2432S028R Stands Out

Several ESP32 display modules compete in this segment. The GUITION ESP32-2432S028R differentiates itself through a combination of peripheral depth, software support, and verified manufacturing standards that most generic modules do not match.

Here are the core advantages that make this device a preferred choice among embedded engineers and procurement managers for 2.8-inch ESP32 display module projects:

Factory-pre-programmed: The module ships with test firmware already loaded. Engineers can validate hardware functionality the moment they plug in power, cutting initial bring-up time from hours to minutes.
Onboard peripheral richness: Speaker driver, ambient-light sensor, RGB LED, DHT11 interface, and TF card slot are all integrated. Teams building smart home or medical monitoring devices eliminate the need for external breakout boards.
Secure OTA upgrade support: The ESP32's native OTA partition scheme allows remote firmware updates. For deployed IoT fleets, this capability directly reduces after-sales service costs, since technicians do not need physical access to update devices in the field.
Multi-language and UTF encoding compatibility: GUITION's development ecosystem supports multi-language switching, enabling global product deployment without firmware rewrites for each regional market.

These advantages address real production bottlenecks. Teams that previously spent two to three weeks debugging external display driver wiring report that integrated modules like the ESP32-2432S028R compress that phase to under 48 hours, freeing engineering bandwidth for feature development.

How to Choose the Right ESP32 Display Module for Your Project

Procurement Criteria That Matter Most

Selecting a 2.8-inch ESP32 display module for B2B deployment requires more than comparing spec sheets. Here is a structured set of criteria that experienced procurement managers apply:

Resolution and color depth - 240x320 pixels with 65K colors is adequate for most HMI purposes in business and home. Projects requiring photographic images may need higher-density panels.

Touch technology – For circumstances where gloves, dampness, or stylus input are involved, resistive touch is still the right solution. Capacitive touch is suitable for consumer-grade kiosks, where multi-touch motions enhance user experience.

Interface compatibility – SPI-based modules, such as the ESP32-2432S028R, plug right into the ESP32’s built-in SPI master. With DMA channels and higher SPI speeds of 40-80MHz, you may eliminate frame tears without any extra hardware.

The quality of the supplier documentation – Verified blueprints, pinout diagrams, and functional sample code- decreases troubleshooting time in both the prototype and production phases. GUTITION has complete technical documentation and active support channels.

OTA and remote maintenance – Remote upgrade functionality is not optional for any deployment of more than 50 devices. Check that the vendor’s partition strategy supports huge application binaries before choosing a provider.

Procurement Guide: Sourcing the GUITION ESP32-2432S028R

GUITION is managed by Jingcai Intelligence, with a vertically integrated supply chain including R&D, manufacturing, and worldwide distribution. The line includes display modules ranging from 1.28” to 21.5”, and the ESP32-2432S028R is part of a catalog that’s designed for long-term supply stability – no small issue for OEMs planning multi-year production runs.

GUITION offers system integrators and wholesale purchasers in the US flexible minimum order quantities, rapid sample programs, and documented quality assurance methods that are compliant with RoHS and REACH environmental standards.

Conclusion

There is a good mix between technical complexity and real ease of use in the GUITION ESP32-2432S028R ESP32 display module. Its dual-core MCU, integrated Wi-Fi and Bluetooth, 240×320 resistive touchscreen, and rich peripheral set make it a credible choice for industrial HMI panels, smart home controllers, medical monitoring gateways, and energy management terminals. For engineering teams prioritizing short time-to-market and long-term supply reliability, this 2.8-inch ESP32 display module removes friction at every stage — from first prototype to volume production.

FAQ

Q1: Which interface does the ESP32-2432S028R use to drive the display?

The module uses a high-speed SPI interface connected to the TFT LCD driver. Any frame rate or splitting problems can be fixed by turning on DMA in the software and setting the SPI clock to 40–80MHz.

Q2: Does this ESP32 display module support OTA firmware updates?

Yes. Over-the-air updates can be done with the ESP32's native OTA partition. Select the "Huge App" partition scheme in Arduino IDE or ESP-IDF to accommodate large display library binaries.

Q3: Is resistive touch reliable in industrial environments?

Resistive touch operates correctly with gloves, styluses, and in high-humidity conditions, making it well suited for factory floors, agricultural terminals, and medical devices.

Q4: What development platforms are compatible?

The ESP32-2432S028R supports Arduino IDE, ESP-IDF, MicroPython, and Mixly, covering the majority of embedded development workflows without requiring platform migration.

Q5: Can the module handle deep-sleep battery applications?

Yes. Program the backlight transistor to cut power during deep sleep. The ESP32 core itself draws approximately 10µA in deep-sleep mode.

Partner with GUITION — Your Trusted 2.8 Inch ESP32 Display Module Supplier

GUITION delivers professionally engineered HMI display solutions built for B2B scale. The 2.8-inch ESP32 display modules include onboard Wi-Fi, Bluetooth, multi-platform compatibility, and OTA upgrade capability in a production-ready package. Request samples or a tailored quotation today — reach our team directly at david@guition.com to explore our full 2.8-inch ESP32 display module catalog.
