Arduino TFT Touch Screen Setup: Step-by-Step Guide?

Setting up an Arduino TFT touchscreen doesn't have to be overwhelming. At its core, an Arduino TFT module combines active-matrix thin-film transistor display technology with resistive or capacitive touch capabilities, allowing you to build interactive interfaces for industrial control systems, IoT devices, and smart appliances. These displays communicate with microcontroller units via SPI or parallel protocols, enabling engineers to create professional HMI solutions without extensive low-level programming. With the right approach, you can transform a basic Arduino project into a sophisticated control panel in less than an afternoon.

Understanding Arduino TFT Touch Screens: Basics & Key Components

What Makes Arduino TFT Technology Essential for Industrial Projects

Arduino TFT displays revolutionized embedded systems development by providing accessible, high-resolution graphical interfaces. Unlike passive character LCDs, these active-matrix screens use individual transistors for each pixel, delivering 65,536 colors and crisp visibility from wide viewing angles. When you're developing control panels for manufacturing equipment or medical devices, this visual clarity becomes mission-critical. The technology bridges the gap between simple indicator lights and expensive proprietary HMI systems, offering a cost-effective middle ground for engineers working under tight budgets and timelines.

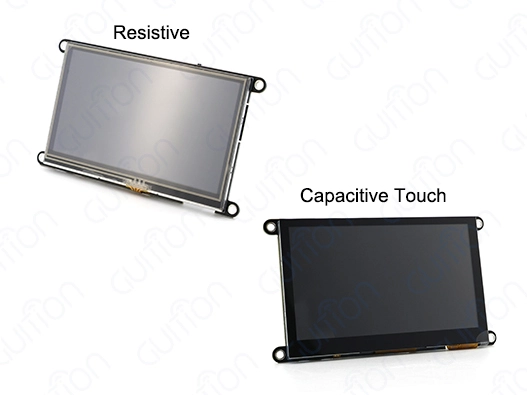

Resistive vs Capacitive Touch: Choosing the Right Interface

The debate between resistive and capacitive touch affects more than just user experience. Resistive screens respond to pressure, making them ideal for industrial environments where operators wear gloves or need stylus compatibility. They're more affordable and work reliably in dusty or wet conditions common in agricultural automation and energy management systems. Capacitive screens allow for multiple finger touches and have better picture quality, but they need to be touched with bare fingers, which makes them less suitable. When specifying displays for procurement, your environment dictates the technology—factory floors demand durability over elegance.

Core Specifications That Matter for B2B Applications

Resolution directly impacts how much data you can display simultaneously. A 480×272 screen provides sufficient real estate for sensor readouts, control buttons, and status indicators without overwhelming operators. Color depth matters less than brightness and contrast ratio in well-lit industrial settings. Pay attention to the driver IC compatibility—chips like ILI9341 and ST7789 have robust library support, reducing development time. Pin configurations vary between modules; SPI interfaces minimize wiring complexity while parallel connections offer faster refresh rates for animation-heavy applications.

Step-by-Step Arduino TFT Touch Screen Setup Guide

Hardware Requirements and Component Selection

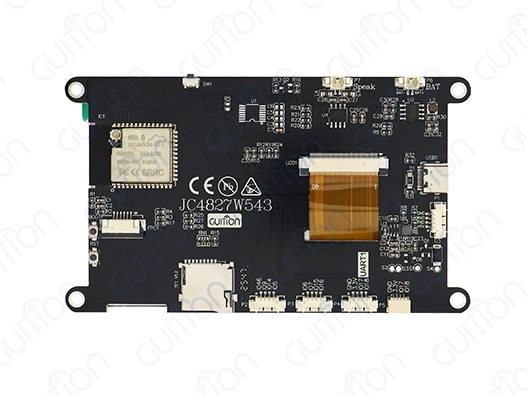

Your setup begins with selecting compatible components. The GUITION JC4827W543N_I exemplifies modern Arduino TFT modules, integrating an ESP32-S3R8 dual-core processor running at 240MHz with built-in Wi-Fi and Bluetooth. This 4.3-inch display delivers 480×272 resolution through a resistive touch interface, backed by 8MB PSRAM and 4MB Flash storage. The module reserves a TF card slot and provides up to 10 available IO pins, making it versatile for complex industrial applications. You'll also need quality jumper wires rated for industrial use, a stable 5V power supply capable of handling backlight current spikes, and a USB cable for programming.

Beyond the display itself, consider your development environment. A breadboard simplifies initial prototyping, while custom PCBs provide production-grade reliability. Logic level shifters become necessary when interfacing 3.3V displays with 5V Arduino boards—direct connections cause gradual component degradation that manifests as screen flickering or premature failure. Keep spare connectors and a multimeter nearby for troubleshooting continuity issues during assembly.

Software Environment and Library Installation

Development flexibility defines the GUITION ecosystem. The JC4827W543N_I supports Arduino IDE, ESP-IDF, MicroPython, and the proprietary Guiton development platform. Installing the Arduino IDE remains the most accessible entry point—download version 2.0 or later from the official repository. Add ESP32 board support through the Board Manager by entering the Espressif Systems package URL in Preferences. This unlocks compiler toolchains specifically optimized for the S3 architecture.

Library selection accelerates development dramatically. The TFT_eSPI library offers hardware-accelerated graphics rendering with DMA support, crucial for eliminating screen tearing during rapid updates. Configure the User_Setup.h file to match your display's driver IC and pin assignments. The Adafruit_GFX library provides drawing primitives—lines, circles, and text rendering—that form the building blocks of any interface. Touch functionality requires additional libraries like XPT2046. Touchscreen for resistive panels, handling coordinate mapping, and pressure sensitivity calibration.

Wiring Configuration and Pin Mapping

Proper wiring prevents 90% of setup frustrations. SPI connections require five essential pins: MOSI (Master Out Slave In), MISO (Master In Slave Out), SCK (Serial Clock), CS (Chip Select), and DC (Data/Command). The ESP32-S3 uses GPIO pins that you'll map in your code—typical assignments place SCK on GPIO18 and MOSI on GPIO23, with CS and DC on any available GPIO. Power connections demand attention: connect VCC to 3.3V, not 5V, unless your module includes voltage regulation. Ground connections must be solid; intermittent grounding causes phantom touch events and display corruption.

The resistive touch controller operates on the same SPI bus but requires a separate CS pin assignment to prevent bus contention. Backlight control through a PWM-capable GPIO enables brightness adjustment, extending display lifespan in 24/7 industrial operations. If you're using the TF card slot simultaneously, allocate yet another CS pin—three devices sharing one SPI bus, each taking turns through careful chip select management. Cable length matters; keep SPI runs under 30cm to avoid signal integrity issues at higher clock speeds.

Programming Your First Display Interface

Display initialization code sets rotation, fills the screen with a test color, and tests basic functionality. A simple program that cycles red, green, and blue backdrops verifies wiring and drivers. GUITION is pre-programmed with test procedures to validate hardware immediately after connection. Traditional modules require manual driver flashing, but plug-and-play saves hours.

Using touch input requires calibration. Calculate the transformation matrix between raw ADC data and pixel coordinates by tapping targets at screen corners in a touchscreen calibration sketch. Persist calibration values in EEPROM or SPIFFS between reboots. Poll touch status, debounce inputs to avoid false triggers, and update display elements only when needed—full-screen redraws waste power and cause slowness. Use a state machine for button pushes, slider adjustments, and page navigation to develop responsive interfaces.

Advanced implementations use the ESP32-S3's dual-core. Use one core for display rendering and the other for sensor data collecting and wireless connection. Stutter-free animations and intricate graphics are supported by the 8MB PSRAM's screen frame buffering. Your field-installed equipment can receive firmware upgrades via Wi-Fi, eliminating costly technician trips for software fixes.

Common Issues and Practical Troubleshooting

White screen syndrome indicates initialization failure. Verify your driver selection matches the actual controller IC—mismatched drivers produce blank displays or garbled output. Verify power supply stability with an oscilloscope; voltage sags during backlight activation cause brownouts that reset the controller. If the display shows content but touch doesn't respond, confirm the touch CS pin isn't conflicting with another SPI device and that your calibration routine completed successfully.

Slow refresh rates frustrate users and suggest inefficient code. Switch from software SPI to hardware SPI by using designated SPI pins—speed improvements reach 10x. Enable DMA transfers where supported to offload memory operations from the CPU. Redraw only changed screen regions instead of clearing and redrawing everything; partial updates dramatically improve responsiveness. If text appears corrupted, check that your font files are loaded correctly and that text buffer sizes accommodate UTF-8-encoded multi-language strings.

Comparison and Selection: Choosing the Best TFT Display for Your Procurement Needs

Technology Comparison: TFT vs Alternative Display Types

Understand display technology trade-offs to make better purchases. OLED screens have better contrast and viewing angles, but burn-in with static images, making them unsuitable for industrial HMI status indicators. Outdoor use is limited due to higher costs and moisture sensitivity. Traditional character LCDs are cheaper but only display alphanumeric data, not graphs or icons. Nextion displays' proprietary editors simplify UI design but tie you into a pricy single-vendor ecosystem. Sunlight readability and ultra-low power consumption make e-ink ideal for status displays but not interactive controls.

Arduino TFT modules are an ideal middle ground. Conventional microcontroller compatibility balances color, update speed, and cost-effectiveness. TFT technology is best for graphical data presentation, operator touch input, and outdoor visibility. Under harsh industrial lighting, the active-matrix architecture makes complex interfaces readable.

Evaluating Suppliers: What Procurement Managers Must Know

Supplier reliability determines project success as much as technical specifications. Established manufacturers like Adafruit and SparkFun offer excellent documentation and community support, ideal for prototyping phases. Their premium pricing reflects this support infrastructure. Chinese suppliers, including Waveshare and DFRobot, provide competitive pricing with acceptable quality for production volumes, though English documentation quality varies. Assess suppliers based on certification compliance—CE, FCC, and RoHS markings indicate adherence to international standards mandatory for commercial products.

Lead times impact production schedules significantly. Please confirm stock availability for your required volumes before committing to designs. Request samples early in development to evaluate build quality, backlight uniformity, and touch responsiveness under your specific conditions. After-sales support matters when troubleshooting production issues; suppliers providing accessible technical contacts and detailed datasheets save engineering hours. Customization services—modified cable lengths, pre-soldered connectors, and custom firmware—differentiate full-service suppliers from component distributors.

Procurement Checklist for Arduino TFT Module Selection

Systematically weigh multiple factors when buying. The display must fit the enclosure and be readable from common operator distances. Displaying information without congestion depends on resolution. Operator gloves and environmental circumstances determine touch technology. Wiring complexity and data performance depend on the SPI, or parallel interface type.

More than the display, controller specs matter. The GUITION JC4827W543N_I's ESP32-S3R8's dual-core processing at 240 MHz allows responsive interfaces and background work. Integrating Wi-Fi and Bluetooth reduces BOM costs and complexity by eliminating wireless modules. How advanced your application may be without external storage depends on memory capacity—512KB SRAM, 384KB ROM, 8MB PSRAM, and 4MB flash.

Development ecosystem compatibility matters. As your team's knowledge grows, Arduino IDE, ESP-IDF, MicroPython, and Guition modules provide versatility. Initial evaluation is faster using pre-loaded tests. Iterative development is easier with one-click programming. Remote firmware updates are required for deployed products.

Integrating Arduino TFT Touch Screens into Industrial Applications

Real-World Applications Across Industries

Industrial control panels benefit enormously from Arduino TFT integration. CNC machines display real-time position feedback, cutting parameters, and alarm conditions on color screens, replacing cryptic LED indicators. Operators adjust feed rates and tool offsets through intuitive touch interfaces rather than navigating nested button menus. The visual feedback reduces training time and operational errors, directly impacting productivity metrics.

Smart home and building automation systems leverage these displays as central control hubs. A wall-mounted Arduino TFT panel consolidates lighting, HVAC, security camera feeds, and energy monitoring into a unified interface. The GUITION module's Wi-Fi connectivity enables MQTT integration with home automation platforms, while Bluetooth supports proximity detection and mobile app pairing. Multi-language support accommodates international installations without hardware changes—critical for global deployments.

Medical device developers incorporate Arduino TFT screens into diagnostic equipment and patient monitoring systems. The high color depth renders ECG waveforms, SpO₂ trends, and ultrasound imagery with clinical accuracy. Resistive touch panels work reliably in clinical glove environments. Following medical electrical safety standards means ensuring proper power supply separation and protection against electrostatic discharge, but the basic display technology follows FDA guidelines for user interface design. Data logging to the onboard TF card provides audit trails for regulatory documentation.

Installation Best Practices for Long-Term Reliability

Environmental protection prolongs display life under adverse environments. Industrial enclosures with IP65 or IP67 certifications protect Arduino TFT modules from dust and water. Strain reliefs and cable glands seal cable entry sites. Conformal coating can prevent PCB corrosion in high-humidity conditions. Mechanical shock mounting—using soft rubber standoffs instead of screws—protects mobile equipment and motors from vibration damage.

Thermal management prevents failure in advance. LCD panel operation temperatures are typically 0°C to 60°C, with greater storage ranges. Backlight LED lifespan drops rapidly at high temperatures; ventilate or cool. Integrate heating devices to bring displays up to operational temperatures before activation in extreme cold. The ESP32-S3 can operate at 85°C junction temperature, although high temperatures reduce wireless performance and increase power consumption.

Maintainability is ensured by firmware management. The GUITION platform's remote upgrade allows over-the-air updates, which is essential for distributed devices. Rollback unsuccessful upgrades to avoid bricking devices. Version control: document which firmware versions work on particular hardware. The 4MB Flash capacity allows dual partition schemes—update an idle disk, verify integrity, then switch partitions—to recover from corrupted updates.

Customization and Scalability for OEM Integration

OEMs need displays that change with product lines. The Arduino TFT ecosystem's open architecture allows extensive customization. Change screen layouts without hardware modifications by altering display code. Use the ESP32-S3's IO pins to add sensors, indication LEDs, or serial communication interfaces. The JC4827W543N_I has 10 GPIO pins for future expansion.

Scalability affects product strategy long-term. You may prototype with a 4.3-inch display and upgrade to 7- or 10-inch displays for premium products while keeping software compatibility. The same driver ICs across sizes reduce code modifications. Production volume increases warrant custom PCB designs that integrate the display controller directly onto your main board, lowering assembly costs and boosting reliability by removing interfaces.

Trusted Suppliers and Brands for Reliable Arduino TFT Displays

Evaluating Leading Arduino TFT Display Manufacturers

Adafruit Industries became a top Arduino TFT provider with extensive tutorials and proactive community assistance. Their displays reduce development risk using datasheets, library examples, and troubleshooting information. The premium price reflects this value-added service, making them appropriate for prototyping and limited production runs where engineering time costs exceed component costs.

Waveshare offers 1.8-inch to 10.1-inch Arduino TFT screens at cheap prices and good quality. Advanced programs may require reading sparse technical details; however, their wiki page covers basic setup. Maintenance of stock availability is crucial for production continuity. SainSmart offers affordable education and hobbyist options with enough quality for non-critical business applications.

Open-source hardware company SparkFun Electronics publishes design files for customization and troubleshooting. Arduino TFT modules contain schematic designs and board layouts for bespoke PCB display integration. Ruggedized modules and industrial-grade connectors from DFRobot suit robotics and automation applications that need endurance.

The GUITION Advantage: Technology-Driven HMI Solutions

Guition differentiates itself by vertically integrating hardware and software toolchains for seamless interaction. With WYSIWYG interface design tools, Guition breaks development bottlenecks. Drag-and-drop control placement, real-time preview, and cross-platform debugging speed development from weeks to days. Engineers like the large library of pre-built widgets—gauges, charts, sliders—that eliminate repeated low-level programming.

Technical capabilities go beyond displays. The company's 1.28-inch to 21.5-inch product portfolio serves wearable devices and industrial operator stations. Secondary development interfaces with detailed documentation, allowing customization without reverse-engineering closed systems. One-click programming simplifies firmware updates during prototyping. Multilingual support and UTF-8 encoding simplify global deployments.

Jingcai Intelligence, aka Guition, houses research, production, and sales. This integration controls quality from component procurement to assembly. New technology creates modules like the JC4827W543N_I, which uses modern microcontrollers and efficient display drivers. Customer-centric support covers product specification, design, and after-sales troubleshooting.

Supply Chain Considerations for Volume Production

Purchasing managers considering volume manufacturing must evaluate supplier stability. Assess financial health, manufacturing capacity, and ISO9001 certifications. Get recommendations from similar-industry customers. Clear contact with technical support teams is crucial for resolving production challenges under deadline pressure.

Framework agreements on pricing, lead times, and minimum order quantities. Volume commitments often result in better prices and priority allocation during component shortages. Clarify IP terms if suppliers deliver proprietary firmware or customized hardware. To avoid forced redesigns when crucial parts become obsolete, discuss component end-of-life rules.

Logistics impact ownership cost. US suppliers ease customs compliance and shipping times, but cost more per unit. Competitively priced overseas suppliers require import duties, quality control standards, and longer supply chains that are susceptible to disruption. Balanced sourcing may mix domestic prototype and urgent replenishment suppliers with offshore partners for cost-optimized production volumes.

Conclusion

Successfully implementing Arduino TFT touch screens in industrial applications requires balancing technical specifications, supplier reliability, and development ecosystem compatibility. Modern modules like the GUITION JC4827W543NI remove old obstacles by including built-in wireless connections, strong microcontrollers, and support for. Whether you're designing control panels for manufacturing equipment, building smart home interfaces, or creating medical monitoring devices, these displays provide the visual and interactive capabilities your applications demand. Attention to proper setup procedures, environmental protection, and firmware management ensures long-term reliability in demanding industrial environments. The supplier you choose impacts project success as significantly as technical specifications—prioritize manufacturers offering comprehensive documentation, responsive technical support, and stable supply chains to minimize development risks and accelerate time-to-market.

FAQ

What Arduino boards work with TFT touch screens?

Most Arduino boards interface with TFT displays successfully, though specifications vary. The Arduino Uno and Mega support SPI communication, but their 5V logic requires level shifters for 3.3V displays. Modern boards like Arduino Due run at 3.3V natively, eliminating voltage conversion complexity. ESP32-based boards like those in the GUITION JC4827W543NI integrate powerful processors with Arduino IDE compatibility, offering wireless capabilities and faster processing for complex interfaces. Verify sufficient GPIO pins for your display's interface—SPI requires a minimum of five pins plus the touch controller CS.

How do I choose between resistive and capacitive touch?

Your application environment determines the optimal choice. Resistive touch responds to pressure, working with gloves and styluses and in wet conditions, making it preferred for industrial control panels, medical devices, and outdoor equipment. Capacitive screens require bare-finger contact but offer multi-touch gestures and superior optical clarity suited to consumer products. Consider your operators' typical working conditions—factory floors favor resistive, and retail kiosks benefit from capacitive. Cost constraints also matter; resistive technology costs less, impacting budget-sensitive projects.

Can I integrate multiple sensors with Arduino TFT displays?

Absolutely. The ESP32-S3 in GUITION modules has up to 10 GPIO pins, along with I2C and extra SPI buses, which makes it easy to connect temperature sensors, pressure transducers, accelerometers, or GPS modules simultaneously. The dual-core architecture allows one processor core to handle sensor data acquisition and communication while the other manages display rendering, preventing interface lag. Use the 8MB PSRAM to buffer sensor data for trending and historical analysis displayed as real-time graphs on your Arduino TFT screen.

Partner With Guition for Your Arduino TFT Display Needs

Elevating your industrial HMI projects demands more than generic Arduino TFT modules—you need a manufacturing partner combining proven technology with dedicated support. Guition specializes in USART-HMI display solutions spanning 1.28 inches to 21.5 inches, backed by our proprietary Guition development software that transforms complex interface design into intuitive drag-and-drop simplicity. The JC4827W543NI represents our commitment to innovation, integrating ESP32-S3R8 dual-core processing with wireless connectivity, resistive touch, and comprehensive development flexibility. Our customers benefit from plug-and-play convenience, one-click programming, cross-platform debugging, and remote upgrade capabilities that reduce development time and after-sales costs. As an Arduino TFT supplier focused on technology-driven solutions, we provide secondary development interfaces, multi-language support, and rich control libraries that accelerate your time-to-market. Contact david@guition.com today to discuss how our display modules can solve your specific application challenges and request samples that demonstrate our quality standards.
