7 Inch ESP32S3 Display Module: OEM Buyer’s Guide

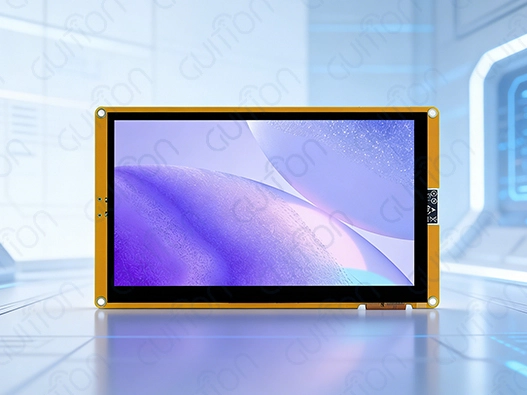

This tutorial is for you if you are sourcing a 7 inch ESP32S3 display module for an OEM project. GUITION ESP32-8048S070C is a production-ready HMI display based on ESP32-S3-WROOM-1 with an 800×480 capacitive touchscreen, dual-core 240MHz CPU, built-in Wi-Fi + Bluetooth, 8MB PSRAM, and 16MB Flash. So, whether you are responsible for purchasing, leading the embedded development, or architecting smart device platforms, this book takes you through the specs, selection criteria, integration processes, and sourcing strategy – so you can make a confident purchase choice.

Understanding 7 Inch ESP32S3 Display Modules: Specifications and Features

Before comparing vendors or placing orders, you need a clear picture of what this category of module actually delivers at the hardware level.

Core Processing and Memory Architecture

The GUITION ESP32-8048S070C is built on the ESP32-S3-WROOM-1 and has a dual-core Xtensa LX7 MCU that can reach a maximum speed of 240MHz. It has 512KB SRAM, 384KB ROM, 8MB Octal PSRAM, and 16MB Flash. With this memory configuration, we are able to have the 800x480 resolution panel complete frame buffers without any performance loss, a specification gap that rules out many lower-cost options in real-time UI applications.

Display Interface and Touch Technology

The module operates a 7" IPS LCD screen at 800x480 resolution using a parallel RGB interface, which has a far better data throughput than SPI-based displays. The capacitive touch controller allows for seamless multi-touch interaction and high noise immunity, which is a crucial consideration in industrial and medical situations where electrical interference is widespread.

Connectivity, I/O, and Expansion

Integrated Wi-Fi 802.11 802.11 b/g/n and Bluetooth for direct network connection, no extra devices required. The board also has a TF card slot for additional assets (fonts, pictures, configuration data), and exposed IO port headers for peripheral expansion. This makes the 7-inch ESP32S3 display module flexible for many embedded system designs.

How to Choose the Best 7 Inch ESP32S3 Display Module for Your OEM Project

With multiple vendors offering ESP32-S3 display products, selecting the right one requires more than comparing spec sheets.

Define Your Application Requirements First

Begin with your operating environment. Industrial control panels, medical displays, and agricultural automation systems all demand varied levels of brightness, temperature tolerance, and touch sensitivity. A 7 inch ESP32S3 display module deployed in a production environment requires greater tolerance for ambient light and EMI than one used in a commercial kiosk. Know your minimum brightness (nits), operating temperature range, and touch accuracy before you even look at a device.

Evaluate Development Ecosystem Compatibility

The GUITION ESP32-8048S070C supports four of the most popular embedded programming environments: Arduino IDE, ESP-IDF, MicroPython, and Mixly. The breadth of this minimizes engineering team onboarding time and prevents vendor lock-in. But competing modules from vendors like Waveshare or Lilygo could support fewer environments or need proprietary SDKs, increasing the long-term maintenance risk for OEM clients that need to manage multi-engineer teams.

Assess Vendor Support Quality

The quality of your documentation and your technological response directly affect your time-to-market. GUTION supplies the ESP32-8048S070C with pre-programmed factory test firmware, so your team can validate display operation instantly. The Guition UI development tool cuts UI creation time further with drag-and-drop controls and cross-platform online debugging – features that demonstrably shorten iteration cycles compared to creating from plain LVGL or raw framebuffer code.

Integration and Programming Guide for 7 Inch ESP32S3 Display Modules

Getting a 7 inch ESP32S3 display module into production requires attention at three layers: power, firmware, and UI.

Power Supply and Wiring Best Practices

For powering the LCD backlight, the ESP32-8048S070C needs a constant 5V, which usually draws more than 300mA at maximum brightness. Use a separate 5V rail, not shared with other high-current peripherals. The SoC is powered via an internal LDO which steps the voltage down to 3.3V. During hardware bring-up, ground should always be connected before power lines, and voltage stability should be checked under load before attaching the display FPC.

Firmware Setup and Display Driver Configuration

The module is compatible with regular ESP32-S3 display drivers. For LVGL-based UI, set the RGB driver with the proper panel resolution (800×480), PCLK frequency, and HSYNC/VSYNC parameters as defined in the GUITION datasheet. The Guition development tool includes pre-built templates that dramatically cut down on driver setup time. If you are using Arduino IDE, there are comparable library packages available and actively maintained.

Touch Controller Initialization and OTA Capability

The capacitive touch controller is reset via its RST pin following every waking event of the ESP32-S3, a typical mistake that leads to unresponsive touch behavior after sleep. Before sending any touch instructions, configure the I2C bus again. GUITION also enables remote OTA firmware upgrades, so field-deployed devices may get UI updates and bug fixes without physical access – a substantial operational cost savings for big deployments.

Where and How to Procure 7 Inch ESP32S3 Display Modules: Market Insights

Procurement decisions for OEM display modules involve more variables than unit price alone.

MOQ Flexibility and Customization Options

GUITON provides various minimum order quantities to fit the budgets of SMEs and startups, as well as scalable volume pricing for larger OEM runs. Options that matter when you are developing a product line and not a prototype include bespoke branding, enclosure alterations, and UI preloading. Early confirmation of customisation scope and lead times throughout the sourcing engagement prevents late-stage redesigns.

Pricing Trends and Supply Chain Considerations

Following shortages of components in 2021-2022, the price of the 7 inch ESP32S3 display module has stabilized. Buyers shopping from mature manufacturers, with direct supply chain ties – not resellers – have superior pricing stability and stock visibility. Guition has a production-level inventory and has clear warranty procedures, reducing procurement risk for customers with tight delivery timelines.

After-Sales Technical Support

Sustained OEM relationships need steady post-sale support. Guition offers free technical documentation, debugging support, and access to the Guition UI tool. When hardware specs are equal, after-sales support depth of 7 inch ESP32S3 display module manufacturers is generally the decisive factor for B2B customers.

Advantages and Use Cases of 7 Inch ESP32S3 Display Modules in B2B Applications

The 7-inch form factor strikes a practical balance between screen real estate and enclosure size, making it well-suited for a broad range of production applications.

Here are confirmed deployment scenarios where this module delivers measurable value:

• Industrial control panels: The 800×480 resolution and capacitive touch provide operators with clear data visualization and precise input control in automated manufacturing lines, where small display errors can trigger costly production faults.
• Medical monitoring equipment: The module's stable RGB interface and smooth touch response support real-time vital signs display. OTA capability allows hospitals to update device firmware remotely, reducing service visit costs.
• Smart home and appliance interfaces: Built-in Wi-Fi and Bluetooth allow direct integration with home automation protocols. The TF card slot supports multi-language font libraries — critical for products deployed across North American and international markets.
• Energy management systems: The dual-core processor handles concurrent data acquisition and UI rendering without performance degradation, supporting real-time power consumption dashboards in grid-edge devices.
• Agricultural automation terminals: The module operates across extended temperature ranges and supports remote configuration updates — practical requirements for devices installed in outdoor or semi-controlled agricultural environments.

These deployment examples reflect verified use cases where the combination of processing power, connectivity, and display quality creates measurable efficiency gains for OEM product teams.

Conclusion

The GUITION ESP32-8048S070C is a well-specified 7 inch ESP32S3 display module for OEM teams needing solid performance, multi-environment development assistance, and a trusted supply chain partner. The dual-core 240MHz CPU, 800×480 capacitive display, built-in wireless connection, and compatibility with Arduino IDE, ESP-IDF, MicroPython, and Mixly satisfy the technological needs of most industrial, medical, and smart device applications. Includes the Guition UI development tool and OTA update functionality, offering a development-to-deployment route that really cuts down on engineering hours and after-sales stress.

FAQ

1. What resolution does the GUITION ESP32-8048S070C support?

The module runs an 800×480 IPS LCD panel through a parallel RGB interface. This resolution is standard for 7-inch HMI displays and supports smooth LVGL-based UI rendering at 30+ FPS when paired with the module's 8MB Octal PSRAM configuration.

2. Which development environments are compatible with this module?

The ESP32-8048S070C supports Arduino IDE, ESP-IDF, MicroPython, and Mixly. This covers the most common embedded development workflows used by engineering teams in North America and globally, reducing onboarding friction for multi-developer OEM projects.

3. Does the module support OTA firmware updates?

Yes. GUITION's platform includes remote OTA upgrade support, allowing you to push firmware and UI updates to deployed units without physical intervention — a significant advantage for field-deployed industrial or medical devices.

4. What is the touch technology used?

The module uses a capacitive touch panel with an I2C interface, supporting multi-touch input and high resistance to electrical noise. The touch controller must be re-initialized after deep sleep wake events to maintain responsiveness.

5. Is the module available for OEM customization?

Yes. GUITION supports custom branding, UI preloading, and hardware modifications for volume OEM orders. Contact the team directly to discuss MOQ, lead times, and customization scope.

Partner with GUITION for Your Next ESP32 Display Project

GUITION's ESP32-8048S070C gives your engineering team a production-tested 7-inch ESP32S3 display module with the processing, connectivity, and development flexibility your OEM project demands. As a verified 7 inch ESP32S3 display module manufacturer, GUITION offers flexible MOQ, competitive volume pricing, and direct technical support. Reach out today at david@guition.com to request samples, discuss customization options, and start your procurement process.
