10.1-Inch Display Module Uses in Medical and Industrial Devices

When engineers and product teams search for a dependable 10.1 icnh display module, they need more than a screen — they need a complete solution built for real-world demands. The GUITION JC8012P4A1C_I_W_Y1 is exactly that. Powered by the ESP32-P4 dual-core processor running at up to 360MHz and delivering an 800×1280 IPS resolution, this 10.1 inch display module bridges the gap between compact portability and rich visual output. Medical device developers, industrial automation engineers, and IoT integrators across the United States are increasingly turning to this class of display to reduce development time and elevate user experience.

How to Choose the Right 10.1-Inch Display Module for Your Medical and Industrial Devices

Matching Technical Specs to Application Demands

Getting a 10.1-inch display module depends on making sure that the device's needs and the esp32p4 display module's capabilities are exactly the same. For medical uses, it's important that the device meets standards like EN60601, can stand up to antibacterial cleaners, and can display bodily waves clearly. In industrial settings, toughness, touch input that works with gloves, and resistance to voltage spikes and particle contamination are all important.

The GUITION JC8012P4A1C_I_W_Y1 can be set up in both sensitive touch and non-touch modes. This lets design teams make the interface fit the setting they are working in. It's even easier to integrate into custom hardware architectures thanks to its TF card interface and IO port expansion.

The most important technical factors that purchasing teams should look at when choosing a display module are listed below:

• Resolution and panel type: An 800x1280 IPS monitor makes sure that colors are seen clearly from all angles, which is important for both diagnostic screens and operator panels.
• Processing capability: The ESP32-P4 dual-core MCU with 32M PSRAM and 16MB flash can handle complicated LVGL user interfaces without any lag, so it doesn't need as many external processors.
• Connectivity: Wi-Fi and Bluetooth built-in mean you don't need any extra transmission gear. This lowers the bill of materials (BOM) cost and makes PCB design easier.
• Development ecosystem: Support for multiple platforms, including Arduino IDE, ESP-IDF, MicroPython, and the company's own Guition platform, speeds up the onboarding process for tech teams with different experiences.

These requirements lower the risk of integration and speed up time-to-market, which are always ranked as the most important factors for procurement managers and R&D directors when they are buying something.

Supplier Credibility and Long-Term Supply Reliability

A 10.1-inch display module's availability across product versions is based on more than just its specs. It's also based on how trustworthy the source is. GUITION was created by Jingcai Intelligence and uses a model that combines research and development, production, and sales all in one. Their size ranges from 1.28" to 21.5", so teams making scalable device families can get consistent HMI parts from a single, reliable provider. Warranty coverage, responsive technical documents, and easy access to after-sales help through email addresses like david@guition.com all make buying much more confident.

Practical Use Cases: 10.1-Inch Display Modules in Medical and Industrial Devices

Medical Monitoring and Diagnostic Equipment

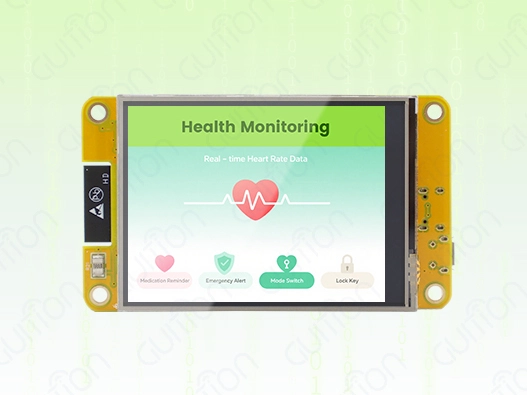

One of the most valuable uses for a good 10.1-inch display module is in patient tracking devices. When hospitals put in bedside vital sign monitors, they need panels that show ECG waveforms, SpO2 readings, and multi-parameter dashboards without any visible flaws. This is taken care of by the high-resolution IPS output of the GUITION JC8012P4A1C_I_W_Y1 and the ESP32-P4's processing headroom, which handles multiple data streams at once without any frame drops.

The small size and large number of controls on this ESP32P4 display module make it useful for portable ventilator connections and diagnostic tools as well. Guition's drag-and-drop GUI tool lets UI designers set up buttons, sliders, and real-time charts. This greatly reduces the time needed to create an interface.

Industrial HMI and Automation Control Panels

In factory automation, the 10.1-inch display module serves as the main HMI that workers use to talk to PLC systems in plant automation. Cross-platform debugging on the module helps engineers find and fix problems more quickly during commissioning. Its remote upgrade feature is especially useful for field equipment that has already been set up. Firmware changes can be sent wirelessly, so technicians don't have to visit the site. This cuts down on the cost of running the equipment after the sale.

Energy management systems, farm automation controllers, and business kiosk terminals all need a display that can be read and respond to changes in the environment and support multiple languages so that a wide range of operators can use it. The GUITION platform's support for UTF-8 encoding directly meets the needs of global applications.

Comparing 10.1-Inch Display Modules with Other Sizes and Technologies

Size Trade-offs: 7-Inch vs. 10.1-Inch vs. 12-Inch

A 7-inch screen is good for mobile devices and small embedded panels, but it's too small for medical dashboards with multiple parameters or industrial control panels with many zones. There is more room with a 12-inch module, but it also makes the enclosure bigger, heavier, and more powerful. The 10.1-inch display module is a good compromise because it has enough pixels and space for complex user interface layouts while still fitting into device cases that don't have a lot of room.

This balance is exactly why IHS Markit's industrial display research says 10-inch class panels are always one of the most popular sizes in both medical and industrial procurement.

Capacitive vs. Resistive Touch and Panel Technology Comparison

Capacitive touchscreens respond faster and more accurately, and they can handle multiple touches, which is why they are chosen for current medical user interface designs. Wearing gloves and rough surface contamination don't hurt resistive panels, which makes them useful in some industrial and food-processing settings. The GUITION JC8012P4A1C_I_W_Y1 can be configured with capacitive touch, but it can also be configured without touch for situations where accidental operation is a problem.

When the temperature changes, IPS panels keep colors and contrast more accurately than standard TFT panels. They also use less power than OLED panels when the display is on all the time. In 2024, IPS LCD is still the practical choice for most B2B procurement teams that need to balance performance, lifespan, and cost.

Procurement Best Practices for 10.1-Inch Display Modules

To find a reliable 10.1-inch display module on a large scale, you need to look at more than just the unit price. Total procurement cost is affected by lead times, minimum order quantities, the quality of the documentation, and technical access after the sale. With Jingcai Intelligence's combined manufacturing and GUITION's direct supply model, developers can be sure of stable delivery times and access a wide range of technical resources through their official platform.

When discussing bulk prices, ask for sample units that already have test firmware put on them. GUITION gives you this right out of the box. This lets prototypes be tested quickly before large orders are made. When there are problems getting parts, long-term partnerships with suppliers lower the risk of having to redesign because a seller that can do both research and production can respond more quickly than a pure distribution route.

Conclusion

The 10.1 icnh display module is now an important part of medical tracking equipment, industrial HMI panels, and smart gadgets that are linked to the internet. In the GUITION JC8012P4A1C_I_W_Y1, processing power, visual quality, wireless connectivity, and support for multiple platforms are all combined into a single module. This solves the real problems that embedded engineers, product managers, and R&D teams are having. This display module gives your product the performance and dependability it needs, whether it's a patient monitor, a factory control terminal, or an Internet of Things (IoT)-enabled smart appliance.

FAQ

1. What compliance considerations apply when using a 10.1-inch display module in medical devices?

Most of the time, IEC 60601-1 for electrical safety and IEC 60601-1-2 for electromagnetic compatibility must be followed when medical devices are integrated. Also, the surfaces of display modules must not get damaged when they are cleaned regularly with hospital-grade disinfectants. Before you finalize your design, make sure that your provider can confirm that the module's protected glass and coatings meet these chemical-resistant standards.

2. What is the difference between capacitive and resistive touchscreens in industrial contexts?

Capacitive touch panels are great for modern operator interfaces because they are very responsive and can handle multiple touches. Resistive screens can be used in places where people are wearing safety gear because they can be used with gloved hands and styluses. The GUITION JC8012P4A1C_I_W_Y1 offers capacitive touch, which makes it suitable for most medical and industrial HMI uses.

3. What warranty and after-sales support should I expect from a display module supplier?

A trustworthy company that sells 10.1-inch display modules should back its products with a hardware warranty that lasts at least 12 months, easy-to-find technical information, support for firmware updates, and quick engineering help. GUITION offers pre-loaded test firmware, the ability to update remotely, and direct expert contact to make maintenance easy after launch.

Upgrade Your HMI Project with GUITION's 10.1-Inch Display Module

Engineers and buying teams that want to buy a reliable 10.1 icnh display module will like GUITION's JC8012P4A1C_I_W_Y1. Built on the ESP32-P4 dual-core processor and featuring built-in Wi-Fi, Bluetooth, and an advanced IPS panel, this module speeds up development while meeting the needs of your application for reliability. Email the GUITION team at david@guition.com right now to ask for a trial or talk about custom volume rates for your project.

References

1. IHS Markit — Industrial and Medical Display Market Report, 2023.

2. IEEE Transactions on Industrial Electronics — Human-Machine Interface Design for Industrial Automation Systems, 2022.

3. Journal of Medical Devices (ASME) — Display Technology Requirements for Bedside Patient Monitoring Equipment, 2021.

4. Embedded Computing Design — ESP32-Based Display Modules in IoT and HMI Applications, 2023.

5. International Electrotechnical Commission — IEC 60601-1: Medical Electrical Equipment General Requirements for Basic Safety, 2020 Edition.

6. Display Daily — 10-Inch Class Panel Trends in B2B and Industrial Markets, 2024.
