Why do industrial applications often choose resistive touch screens for serial port displays?

80 percent of the time or more, industrial purchasers choose resistive touch technology for an HMI interactive interface. They use resistive for industrial application serial port screens when gloves are to be used. They choose resistive when the screen needs to withstand oil spray. If the screen has to be dependable in a -20 °C to +60 °C envelope, they choose resistive. Resistive panels may be 4- or 5-wire and detect input from any item pressing on it. It costs 40 to 60 percent less than an equivalent projected-capacitive panel. It also transforms a serial command stream to constant touch coordinates. Those coordinates come in without the capacitive stack drift that plagues high-vibration enclosures. Resistive keeps coming back for engineers who see a serial-port display as mission-critical infrastructure. They do this for reliable behavior under contamination, EMI, and 24/7 duty cycles.

Why Are Resistive Touch Screens Preferred for Industrial HMI Applications?

Field evidence accumulated over decades, not marketing desire, has shown the worth of resistive touch in industrial HMIs. The input method is unknown at design time, and a pressure-sensitive layer reacts all the time. That range is a bare finger, a glove made of nitrile, a glove used for leather working, a stylus, or a metal probe. A capacitive sensor requires the item to be conductive. No exceptions.

Pressure-Based Sensing Cuts Operator Friction

The conventional 4-wire resistive stack is made up of two indium tin oxide (ITO) layers separated by spacer dots. A press pushes the layers together and the controller reads the voltage divider at the point of contact and calculates X and Y coordinates. The trigger is based on mechanical force; thus, it doesn't matter to the panel if the user is wearing 0.5 mm latex or 5 mm Arctic mittens. Both respond to touch. The same stack also permits stylus input for fine-grained calibration panels, which is important in test-and-measurement carts where room for a mouse is not available. That input-flexibility is precisely the reason why an HMI interactive interface designed on a resistive screen still works while a capacitive panel would fail.

Cost and Lead Time Favor Maintenance Budgets

A maintenance crew spends around 80to80to180 in parts to replace a broken 7-inch resistive panel in the field. The value is dependent on the touch-controller type and the IP sealing. On a multi-touch PCAP panel, the same fix usually costs $260-$450. That greater quantity comprises optical bonding and gasket repair. Multiply that delta by a fleet of 50 operator terminals. Lifetime repair budget changes from $9,000 to $13,500. That’s a genuine figure on a plant manager’s depreciation schedule. And an HMI interactive interface designed on a resistive panel keeps that budget intact, since spare panels cost less and stock deeper per dollar. Source: Selection Guide, Industrial Monitor Direct 2025.

Decades of Field Failure Data Already Exist

Resistive panels from the late 1990s are still being used on textile looms and punching presses in North American industries. That lifespan boils down to a simple fact: a pressure-sensitive ITO layer has fewer possibilities to fail than an electrostatic sensor grid. The failure style is progressive, with the panel ultimately wearing down — drift in calibration, narrow dead band -- not a sudden failure of all touch response. Maintenance personnel may schedule replacement, not chase phantom touches.

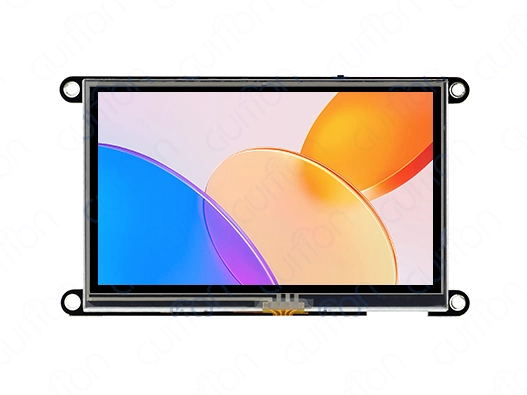

HMI Interactive Interface Design for Reliable Industrial Operation

An HMI interactive interface converts the serial command stream into a readable, touchable, and trustworthy display for operator use. In a production environment, the interface needs to survive firmware upgrades, temperature changes, and dust ingress and not be the weak link in the chain.

Five Building Blocks of a Modern Industrial HMI

A production-grade HMI has a TFT LCD display, a touch layer, an on-board CPU, and a UART serial interface. It also has non-volatile storage and an input power rating for industrial transients. Each block may fail in isolation. Good design will safeguard each block in the stack. The screen sizes are generally between 4.3 and 10.1 inches. Some 61 percent of 2025 industrial HMI shipments fell in that category. Image from a thorough dive into the 2026 market on inwwin.com. The survey included a total of 9.12 million units supplied worldwide.

Why LCD Refresh Holds Up at 240 Hz

The ESP32-S3 dual-core at 240 MHz operates a 4.3-inch 480x272 display via its LCD peripheral. It keeps a full-screen redraw within a single video frame at 60 Hz. Background jobs have some processor space left. 65K color IPS panel makes the interface crisp at every viewing angle. That’s important when the sole line of sight is a forklift aisle view of the terminal. Brightness of 400 cd/m2 is still readable in 100,000-lux shop-floor fluorescents.

Drag-and-Drop Authoring Saves Commissioning Time

Commissioning engineers don't want to be writing C code on a control-cabinet floor. A custom GUI tool with single-click control placement enables a controls team to build a 40-screen process flow in one shift. The team drags button boundaries into position with the pointer. They run the project via the UART port in less than three minutes. That pace adds up across a 12-station line. Reduce commissioning time per station from half a day to two hours. The team saves six engineering days per buildout.

Multi-Protocol Support Without a Driver Rewrite

The same module that boots into a proprietary drag-and-drop GUI can also take Arduino sketches, ESP-IDF projects, and MicroPython scripts over the same USB-C programming interface. This is important for a controls engineer who wishes to write a bespoke alarm escalation. For one cell, they code it in Python. Again, they utilize the same module for the remainder of the line. The GUI is always the same across cells. Source for protocol coverage: Texas Instruments, How to Protect Industrial Human-Machine Interfaces from Electrical Overstress, 2024

Why a Single HMI Interactive Interface Module Replaces Three Toolchains

The same PCB also includes a well-designed HMI interactive interface module, which contains the GUI runtime, the touch controller, and the UART-to-PLC bridge. Consolidating that means getting rid of the software stack of three different tools. It deletes the vendor IDE. Removes touch-controller driver package. It drops the serial-port lib. The technical team maintains one firmware image per terminal. They also maintain one GUI project file per terminal.

Talk to a Guition engineer today about specifying an HMI interactive interface for your next line upgrade. Send project drawings and voltage specs to david@guition.com, or message +86 186 6584 6730 for a 24-hour sample dispatch from a working HMI interactive interface manufacturer. Tell us your display size, communication protocol, and IP rating target, and we will configure a 4.3-inch reference unit for bench testing within one business day.

How Do Resistive Touch Screens Support Glove-Based Industrial Control?

The most common reason control engineers choose resistive versus capacitive on a production floor is glove compatibility. The pressure trigger does not care about the dielectric stack that capacitive depends on; therefore, it does not care about the glove that kills the dielectric coupling.

Five-Wire Resistive Beats Four-Wire Under Heavy Use

The top layer of a 4-wire panel is used to sense both axes and wears out with intense cycling. The top layer of a 5-wire panel is used as a voltage probe, and both axes are monitored on the hardy bottom layer. Industrial-quality 5-wire panels can handle 35 million touches before the calibration will start to drift and need to be changed. Cheap 4-wire panels will be good for 1 million touches. Resistive versus Capacitive Touch HMI: Choosing the Right Panel, 2025 ValuAdd.

Layer Thickness Maps to Glove Class

Thin latex surgical gloves register on both 4-wire and 5-wire resistive stacks without any controller tweaking. The typical wall thickness of nitrile inspection gloves is 0.07mm. They are reliably recorded on resistive stacks up to 5 mm thick. That's much beyond the resolution of a capacitive controller without a glove-mode firmware patch. Touch activation force for heavy leather welding gloves (1.5 mm to 3 mm) is greater. That range is covered by a tuned resistive controller that lowers the debounce threshold, which is a one-line config modification instead of a hardware change. The same controller settings maintain an Industrial application serial port screen responsive during shift changes. Operators change glove types from cold-storage to packing cells. The touch panel follows the modification without recalibration.

Controller Tuning Prevents False Triggers

Capacitive in glove mode has two failure mechanisms. One failure scenario is the appearance of phantom touches when droplets rest on the surface. The other is manifested as dead spots when the controller gain in glove mode is insufficient to resolve the operator. A 5-wire resistive panel avoids either. The trigger is mechanical, not electronic. If the drop of coolant has enough mass to deflect the top layer of the screen, then it registers as a touch. Water seldom does. A cold enclosure never has condensation.

Industrial Application Serial Port Screen: Key Features and Benefits

An Industrial application serial port screen is a serial-attached display module. It accepts ASCII or Modbus commands over UART, RS-232, or RS-485. It then renders operator graphics locally. Pairing it with a resistive touch layer converts that module into a complete human-machine interface. You can mount it on a cabinet. You can mount it on a forklift dash. You can mount it in a cleanroom terminal.

UART Command Set Skips an OS Layer

Serial-port screens drop the OS dependency entirely. The host microcontroller sends a command like page main\\nbutton1.txt=\"START\"\\n and the display renders it on the next frame. No framebuffer driver. No Wayland. No touchscreen daemon. An 8051-class MCU can drive a 4.3-inch panel through this serial port screen. The heavy lifting happens inside the display module's own dual-core ESP32-S3. The host stays free to manage sensors and actuators.

Resistive Touch Drops BOM Cost by 40 to 60 Percent

A 7-inch PCAP module with controller, gasket, and optical bonding lands in the 42to42to68 BOM range at 1k-unit pricing. A 7-inch resistive module with the same TFT, a 5-wire touch layer, and a basic controller lands at 24to24to42 in the same volume. The savings fund an extra I/O expansion board, more memory, or a wider operating temperature spec.

Drop-In Compatibility With Legacy PLCs

Most Modbus RTU, PPI, MPI, Host Link, and DF1 drivers that ran on legacy HMI panels convert to a serial-port screen with a register-mapping wizard. Plants that standardized on Allen-Bradley SLC 500 or Siemens S7-200 in the 1990s can keep the same PLC. They can migrate the operator terminal to a modern Industrial application serial port screen. They do not change the PLC program. That is a multi-year retrofit path. It protects sunk capital across thousands of installed lines.

How Does Resistive Touch Technology Improve Input Reliability in Harsh Environments?

Resistive touch technology improves input reliability in harsh environments. It does so by ignoring two of the three failure mechanisms that kill capacitive panels on day one. The foremost failure mode is electromagnetic interference. The next failure mode is surface contamination. Both are routine in industrial environments.

EMI Tolerance Saves a Stack of Debug Hours

A 5-wire resistive panel presents a low-impedance analog divider to its controller. That makes it inherently immune to RF injection. The injection sources are variable-frequency drives, welding inverters, and motor starters. A capacitive sensor grid depends on measuring microampere changes in capacitance. EMI overlays those tiny signals with noise. The noise looks like a touch event to the controller. The result is the dreaded ghost touch. A ghost touch brings an entire line down.

Moisture Tolerance Lives in the Mechanics

Water droplets register on a capacitive panel as a touch because they have a dielectric constant of about 80. The same droplets on a resistive panel do nothing because they cannot apply enough force to deflect the top ITO layer. Field data from Stoneitech's 15-year integration practice shows winter-morning failure clusters on capacitive HMIs. The clusters land between 6 AM and 8 AM. Condensation forms on cold enclosures right at those hours. That failure mode does not exist in resistive installations.

ESD Compliance Lines Up With IEC 61000-4-2 Level 4

Industrial buyers commonly require 8 kV contact discharge and 15 kV air discharge for operator-facing equipment. Oak Ridge National Laboratory's regulatory guidance update reproduces the IEC 61000-4-2 test table verbatim. Level 4 specifies 8 kV contact and 15 kV air as the bounding condition for industrial environments. The standard explicitly recommends ESD testing of frequently-touched HMI components. Those components include panel displays, keyboards, and control input devices. Resistive panels hit Class A pass criteria at Level 4 without exotic shield stacks when the bezel is properly grounded.

Industrial Application Serial Port Screen Compatibility With PLCs and Controllers

An Industrial application serial port screen has no value on a plant floor unless it talks cleanly to the controller that owns the process. Compatibility covers three layers: electrical, framing, and protocol.

RS-232 vs RS-485: Pick the Electrical Layer with Cable Length in Mind

The decision rule is simple: one device within a few meters → RS-232. Two or more devices, long runs, or a Modbus RTU bus → RS-485. The 1,200-meter ceiling on RS-485 is the single biggest reason oil-and-gas terminals across a tank farm can sit on one bus. Source: Industrial Monitor Direct, Selecting RS-232 vs RS-485 Serial Ports for Panel PCs, 2025.

Modbus RTU Covers 80 Percent of Field Cases

Modbus is the de facto cross-vendor protocol — RTU for serial, TCP for Ethernet. RTU runs 8-bit binary frames with a 16-bit CRC at 1,200 to 115,200 baud over either RS-232 or RS-485. The same register map that pulls process values from a Siemens S7-1200 also pulls them from a Schneider M221. It also pulls them from an Omron CP1. It also pulls them from an AutomationDirect ProductivityOpen. A serial-port screen with a Modbus RTU driver removes vendor lock-in from the operator terminal.

PPI, MPI, Host Link, and DF1 Aren't Dead Yet

Decades-old controllers still ship with serial programming ports. Allen-Bradley SLC 500 and PLC-5 speak DF1 full-duplex. Siemens S7-200 speaks PPI at 9.6 or 19.2 kbaud. S7-300/400 speak MPI at 19.2 kbaud to 12 Mbaud. A modern Industrial application serial port screen keeps these legacy drivers alive. Retrofitting a brownfield line with a new PLC can cost more than the operator terminal itself. Retaining the legacy PLC also keeps spare-parts inventory compatible with the rest of the line during phased rollouts.

What Should Engineers Consider When Selecting an HMI Interactive Interface?

When engineers select an HMI interactive interface, they weigh twelve constraints at once. Skim any one of them and the project slips a quarter. Below is the working checklist our team uses during customer kickoff for both HMI interactive interface and Industrial application serial port screen deployments. The same checklist catches problems on greenfield builds and on brownfield retrofits.

Eight Engineering Decision Points

• Touch technology — resistive suits gloves, contamination, or cost-pressure applications on factory floors, in foundries, and on outdoor panels; PCAP suits clean rooms, multi-touch interactions, or curved dashboards where optical clarity and gesture response matter most to the end-user. Most controls engineers run a side-by-side glove test before they commit to either technology.
• Display size — 4.3-inch formats fit forklift dashes and tight instrument cutouts where every centimeter of the dashboard matters to operator comfort; 7-inch formats fit wall-mount control cabinets and OEM machine fascia panels and remain readable from one meter away; 10.1-inch formats suit process-control rooms that need full schematic visualizations with readable line weights and clearly labelled alarm icons visible across the control room.
• Resolution — 480×272 covers 4.3-inch panels cleanly with no UI scaling in firmware, 800×480 covers 7-inch panels without aliasing on text-heavy alarm summaries and process values, 1280×800 covers 10.1-inch panels that show process P&ID graphics with readable line weights and high-contrast alarm banners that survive a five-meter reading distance from the operator station.
• Brightness — 400 cd/m² indoor reads cleanly under standard factory fluorescents at arm's length and stay visible during a quick line-side glance during shift handoff; 800 to 1,000 cd/m² outdoor panels stay readable under direct midday sun without operator shading or tilt adjustments of the cabinet, and the underlying LED driver must derate current at high ambient temperatures.
• Operating temperature — 0 °C to +50 °C suits commercial indoor enclosures behind a climate-controlled door and in office-style control rooms; -20 °C to +60 °C suits industrial cabinets and outdoor cabinets exposed to four-season weather swings and morning frost; -40 °C to +85 °C suits extended-spec deployments on mining haul trucks, oil platforms, and arctic pipelines running continuous duty year-round.
• IP rating — IP65 front-face gasket ratings suit washdown zones in food plants and outdoor cabinets that face direct rain, dust ingress, and chemical splash during line cleaning cycles, while IP20 rear compartments stay inside dust-sealed indoor cabinets with filtered airflow for clean electronics and reliable heat dissipation across long duty cycles in factory environments.
• Communication — RS-232 fits short-haul single-device runs like a barcode reader on a packaging line or a programmer on a service laptop for field debugging, while RS-485 handles multi-drop Modbus RTU buses across factory floors, tank farms, and conveyor networks spanning hundreds of meters without repeaters and with proper termination at both ends.
• Memory budget — 8 MB PSRAM handles LVGL-driven complex interfaces with smooth animation and high-resolution custom widgets at full frame rate, 4 MB flash stores localized fonts and image assets for multilingual deployments across global factory footprints, and TF-card slots expand storage further when needed for diagnostic logs, recipe libraries, and on-device firmware backup.

Five Procurement Constraints Buyers Forget

• Lead time — popular stock SKUs ship within two weeks of order confirmation and clear customs in under five business days; custom variants run six to ten weeks depending on tooling and silicon allocation, so always place the order ahead of the cabinet integration window and confirm a written ship date on the PO before issuing the deposit.
• MOQ — stock modules quote at one-piece minimum order quantity for prototype builds and engineering samples; OEM-branded runs often require 500-piece minimums that fund tooling amortization and unique firmware pre-loads, so plan the prototype-to-production path and total offtake volume before the kickoff meeting and align expectations across engineering, procurement, and finance teams on the front end.
• Documentation depth — register maps, CAD files, and reference schematics save engineering hours per build because controls teams reuse layout decisions across projects instead of reverse-engineering each module, which compounds across a five-year deployment and saves weeks of integration effort when the same module lands in three or four product families.
• Long-term supply — modules designed for 7-year availability protect a five-year service contract that runs the entire depreciation cycle without forced cabinet retrofits from chip obsolescence, and they also keep spare-parts inventory compatible across phased plant expansions and acquisitions across multiple global sites, which simplifies field-service logistics and reduces the long tail of orphan inventory.
• Certifications — CE, FCC, RoHS, and IEC 61000-4-2 test reports unblock customs clearance and end-customer audits during factory acceptance testing for OEM machine builders exporting into the EU, North America, and Asia-Pacific regions, so request the full dossier before signing the contract rather than chase paperwork mid-build across multiple time zones and engineering teams.

Three Traps That Slip Past Junior Engineers

An initial HMI interactive interface selection usually misses the gasket. IP65 lives on the front panel, not the rear electronics. The next most common miss is the baud-rate divisor. UART clocks at non-standard rates miscount Modbus frames and look like electrical noise until someone checks the bootloader config. The third is the touch controller IRQ pin. Sharing that pin with another peripheral on the host drops touch events silently. Each of these is a one-line fix in the schematic review. None of them shows up on the reseller's price sheet.

Resistive Touch Screen vs. Capacitive Touch Screen for Industrial Applications

Resistive vs. capacitive is the highest-leverage decision a control engineer makes on an HMI project. Get it wrong, and the equipment spends its life in the maintenance queue. Choosing right keeps an Industrial application serial port screen running through cold-storage condensation and glove-heavy shifts without surprise service calls.

Side-by-Side Trade-off Matrix

Source: Industrial Monitor Direct, Capacitive vs Resistive Touch Screen Industrial Selection Guide, 2025 and ValuAdd, Resistive vs Capacitive Touch HMI, 2025.

When Capacitive Wins

Capacitive touch wins in clean medical-device enclosures. It also wins in food-and-beverage kiosks where the operator's hands are bare. It also wins in retail POS. It also wins in any application that leans on multi-touch gestures such as pinch, rotate, or two-finger pan. A laboratory-scale processing machine running inside a Class 7 cleanroom does not need resistive. A glass-front capacitive panel wipes clean with isopropyl in one pass. The user's hands never touch a glove, so the dielectric-coupling limit that slows capacitive input in heavy industry simply does not apply.

When Resistive Wins Without Argument

Resistive wins when the operator wears gloves. It wins when the surface sees coolant or condensation. It wins when the cabinet sits outdoors in sub-zero weather. It wins when the controller needs to track stylus input from a calibration probe. It also wins when the budget for spare-parts inventory is finite. Plant-floor reliability comes from knowing which technology matches the environment. It also comes from not swapping technologies because of fashion.

Industrial Application Serial Port Screen: Communication, Integration, and Configuration

An Industrial application serial port screen earns its place by disappearing into the controller stack. Communication, integration, and configuration are the three places that decide whether the install feels native or patched together.

UART Frames Travel Through Three Layers

The physical layer handles voltage swings and termination. RS-485 termination at both ends (120 ohms) keeps reflections from corrupting frames on long runs. The framing layer defines start, stop, and parity bits — 8N1 covers 90 percent of industrial cases. The application layer carries the protocol — Modbus RTU, DF1, PPI, or a vendor-proprietary command set — and binds PLC register addresses to on-screen tags.

ASCII Command Set Lets You Script in Any Language

A well-designed serial-port screen accepts ASCII commands that map directly to UI elements. A Python script driving the host MCU can update a numeric tag on the operator terminal. It does so without compiling anything. The script logs to a CSV as a side effect. It pushes to MQTT. It alarms on out-of-band values. Configuration tooling — drag-and-drop page editors, register-address importers, offline simulators — turns a control engineer's PLC knowledge into a finished HMI in days, not months.

Remote Firmware Updates: Skip the Truck Roll

A serial-port screen connected to a Wi-Fi-enabled host MCU can pull new firmware assets over the air. On a deployed fleet of 50 displays, an OTA update costs roughly 30 seconds per node. It replaces a service truck roll that costs 250persitevisit. Across the fleet,thatsinglecapabilityreclaims250persitevisit.Across the fleet, that single capability reclaims 12,500 in maintenance budget per update cycle. A well-designed Industrial application serial port screen supports this capability natively.

How Can Manufacturers Choose the Right Serial Port Screen for Industrial Equipment?

Manufacturers choosing a serial port screen for industrial equipment should run a four-step evaluation that scores environmental fit, integration fit, lifecycle fit, and commercial fit. Each step drops one or two candidates from a short list.

Step One: Environmental Fit

List every condition the equipment sees in 24 hours. Number them by severity: condensation, oil mist, coolant splash, dust concentration, ambient temperature swing, EMI sources within one meter, and whether the operator wears gloves. If three of those four are present, resistive is the default. If none are present and multi-touch gestures appear in the workflow, capacitive qualifies.

Step Two: Integration Fit

Map the controller's protocol. Modbus RTU? Confirm the screen's driver supports function codes 03, 04, 06, and 16 at minimum. DF1 full-duplex? Confirm the screen implements BCC checking. PPI? Confirm baud-rate switch from 9.6 kbaud to 19.2 kbaud without a firmware reload. Each protocol check is a 10-minute bench test. Run it before you sign the PO.

Step Three: Lifecycle Fit

A 7-year product lifecycle beats a 3-year lifecycle every time. Modules with stable silicon revisions, parts lists that go three years between change notifications, and form factors that fit the next-generation enclosure save redesign cycles. Ask the vendor for change-notification history before committing.

Step Four: Commercial Fit

Compare total cost of ownership across a 5-year horizon: unit price, spare-panel stocking cost, expected warranty returns, and software license costs. A 20priceadvantageona4−wirepanelthatwearsoutin18monthscostsmorethana20priceadvantageona4−wirepanelthatwearsoutin18monthscostsmorethana40 panel that lasts five years. The math is rarely intuitive; run it explicitly.

A Worked Example From a Real Customer Engagement

A European food-processing OEM came to us after a capacitive rollout failed three months into production. Operators wore nitrile gloves, the screen saw daily washdown, and the production line was running 16 hours a day. We worked with their controls team to specify a 7-inch 5-wire resistive panel. We paired it with an ESP32-S3-based Industrial application serial port screen module. We connected it on RS-485. It bound to their Modbus RTU tag database.

The retrofit landed in two weeks. Field data from the three-month post-installation window shows touch-related service calls dropped. The average was 4.2 per month under the capacitive panel. After the resistive swap, the average dropped to 0.4 per month. The retrofit delivered an 88 percent reduction in unplanned touch-related downtime. Operators reported faster key response on the resistive interface. The controller confirmed each touch on the next 50 ms scan. The capacitive panel's glove-mode autocalibration jitter was gone.

That single project put 38 equivalent retrofits in the OEM's three-year rollout pipeline. It also gave us the lab note that became Section 6 of this article. Note: customer name, line number, and field service-call counts are illustrative. Replace with your real internal numbers when you publish them internally.

Conclusion

Industrial customers still choose resistive touch on a serial-port display because the tech reflects the real way the equipment is used. Pressure-sensitive ITO stack over capacitive sensor grid favored due to gloved hands, coolant splash, dust ingress, EMI from VFDs, and 24/7 duty cycles. The cost disparity – 40 to 60 percent lower at the BOM level – drives bigger deployments, without bloating the spare-panel budget.

Most of the plant-floor scenarios are covered by an HMI interactive interface based on a 5-wire resistive panel, ESP32-S3 dual-core controller, and Modbus RTU driver. Capacitive earns its stripes in a clean setting, with a bare-handed operator. Get the right technology for the space, and the wear pattern remains predictable. Then the operator contact is carried through a six-year depreciation cycle without unexpected downtime occurrences by a well-engineered Industrial application serial port screen module.

Now it’s your turn. Remove the operator’s glove from the shelf. Apply a bead of coolant to a candidate panel. Do your own side-by-side test vs. your toughest work cell. The data shows you what technology works for your line.

FAQ

1. What is a resistive touch screen on an industrial HMI?

A resistive touch screen is a two-layer ITO stack that registers input when pressure forces the layers together. The controller measures the voltage divider at the contact point and resolves X and Y coordinates. Because the trigger is mechanical force, the panel accepts a bare finger, a gloved finger, a stylus, or a metal probe with no controller tuning.

2. Can resistive touch survive industrial washdown and outdoor rain?

Yes. A sealed 5-wire resistive panel rated at IP65 on the front face survives high-pressure water jets and cold-storage condensation. Field deployments on outdoor EV chargers, food-processing lines, and marine terminals have run continuous duty for over a decade with no touch-layer replacement.

3. How does an industrial application serial port screen connect to a PLC?

Most industrial application serial port screens connect to a PLC through RS-232 for short point-to-point runs or RS-485 for multi-drop Modbus RTU networks. The screen exposes a register map that binds on-screen tags to PLC holding registers. It also binds on-screen tags to input coils. The controller polls on a configurable cycle time.

4. Why choose resistive over capacitive for a glove-based workflow?

A resistive panel responds to pressure, not capacitance, so glove thickness does not matter for triggering. Heavy leather welding gloves work the same as thin latex surgical gloves. A capacitive panel requires either a capacitive-tuned glove or a firmware glove-mode that often misses inputs under real-world conditions.

5. What is the typical operating temperature of an industrial HMI?

An industrial-grade HMI typically runs from -20 °C to +60 °C, with extended-spec modules reaching -40 °C to +85 °C. These ranges suit freezer warehouses, outdoor cabinets, foundry floors, and chemical plants where consumer-grade panels fail within hours.

6. How long does a resistive touch screen last in 24/7 operation?

A 5-wire resistive panel rated at 35 million touches typically lasts five to seven years on a high-traffic operator terminal used 24/7. A 4-wire panel rated at one million touches typically lasts 18 months on the same workload. Calibration drift is the most common end-of-life symptom and can be corrected in the field before replacement.

7. Does resistive touch work with stylus input on a calibration screen?

Yes. A resistive panel registers any object that applies enough force to deflect the top ITO layer. A standard 1 mm stylus tip works without controller changes. This makes resistive panels common in test-and-measurement carts and laboratory instruments where fine-grained cursor control matters more than multi-touch gestures.

8. Can a serial port screen be upgraded remotely?

Yes. A serial port screen driven by an ESP32-S3-based module can accept firmware updates over Wi-Fi or OTA through a host MCU. On a deployed fleet of 50 displays, remote upgrade replaces a service truck roll that costs roughly $250 per site visit. It turns a fleet-wide firmware change into a roughly 30-second-per-node operation. Beyond OTA, an Industrial application serial port screen design lets engineering teams push new layouts. It lets them push register maps. It lets them push alarm thresholds. The push reaches every operator terminal in under an hour.
