Why Choose a 1.28 Inch ESP32C3 Display Module?

If you are evaluating compact HMI solutions for your next IoT or embedded project, the 1.28-inch ESP32C3 display module deserves serious attention. The GUITION model ESP32-2424S012C_I_Y(W) integrates the ESP32-C3-MINI-1U single-core RISC-V processor, a vivid 240×240 IPS circular capacitive touchscreen, and built-in Wi-Fi plus Bluetooth 5.0 LE—all within a white-shell enclosure no larger than a coin. For engineers and product teams racing against tight development timelines, this level of hardware integration dramatically compresses both BOM complexity and prototyping cycles.

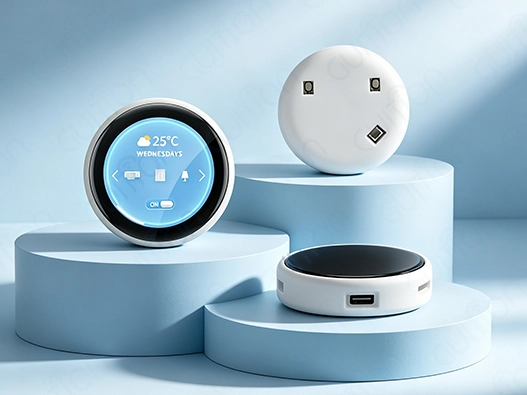

Overview of the GUITION 1.28 Inch ESP32C3 Display Module

The ESP32-C3-MINI-1U is the module's brain. It has a 160 MHz clock speed, 400 KB SRAM, 384 KB ROM, and 4 MB Flash. The ESP32-C3 datasheet from Espressif confirms the RISC-V single-core design that can run at up to 160 MHz and has built-in RF modules for both Bluetooth 5 LE and IEEE 802.11b/g/n Wi-Fi. These numbers are not just marketing speak.

The GC9A01 display driver IC drives the round 240x240 IPS panel through a 4-wire SPI interface. This gives the screen a contrast ratio of about 1000:1 and a light level of about 350 to 400 nits. The capacitive touch layer is controlled by I2C and uses a CST816S controller to recognize gestures reliably even in places with a lot of electrical noise. The white plastic shell gives the look of a finished, ready-to-sell product, which cuts out one step in the industrialisation process.

Supported Development Environments

The module works with Arduino IDE, ESP-IDF, MicroPython, and Mixly right out of the box. This range is important because each team brings with them a different set of institutional information. A firmware team that knows how to use ESP-IDF can work with a prototyping team that knows how to use Arduino, and both teams can work on the same hardware without any problems.

Integrated Connectivity Architecture

The 1.28-inch ESP32C3 display module integrates Wi-Fi and Bluetooth right onto the PCB behind the panel, unlike display modules that need a separate MCU breakout. This gets rid of the need for extra signal routing, lowers the risk of interference, and reduces the overall size, which is a real benefit when housing space is limited.

Technical Advantages and Performance Insights

The specs of the hardware don't tell the whole story. What really speeds up development is how those specs lead to real improvements in the process.

The main technology benefits that differentiate this ESP32C3 display module from other options are:

• SPI DMA-accelerated rendering: When coders use the ESP32-C3's SPI DMA channel at up to 80 MHz and set up LVGL double-buffer, they can get display frame rates higher than 30 FPS. This is smooth enough for animated gage faces and real-time data panels.
• Ultra-low deep sleep draw: The ESP32-C3 can go into deep sleep with a current of less than 5 µA. This means that battery-powered deployments are a real option for wearable and field sensor uses.
• Secure boot and flash encryption: The module supports secure boot based on RSA-3072, which is required for IoT deployments that must follow security guidelines such as NIST SP 800-213.
• Operating temperature range: The module can work in temperatures ranging from -20°C to +70°C, so it can be used in most semi-industrial and business settings without any special heat management.
• Power spike tolerance: It can draw up to 350 mA in short bursts while active Wi-Fi RF communication is going on. This can be done with the onboard power circuit, but external LDO controllers should have a rating of more than 500 mA to stop brownout restarts.

For engineers creating smart knobs, portable meters, and linked gadgets, the 1.28 inch ESP32C3 display module is a solid option due to its performance features. One common cause of field breakdowns can be stopped by addressing power headroom early in the planning process.

Comparative Analysis — Choosing the Right 1.28 Inch Display Module

The 1.28-inch ESP32C3 display module form factor is just the right size: it's big enough to show important UI elements but small enough to fit into round cases, smartwatches, industrial gauges, and HVAC control knobs. Other options in the 0.96-inch range make reading harder, and 2.0-inch modules force housing restrictions that circular products can't meet.you compare IPS LCD and OLED at this size, each has its own pros and cons. OLED panels have deeper blacks and use less power during silent screens, but they can break down over long periods of time, which is a big problem for industrial meters that are always on. The IPS LCD panel in the GUITION ESP32-2424S012C_I_Y(W) keeps its brightness and color accuracy over the course of its rated life. This makes it the more durable option for use in production settings.

This module is also different from other IPS options that don't have a capacitive touch layer built in. When you add an external touch device to a 1.28-inch screen that isn't touch, you get I2C address conflicts, more PCB routing, and a second line item for purchases. The GUITION module fixes all three problems at the component level.

Procurement Guide for the 1.28 Inch ESP32C3 Display Module

Choosing where to get integrated display panels has a bigger effect on the end result than their unit price would suggest. If the provider changes during production, this can invalidate driver code, change PCB layouts, and delay certification re-testing.

The company that makes the ESP32-2424S012C_I_Y(W), GUITION, does both research and production, and they have a verified product line that goes from 1.28 inches to 21.5 inches. As product needs change, this range makes it easy to improve because the development tools and UI design software (Guition IDE) are the same across the whole collection.

For B2B purchase of any 1.28-inch ESP32C3 display module provider, key evaluation criteria include proven component sourcing traceability, in-house secondary development support, documented OTA firmware update pathways, and multi-language UI capability for global deployment.

Implementation Best Practices and Troubleshooting Tips

With the 1.28-inch ESP32C3 display module, you can go from opening the box to having a working prototype in just one workday because it comes with test software already installed. When the unit When you power the unit through the USB-C port, the test program starts right away; you don't need to flash it before the first review. Interface Setup

Use the onboard IO port interface to connect the module to your host machine. The GC9A01 library handles SPI initialisation for users of the Arduino IDE. Before you compile, make sure that the SPI clock orientation is correct (CPOL=0, CPHA=0) and that the CS, DC, and RST pins are set to match the available GPIO map on your board.

Resolving Display Flickering

Flickering is usually a sign of either an SPI buffer that is too small or a power source that goes out during RF action. Check that your regulator can handle the 350 mA Wi-Fi transmission spike and that your LVGL flush callback waits the right amount of time for the DMA transfer to finish before letting go of the buffer.

OTA Firmware Updates

The ESP32-C3 can automatically receive updates over the air using the ESP-IDF OTA split method. Setting up a dual-partition layout during initial flashing gets rid of the need for physical entry during field repair, which saves deploying fleets a lot of money on running costs.

Conclusion

Model ESP32-2424S012C_I_Y(W), a 1.28-inch ESP32C3 display module from GUITION, combines an MCU, wireless connection, an IPS display, and capacitive touch into a single unit that is ready for production. It can handle up to 160 MHz of processing power, has a sleep current of less than 5µA, and works with a lot of different IDEs. These features make it easier to develop embedded HMIs. This module gives a technically sound base for any application, whether it's an industrial IoT gage, a smart home knob controller, or a medical wearable prototype. The development team doesn't need to know a lot about low-level drivers.

FAQ

Q1: What communication protocol does the display use?

The GC9A01 driver IC talks to other parts through 4-wire SPI. I2C is how the capacitive touch driver (CST816S) talks to other devices. Through the internal IO port interface, both buses can be reached separately.

Q2: Can the ESP32-C3 in this module stream audio over Bluetooth?

No, the ESP32-C3 only works with Bluetooth 5.0 Low Energy. It doesn't work with Bluetooth Classic (BR/EDR). BLE works best for sensor data, setting up devices, and sending low-bandwidth control messages. It's not suitable for streaming music.

Q3: How is the circular screen area handled in software?

The GC9A01 driver talks to a square file that is 240x240 pixels. To stay within the viewable circle opening, UI elements must be made within 120 pixels of the centre coordinates. This can be done with both LVGL and Arduino GFX by masking in the software.

Q4: What is the operating temperature range?

The module can work in temperatures ranging from -20°C to +70°C, making it suitable for semi-industrial and commercial indoor settings.

Q5: Is the module waterproof for outdoor use?

The normal setup is not designed to be exposed to moisture outside. For IP65-level protection, the PCB needs to be coated, and the display panel needs to be optically bonded. Changes can be made by asking for a custom order.

Partner With GUITION — Your Trusted 1.28 Inch ESP32C3 Display Module Supplier

The ESP32-2424S012C_I_Y(W) from GUITION is a small 1.28-inch esp32 display module that unites the well-known ESP32-C3 processor with a production-grade IPS circular display, capacitive touch, and two wifi connections. As a manufacturer with vertical integration, GUITION offers full secondary development support, OTA upgrade capability, and multi-language UI tools that cut down on engineering work from day one. Send us your project details or a sample request right away. You can email our tech team at david@guition.com or go to https://jingcaizhineng.aixdb.cn/ to see our full range of products.

References

1. Espressif Systems. ESP32-C3 Series Datasheet. Espressif Systems, 2022.

2. Espressif Systems. ESP-IDF Programming Guide v5.1. Espressif Systems, 2023.

3. LVGL LLC. LVGL – Light and Versatile Graphics Library Documentation. LVGL, 2023.

4. National Institute of Standards and Technology. NIST SP 800-213: IoT Device Cybersecurity Guidance for the Federal Government. NIST, 2021.

5. Patel, R., & Huang, L. Embedded HMI Design Patterns for Resource-Constrained IoT Devices. IEEE Embedded Systems Letters, 2022.

6. Ganssle, J. The Art of Designing Embedded Systems (2nd ed.). Newnes/Elsevier, 2008.
