Why Buy a 3.2 inch tft lcd module?

Purchasing a 3.2 inch TFT LCD module delivers the perfect balance between compact dimensions and functional display area for industrial and embedded applications. These modules have emerged as essential components across manufacturing, medical devices, and IoT systems because they offer vivid color reproduction, reliable touch interaction, and seamless integration with modern microcontrollers. Their 240x320 resolution fits detailed graphical interfaces while maintaining energy efficiency and cost-effectiveness. This guide addresses procurement managers, embedded engineers, and product developers who need practical insights to select display solutions that accelerate time-to-market and reduce development complexity. We examine technical specifications, application scenarios, and supplier considerations that impact your purchasing decisions and project success.

Understanding the Key Features of 3.2 Inch TFT LCD Modules

Modern display modules in this size range have advanced features that affect how easy they are to integrate and how well they work. The technical base of 3.2 inch TFT LCD module determines whether it meets user needs and can handle tough conditions.

Resolution and Visual Clarity

Standard modules have a size of 240x320 pixels, which means they have between 125 and 180 pixels per inch. This pixel density makes sure that industrial control screens and mobile diagnostics equipment can show text and icons clearly. The RGB color depth usually goes up to 65K or 262K colors, which lets status indicators and user interfaces look great. The visual clarity stays the same at a normal watching range of 30 to 60 centimeters, which works for most embedded application uses.

Interface Compatibility and Integration

Different microcontroller architectures can work with display modules that support more than one communication protocol. When it comes to static menu systems, where change speed is not important, SPI connections work well because they use fewer GPIO pins. Parallel interfaces (8-bit or 16-bit) give you the faster refresh rates you need for animated graphics or seeing real-time data. Guition's ESP32-based modules use both serial communication and GPIO extension, which lets devs connect sensors, actuators, and communication tools in a variety of ways. The interface choice affects both the complexity of the hardware layout and the amount of work that goes into making software. This choice is very important during the initial planning stages of a project.

Power Consumption and Thermal Management

During active operation, most display modules use between 60 and 150mA, with the backlight intensity being the main factor that can change. For industrial uses, brightness levels of 300 to 500 nits are common for indoor use, while 800 or more nits may be needed for outdoor use. Power management circuits that work well allow for dimming and sleep modes that make handheld devices' batteries last longer. When temperatures inside enclosed housings can hit 60 to 70°C during constant operation, thermal issues become important. To keep performance stable, high-quality modules have temperature-stable parts and heat dissipation paths.

Touch Technology Options

Because they react to pressure from gloved hands or styluses, resistive touch screens are great for both medical and industrial settings. These panels stay accurate even when the temperature changes, and dust or moisture can't get on them. Capacitive touch options have better visual clarity and can handle multiple touches, but they need to be activated with bare fingers. Which technology to use depends on the end user's surroundings and how they want to connect with it. The ESP32-2432S032R_I model from Guition includes resistive touch, making it suitable for industrial uses where reliability is more important than looks.

Why Choose a 3.2 Inch TFT LCD Module Over Other Display Types?

Choosing the right monitor technology and size affects how easy it is to use, how much it costs to make, and how reliable it will be in the long run. In embedded system settings, this format has certain benefits that other options have trouble matching.

Size Optimization for Embedded Systems

The vertical size of 3.2 inches takes up about 50x66 mm of panel space, which makes it possible for multiline text, numeric data, and control buttons to fit into small areas. Smaller screens (2.4 to 2.8 inches) make it harder to make complex interfaces, which means that information density has to be lowered. Larger 3.5-4.0-inch options make housings bigger and use more power, but they aren't much better for most industrial uses in terms of usefulness. This size falls in the middle, which works for small meters, medical monitors, and control systems that need to be portable and work well at the same time.

TFT vs OLED Technology Considerations

Compared to OLED alternatives, TFT LCD modules are better at maintaining a consistent brightness and being cost-effective to make. Even though OLED screens have better contrast ratios and wider viewing angles, they can get burned in if they show static interface elements for long periods of time. TFT technology has been shown to be reliable in industrial settings where status bars, menus, and ongoing function are needed. Also, TFT panels work well in temperatures ranging from -20°C to +70°C, while OLED screens have slower response times when the temperature drops or rises. When buying in bulk, the difference in price gets big, with TFT screens usually saving 30 to 40 percent per unit.

Resistive vs Capacitive Touch Performance

When people use protective gear or touch the screen with wet hands or in harsh environments, resistive touchscreens still work properly. These panels work reliably even when the surface is dirty, the temperature changes, or there is mechanical stress on them. Capacitive touch improves optical transmission and makes things look better, but it needs to be touched with clean, dry fingers. Manufacturers of industrial equipment always choose resistive technology for devices on the factory floor, the interfaces of agricultural machinery, and installations outside. Medical gadget designers like that resistive screens can be used with latex gloves and cleaning methods. The trade-offs in speed are based on the needs of the program, not on which technology is better in general.

Market Solutions and Brand Insights for 3.2 Inch TFT LCD Modules

By knowing your competitors and what your suppliers can do, you can make smart purchasing choices that balance cost, quality, and expert support needs.

Supplier Evaluation Criteria

Leading providers of 3.2 inch TFT LCD modules set themselves apart by offering thorough documentation, quick expert support, and reliable product supply. Manufacturers like Guition offer full reference designs, software development kits, and sample code that cut the time it takes to integrate from weeks to days. Quality sellers keep their ISO 9001 certification up to date and test their products' stability by running them at high temperatures, making sure they can handle dampness, and making sure they can handle vibrations. After-sales help is very important for developing prototypes and fixing problems in production. Customization services for placing connectors, changing firmware, and integrating housings are offered by suppliers who offer more than just standard catalog products.

Guition, a company based in Shenzhen, only makes human-machine interface solutions. They bring a lot of focused knowledge to the development of display modules. Our products range from 1.28 inches to 21.5 inches, and they are all backed by our own Guition development software, which speeds up the process of making UIs by letting you create them with drag-and-drop. This software environment gets rid of the need for low-level graphics programming. This lets embedded programmers focus on the logic of applications instead of the complexity of display drivers. Because we work with makers every day to solve integration problems and improve performance, our technical team knows what problems come up during production launch.

Procurement Channel Strategies

When you work directly with a maker, you can get the best prices on large orders and get technical help and make changes to the product. Distributors can help with logistics by delivering smaller amounts of goods more quickly, but they might not know a lot about technology. Online marketplaces are useful for testing and developing prototypes, but the long-term stability of supply is still unknown. Strategic buying teams build relationships with makers to get large quantities of products, while also keeping distributor accounts open for quick prototypes and supplies in case of emergencies. Cash flow and inventory management are improved by knowing the minimum order amounts, wait times, and payment terms for each channel.

Cost-Performance Analysis

It depends on the quality of the screen, the controller's skills, and the features that come with the display module. Entry-level modules that don't have built-in touch or communication ports may cost $3 to $5 per unit in bulk, while versions with ESP32 processors, WiFi access, and full peripheral circuits cost $12 to $18 per unit. When external parts, longer development times, and higher field failure rates are taken into account, the savings that cheaper options seem to offer are often not worth it. Quality modules lower the total cost of ownership by cutting down on development time, lowering the cost of warranties, and making modules last longer. Guition modules have complete circuits that include backlight control, sound drivers, photosensitive sensors, and RGB LED controls. This means that they offer full solutions instead of just screens that need a lot of extra parts.

Selecting the Best 3.2 Inch TFT LCD Module for Your Project

By matching esp32 display module specs to application needs, you can avoid expensive redesigns and make sure that the end product works well in a wide range of situations.

Defining Technical Requirements

The external factors, such as the working temperature range, vibration exposure, and moisture levels, are the first things that the project needs to consider. Standard commercial-grade specs are fine for indoor control panels, but industrial-grade parts rated for -30°C to +85°C are needed for farming or car uses. The amount of brightness needed depends on the lights around it. For example, 300 to 400 nits are enough in an office, but 800+ nits are needed for full sunlight. Interface selection weighs the number of pins that are available on the microcontroller you've chosen against the speed at which you need to transfer data for your complex graphical interface.

ESP32 Integration Advantages

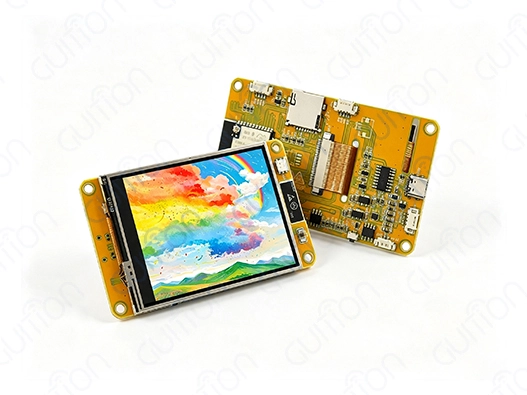

The built-in WiFi and Bluetooth connectivity in modules based on ESP32 processors gives developers big advantages. This Guition ESP32-2432S032R_I model has a dual-core MCU that runs at 240MHz, 520KB SRAM, and 4MB Flash, so it has plenty of power for complicated programs. Built-in wireless capabilities let you monitor from afar, update firmware over-the-air (OTA), and connect to an IoT ecosystem without using any extra hardware. The large ESP32 community support, Arduino IDE compatibility, and availability of the ESP-IDF system give coders a number of options that can be tailored to their skill levels and project needs. This integration gets rid of the need to coordinate separate communication modules, application processors, and display controllers.

Application-Specific Selection Examples

High-brightness displays that can handle a wide range of temperatures are useful for industrial control panels. Stable color reproduction, EMC compliance for sensor compatibility, and reliable touch response with gloves on are the most important things for medical monitoring devices. Smart home controls use IPS panels, capacitive touch, and thin frames to make their screens look good. Handheld diagnostic tools need to be built with strong metal parts, use little power, and have energy control circuits. These different needs are met by the Guition module, which has a lot of different features, such as TF card storage expansion, a DHT11 sensor interface, serial communication lines, and reserved I/O pins for project-specific devices.

To match monitor specs to program needs, you need to know about these performance tradeoffs. Multiple programming environments, such as Arduino IDE, ESP-IDF, MicroPython, and Mixly, make development more flexible. This makes it possible for engineering teams with different levels of expertise to work together. Factory-programmed sample code speeds up proof-of-concept development by letting you test features right away before starting full-scale development.

Troubleshooting and Maintaining Your 3.2 Inch TFT LCD Module

Operational reliability relies on installing, configuring, and maintaining things in a way that stops typical failure modes and makes them last longer.

Common Display Issues and Solutions

Flickering screens are often caused by power source filtering that isn't good enough or bad grounding practices. Most electrical noise problems can be fixed by adding bulk capacitance near the power input pins and setting up star grounding layout. Most of the time, color distortion means that the setup sequences or timing parameters between the controller and driver IC are not right. These configuration mistakes can be fixed by looking at manufacturer datasheets and comparing setup commands to reference implementations. When touch screens don't work, it means that the setting has changed or the resistive layers have been physically damaged. Recalibration methods fix errors, but problems that don't go away mean the panel needs to be replaced.

Power Management Strategies

Using dynamic brightness control based on natural light sensors cuts power use by 40 to 60 percent in places with changing lighting. The sensor circuit built into Guition modules lets the lighting change automatically, without the need for extra parts. Putting portable devices into sleep mode when not in use can increase their battery life, and the wake-on-touch feature keeps the user experience the same. When voltage is properly controlled, brownouts don't happen during times of high current demand, like when the backlight is turned on or when WiFi transmission bursts happen. The ESP32-2432S032R_I model can operate and charge lithium batteries at the same time, which lets mobile deployments keep providing service without interruption.

Preventive Maintenance Protocols

Exposure to the environment speeds up the breakdown of parts, so protection steps are necessary for long-term dependability. Applying a conformal coating keeps circuitry safe from getting wet and dirty in harsh industrial settings. Cleaning touch surfaces regularly with the right chemicals keeps them sensitive and stops fake activations caused by buildup of residue. Verification of the firmware and backups protect against data loss, and over-the-air (OTA) updates let bugs be fixed and features added without having to call for service. The remote upgrade feature of Guition lowers upkeep costs by getting rid of the need for on-site trips for software updates. This is especially helpful for installations that are spread out across multiple sites.

Temperature monitoring stops thermal damage in closed installations where it's hard for heat to escape. By using temperature shutdown levels and warning lights, you can keep parts from going beyond their specified limits. Regular inspections find mechanical stress problems early on, before they become full failures. This is especially important in places where vibrations are common, like mobile machinery or transportation applications.

Conclusion

The best mix between display power and ease of system integration for embedded applications is achieved by investing in a 3.2-inch TFT LCD module. These units have small enough footprints to fit in designs with limited room while still having enough screen space for complex interfaces. Guition's ESP32-based products have a lot of extra circuitry, can join wirelessly, and come with cross-platform software support that makes projects finish faster. When you buy quality modules from well-known companies, you can be sure of their dependability, get access to technical support, and make changes that generic modules can't do. In industrial, medical, and commercial settings, matching specifications, integrating systems, and following maintenance protocols correctly can extend the life of systems and make users happy.

FAQ

What interface types work best for different applications?

SPI connections work well for projects that need to stay within a budget and have simple menu systems where slower update rates are still fine. Applications that use animated images and real-time data visualization run faster when they use parallel connections. RGB interfaces offer the most bandwidth for updating the video rate, but they use a lot more GPIO resources. For connecting sensors and actuators, the Guition ESP32 module uses serial communication and a lot of peripheral ports to find a good balance between speed and pin access.

How do resistive and capacitive touchscreens compare in industrial use?

With gloved operation, surface contamination tolerance, and wide temperature stability, resistive touch stays reliable. Capacitive options offer better visual clarity and the ability to handle multiple touches, but they need to be touched with bare fingers and the surface must be clean. Most industrial settings prefer resistive technology because it is flexible in how it works and can handle harsh conditions. Resistive screens are also used in medical applications because they can work with latex gloves and cleaning methods that would damage capacitive devices.

Can these modules integrate with Arduino and Raspberry Pi platforms?

The ESP32-2432S032R_I module works directly with the Arduino IDE for development, and it supports a wide range of libraries and community resources. Advanced developers can use all of ESP32's features with ESP-IDF framework access. MicroPython compatibility lets you use both fast prototyping and coding. Adding a Raspberry Pi requires the right level shifters and protocol translators. However, serial interfaces make it easier to connect to a variety of host controllers besides the built-in ESP32 processor.

Partner with Guition for Your Display Module Requirements

Because we specialize in human-machine interface technology, Guition can provide complete display solutions for medical devices, smart appliances, and industrial automation. Our ESP32-2432S032R_I module has a strong dual-core processor, WiFi, Bluetooth, and all the circuits you need for peripherals, like controlling the backlight, a touch interface, a sound driver, and sensor connections. The proprietary Guition development software's drag-and-drop interface design gets rid of the need for complicated coding, which greatly shortens the time it takes to make a product. We support secondary development by providing full documentation, cross-platform compatibility, and remote over-the-air (OTA) upgrade features that lower the cost of supporting products after they have been sold. Get in touch with our technical experts at david@guition.com to talk about your 3.2 inch TFT LCD module supplier needs, ask about customization options, and get detailed quotes for bulk orders. Our tech team is ready to help you with any problems you're having with integration and to make sure that the show works best for your needs.
