What Is a 10.1 Inch ESP32P4 Display Module Used For?

A 10.1 inch ESP32P4 display module is an advanced human-machine interface solution that combines a high-resolution touchscreen display with Espressif's powerful ESP32-P4 dual-core microcontroller. This sophisticated HMI module features an 800×1280 resolution display and operates at 360MHz, making it ideal for industrial control panels, smart home automation systems, medical monitoring equipment, IoT device interfaces, and commercial applications requiring robust visual interaction capabilities.

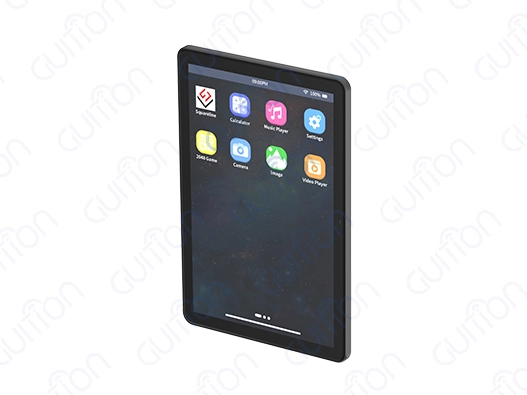

Overview of the 10.1 Inch ESP32P4 Display Module

With its outstanding performance for challenging applications, the ESP32-P4-based display module is a big step forward in integrated display technology. Our JC8012P4A1CIWY LCD module shows off the cutting edge features of this platform. It uses the ESP32-P4 as its main control unit and has WiFi and Bluetooth built in.

Core Architecture and Processing Power

The ESP32-P4 microprocessor has two cores and runs at an amazing 360MHz frequency. This gives it a lot of computing power for complicated graphics tasks. This processing power makes it possible for complex user interfaces to run smoothly while still responding to touch inputs. The design has 768KB HP L2MEM, 32KB LP SRAM, and 128KB HP ROM, which makes sure that memory management works well for demanding programs.

The module has 32MB of PSRAM and 16MB of Flash storage, which is more than enough room for user data, program code, and image assets. This large amount of memory lets developers make apps with lots of features without having to worry about running out of space. The fast memory unit makes sure that data can be accessed quickly and graphics run smoothly.

Display Technology and Visual Performance

The 10.1 inch ESP32P4 display module has a great 800x1280 resolution IPS display screen that gives you clear images from all sides. With a 24-bit RGB color depth, you can make 16.7 million colors, so you can be sure that professional applications will get vivid and accurate color reproduction. The IPS technology ensures constant visual quality from all watching angles, so it can be used in places with a lot of people.

The built-in backlight control circuit lets you precisely change the brightness, so you can see clearly in all kinds of lighting. People who work in industrial settings where lighting can change a lot during working hours find this feature very useful. The anti-glare features of the monitor make long-term use easier on the eyes, making operators more comfortable and increasing their output.

Technical Insights: Interfacing and Programming the 10.1 Inch ESP32P4 Display Module

It is important to understand the technical side of the ESP32-P4 display module so that you can use it successfully in your projects. The design of the module puts an emphasis on making it easy to integrate while still meeting professional performance standards.

Hardware Integration and Connectivity Options

The module provides comprehensive connectivity through multiple interface options. The reserved TF card interface lets you add more storage space for video files, setup files, and data logging. The IO port interface lets you connect external sensors, actuators, and data units in a variety of ways, so it can be used for a wide range of tasks.

With built-in WiFi and Bluetooth, you don't need any extra wireless units. This makes the system design simpler and lowers the cost of the parts. These built-in connection options make it easy to connect IoT devices, watch them from afar, and share data wirelessly with other devices in your ecosystem.

Development Environment Compatibility

The 10.1 inch ESP32P4 display module works with a number of different development platforms, so it can be used with a range of computing styles and project needs. Here are the systems that are accepted and what makes them great:

• Arduino IDE Integration: Gives Arduino fans a familiar programming environment with a lot of code support and community resources
• ESP-IDF Framework: Provides professional-level development tools with advanced debugging features and the best speed improvement.
• MicroPython Support: Lets you make quick prototypes and scripts using Python's easy-to-use interface and large library of functions.
• Guition Development Platform: Provides visual interface design tools with drag-and-drop features to make GUI creation faster and easier.

These choices for growth make sure that engineers can use the skills they already have while also trying out new ones. The detailed documentation and example code make learning faster, which speeds up project launch and lowers worries about time-to-market.

Touch Interface Implementation

The module can be set up in both non-touch and sensitive touch modes, so it can be used in a variety of situations. The sensitive touch version has a touch screen control circuit built in that works perfectly with multiple touches. Users expect current platforms to have easy-to-use navigation tools, the ability to recognize gestures, and the ability to pinch to zoom.

Comparing the 10.1 Inch ESP32P4 Display Module with Alternatives in 2024

When looking at show options for your projects, knowing what the competition is doing can help you make the best choice. The module that is built on ESP32-P4 has clear benefits over other options.

Performance Benchmarks Against Traditional Solutions

Compared to ARM-based single-board computers, the 10.1 inch ESP32P4 display module uses a lot less power while still giving the same level of graphics performance. In idle mode, traditional Linux-based solutions often need 3 to 5 watts of power, but the ESP32-P4 module works efficiently in the milliwatt range, if you don't count the power used by the lights. This energy benefit means that less heat control is needed, and batteries last longer for portable uses.

The ESP32-P4 module's instant-boot feature gets rid of the long startup processes that come with Linux-based systems. When power is applied, applications respond within milliseconds, which meets the needs of industry and business applications that need to respond right away.

Advantages Over Smaller Display Modules

There are cost benefits to using smaller ESP32-based screens, but the 10.1-inch format is better for complex apps. The bigger screen space lets more information panels, more complex graphics, and more comfortable touch targets fit, which improves the user experience. It is helpful for professional programs to be able to show a lot of information without having to switch between screens.

Procurement Guide for 10.1 Inch ESP32P4 Display Modules

To buy ESP32-P4 display modules successfully, you need to know what the seller can do, what their quality standards are, and how long they will help you. Making choices based on good information keeps your project on track and makes sure that the supply chain is managed well.

Supplier Evaluation Criteria

When choosing a provider for your 10.1 inch ESP32P4 display module needs, you should look at how professional they are and how well they can make things. Suppliers that have been around for a while should offer detailed technical documents, standard designs, and quick engineering help. Quality standards like ISO 9001, RoHS compliance, and CE/FCC approvals show that a company is dedicated to making great products.

For business purposes, long-term supply security is very important. Suppliers should have consistent inventory control, clear information about when parts will be available, and wait times that can be predicted. Suppliers who are interested in building partnerships usually let customers know ahead of time about possible supply problems and other options.

Cost Optimization Strategies

When it comes to production numbers, volume pricing models usually offer big cost savings. Many sellers offer tiered prices, which means that the unit costs go down as the size of the order goes up. To get the best total cost of ownership, you should weigh bulk savings against the costs of keeping inventory and the time it takes to update technology.

Think about how much it will cost you in addition to the initial buy price. This includes development help, the quality of the documentation, and service after the sale. Suppliers who offer full technical support can cut down on the time it takes to build and the engineering costs that go along with it, which could help make up for higher starting component costs.

Why Choose Our 10.1 Inch ESP32P4 Display Module? — The Preferred B2B Solution

Because we care about engineering quality and user success, Guition's 10.1 inch ESP32P4 display module stands out in the market. Our all-encompassing method covers the whole development process, from the first idea to putting the software into production.

Advanced Development Tools and Support

Our own Guition development platform changes the way interfaces are designed with simple, visual tools. The drag-and-drop interface maker gets rid of the need for complicated code for basic GUI elements. This lets you make quick prototypes and make changes to the design over and over again. Rich control sets give you ready-made parts like buttons, switches, gauges, charts, and data visualization tools that you can easily add to your apps.

Cross-platform debugging makes development easier by letting testing happen in real time across various platforms. This feature cuts down on development time and merging problems, which speeds up your project timeline and lowers the costs that come with it.

Quality Assurance and Reliability

Military-grade manufacturing standards make sure that products always work well in harsh circumstances. Our units go through a lot of tests, such as being able to withstand changes in temperature and pressure and being tested for electromagnetic compatibility. These quality standards give people trust in mission-critical apps that can't risk losing their dependability.

Full UTF-8 encoding and support for multiple languages make it possible to launch on a global market without making any changes. This translation feature lets you make one product that can be sold all over the world. This cuts down on the cost of adaptation and makes product management easier.

Remote Maintenance and Lifecycle Support

Built-in remote upgrade features let deployed devices get software changes without having to be serviced in the field. This feature lowers upkeep costs and lets features be added, and security patches be applied throughout the span of the product. The ability to update remotely is especially useful for sites that are spread out and make it hard to get to them physically.

During the creation and production stages of your product, our technical team is available to help you at any time. This partnership method makes sure that module features are used in the best way possible and helps solve technology problems before they delay the project.

Conclusion

The 10.1 inch ESP32P4 display module is the best choice for modern HMI apps because it has the best speed, functionality, and development ease. This module meets the tough needs of industrial, medical, and IoT apps with its powerful dual-core processor, high-resolution display, and wide range of connectivity choices. Multiple computer platforms and visual design tools are part of the supporting development ecosystem. This makes sure that projects can be launched quickly while still being reliable at a professional level. This display module gives you the technical base you need to make your product work, whether you're making industrial control systems, smart home interfaces, or medical tracking equipment.

FAQ

Q: What development environments support the 10.1 inch ESP32P4 display module?

A: Our module provides comprehensive compatibility with Arduino IDE, ESP-IDF, MicroPython, and Guition development platforms. Arduino IDE offers familiar development tools with extensive community support, while ESP-IDF provides professional debugging capabilities. MicroPython enables rapid prototyping with intuitive syntax, and Guition delivers visual interface design tools for streamlined GUI development.

Q: How does the 800×1280 resolution compare to other display modules?

A: The 800×1280 resolution provides exceptional clarity for the 10.1 inch ESP32P4 display module, showing writing clearly and images with great detail. This precision is much higher than that of smaller modules, and it works perfectly with the ESP32-P4's processing power. The pixel density makes sure that the result is of professional quality and can be used in difficult situations.

Q: What wireless connectivity options are integrated into the module?

A: With built-in WiFi and Bluetooth, you can connect wirelessly to any device without needing any extra parts. WiFi lets you connect to a network so you can watch and connect IoT devices from afar, and Bluetooth lets you talk to and set up devices locally. These built-in wireless choices make system design easier and lower the cost of parts.

Q: Can the module handle complex graphical applications?

A: The dual-core 360MHz ESP32-P4 processor gives you a lot of computing power for complex graphics tasks. Hardware acceleration features make it possible for graphics to run smoothly, touch interactions to work properly, and complex visual effects to be used. Because there is a lot of memory available, apps with lots of interface elements and data presentation components can run smoothly.

Q: What support is available for secondary development?

A: Full secondary development help includes thorough technical data, reference designs, and engineering advice that is tailored to the needs of the project. Our development libraries and example code shorten the time it takes to execute, and our ongoing expert help takes care of problems that are unique to each project. The Guition platform has visual development tools that make it easier to add standard interface elements without having to write a lot of code.

Partner with Guition for Your 10.1 Inch ESP32P4 Display Module Requirements

Transform your next project with Guition's industry-leading 10.1 inch ESP32P4 display module technology. Our complete solution includes state-of-the-art hardware and easy-to-use development tools that make it possible to quickly launch complex HMI apps. Email our technical team at david@guition.com for full specifications, reasonable prices for large orders, and a one-on-one engineering consultation. As a reliable provider of 10.1 inch ESP32P4 display module, we offer full lifecycle support, from the initial planning phase to production deployment. This way, we can make sure that your project succeeds by giving you reliable, high-performance display options.
