OEM Knob Display Module: Custom Options and Specifications

When engineers and product managers search for a knob display module that delivers both visual precision and intuitive control, they face a crowded and often confusing market. An OEM knob display module integrates a rotary input mechanism with an embedded circular display, creating a compact human-machine interface that replaces multiple discrete components. The GUITION JC3636W518C_I_Y exemplifies this category — a 1.28-inch IPS screen with 360×360 resolution, ESP32-S3 dual-core processing, and native WiFi/Bluetooth support — purpose-built for engineers who need a reliable, customisable knob display module ready for production deployment.

Understanding OEM Knob Display Modules: Features and Functions

A Knob display module combines real-time visual input and rotary movement into a single, small part. This type of HMI module is different from traditional touchscreens or mechanical potentiometers because it allows two-way interaction. The user turns or presses to change settings, and the integrated screen quickly confirms the changes. This "blind control" feature, which lets you use the interface without looking at it, is very useful in places where you need to keep your attention on the process, like in car consoles, HVAC panels, and industrial control enclosures.

OEM versions of this interface part are even more valuable from a strategic perspective. They let manufacturers build their brand, application-specific UI logic, and their own communication protocols right into the hardware. Grand View Research estimated that the global HMI market was worth more than $5.4 billion in 2023. It is still growing as industrial automation speeds up. Knob display modules are becoming more popular in this market because they solve the problem of how to balance screen space and useful density.

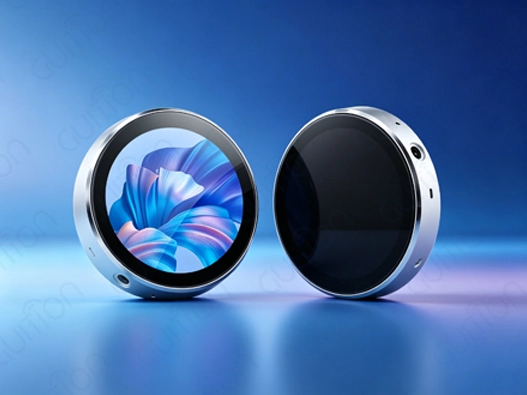

This problem is exactly what the GUIDE JC3636W518C_I_Y tries to solve. A 360x360 IPS screen, a sensitive touch layer, backlight control circuits, and a TF card interface are all housed in its 58x58mm body. It is powered by an ESP32-S3 processor that can run at up to 240MHz and has 8MB of PSRAM and 16MB of flash storage.

Customization Options for OEM Knob Display Modules

Hardware Customisation: Display, Materials, and Fit

Customization of hardware is where purchase talks start. B2B customers can choose the display's diameter, resolution, brightness level, and fitting shape so that it fits with the tools they already have for making enclosures. The GUITION JC3636W518C_I_Y has a round IPS panel with 360x360 resolution, which makes the 1.28-inch screen clear. OEM clients can also request changes to connector placement, TF card slot orientation, and PCB silkscreen marks. These are all small details that make assembly easier during mass production.

The type of physical input and the material of the knob are both important ergonomic choices. In medical or industrial settings, aluminum metal buttons show accuracy and sturdiness, while rubberized finishes work well on consumer electronics where grip is more important than looks.

Software Customisation: Firmware, SDK, and UI Tooling

The Knob display module works with four different programming environments: Arduino IDE, ESP-IDF, MicroPython, and its own development tool called Guition. This multi-mode compatibility gets rid of the problems that come with using just one set of tools, so embedded engineers can work with frameworks they already know.

OEM clients should pay extra attention to the Guition software platform. You don't need to know low-level graphics coding to use its drag-and-drop UI design, pre-built control library, or one-click program download features. The Knob display module can be used all over the world with little work because it can have brand names, application-specific menus, and multilingual UTF-8 text embedded in custom software.

Here are the main software benefits that make this Knob display module better than others on the market:

• Multi-mode development support: Arduino IDE, ESP-IDF, MicroPython, and Guition are all natively supported, letting engineers choose the environment that fits their workflow without migration overhead.
• Drag-and-drop UI construction: The Guition platform offers WYSIWYG interface design with a rich control library, reducing UI development time from days to hours.
• Remote OTA upgrade capability: Projects can be updated over WiFi without physical access to deployed hardware, dramatically lowering after-sales maintenance costs for field-deployed units.
• Multi-language UTF-8 encoding: The module handles global character sets natively, which is critical for products sold across North America, Europe, and Asia simultaneously.

All of these software features make engineering work easier throughout the whole span of a product, from the prototype stage to mass production and long-term field assistance.

Technical Specifications: What Procurement Managers Must Know?

Core Electrical and Processing Parameters

When purchasing managers look at a Knob display module for mass production, they need to pay equal attention to the electrical and visual factors. The ESP32-S3 dual-core MCU, which can work at up to 240MHz, is what the GUITION JC3636W518C_I_Y is made of. It has 512KB of SRAM, 384KB of ROM, 8MB of PSRAM, and 16MB of flash memory. This setup can play MJPEG videos, show spectrums in real time, and render MP3 audio at up to 320 Kbps bitrate all at the same time.

The module builds WiFi (802.11 b/g/n) and Bluetooth 5.0 right onto the ESP32-S3 SoC. This means that you don't need any extra RF modules and the bill of materials (BOM) is simpler. The capacitive touch layer lets you interact with the device with a single touch, and the TF card slot lets you store media locally, which is useful for digital signs, photo frame modes, and backing up the software.

Environmental and Integration Considerations

Temperature cycles, vibration, and electromagnetic interference are challenges that industrial Knob display module applications must overcome. High-quality designs should be able to work in temperatures ranging from -20°C to +70°C and should also be able to pass EMI/EMC testing so that they don't mess up nearby RF components. Before making a final purchase, buyers should check with the supplier to see if they offer IP rating documentation and thermal aging test data.

The total cost of merging also depends on how hard the wiring and installation are. Along with its main connectors, the JC3636W518C_I_Y has a standard TF card interface, which makes routing cables easier in small spaces. It has a 58x58mm PCB shape that can fit standard panel holes found in HVAC and utility designs.

How to Choose the Right OEM Knob Display Module for Your Project?

To find the right Knob display module supplier, you need to look at more than just the parameters listed in the datasheet. There are four things that procurement managers should look at: the level of OEM customisation, the maturity of the software environment, the quality of the documentation, and the dependability of the long-term supply.

GUITION's product line goes from 1.28" to 21.5" and includes all kinds of HMI shapes, from small knob modules to big industrial panels. This range shows that the manufacturing system can handle both prototyping and mass production without having to move suppliers in the middle of a project.

The quality of technical documentation is a good indicator of the depth of engineering support. When suppliers release full schematic packages, SDK repositories, and development tutorials, it makes debugging a lot easier for your team. GUITION supports cross-platform online debugging and gives full secondary development tools and technical docs. These features shorten the time it takes to get a product to market for R&D teams that are working with tight release plans.

The last parts of the vendor evaluation are bulk price, sample availability, and clear wait times. Asking for engineering models early in the planning process lets you make sure they work before you spend money on tools.

Troubleshooting and Future-Proofing Your OEM Knob Display Module Deployment

One of the most common problems with integrating Knob display modules is signal interference between the display driver and the RF circuitry next to it. If PCB planning rules aren't followed, the ESP32-S3's built-in WiFi and Bluetooth stack can add noise to sensitive analog lines. The literature for GUITION talks about this and gives advice on how to set up the ground plane and decoupling capacitors.

Worn-out flash memory or timing issues with PSRAM access often cause firmware instability. The JC3636W518C_I_Y's 16MB flash allocation and 8MB PSRAM buffer help to reduce this issue. These features allow applications to grow without running into memory limits too soon.

To make a Knob display module deployment future-proof, you need to choose hardware that has more processing power and connectivity than the current product generation. With over-the-air (OTA) remote upgrade support built into the Guition ecosystem, units that have been deployed can get feature updates, security patches, and UI refreshes without having to be serviced in the field. This is a huge operational benefit for energy management systems, smart appliances, and commercial kiosk deployments.

Conclusion

No longer a special part, an OEM Knob display module is now an important HMI building block for competitive product design in medical, smart home, business, and industrial automation. The GUITION JC3636W518C_I_Y is a highly advanced Knob display module that is easy for developers to use. It has proven cross-platform support, WiFi and Bluetooth built in, and a full-featured UI toolchain. Engineering teams benefit from faster time to market, and procurement managers benefit from a dependable provider that covers a wide range of display sizes and provides clear paperwork. By choosing this Knob display module, you set up your product for future-proof, scalable rollout.

FAQ

Can the UI on this knob display module be fully customised?

Yes. Drag-and-drop UI building is possible with the Guition software platform, which comes with a library of pre-built controls. OEM clients can add brand names, application menus, and text in multiple languages without having to write low-level graphics code. This cuts UI development times by a large amount.

Which development environments does the JC3636W518C_I_Y support?

The module works with the Guition platform, the Arduino IDE, ESP-IDF, and MicroPython. Engineers can use their current tools without having to migrate. This cuts down on the time it takes to train new team members and keeps things consistent across software versions.

How does OTA upgrade work in field deployments?

Because the ESP32-S3 has WiFi, firmware changes can be done remotely through the Guition environment. Deployed units get updates over the air, so there are no more need for service trips. This saves money on long-term repair costs for installations that are hard to get to.

What is the display resolution and size of this module?

The JC3636W518C_I_Y has a 1.28-inch IPS circular screen with a resolution of 360x360 pixels. The PCB is 58x58mm and fits standard panel cutouts found in electronics, HVAC controllers, and industrial enclosures.

Does the module support media playback?

Yes. The module can play MJPEG videos, MP3 music at up to 320Kbps, and digital photos through the built-in TF card interface. This makes it perfect for use in smart home displays and interactive kiosks.

Partner With Guition — Your Trusted Knob Display Module Supplier

With a range of Knob display modules from 1.28" to 21.5" and full OEM customization services, Guition blends expertise in engineering with dependability in production. Our team is ready to work with you whether you need a Knob esp32 display module that is ready for production or an HMI solution that is built just the way you want it. Get in touch with us right away to get samples, technical information, and bulk pricing. You can email our tech team at david@guition.com or go to https://jingcaizhineng.aixdb.cn/ to see all of our products.

References

1. Grand View Research. (2023). Human Machine Interface (HMI) Market Size, Share & Trends Analysis Report. Grand View Research.

2. Espressif Systems. (2023). ESP32-S3 Technical Reference Manual. Espressif Systems.

3. IPC Association. (2022). IPC-A-610H: Acceptability of Electronic Assemblies. IPC.

4. MarketsandMarkets. (2023). Embedded Display Market by Technology, Application, and Geography – Global Forecast to 2028. MarketsandMarkets.

5. IEEE. (2022). IEEE Standard for Human Factors Engineering of Computer Workstations (IEEE Std 1680). IEEE Standards Association.

6. Gartner. (2023). Emerging Technologies and Trends Impact Radar: Industrial Internet of Things. Gartner Research.
