Knob Module Integration Tips for Smart Electronics

Adding a Knob module to your smart electronics project requires careful planning, accuracy, and knowledge of important technical details. These rotary input devices turn mechanical rotation into clean electronic signals. This makes it easy for people to handle things like medical tracking equipment, smart home devices, and industrial control panels. Time-to-market is sped up, debugging is made easier, and long-term stability is ensured by a well-implemented Knob module. These are three important goals for embedded engineers, R&D managers, and product makers working in globally competitive markets.

Understanding Knob Modules in Smart Electronics

Modern Knob modules are HMI systems that have rotary encoders, integrated screens, and smart processing all in one. These units, unlike stand-alone potentiometers, provide conditioned digital outputs through UART, SPI, or I2C interfaces. This gets rid of signal noise and bounce problems that come up with separate component designs. This evolution is shown by the Guition JC3636K518C_I_YR. It has an ESP32-S3R8 dual-core MCU that runs at 240MHz and powers a 360x360 pixel IPS monitor with capacitive touch. It also has built-in WiFi and Bluetooth 5.0 for IoT apps to link wirelessly.

Core Components and Operating Principles

A professional-grade Knob module has several useful blocks built into one case. The rotary encoder turns the movement of the shaft into quadrature pulse trains that the onboard processor understands as orders for which way to go. Display processors handle displaying images in real time, and touch circuitry adds the ability to use more than one input method. More advanced models have haptic engines that give tactile vibration feedback. This changes the way the user interacts, from just rotating to a full experience with physical reaction. The design of the processes is very important. Modules made with strong MCUs, like the ESP32-S3R8 with 520KB SRAM, 8MB PSRAM, and 16MB Flash, can handle complex user interface animations, music playing, and network connection without needing extra processing help. This all-in-one design cuts down on bill of materials (BOM) costs and speeds up the assembly process.

Key Features Driving Adoption

The main difference between basic and complex rotary devices is their ability to be programmed. With software-defined detent behavior, engineers can change torque curves, click spacing, and rotational slowing through code instead of redesigning the hardware. The Guition platform makes this customization easier: drag-and-drop UI tools let creators move controls around, change the way things look, and set up how things behave without having to know a lot about low-level programming. Connectivity choices make applications more useful. Modules with WiFi allow for online tracking and over-the-air (OTA) firmware changes, which solves problems with servicing that used to need field technicians to visit the site. Bluetooth integration lets you play music wirelessly, pair devices, and control mobile apps—features that take ordinary electronics from useful to high-end.

Application Diversity Across Industries

Rotary display units are used in many different areas, each with its own specific needs. Real-time tracking displays in 3D printing systems let workers change print settings in the middle of the process. These displays mix rotary navigation with status visualization. Industrial automation benefits from small HMI solutions that can work in difficult conditions and protect against dust and water entry with an IP65 rating. Manufacturers of medical devices want their products to have user-friendly interfaces that let patients easily change the settings or strength of treatments without having to deal with a lot of buttons. These Knob module units are used as primary command interfaces by smart home control panels. They combine controls for lights, climate, and entertainment into a single touchpoint. Spectrum analyzers and Bluetooth playing features are added by makers of audio equipment, turning traditional volume knobs into multimedia command centers. Each application needs dependability that can be measured in millions of operating cycles. Magnetic Hall-effect sensing systems easily meet this requirement.

Essential Steps for Effective Knob Module Integration

A successful rollout starts a long time before the hardware is put together. A thorough pre-integration plan stops redesigns that cost a lot of money and speeds up the approval process. The procurement teams have to make sure that the module output levels and host controller inputs work with each other electrically. They also have to make sure that the mounting measurements fit the limitations of the enclosure and that the communication methods work with the current firmware designs. Choosing between digital bus connections and analog voltage output changes the way hardware is designed and how complicated software is.

Pre-Integration Compatibility Assessment

Analog modules make voltage that changes based on the position of the shaft, so the host side needs ADC channels and noise reduction. Digital versions send position data through UART, SPI, or I2C, which blocks noise and makes software interaction easier. The Guition JC3636K518C_I_YR works with several different programming environments, including Arduino IDE, ESP IDE, MicroPython, and the company's own Guition platform. This means that it can be used with a wide range of engineering processes and code libraries. When you integrate a display, you need to think about more things. Resolution, color depth, and refresh rates must all be right for the program without using up too much engine power. A 360x360-pixel screen is good for progress panels, graphical menus, and previewing multimedia files because it combines clear images with manageable data flow. Capacitive touch adds motion recognition, which makes it easier to use by letting you swipe to move around and zoom with multiple touches.

Installation Best Practices

Mounting steadiness has a direct effect on how the user feels and how long the mechanical parts last. Rigid panel bolts keep the shaft from wobbling when it's under side-load stress, so the product's physical feel stays the same over time. When you connect electrical devices, you need to make sure that the signals stay intact. Short wire runs keep electromagnetic interference to a minimum, and proper grounding keeps sensitive encoder electronics from being damaged by electrostatic discharge. In noisy industrial settings with motor controls and switching power sources that cause RF interference, shielded wires are a must. Accurate position tracking and predictable reaction curves are set up by calibration processes. For mechanical modules to work, the rotating limit must be defined. This tells the system where the ends are. Field strength tuning is helpful for magnetic encoders because it makes up for manufacturing flaws in where Hall sensors are placed. The Guition development platform makes tuning easier by showing raw sensor data in visual feedback tools. This lets workers make sure everything works right before the final assembly.

Programming and Configuration Guidance

When software is configured, general hardware is turned into interfaces that are specific to a program. The Guition interface development tool solves common problems: engineers can add UI controls with a single click, change their places by dragging and dropping, and see what layouts will look like by debugging them online across multiple platforms. This WYSIWYG method gets rid of the iterations of trying things and failing that take time when writing screen layouts by hand. Setting up an event handler connects rotary actions to tasks in a program. If you turn it clockwise, the loudness, light, or temperature settings might go up, and if you turn it counterclockwise, they might go down. Most of the time, push-button movements confirm choices or open submenus. Some more advanced designs use haptic feedback to mimic mechanical detents by sending out vibration waves at set rotational intervals. This can be done even in fully contactless magnetic designs.

Customizing firmware lets you stand out by giving users a unique experience. Custom graphics sets let brands use their own visual styles, and unique videos help people remember what a product is. The JC3636K518C_I_YR can play MJPEG videos and work as an electronic picture frame. This lets you use it for creative purposes other than standard control interfaces. For example, you could use it to play product demos on store displays or brand-related content on appliance standby screens.

Troubleshooting and Optimization Strategies

Operational problems can happen with even the best-designed interfaces. Signal noise shows up as inaccurate position reports or sudden jumps in recorded values. Most of the time, electromagnetic interference from nearby power devices is to blame. This can be fixed by making the grounding better, using shielded wires, or adding ferrite beads to the signal lines. Software debouncing methods add extra safety by getting rid of transient waves that last less than a certain amount of time.

Common Issues and Diagnostic Approaches

When location tracking for the Knob module slowly loses accuracy over time or changes in temperature, this is called calibration drift. Because Hall sensors don't change much when the temperature changes, magnetic encoder modules are better at resisting this degradation than contact-based systems. If drift does happen, it usually only takes minutes to fix by recalibration through the development interface. Field service teams can make changes without help from the factory when calibration factors are written down. Wear and tear from moving parts is mostly felt in contact-based encoders, where electrical lines rub against wiper arms. Some signs are a rough spinning feel, signal dropouts from time to time, or tracking failure altogether. If you specify magnetic Hall-effect modules, this failure mode goes away completely, and the operating lifespan goes from 50,000 cycles to over a million rotations. This is a huge benefit for goods that are meant to last for ten years or more.

Performance Optimization Techniques

Tuning responsiveness strikes a balance between what users want and what the system can do. When you sample the encoder position at higher rates, the delay between rotation and on-screen reaction is less noticeable. The ESP32-S3R8's 240MHz clock rate lets the user interface (UI) change every millisecond, which makes movements look smoother and better. When showing complicated graphics or handling wireless interactions at the same time, frame rate drops can be avoided by carefully optimizing rendering processes. Firmware changes make it possible for improvements to keep happening. Over-the-air updates let makers improve features, fix bugs, and add functionality after a product has been put into production. This turns products from fixed implementations into systems that can be updated over time. The Guition environment allows remote upgrade functionality, which lets updates happen automatically and keep devices safe and relevant in the market for longer, without the customer having to do anything.

Power control optimization is good for apps that run on batteries. Intelligent lighting lowers power use when not in use, and switching to sleep mode saves power when not in use for a long time. Wake-on-rotation lets users activate the device right away when they touch the control surface, so it stays active without constantly drawing power.

How to Choose the Right Knob Module for Your Project

Selection factors include more than just basic specs. They also look at things like long-term dependability, supply chain security, and the quality of expert support. Procurement managers balance the needs of current projects with the needs for future growth. They also make sure that the parts they choose will be available for five to ten years, which is the product lifecycle. This strategic view stops expensive redesigns that are needed when parts become obsolete or suppliers stop making them.

Decision Criteria for Procurement Teams

Functional requirements set the basic specs. For example, the encoder pulses per revolution are based on the needed rotation resolution, and the display size must be big enough to fit all the information that needs to be shown without taking up too much panel space. Manufacturers like Guition offer sizes ranging from 1.28" to 21.5", which can be used for a wide range of things, from wearable tech to workplace screens. This gives them the freedom to add to their product lines as needed. Environmental scores set the limits of what can be done. For industrial uses, the temperature range needs to be increased to -40°C to +85°C. The material also needs to be able to handle vibrations and chemicals. Medical equipment needs to be made of materials that are safe and can be sterilized. When it comes to consumer goods, the damped spinning feel that shows premium placement is more important than the quality of the finish.

The choice of communication interface affects both the complexity of the hardware and the design of the software. UART links are easy to set up and don't need many pins, so they're good for setups with just one module. When sending complicated video or graphics streams, SPI can handle higher data rates. On the other hand, I2C lets you set up multiple devices on the same bus, which makes wiring simpler in systems with more than one display node.

Evaluating Suppliers and Customization Options

Supplier evaluation goes beyond just looking at the specs of the parts; it also looks at the supplier's tech support skills. Access to detailed technical documentation speeds up integration, and application building teams that are quick to respond can solve problems with execution quickly. Reference designs and sample code make development less risky, especially for teams that are new to integrating rotating displays. Customization gives you the freedom to meet the specific needs of each offering. OEM relationships make it possible to change the way a product works, create custom firmware, and add a brand's user interface. These changes help goods stand out in crowded markets. Warranty provisions and failure rate promises protect you financially against quality problems, and clear RMA methods keep production running as smoothly as possible when defects happen.

Recently, world problems have made supply chain robustness for esp32 display module more important. Dual-source strategies and stockpiling help avoid missing parts, and regional delivery networks cut down on shipping delays and tariff risk. Manufacturers who keep a wide range of products in different sizes make it easier to make new products in the future by giving suppliers ways to make upgrades to existing products.

Future Trends Shaping Rotary Display Technology

New technologies are on the way that could turn Knob modules from simple input devices into smart hubs for interfaces. With more computer power, machine learning algorithms can be run locally. This lets screens change based on what each user wants by analyzing their behavior. Voice integration mixes rotary controls with spoken directions to make multimodal interfaces that can be used by people with a range of skills and in a variety of situations.

IoT Integration and Smart Connectivity

When controls connect to the cloud, they become networked objects that can share data across environments. Centralized setup management is helpful for smart home systems because changes made to one interface instantly affect many devices. Telemetry data from distributed screens is used in industrial applications. This lets predictive maintenance programs plan service before a component fails. Edge computing architectures handle sensor data locally, which lowers the amount of bandwidth needed in the cloud and speeds up reaction times. Modules with a lot of memory on board, like the JC3636K518C_I_YR's 8MB PSRAM and 16MB Flash, can run complicated programs on their own, reducing the need for external computers. This independence makes system design easier to understand and more reliable by lowering the number of parts needed.

Adaptive Interfaces and Haptic Innovation

Programmable haptic feedback makes physical experiences that are always changing based on the task at hand. When adjusting the volume, the controls might have light detents, but when they get close to the highest level, they might switch to hard clicks to avoid accidental over-rotation. Temperature controls could raise the resistance as sets get close to safety limits. This would give intuitive input without the need to see proof. As display technology improves, smaller screens can hold better resolutions, which lets you see detailed pictures and text at smaller sizes. Adopting AMOLED improves color ratios and viewing angles while lowering power use, which means that handheld devices can use batteries for longer. Flexible display integration makes it possible for flexible interfaces that fit the look of the product instead of forcing them to be rectangular.

Conclusion

The success of Knob module integration depends on careful planning, choosing the right parts, and putting them together in an organized way. When engineering teams know about technology standards, compatibility needs, and application-specific problems, they can avoid common mistakes and speed up the development process. Modern integrated solutions, such as the Guition JC3636K518C_I_YR, combine strong processing, flexible connections, and easy-to-use development tools that solve key problems by shortening the time it takes to get a product to market, making secondary development easier, and allowing over-the-air (OTA) updates that keep the product relevant for longer. When projects work with providers that offer full technical support, flexible customization, and reliable supply lines, they set themselves up for long-term success in global markets that are always changing.

FAQ

What distinguishes digital from analog knob modules in practical applications?

Digital modules send position data using communication methods like UART or SPI. This blocks noise and makes it easy to connect to a microcontroller. Analog versions make voltage that changes with spin, so they need to be converted to an ADC and have their signals filtered. Digital interfaces make it easier to make software and get rid of the calibration drift problems that come up with analog designs. This makes them better for complicated systems that need to track positions reliably.

Can knob module firmware be updated after installation?

Modules that can update over-the-air (OTA) let you change the software from afar without having to physically reach the module. The Guition JC3636K518C_I_YR is an example of this functionality because it connects to WiFi, which lets makers apply bug fixes, feature improvements, and security patches throughout the lifecycles of their products. This feature lowers the cost of service after the sale while keeping the gadget safe from new threats.

What installation mistakes most commonly cause knob module failures?

Poor mechanical fitting causes the shaft to wobble, which hurts the feel and speeds up the wear on the bearings. Bad grounding and wires that aren't protected let electromagnetic interference in, which makes position reporting less accurate. When voltage levels are wrong, they hurt encoder electronics, and when they are not calibrated correctly, they make position tracking inaccurate. These problems can be avoided by following the manufacturer's instructions and using the suggested mounting tools.

Partner with Guition for Advanced Knob Module Solutions

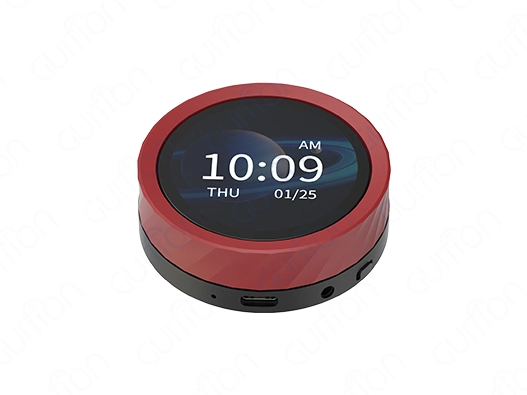

Guition offers cutting-edge rotating display technology made for tough use in healthcare, industry, and smart homes. Our JC3636K518C_I_YR combines ESP32-S3R8 processing speed, wireless connection, and multimedia features into a small package that makes it easier to use in a variety of projects. As a reliable Knob module maker, we offer full secondary development support through the Arduino IDE, the ESP IDE, MicroPython, and our own Guition platform. This lets embedded engineers create advanced HMI solutions without having to learn a lot of complicated low-level code.

Our dedication goes beyond selling parts and includes full solutions as well. For example, our drag-and-drop UI design tools, cross-platform testing support, multilingual compatibility, and remote update features all deal with major issues that slow down development and raise costs. From prototyping to production growth, integration goes smoothly thanks to technical documents, reference designs, and fast engineering support. Get in touch with david@guition.com to talk about your project needs and find out how our knowledge can help you get your products to market faster while also providing reliable, future-proof computer-human interaction solutions.

References

1. Smith, J. & Williams, R. (2022). Rotary Encoder Integration in Modern HMI Systems. Industrial Electronics Publishers.

2. Chen, L. (2023). "Optimizing User Interfaces Through Haptic Feedback Technologies," Journal of Human-Computer Interaction, Vol. 38, pp. 145-162.

3. Anderson, M. (2021). Embedded System Design for IoT Applications. Technical Press International.

4. Kumar, S. & Patel, A. (2023). "Comparative Analysis of Magnetic versus Contact-Based Encoder Reliability," IEEE Transactions on Industrial Electronics, Vol. 70, Issue 4, pp. 3201-3214.

5. Thompson, K. (2022). Smart Device Interface Design: Best Practices for B2B Electronics. Professional Engineering Publications.

6. Zhang, W. & Rodriguez, C. (2023). "ESP32-Based Display Solutions for Industrial Control Applications," International Conference on Embedded Systems Proceedings, pp. 412-428.
