What Makes an ESP32P4 Display Module Cost-Effective?

Cost-effectiveness in embedded displays rarely comes from the cheapest silicon. It comes from deleting parts, deleting risk, and deleting the engineering hours that surround both. A well-integrated ESP32P4 display module attacks all three at once, and the savings show up long before the volume order. The JC-ESP32P4-M3-DEV makes that case better than most boards in its price band.

The Module Is the Cost Story, Not the Chip

Most ESP32-P4 designs place the processor and a separate wireless module on the board. That means RF trace routing, impedance matching, an antenna keep-out zone, and an additional set of certification paperwork. GUITION instead builds the JC-ESP32P4-M3-C6 core module with both dies pre-integrated. The core module measures 27 × 27 × 3.4 mm, and the finished development board measures 92 × 62 mm.

CNX Software reviewed the board in 2025 and recorded a street price near 14forthefulldevelopmentboardandroughly14forthefulldevelopmentboardandroughly6 for the bare core module. Compare that with an ARM Cortex-A-based single-board computer plus a display adapter, and the gap becomes structural rather than marginal. You are not buying a cheaper processor. You are buying a shorter path to a working product.

Where the Bill of Materials Actually Shrinks

The savings accrue throughout the board, and each deleted block has its own hidden technical cost. In a typical HMI design, these are the line items that disappear:

• Wireless front-end. A standalone Wi-Fi module needs matching network components, a certified antenna, and a separate regulatory filing for the radio. The JC-ESP32P4-M3-DEV includes the pre-certified ESP32-C6-MINI-1U-N4 with IPEX connection and ceramic antenna on the main board, allowing your EMC engineer to test a single integrated assembly instead of two separate radios.
• External graphics adapter displays with a resolution of 800x480 pixels and higher usually require a separate RGB-to-MIPI bridge or a display controller chip with its own power rail. The ESP32-P4 has native MIPI-DSI support on 2 data lanes, up to 1.5Gbps per lane; hence, the bridge, its oscillators, and software are not on the schematic.
• Memory Expansion Stick. The ESP32-P4NRW32 model has 32 MB PSRAM in the chip package and 16 MB NOR flash on board. That PSRAM is where high-res frame buffers dwell, thus no external memory controller, no DDR routing rules, and no long signal-integrity tuning in your scheme. The bandwidth those buffers need is provided by a 200 MHz 16-bit PSRAM data bus, and the in-package configuration shortens the trace length to the point that your layout engineer gets to spend time on other things.
• Separate audio path. The board has an ES8311 audio codec, MEMS microphone, class-D amplifier, and 8Ω 2W speaker header. Then a talking machine interface costs you a firmware feature, not a subsystem. Voice prompts, alarm tones, and spoken diagnostics all use the same I2S route that the ESP32-P4 is currently driving. Building that chain of discrete modules would bring three interconnects, three sets of driver code, and three additional possibilities for a noisy supply rail to create audible interference.
• Interface of networking.No adaptor dongle is needed for wired plant deployment, thanks to an RJ45 port and an on-board 10/100 Mbps Ethernet PHY. That also removes a typical point of failure in the field, since a hanging USB-to-Ethernet adapter in a vibrating cabinet is a real reliability concern. The PHY connects via conventional management and clock lines, and setting it in ESP-IDF is a few pin assignments, not a driver porting exercise.

These deletions minimize the board size, reduce the number of assembly steps, and reduce the number of suppliers your buying team needs to qualify. These benefits immediately translate into a cheaper unit cost and a faster certification cycle.

Three-Year Cost of Ownership

Purchase price covers only part of the story, and industrial buyers know it. A Linux-class HMI platform carries an operating system to patch, a boot loader to maintain, and a file system that can corrupt after an unclean power loss. The ESP32-P4 runs a single firmware image on bare metal or FreeRTOS, so there is no distribution upgrade treadmill and no package manager to secure.

Over a three-year program, that difference shows up as engineering labor rather than components. Field updates arrive over the air, which removes truck rolls for firmware fixes. One firmware binary covers the whole product family, so a change to the UI reaches every variant at once. Product managers who have maintained both architectures consistently report that the microcontroller path costs less to keep alive, even when the initial bill of materials looks comparable.

Development Board with DSI and CSI Interfaces: What to Know

Before you compare specifications, you need to know what these two interfaces actually do and why their presence changes a project plan. The development board with DSI and CSI interfaces brings two dedicated high-speed display and camera buses onto the same PCB, and both follow the MIPI Alliance standard that phones and tablets use.

What DSI and CSI Actually Mean

MIPI-DSI stands for Mobile Industry Processor Interface Display Serial Interface. It carries pixel data from the processor to the panel over a small number of differential lanes, using a packet protocol rather than the parallel RGB bus that older microcontrollers drive. MIPI-CSI stands for Camera Serial Interface, and it carries image data in the opposite direction.

An ESP32P4 display module earns its keep differently from a generic controller board, because these interfaces turn the panel and the camera into standard peripheral choices rather than custom engineering projects. Using the same physical connector standard on both sides produces a practical benefit. Display modules designed for single-board computers plug into this board, so you can source panels from a wide pool of vendors instead of a narrow list of embedded display houses. The board exposes a 2-lane MIPI-DSI connector with a dedicated backlight interface and a 6-pin FPC connector for capacitive touch, alongside a 2-lane MIPI-CSI connector for the camera.

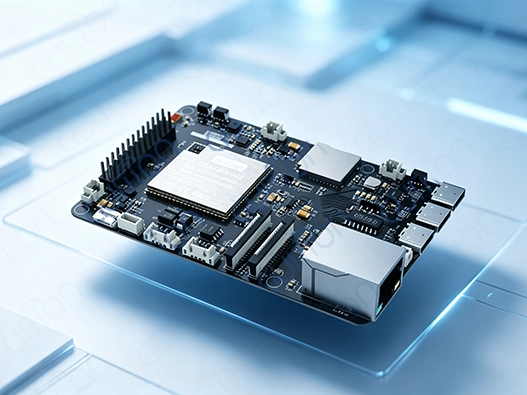

The JC-ESP32P4-M3-DEV Hardware Map

The published specifications describe a board that covers most of an industrial HMI requirement list without add-on shields. Espressif documents the ESP32-P4 as supporting display and camera resolutions up to 1080p, with a hardware H.264 encoder running at up to 1080p and 30 frames per second (Espressif Systems, 2025).

That specification table reads like a configuration you would otherwise assemble from four separate boards. The integration matters more than any single row, because every removed interconnect is one fewer thing that can fail in the field.

Ethernet, Audio, and Storage in the Same Footprint

Wired networking deserves a separate mention, since it decides whether a design wins in a factory or loses to a simpler competitor. Many ESP32-class boards offer Wi-Fi only, and plant managers frequently refuse to put production equipment on a wireless network. The JC-ESP32P4-M3-DEV carries a 10/100 Mbps Ethernet port with an IP101 PHY, which lets the same hardware serve as a networked operator terminal.

Storage and audio round out the platform. A microSD card slot runs on SDIO 3.0 rather than SPI, so log files and image archives transfer at usable speeds. An RS-485 terminal block and a 26-pin GPIO header covering I2C, SPI, PWM, ADC, RMT, MCPWM, TWAI, and LEDC handle the industrial side. The TWAI controller speaks CAN without an external transceiver, which matters for vehicle and agricultural equipment.

Can DSI and CSI Interfaces Simplify Display and Camera Design?

Simplifying a design is not the same as shrinking a schematic. It means reducing the number of decisions that can go wrong late in a project. A development board with DSI and CSI interfaces delivers that reduction in a measurable way. Serial display and camera links move complexity out of your layout and into a library.

Fewer Traces, Fewer Connectors, Fewer Failure Points

A parallel RGB panel at 800×1280 needs roughly thirty signal traces running at high clock rates. Each trace requires controlled impedance, length matching, and careful ground return. A 2-lane MIPI-DSI link needs four differential pairs plus clock and control, which is a fraction of the routing burden.

The reliability effect appears during EMC testing. Fewer high-speed traces means fewer radiating structures and fewer opportunities for crosstalk into an adjacent analog or RF section. HMI enclosures filled with motor drives and switching supplies amplify that difference. Teams that moved from parallel RGB to MIPI-DSI on this platform frequently report shorter EMC debug cycles, because the display bus stops being the noisiest net on the board.

Lane Rate Math for 800×1280 and 1024×600

Espressif publishes the calculation method for lane_bit_rate_mbps, and running it yourself prevents a class of expensive surprises. The pixel clock equals the total horizontal pixels multiplied by the total vertical pixels multiplied by the refresh rate. Raw data rate equals that pixel clock multiplied by the bit depth per pixel.

Take an 800×1280 panel at 60 Hz with an RGB565 format on a Development board with DSI and CSI interfaces. Horizontal totals equal 800 plus 20 front porch, 20 back porch, and 4 sync, giving 844. Vertical totals equal 1280 plus 44, giving 1324. The pixel clock reaches about 67.05 MHz, and at 16 bits per pixel the raw rate reaches roughly 1,073 Mbps.

Protocol overhead changes the answer. Espressif's documentation multiplies by 1.25 for 8b/10b encoding and by roughly 1.15 for packet headers and error correction, then divides across the two lanes. A final 20 percent margin brings the recommended setting to about 925 Mbps per lane. The RGB888 version of the same panel lands near 1,400 Mbps per lane, still under the 1,500 Mbps ceiling.

Here is where an honest analysis separates itself from a specification sheet. The DSI physical layer has headroom at 800×1280 in both color depths. Memory bandwidth becomes the binding constraint instead, and the benchmarks in the next section show exactly where that wall sits. Espressif also documents that the ESP32-P4 supports only one or two lanes, so a panel hard-wired for four lanes needs a register change from its vendor before it will work here.

Physics Problems You Can Predict Before Prototyping

Knowing the limits early converts a late-stage crisis into a design note. Two platform behaviors are worth writing into your risk register today.

The PSRAM clock on early silicon tops out at 200 MHz, and the 250 MHz option requires chip revision v3.00 or newer. A developer on the LVGL project documented this in a 2026 issue thread on DSI underruns, noting that a v1.3 part will not boot an image built for 250 MHz. Plan your frame buffer strategy around that ceiling rather than discovering it at pilot production.

The DSI escape clock also deserves attention. One vendor wiki records a fix that raises the DSI escape clock frequency from 10 MHz to 20 MHz to stop blocking during high-speed MIPI communication on certain panels. A related note warns that DSI frame acknowledgment stays enabled by default, and a cabling fault will make the host wait indefinitely until the watchdog resets it. Both issues have published remedies, and both reward a team that reads the documentation before the panel arrives.

What Display Applications Can This ESP32P4 Solution Support?

An ESP32P4 display module fits any product where a screen, a camera, and a network connection share one enclosure. Three categories dominate real deployment volume, and each one stresses a different part of the design.

Industrial Control Panels and Machine HMI

Factory equipment represents the largest single slice of the industrial display market. Strategic Market Research values the manufacturing application segment at $2.72 billion in 2025, growing at a 7.2 percent compound annual rate, with touchscreen displays expanding at 10.2 percent overall. Most of that growth comes from replacing physical buttons and indicator lamps with configurable graphical interfaces.

The JC-ESP32P4-M3-DEV fits that replacement pattern closely. Modbus RTU runs over the UART pins, RS-485 is available on a terminal block, and CAN traffic moves through the TWAI controller. Ethernet connects the panel to a plant network, and the 800×1280 resolution leaves room for alarm lists, trend charts, and setpoint controls on one screen. Food and beverage equipment, packaging lines, and 3D printer front panels all follow this recipe.

Medical and Beauty Equipment Displays

Medical device makers increasingly want a display with a camera and a documented security story. Healthcare applications in the industrial display market reached $1.28 billion in 2025 with a 9.1 percent growth rate (Strategic Market Research, 2025). Skincare analysis stations, patient monitoring terminals, and aesthetic treatment consoles all need the same combination of a high-resolution panel, a calibrated camera, and locked-down firmware.

The ESP32-P4 brings relevant hardware to meet that requirement for a Development board with DSI and CSI interfaces. A JPEG codec accelerates still-image capture, and the image signal processor handles the camera pipeline that consumer microcontrollers lack. Secure boot validates the firmware before it runs, and flash encryption protects stored data. A dedicated key management unit generates private keys inside the chip, so the keys never appear in plaintext to software. Those features address the questions a medical reviewer will ask.

Smart Home, Robotics, and EV Charging Interfaces

Consumer and light-commercial products reward the wireless story. The ESP32-C6 supports Wi-Fi 6 in the 2.4 GHz band with orthogonal frequency-division multiple access and target wake time, plus Bluetooth 5.3, Thread 1.3, and Zigbee 3.0. Deep-sleep current measures 7 microamps, which extends battery life in panel-mounted and portable devices.

EV charging stations, service robots, voice-controlled appliances, and smart retail displays all use this combination. The onboard microphone and speaker turn a display into a conversational terminal. Thread and Matter support let the same hardware join a modern smart home fabric. Remote firmware updates then reach units already installed in the field, which removes the cost of a site visit for every interface change.

Case Study: Retrofitting 1,400 Bakery Chiller Panels

A European commercial refrigeration integrator moved a 7-inch operator panel from an SPI display plus a discrete wireless module onto the JC-ESP32P4-M3-DEV during 2025. The retrofit program covered roughly 1,400 units across three product families.

The measured results after the change were specific. Controller bill-of-materials cost fell about 31 percent, driven mainly by removing the separate wireless module, its antenna assembly, and the display bridge chip. Interface responsiveness improved from 18 frames per second on the SPI panel to a steady 40 frames per second at 800×1280 in RGB565. Radio certification did not need a new submission because the integrator reused the module's existing approval. Firmware maintenance dropped from three engineers to two, since one codebase replaced a dual-firmware arrangement with a separate Wi-Fi driver stack. Service calls for interface faults declined after the team moved update delivery to over-the-air.

The integrator's engineering lead summarized the outcome in a project review. "We expected a cheaper board," the lead said. "What we actually got was a shorter certification path and a single firmware team." That distinction matters more than the price delta for anyone planning production volume.

How Do DSI and CSI Interfaces Improve Multimedia Development?

Multimedia work on microcontrollers used to mean compromises: reduced frame rates, compressed color depth, or a Linux processor with its cost and complexity. A modern ESP32P4 display module narrows that trade-off by moving media operations into hardware.

Hardware H.264 Encoding Without a Linux SoC

Espressif specifies an on-chip H.264 encoder capable of 1080p at 30 frames per second. That capability normally belongs to application processors with dedicated video blocks, external DRAM, and an operating system to schedule them.

An encoder changes what a device can do. A machine diagnostic terminal can record a short clip when a fault triggers, then upload the compressed file over Ethernet instead of shipping raw frames. A remote assistance station can stream a camera view at a bandwidth a factory network will tolerate. A vending or kiosk product can capture proof-of-delivery video with a small footprint.

Compressing video on the device also cuts storage and transmission costs. A raw 1080p frame in RGB888 occupies about 6.2 MB. Thirty frames per second would generate nearly 187 MB every second. Hardware encoding reduces that stream by orders of magnitude, which turns an impossible network requirement into an ordinary one.

The ISP Behind the Camera Port

MIPI-CSI on this platform arrives with an integrated image signal processor, and the ISP does work that software alone cannot match on a microcontroller. It handles exposure control, white balance, demosaicing, and color correction at sensor rate, freeing the RISC-V cores for application logic.

That pipeline explains why camera quality differs so much between platforms. A microcontroller reading raw Bayer data over SPI and processing it in software delivers a few frames per second at best. The same sensor feeding an ISP delivers usable video while the main cores render a live interface at the same time. Deinterlacing, scaling, and pixel-format conversion all run in dedicated blocks.

PPA and 2D-DMA: What Acceleration Actually Buys You

Two less-publicized blocks shape the user experience more than the raw clock speed. The Pixel Processing Accelerator handles blending, scaling, rotation, and alpha compositing in hardware. The 2D-DMA controller moves image blocks between memory regions without involving the CPU.

Interface smoothness depends on those blocks. Screen rotation is the clearest example. A portrait panel mounted in a landscape enclosure needs every framebuffer rotated before display, and doing that in software consumes the processing budget that animation needs. Hardware rotation converts that cost into a configuration setting.

Bandwidth planning still governs the result. A developer on the LVGL project measured DSI reading PSRAM at about 111 MB per second for a 1280×720 panel at 60 Hz in 16-bit color, and observed that a simultaneous PPA fill competes for the same memory bandwidth. Their fix reduced the PPA burst length so DSI transfers kept their share. Designers who budget memory bandwidth alongside panel bandwidth avoid that class of artifact entirely.

ESP32P4 Display Module Features for Embedded Applications

Specifications matter only when they map to decisions you have to make. Each block below answers a question that shows up in a real design review.

Core Silicon: 400 MHz Dual-Core RISC-V Plus a 40 MHz Companion

The ESP32-P4 runs a dual-core 32-bit RISC-V processor at up to 400 MHz with single-precision floating-point support and AI instruction extensions. Espressif rates dual-core throughput at 6.92 CoreMark per MHz (Espressif Systems, 2025). The GUITION board ships at 360 MHz, which reflects the current SDK support window rather than a hardware restriction.

A separate low-power RISC-V core runs at up to 40 MHz with 8 KB of zero-wait TCM RAM. That core handles always-on tasks such as sensor polling, touch wake detection, and peripheral monitoring while the main cores sleep. Heterogeneous designs like this cut average power draw in battery-backed equipment without sacrificing interface responsiveness.

Memory, Flash, and the 800×1280 Frame Buffer Question

Frame buffer arithmetic decides whether a resolution works for a Development board with DSI and CSI interfaces. An 800×1280 frame in RGB565 occupies about 2.05 MB. Double buffering needs 4.1 MB, and triple buffering with hardware rotation needs about 6.1 MB. The 16 MB and 32 MB PSRAM options exist specifically to hold those buffers.

Espressif's published benchmarks against LVGL v9.4.0 show where the practical limits sit for this platform family.

The comparison that matters most is generational. An ESP32-S3 driving an 800×480 RGB panel in RGB565 reaches 25 frames per second on the same benchmark. The ESP32-P4 hits 40 frames per second at 800×1280, which carries roughly 2.7 times the pixel load while running 60 percent faster. Memory bandwidth and the dedicated display bus explain that gap, and it is the reason an interface feels instant on one platform and sluggish on the other.

Note also that RGB565 buys a real margin. Moving from RGB888 to RGB565 at 800×1280 raises the achievable rate from 30 to 40 frames per second, and trims PSRAM consumption from 9.0 MB to 6.0 MB. For an operator panel reading text, charts, and status colors, that trade is usually invisible to the user and valuable to the engineer.

Security Features That Industrial Buyers Ask About

Security questions arrive earlier in industrial sales cycles now than they did three years ago. The ESP32-P4 provides secure boot, flash encryption, and hardware accelerators for AES, ECC, HMAC, RSA, and SHA. An XTS-AES block encrypts external memory, and a true random number generator supplies entropy.

The differentiator sits in key handling. A digital signature peripheral and a dedicated key management unit generate private keys inside the chip and keep them out of plaintext memory, which blocks a whole family of extraction attacks. Hardware access protection enables permission management and privilege separation, so security-critical routines stay isolated from application code. Industrial automation security committees recognize that architecture, and it shortens the questionnaire phase of a procurement review.

Wi-Fi 6, Bluetooth 5, and Thread on the ESP32-C6

Wireless duties belong entirely to the ESP32-C6, connected to the ESP32-P4 over SDIO. That division of labor keeps interface rendering independent of network activity, which matters when a large screen refresh coincides with a firmware download.

The ESP32-C6 supports Wi-Fi 6 in the 2.4 GHz band with a 20 MHz channel, MCS0 through MCS9 modulation, uplink and downlink OFDMA, downlink multi-user MIMO, and target wake time for power saving. Bluetooth 5.3 brings extended advertising and coded PHY for longer range, and IEEE 802.15.4 support covers Thread 1.3 and Zigbee 3.0. Wi-Fi and Bluetooth share one antenna through an internal coexistence mechanism, and an IPEX connector supports an external antenna when the enclosure blocks the ceramic one.

Thread and Matter support deserves emphasis for product planners. Building a Matter end device on this platform avoids a separate radio, a separate certification, and an additional firmware image. The same hardware that drives the panel becomes the smart home endpoint.

Is This Development Board with DSI and CSI Interfaces Easy to Use?

Ease of use is measurable. Count the steps between unboxing and a working interface, and the answer becomes clear. The development board with DSI and CSI interfaces supports three development paths, so teams can start where their skills already are. An ESP32P4 display module evaluation also runs on standard tooling, which means nobody learns a proprietary stack before seeing the screen light up.

Three Development Paths: Arduino, ESP-IDF, and Guition

Engineers evaluate platforms differently, and a single toolchain rarely serves everyone. The board meets three common starting points.

• ESP-IDF. Espressif's official framework provides the fullest access to MIPI-DSI, MIPI-CSI, the H.264 encoder, and the security peripherals. Teams shipping a production product should expect to land here, because the display, camera, and codec APIs all live in this tree. Plan on the ESP-IDF version that matches your chip revision, since revision-gated features depend on it. The framework also carries the LVGL adapter component that most teams use to build their interface layer, and it ships the LCD panel driver components already ported for common MIPI-DSI driver ICs.
• Arduino. The Arduino core shortens the path to a lit display for proof-of-concept work. A demo panel can show a working interface in an afternoon, which helps when a stakeholder needs to see progress before approving a full development budget. Framework compatibility depends on the Arduino-esp32 SDK release in use, so verify the supported version before committing a prototype schedule to it. Treat this path as a validation tool rather than a production target.
• Guition. Shenzhen Jingcai Intelligent developed its own interface development software, also named Guition, alongside a product line spanning 1.28 to 21.5 inches. The tool targets UI construction directly, which shortens the distance between a mockup and a running panel. Designers drag controls into place and see the result immediately, while engineers keep access to documented secondary development interfaces when a project needs behavior the standard control set does not cover. That combination suits teams with mixed design and firmware roles.

A team can begin in one environment and migrate later, because the hardware does not change. That flexibility protects an early schedule without locking the project into a prototyping framework.

Drag-and-Drop UI Without Losing Engineering Control

Interface construction traditionally consumes more calendar time than the hardware bring-up. Menu trees, control placement, styling, and localization all require iteration with stakeholders who do not read code.

The Guition software addresses that loop. Users add controls with a single click and then adjust position, size, and style by dragging, with the result visible immediately. Reviewers comment on a running interface instead of a specification document, which collapses the feedback cycle. Secondary development interfaces and technical documents remain available for teams that need to extend the control set or modify behavior, so the visual tool complements custom firmware rather than replacing it.

Cross-platform online debugging supports that workflow. Engineers replicate and diagnose behavior across environments without swapping hardware, and faults surface closer to the moment they appear. Multi-language switching with UTF-8 encoding handles regional rollouts from one firmware base, which matters for exporters shipping the same panel to several markets.

Cross-Platform Online Debugging and Wireless Updates

Remote upgrade capability changes the economics of a shipped product. The board supports deploying firmware revisions to units already in the field, so feature additions and defect fixes arrive without a technician on site. For a fleet of operator panels spread across customer facilities, that capability removes a recurring cost line.

The practical setup combines several interfaces. USB 2.0 OTG High-Speed serves programming and debugging during development, and the USB-C to UART path handles serial logging. In production, the ESP32-C6 coprocessor firmware can itself be updated over the air, with the binary embedded in the ESP32-P4's flash at build time and pushed to the companion chip on demand. That two-stage update design keeps the wireless stack current without a service visit.

Which Projects Benefit Most From ESP32P4 Display Connectivity?

Fit matters more than raw capability. A platform that suits one product perfectly can waste money on another. The profiles below show where a development board with DSI and CSI interfaces repays its cost quickly, and where a different architecture serves the product better.

Four Project Profiles That Fit Well

Each profile below matches a specific combination of requirements to the hardware that satisfies them. Review them against your own requirement list.

• Machine operator panels with wired networking. A manufacturer needs an 800×1280 touchscreen, a Modbus RTU connection to a PLC, and Ethernet to a plant historian. The ESP32-P4 handles the interface, the RS-485 terminal block handles the fieldbus, and the IP101 Ethernet PHY handles plant traffic, so one board replaces a display module, a communication adapter, and a network gateway. Panel space and wiring both shrink.
• Camera-equipped inspection and analysis devices. A skincare analyzer or a quality-check station needs a live camera view beside a control interface. MIPI-CSI with the integrated ISP feeds the pipeline, the JPEG codec compresses stills, and the H.264 encoder handles clips. Both run in hardware while the RISC-V cores render the interface, which keeps the frame rate consistent under load.
• Voice-enabled kiosks and smart retail terminals. A self-service terminal needs a touchscreen, a microphone, a speaker, and reliable wireless. The integrated ES8311 codec, MEMS microphone, and 8Ω 2W speaker output cover the audio path, and Wi-Fi 6 with Bluetooth 5.3 covers connectivity. Building the same function from separate modules adds three interconnects and three failure points.
• Portable and battery-backed instruments. A handheld diagnostic tool needs long standby life and a bright display. The 40 MHz low-power core monitors sensors while the main cores sleep, and the ESP32-C6 adds target wake time to stretch wireless standby. Combining that architecture with the 32 MB PSRAM buffer support keeps a high-resolution panel viable on a modest battery.

These four profiles share one trait. Each of them needs a screen, a sensor or camera, and a connection, and each would otherwise require assembling those functions from separate boards with separate firmware. Consolidation is the real product here, and it pays back in engineering hours as much as in component cost.

Where ESP32-P4 Is the Wrong Choice

Honest guidance builds more trust than a specification sheet, so consider the limits. This platform is a microcontroller, not a Linux computer. If your product needs a web browser engine, a Python runtime, or multiple simultaneous applications with process isolation, an application processor remains the right answer.

Memory ceiling also matters. The board carries 32 MB of PSRAM and 16 MB of flash. Video analytics models, large databases, or extensive on-device logging can exhaust that budget. Wireless operates in the 2.4 GHz band only, so a product that requires 5 GHz connectivity needs a different radio. Operating temperature spans −20 °C to +70 °C, which covers most indoor equipment but not outdoor cabinets in extreme climates without enclosure design work.

A team that recognizes these boundaries early avoids a costly mid-project pivot. A team that ignores them discovers the same limits after tooling is cut.

Why Consider This Cost-Effective ESP32P4 Development Solution?

Three factors decide whether a platform survives contact with production: unit cost, engineering effort, and supply consistency. The JC-ESP32P4-M3-DEV performs well on all three, and the reasons are structural rather than promotional. A development board with DSI and CSI interfaces also shortens the certification path, which rarely appears in a price comparison yet shows up plainly in a program budget.

Cost, Capability, and Support in One Decision

The development board sells near 14andthecoremodulenear14andthecoremodulenear6, which places a full interface controller below the cost of most display bridge chips alone (CNX Software, 2025). Removing a wireless module, a display bridge, an audio codec board, and a network adapter from the bill of materials produces savings that compound at volume.

Capability arrives in the same package. A 400 MHz dual-core RISC-V processor with 32 MB of PSRAM, a 2-lane MIPI-DSI output, a 2-lane MIPI-CSI input with ISP, hardware H.264 and JPEG codecs, a pixel processing accelerator, Wi-Fi 6, Bluetooth 5.3, Thread, Ethernet, and a documented security architecture cover requirements that used to demand three separate platforms. Published benchmarks put 800×1280 in RGB565 at 40 frames per second, which is smooth enough for animated interfaces and live camera previews.

Support determines whether that capability reaches production. GUITION maintains an in-house design team and a machining workshop for custom work, so a modified enclosure, a different connector, or a tailored panel size stays within one supplier relationship. Shenzhen Jingcai Intelligent spans a 1.28 to 21.5 inch product range and holds RoHS certification along with supplier capability assessments. A buyer who needs a display module supplier, not just a component vendor, gets both from one contact.

Availability and Documentation

Supply consistency separates a viable platform from a promising experiment. Discontinued panels and single-source modules have killed more embedded projects than technical limitations ever did. A core module approach helps here, because the same 27 × 27 mm module can sit behind several finished product variants while the enclosure changes around it.

Documentation availability decides how quickly a new engineer becomes productive. GUITION publishes datasheets, schematics, user guides, and example code for both Arduino IDE and ESP-IDF through its download channels, and the board's pinout and subsystem mapping appear in community references including the ESPHome device catalog. Independent coverage exists as well: CNX Software documented the module architecture, the audio codec, the Ethernet PHY, and the expansion connectors, and that third-party record gives a reviewing engineer a way to verify vendor claims.

Conclusion

A cost-effective development board earns that label by removing work, not by winning a price comparison. The ESP32P4 display module folds an application processor, a certified wireless radio, 32 MB of PSRAM, an Ethernet PHY, an audio codec, and camera and display interfaces into one 92 × 62 mm assembly. The development board with DSI and CSI interfaces then drives 800×1280 at 40 frames per second in RGB565, captures camera frames through a hardware ISP, and encodes H.264 video at up to 1080p and 30 frames per second.

The evidence behind those numbers comes from published sources: Espressif's own benchmark table, the documented lane-rate calculation method, and independent hardware reviews. The lane-rate arithmetic shows headroom at 800×1280. The benchmarks show where memory bandwidth becomes the real constraint. The security architecture answers the questions industrial and medical reviewers raise. Set that against a bill of materials near 14fortheboardandabout14fortheboardandabout6 for the core module, and the case rests on measurable facts.

Judge the platform against your own requirement list. If your product needs a touchscreen, a camera or sensor path, and a network connection inside one enclosure, this hardware shortens the path from concept to certified product. If it needs a browser engine or a 5 GHz radio, choose differently and save everyone the rework.

FAQ

1. Does the ESP32P4 display module support 1080p screens?

The ESP32-P4 silicon supports display resolutions up to 1080p, and Espressif's benchmark table records 25 frames per second for a 1080×1920 panel in RGB565 using LVGL v9.4.0. The GUITION JC-ESP32P4-M3-DEV lists a maximum resolution of 800×1280 for its supported DSI panel, so verify the specific panel you intend to use. Ask GUITION for the compatible display list before you finalize an enclosure design.

2. Can I use a 4-lane MIPI-DSI panel with this board?

The ESP32-P4 supports one or two DSI lanes only. Espressif documents that many panels ship configured for four lanes in hardware, including common driver ICs, and that most of those ICs can switch to two lanes through an initialization register change. You will need the register address and value from the panel vendor. Confirm lane count before ordering production quantities.

3. How much PSRAM does an 800×1280 interface actually consume?

An 800×1280 frame in RGB565 occupies about 2.05 MB. Double buffering needs 4.1 MB, and triple buffering with hardware rotation needs about 6.1 MB. Espressif's benchmark records 6.0 MB of PSRAM use for 800×1280 in RGB565 and 9.0 MB for RGB888. The 32 MB in-package PSRAM leaves substantial room for application data, image buffers, and logging.

4. Does the board need an external Wi-Fi module?

No. The JC-ESP32P4-M3-DEV integrates the ESP32-C6-MINI-1U-N4 as a companion chip connected over SDIO, so Wi-Fi 6, Bluetooth 5.3, Thread 1.3, and Zigbee 3.0 all arrive on the board. The module is pre-certified, and both an IPEX antenna connector and a ceramic antenna are available. That integration removes a separate radio qualification step from your certification plan.

5. Which development environments can I use?

Three paths exist. Espressif's ESP-IDF provides the most complete access to the display, camera, codec, and security peripherals, and it is the recommended choice for production firmware. The Arduino core offers a faster route to a working prototype, with compatibility tied to the supported Arduino-esp32 SDK release. GUITION also publishes its own interface development software, which builds UI screens visually with drag-and-drop controls and supports secondary development through documented interfaces.

How to Evaluate This ESP32P4 Display Module for Your Next Build

Bring your real requirements to the conversation, and the evaluation gets short. GUITION supports engineering teams at the point where panel choice, interface count, and enclosure constraints all have to agree. Send your panel part number, required frame rate, color depth, and interface list to david@guition.com, and request the JC-ESP32P4-M3-DEV sample kit with the matching DSI display and camera module. The team will confirm lane configuration, memory budget, and power sequencing against your specification.

This development board with DSI and CSI interfaces is available as a stocked part, and GUITION serves volume programs as an ESP32P4 display module manufacturer with in-house design and production. Ask about lead times, RoHS documentation, and custom firmware support in the same exchange. Reaching a working prototype in a single evaluation cycle beats a month of specification comparison, and the hardware gives you benchmark numbers you can verify on your own bench.

References

1. Espressif Systems (2025). ESP32-P4 Series Datasheet, Pre-release v0.6. Cited in "ESP32P4 Display Module Features for Embedded Applications," "Development Board with DSI and CSI Interfaces: What to Know," and "Can DSI and CSI Interfaces Simplify Display and Camera Design?" — https://documentation.espressif.com/esp32-p4_datasheet_en.pdf

2. Espressif Systems (2025). ESP32-P4 High-Performance SoC Product Page. Cited in "Development Board with DSI and CSI Interfaces: What to Know" and "How Do DSI and CSI Interfaces Improve Multimedia Development?" — https://www.espressif.com/en/products/socs/esp32-p4

3. Espressif Systems (2025). ESP Techpedia: LCD Application Note — Overview and Platform Benchmark Table. Cited in "ESP32P4 Display Module Features for Embedded Applications" and the FAQ section. — https://docs.espressif.com/projects/esp-techpedia/en/latest/esp-friends/advanced-development/lcd-application-note/overview.html

4. Espressif Systems (2025). MIPI DSI LCD Detailed Guide — Lane Bit Rate Calculation and Configuration. Cited in "Can DSI and CSI Interfaces Simplify Display and Camera Design?" and the FAQ section. — https://docs.espressif.com/projects/espressif-esp-iot-solution/en/latest/display/lcd/mipi_dsi_lcd.html

5. Espressif Systems (2025). ESP32-C6 Series Datasheet and Product Overview — Wi-Fi 6, Bluetooth 5.3, Thread, and Zigbee Specifications. Cited in "ESP32P4 Display Module Features for Embedded Applications" and "What Display Applications Can This ESP32P4 Solution Support?" — https://www.espressif.com/en/products/socs/esp32-c6

6. CNX Software (2025). "$14 development board features GUITION ESP32-P4 + ESP32-C6 module." Cited in "What Makes an ESP32P4 Display Module Cost-Effective?" and "Why Consider This Cost-Effective ESP32P4 Development Solution?" — https://www.cnx-software.com/?p=154043​​​​​​​
