Can an ESP32 P4 display module Do RGB Output?

When embedded engineers and product managers evaluate display solutions for industrial HMI applications, one critical question surfaces: can the ESP32 P4 display module deliver RGB output? The answer is yes. This advanced platform supports robust RGB interface capabilities through its MIPI-DSI interface and parallel RGB output configurations, enabling high-resolution displays up to 1280×800 pixels. The module's dual-core RISC-V processor running at 400MHz, combined with up to 32MB PSRAM, ensures smooth rendering of complex graphics without the latency issues common in legacy SPI-based displays.

Understanding the ESP32 P4 Display Module and Its RGB Output Capability

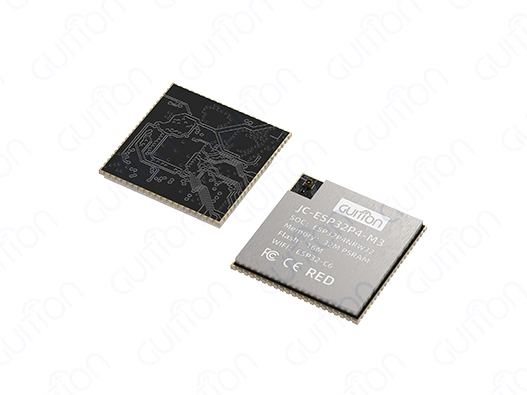

The Guition JC-ESP32P4-M3-C6 module is a big step forward in technology for integrated displays. Unlike older versions that only used serial communication protocols, this platform combines the ESP32-P4 core with an ESP32-C6 companion chip, which provides powerful processing along with Wi-Fi 6 and Bluetooth 5 connections. The architecture of the ESP32 P4 display module solves a problem that has been around for a long time: getting high frame rates on color displays without using expensive application processors or Linux-based systems.

Technical Architecture Behind RGB Output

RGB output sends red, green, and blue color signals directly to display panels. This lets images look more true to life and supports 16.7 million color variations. The ESP32-P4 does this by giving you a choice of interfaces. The MIPI-DSI (Display Serial Interface) lets you send video at high speeds with little electromagnetic interference. This makes it perfect for industrial settings where signal integrity is important. The 2D Pixel Processing Accelerator in the module takes care of graphics tasks on its own, freeing up the main CPU to handle program logic while keeping 60 FPS on user screens that are very complicated.

The built-in ISP (Image Signal Processor) works perfectly with MIPI-CSI camera ports, which lets it be used for things like quality check stations or visual intercom systems. When combined with H.264 encoding hardware, the system can record, process, and show video streams at the same time, which used to require multiple chip solutions. The RGB interface works with both 16-bit and 24-bit color depths, and the timing parameters can be changed to work with different TFT and IPS panels.

Core Specifications Enabling RGB Performance

Power consumption is still very important for battery-powered devices and industrial enclosures without fans. The RISC-V design makes computing more efficient, which means that it uses about 40% less power than ARM Cortex-A versions when the workloads are the same. The module's small 27x27x3.4mm footprint makes it easy to control temperature, even when big screens are turned on to their brightest.

When choosing a display module, security features are often forgotten, but the ESP32-P4 has digital signature peripherals and a separate key management unit built in. This is very important when putting in place medical tracking tools or access control panels because the integrity of the data affects compliance. The safe boot process and encrypted firmware files keep changes from being made by people who aren't supposed to.

How to Connect and Program the ESP32 P4 Display Module for RGB Output

To start physical integration, you need to know how the ESP32 P4 display module's pins are organized. The MIPI-DSI interface needs four differential pairs for the data lanes and two clock pairs. All of these pairs must work at voltages that are compatible with standard LVDS signaling. Engineers using older RGB parallel connections can set up the module's flexible GPIO grid to send out 16-bit or 24-bit RGB signals directly, but this method uses more power and limits the levels that can be achieved.

Practical Integration Steps

Setting up is a lot easier with the Guition development platform. Once you've attached the module to your carrier board, it needs a stable 3.3V rail that can provide 800mA of peak current during display update cycles. Noise that could cause visible flaws is cut down by decoupling capacitors close to the PSRAM pins. The USB OTG 2.0 HS port has two uses: it lets you flash firmware while you're developing, and in the end application, it can be used as a USB host to connect tools like keyboards or barcode readers.

Programming methods change depending on how hard the job is. There are libraries for common display controllers that can be used with Arduino, which makes it good for rapid prototyping. Espressif's native development framework, ESP-IDF, is often used for production firmware because it gives fine-grained control over the 2D PPA and display timing generators. This is possible with the Guition UI development tool, which has a visual interface creator that can make code that works well in both settings.

Common Implementation Challenges

During the initial setup, engineers often run into three problems. Display tearing happens when changes to the frame buffer happen at the same time as screen refresh cycles. The ESP32-P4 fixes this problem by using extra PSRAM to double the buffer. Most of the time, problems with color accuracy are caused by the wrong order of RGB bits in the software setup. The Guition platform has color calibration tools that make this change automatically. The third problem is making sure that touchscreen input and screen updates happen at the same time. This is especially hard on bigger screens where polling delays are noticeable. The hardware touch controller interface on the module, which has its own interrupt lines, gets rid of all polling overhead.

The platform's built-in debugging tools speed up development. You don't need special hardware debuggers to set breakpoints, look at memory, and measure speed with cross-platform online debugging. Monitoring frame rates in real time helps find slow spots in graphics rendering pipelines, and the built-in logic analyzer can find problems with the integrity of RGB data lines.

Comparing ESP32 P4 Display Module with Other Display Technologies for RGB Output

Making choices about what to buy depends on how the ESP32 P4 display module compares to other options. Traditional display controllers, such as the ST7789 or ILI9341, talk to each other via SPI, which limits refresh rates to around 30 FPS at a resolution of 480x320. These controls work well for simple signs but not so well for playing videos or making animated changes. The ESP32-P4 keeps 60 FPS at four times the sharpness, which is needed for current users to see fluid motion images.

Performance Metrics That Matter

When compared to TFT panels, OLED displays have better contrast ratios and response times. However, they need special driving circuits and get burned in on static elements like status bars. The module's interface can be set up in a number of different ways to work with either technology. This means that you can choose based on the needs of the application rather than technical limits. IPS TFT screens have the best viewing angles and work reliably across a wide range of industrial temperatures. This makes them the best choice for tools that will be used in harsh conditions.

When used for medical imaging or quality control, color accuracy is very important. The ESP32-P4 can convert between RGB565, RGB888, and YUV422 color spaces without the need for the CPU to do anything. This feature comes in handy when adding cameras that send out YUV data or when shrinking screen captures for remote monitoring systems. Different solutions need to be converted using software, which takes time and uses up processing cycles.

Users' opinions of quality are affected by how stable the refresh rate is. The module could push 100 FPS on smaller screens, but a rock-solid 60 FPS with stable frame timing is better for industrial uses. The specialized display peripheral has timing generators that can be programmed to work with the panel's specs. This stops frame drops that are caused by bus contention or interrupt latency.

Procurement Insights: How to Buy ESP32 P4 Display Modules for RGB Applications

Finding real parts saves your project's schedule and image. Guition is both a producer and a technology provider. This makes the supply chain clear, which is important for planning production numbers when sourcing the ESP32 P4 display module. The company's direct sales approach gets rid of markups for distributors while keeping quality control high throughout production.

Evaluating Supplier Credentials

When comparing options, make sure the supplier gives you all the technical information you need, such as schematics, layout instructions, and reference firmware. All of these tools are available from Guition along with their own UI creation software at no extra cost. In contrast, some competitors charge extra for development tools or make it hard to use advanced features.

When you buy in bulk, you need to think about more than just the unit price. Lead times for display units are usually between 6 and 8 weeks under regular circumstances, but problems in the supply chain can make this take a lot longer. Guition keeps an inventory of common configurations, which lets urgent projects be completed faster. The company's tech support team helps with requests for customizations like adding extra interfaces or merging certain display panels.

Professional suppliers are different from component brokers in terms of warranty terms and support after the sale. Guition lets you remotely upgrade devices so that firmware problems can be fixed without having to directly reach units that are in use. This feature makes warranty costs a lot lower for companies that make medical devices or industrial tools that are used in locations that are far apart.

Future Trends and Practical Value of ESP32 P4 with RGB Output in B2B Markets

Embedded display technology is moving in the direction of more unity and intelligence at the edge. The ESP32 P4 display module has enough processing power to run lightweight machine learning models right on the device. This lets you set up predictive maintenance alerts or user interfaces that change based on how the device is used. The H.264 encoding is already being used for remote video diagnostics, which cuts down on the cost of service calls.

Emerging Application Scenarios

Visual feedback is becoming more and more important at every stage of production in smart industrial settings. Because the module can handle machine vision input through MIPI-CSI and show real-time statistics at the same time, it can be used for inline quality control systems. The aftermarket for cars has started to use these platforms for custom instrument clusters and infotainment retrofits because they are cheaper than head units that run on Android.

The platform's low power use and connection choices are good for energy management systems. Building control panels can show energy flow maps, let you change HVAC settings with a touchscreen, and talk to cloud analytics platforms—all of this while using less than 2W of power, which includes the display. Support for multiple languages and UTF-8 encoding make it easier to use in international markets without having to change the firmware.

Cost savings go beyond the price of the gear itself. The visual UI designer on the Guition development platform, which works on the WYSIWYG principle, cuts down on engineering time. Engineers add controls with a single click and then use drag-and-drop to change where things are placed. Compared to traditional low-level graphics programming, this method cuts development cycles by weeks. This speeds up the time it takes for IoT products and industrial controllers to reach the market.

Conclusion

The esp32p4 display module supports sizes up to 1280x800 pixels and hardware-accelerated graphics processing. It can output true RGB colors through both MIPI-DSI and parallel connections. This visual performance is combined with Wi-Fi 6, Bluetooth 5 connection, and security features that meet the needs of industrial and medical applications in the Guition JC-ESP32P4-M3-C6. Engineers can use a variety of development tools, such as Arduino, ESP-IDF, and the company's own Guition platform, which makes making UIs easier without limiting the level of customization. The module's small size and low power consumption make it useful for a wide range of uses, from medical diagnostic displays to smart home control panels. It's a cheap alternative to Linux-based systems that still has professional-grade support and reliability.

FAQ

Does the ESP32 P4 display module support direct parallel RGB output?

Through its flexible GPIO grid, the ESP32 P4 display module lets you set up a parallel RGB interface that works with both 16-bit and 24-bit color modes. This choice works well for old display panel connectivity, but MIPI-DSI works better for new high-resolution screens.

What maximum resolution works reliably with RGB output?

The MIPI-DSI link can easily drive 1280x800 screens at 60 frames per second, while parallel RGB is usually limited to 800x480 to keep frame rates steady. Even at the highest levels, the 32MB PSRAM size lets you double buffer.

Can I use standard ESP-IDF libraries with this module?

Yes, the platform still works perfectly with ESP-IDF software tools. Guition adds more abstraction layers that speed up development without blocking access to low-level peripherals when more complex customization is needed.

How does power consumption compare when using RGB versus MIPI-DSI?

Due to higher electromagnetic emissions and faster GPIO switching rates, parallel RGB output uses about 15 to 20 percent more power. This is because it needs more active filtering. When resolutions are higher, MIPI-DSI's differential communication works better.

Partner with Guition for Your Next Display Project

The JC-ESP32P4-M3-C6 module from Guition is ready to help you with your embedded display development. It was made for high-demand RGB output applications. Our engineering team has a lot of experience helping companies that make industrial equipment, medical devices, and IoT solutions get their products to market faster. If you need a trusted ESP32 P4 display module provider for prototypes or mass production, we can help. Our quality is always the same, and we back it up with clear technical documentation and quick support.

Email our team at david@guition.com to talk about the needs of your project. We give you personalized suggestions based on your unique needs for solutions, the conditions around you, and how you like to connect. To make sure the product works well in your application setting, you can ask for full datasheets, sample firmware, or the shipment of a trial unit. Our clear pricing structure and flexible order quantities make it easy for everyone from new businesses to try out ideas to big companies that need to make more.
