Can a 3.5 inch ESP32S3 display module Simplify Wireless HMI Integration?

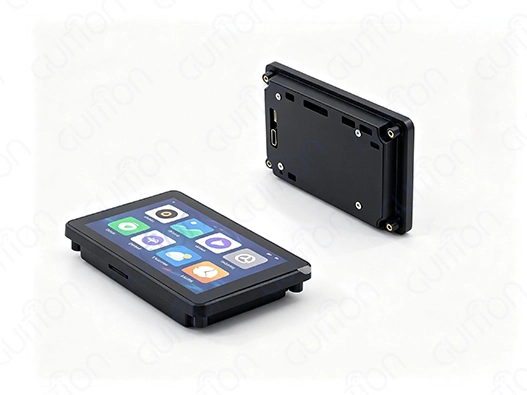

Yes — and the answer is more straightforward than most engineers expect. The GUITION JC3248W535C_I_Y is a 3.5 inch ESP32S3 display module built around the dual-core ESP32-S3R8 processor running at 240MHz, paired with a 320×480 IPS capacitive touch screen, 8MB PSRAM, 16MB Flash, and built-in WiFi plus Bluetooth. This single-board solution removes the need to wire together separate MCU, display driver, and wireless modules. Whether you are prototyping an industrial control panel or a smart home device, this ESP32-S3 HMI module gives engineering teams a direct path from concept to working interface without unnecessary overhead.

Understanding the 3.5 Inch ESP32S3 Display Module and Its Role in Wireless HMI

What Makes This Module Different From a Basic TFT Display

Outside of the screen, there needs to be a microcontroller, a separate wireless chip, and a lot of glue logic. All of that is on the GUID JC3248W535C_I_Y, which is a small PCB. You can see the IPS screen clearly from 170° away, which is useful on plant floors or in medical monitoring rooms where people look at computers from angles other than the center.

Core Hardware Specifications Worth Knowing

This module's ESP32-S3R8 is in the middle. It has 512KB of SRAM, 384KB of ROM, 8MB of PSRAM, and 16MB of Flash storage. With up to 12 GPIO pins, the capacitive touch controller with a resolution of 320x480 can correctly handle multi-touch motions. Engineers can connect sensors, relays, or serial ports without having to use extra expansion boards. If you need to store files directly, you can use an SD card slot to add extra storage.

Typical Deployment Environments

This ESP32-S3 touch screen is often chosen by engineering teams at businesses that make industrial equipment, medical devices, and Internet of Things (IoT) solutions for use in smart utility control interfaces, energy management panels, and portable diagnostic tools. There is test software already on the module, so as soon as you get the hardware, the screen will light up and show that it works.

Technical Advantages of Using a 3.5 Inch ESP32S3 Display Module in Wireless HMI Systems

A built-in 3.5 inch ESP32S3 display module helps you get things done faster because you don't have to build them from scratch. The touch screen, graphics memory, and wifi stack are all on the same board. This keeps the design of the program simple and the number of parts small.

These are the main tech advantages this gadget gives you:

• Dual-core processing at 240MHz allows the application layer and the wireless communication stack to run on separate cores, preventing UI lag during active data transmission. This separation is especially important in medical monitoring assistants where display responsiveness cannot be sacrificed for connectivity tasks.
• Native WiFi and Bluetooth 5.0 LE eliminate the need for external wireless modules. The ESP32-S3 handles OTA firmware updates directly, meaning deployed devices in remote industrial sites receive patches without requiring a technician on-site.
• Multi-IDE compatibility covers Arduino IDE, ESP-IDF, MicroPython, and the GUITION proprietary development tool. Engineers choose the environment they already know, which cuts onboarding time significantly on tight project schedules.
• Integrated lithium battery charging circuit with overcharge and over-discharge protection makes this 3.5 inch ESP32S3 display module suitable for portable and battery-operated field instruments.

With dual-core processing at 240MHz, the application layer and the wireless communication stack can each run on their own cores. This makes sure that the user experience doesn't lag while data is being sent. It is very important to keep these tasks separate in medical tracking tools so that the screen can respond and tasks related to connecting can be done at the same time.- Since it has built-in WiFi and Bluetooth 5.0 LE, you don't need any other wireless gadgets. Over-the-air (OTA) software changes are handled directly by the ESP32-S3. So, devices that are set up in industrial areas that are far away can be fixed without a technician having to be there.

Comparative Analysis: 3.5 Inch ESP32S3 Display Module vs Other Display Solutions

3.5 Inch vs 2.8 Inch Modules

In order to fit everything on a 2.8-inch screen, UI designers have to split up information that would usually fit on one view into several pages. When it comes to industrial cabinet designs, the 3.5-inch form factor works with standard DIN rail casings and panel holes. It also keeps the PCB area small enough to handle.

IPS LCD vs OLED at This Screen Size

3.5-inch OLED screens cost more per unit and can get burned in HMI settings where status indicators don't change very often. The 3.5 inch ESP32S3 display module JC3248W535C_I_Y's IPS LCD keeps the brightness even across the whole screen, while OLED screens lose their brightness after being used for a long time in places where they are always on.

Integrated Module vs DIY MCU + Display Assembly

Instead of spending hours putting together different parts like an ESP32-S3 development board, a 3.5-inch SPI display, a touch driver IC, and a wireless antenna, you can buy an hmi display module and save time. The GUITION module is tested and comes with sample code and a list of pinouts. This makes testing before production much faster, from weeks to hours.

Procurement Considerations and Supply Chain Solutions for 3.5 Inch ESP32S3 Display Modules

Evaluating a 3.5 Inch ESP32S3 Display Module Supplier

When sourcing an ESP32-S3 HMI module for production volumes, supplier transparency matters as much as unit price. GUITION provides accessible datasheets, schematics, and firmware source examples through its technical documentation channels, which procurement teams can review before committing to volume orders.

Volume Pricing and Order Flexibility

Small and medium enterprises benefit from suppliers who accommodate low minimum order quantities during prototyping and scale gracefully to volume pricing for production runs. Engineering and procurement teams can reach out directly to discuss order quantities, lead times, and bundled accessory options, including enclosures and interface cables.

Long-Term Supply Reliability

The ESP32-S3R8 chip from Espressif maintains an active production status, which reduces the risk of end-of-life supply disruptions. The 3.5 inch ESP32S3 display module belongs to GUITION's product line spanning 1.28 inches to 21.5 inches, meaning a design team can source displays of different sizes from a single manufacturer while maintaining consistent software and hardware architecture across a product family.

Troubleshooting and Support for Seamless Wireless HMI Integration

Addressing Common Firmware and Connectivity Issues

Most of the time, people who have issues with ESP32-S3 display modules say that their WiFi comes back on after the power goes out and that there are SPI timing issues when the touch controller and display driver share the same bus. The GUITION demo software has logic for reestablishing a WiFi connection with a watchdog and SPI clock dividers that are already set up. These features fix both of the JC3248W535C_I_Y's issues without devs having to write new low-level driver code.

Using the GUITION Development Tool for Debugging

It is possible to debug online across systems with GUITION development tools. Engineers can now see what tools are doing, watch the serial output, and change the user interface on a connected module in real time. With this method, you don't have to flash and test over and over again. Instead, it uses live input, which is great for fine-tuning things like where touch zones are placed or when movements happen.

OTA Updates and Remote Maintenance

Over-the-air (OTA) functionality is built into this 3.5 inch ESP32S3 display module, allowing developers to add new features and fix bugs in the firmware over WiFi without having to take the hardware back to the manufacturer. This is very helpful for commercial kiosks and farming automation systems that are hard to get to in person.

Conclusion

The GUIDE JC3248W535C_I__Y demonstrates how a single, well-designed 3.5 inch ESP32S3 display module can significantly reduce the complexity of creating wireless HMI. One board has an ESP32-S3R8 processor, an IPS touch screen, WiFi, Bluetooth, and a development path that works with more than one IDE. It's now easy to put together the hardware and connect the software. As a team working on industrial automation, medical devices, smart appliances, or IoT infrastructure, this module helps you make a finished, connected HMI product without having to do extra work while it's being built.

FAQ

Can the GUITION JC3248W535C_I_Y run LVGL for smooth UI animations?

Yes. Because it has two cores and 8 MB of PSRAM, the ESP32-S3 can handle LVGL twice as fast. This lets changes happen smoothly at frame rates that work for most HMI apps without the need for extra graphics accelerators.

How many GPIO pins are available for peripheral connections?

You can connect sensors, motors, serial tools like RS485 transceivers, or I2C devices to this ESP32-S3 touch screen's up to 12 GPIO pins. It can be used to make industrial data loggers without the need for extra IO expanders because of this.

Does the module support multi-language UI text?

Yes, UTF-8 encoding is supported by the GUITION development environment. This means that teams can make interfaces that work with Chinese, English, Arabic, and other character sets. This helps you make things that you can sell in many places.

What development environments does this module support?

You can use the JC3248W535C_I_Y with the WITI software, the ESP-IDF software, MicroPython, and the Arduino IDE. This way, UI designers and embedded engineers can pick the setting that works best for their current project stack.

Is the capacitive touch controller suitable for gloved operation?

With or without a stylus, the standard capacitive controller based on GT911 can be used. Teams that have to work in a factory while wearing gloves should get in touch with GUITION to talk about the different ways that the product line's sensitive touch setup can be configured.

Accelerate Your Next HMI Project With GUITION

GUITION is the company to contact if you are an engineering team looking to work with a reliable 3.5 inch ESP32S3 display module maker. The JC3248W535C_I_Y is a module that has been tested and comes with processing, wireless connectivity, capacitive touch, and a clear IPS display. It has help files, example code, and quick technical support. You can email us at david@guition.com or visit https://jingcaizhineng.aixdb.cn/ to get a sample, talk about how much it will cost for large orders, or get help with your specific needs.
