Best 3.5 Inch ESP32 Display Module Buying Guide for OEMs

If you are an OEM looking for a competent HMI display for your next product line, the 3.5 inch esp32 display module should be seriously considered. This little powerhouse incorporates a dual-core CPU, Wi-Fi, Bluetooth, and a capacitive touchscreen onto a single board—simplifying your BOM and accelerating your development schedule. If you have to choose among the possibilities, GUITION ESP32-3248S035C is a good pick, offering a balanced list of specifications and multi-platform development support. It’s a practical solution for engineers and product managers alike.

Understanding 3.5 Inch ESP32 Display Modules: Specifications & Features

Knowing the basic technological design of an ESP32 LCD module lets you make a confident hardware match to the needs of your project before you make a purchase.

Display Technology and Resolution

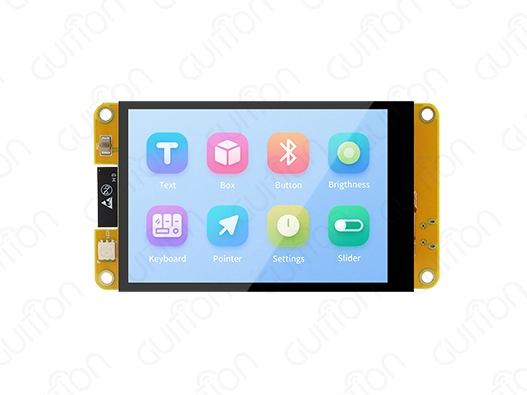

The GUITION ESP32-3248S035C has a TFT LCD screen with a ST7796 driver, a resolution of 320x480 pixels, and 16-bit color (65536 colors). The capacitive touch controller reacts instantly to fingertip input, which is very important in consumer-facing or operator-facing interfaces. At this scale, TFT technology creates crisp, legible images for the indoor industrial panel and smart home wall controllers.

Interface Compatibility and Peripheral Circuits

This module is not only a display board. Backlight control circuit, touch screen control circuit, speaker driver circuit, photosensitive sensor circuit, and RGB-LED control circuit are all combined on a single PCB. It also has a TF card interface for image and text storage, a DHT11 temperature and humidity sensor interface, a serial UART interface, and dedicated GPIO extension pins for bespoke peripherals.

Programming Environments Supported

OEM choices are often based on variables like development flexibility. The GUITION ESP32-3248S035C supports Arduino IDE, ESP-IDF, MicroPython, and Mixly. This wide compatibility means embedded engineers working in their chosen environment may use this ESP32 touch display without retraining. The onboard ESP32-D0WD-V3 MCU has up to 240MHz clock speed, 520KB SRAM, and 4MB Flash, providing adequate storage for LVGL-based GUIs and simultaneous Wi-Fi operation.

Comparing Top 3.5 Inch ESP32 Display Modules for OEM Procurement

The market for ESP32 display boards has grown considerably. Here is how GUITION's offering compares against other recognized names.

GUITION ESP32-3248S035C vs. Waveshare and LilyGO

Waveshare makes well-documented 3.5 inch ESP32 display modules with good SPI-based drivers. They are popular for prototyping. LilyGO’s T-Display-S3 series targets tiny form factors. But neither is a bundle of all the peripherals — speaker driver, photosensitive circuit, DHT11 interface, and RGB-LED — that the GUITION ESP32-3248S035C brings together. For OEMs assembling a completed product, fewer added components on the final PCB immediately equates to cheaper assembly costs and fewer failure points.

GUITION vs. DWIN and M5Stack

DWIN modules are popular in serial HMI apps but often need proprietary toolchains that restrict flexibility. M5Stack is based on maker-friendly modular design, not production-scale economics. The GUITION ESP32-3248S035C solves both problems: it is compatible with the proprietary Guition visual development tools for quick UI creation and with common open-source environments, and it is priced to suit large OEM orders.

Key Evaluation Criteria for OEM Buyers

When trying to choose the appropriate ESP32 HMI module for volume manufacturing, more than the chip characteristics need to be evaluated. The procurement stage is characterized by the following essential criteria:

• Display Quality: The ST7796 driver supports 65K colors at 320×480, providing clean and professional visuals ideal for displays used in medical monitoring, industrial control panels, and smart appliance dashboards.
• Touch Technology: Capacitive touch provides continuous response without a stylus, which is favored in consumer and business deployments. Resistive alternatives are great for industrial applications with thick gloves, but they compromise user experience in most OEM scenarios.
• Peripheral Integration: Integrated speaker driver, RGB LED, photosensor, and DHT11 interface eliminate the need for additional breakout boards, decreasing the overall BOM cost.
• Wireless Capability: Integrated Wi-Fi and Bluetooth eliminate the need for separate RF modules, offering a high cost and layout benefit for high-volume manufacturing.

Combined, these factors decide whether a display module can be considered ready for the actual production process or is only a lab prototype. The GUITION ESP32-3248S035C is always on the mark for OEMs.

OEM Procurement Strategies: Where and How to Buy 3.5 Inch ESP32 Display Modules

Sourcing an ESP32 display module at production scale involves decisions beyond unit price.

Evaluating Supplier Credibility

Guition is a technological firm that combines R&D, manufacturing, and sales in one entity. Product sizes from 1.28” to 21.5” provide OEM customers the security of long-term supply continuity. If you are looking for a source of 3.5-inch ESP32 display modules for your manufacturing line, ensure the seller has RoHS compliance documents and can give quality records at the batch level.

Volume Pricing and Lead Time Management

For OEM orders, unit price lowers considerably with volume. Confirm your 3.5-inch ESP32 display module manufacturer can provide regular lead times and keep safety stock. Ask about minimum order quantities and packaging choices for automated PCB assembly lines. Ask if they can pre-flash bespoke firmware before shipping.

Customization and After-Sales Alignment

OEMs often want changes – various cuts for enclosures, pre-loaded UI firmware, or unique connection combinations. Guition provides full documentation for secondary development. The Guition software enables UI customisation without low-level driver effort. Kindly confirm these selections in writing throughout the procurement process.

Technical Support and After-Sales Service: Ensuring Long-Term Success

A display 3.5 inch ESP32 display module that ships without solid technical backing becomes a liability once your product reaches the field.

Documentation and Development Resources

Guition provides datasheets, wiring diagrams, software libraries, and programming tutorials for the ESP32-3248S035C. This documentation covers all four supported IDEs, reducing onboarding time for new engineers on your team. For OEMs managing global deployment, clear documentation prevents costly field errors.

Troubleshooting Common Issues

Ghost touching on capacitive displays often originates from power supply noise rather than hardware defects. Ensuring a clean 5V supply and adjusting the GT911 controller's debounce threshold in firmware resolves most cases. For display artifacts, verify that your SPI clock speed stays within the ST7796 driver's rated limits. Guition's support team is reachable at david@guition.com for technical queries.

Remote OTA Upgrade Support

The ESP32-3248S035C supports remote firmware updates over Wi-Fi. This means your deployed devices — whether in energy management systems, agricultural automation terminals, or commercial kiosks — can receive UI and logic updates without a field technician visit, cutting your after-sales cost per unit meaningfully over the product lifecycle.

OEM Buyer Checklist: Key Factors Before Purchasing Your 3.5 Inch ESP32 Display Module

Run through this checklist before you finalize your purchase to make sure the module you are assessing is in sync with your project needs.

• Processing Power: Do the MCU clock speed and SRAM have enough power for your UI library and concurrent network tasks? The ESP32-D0WD-V3 at 240MHz with 520KB SRAM does LVGL rendering and Wi-Fi, with no throttling.
• Touch Technology Match: What kind of touch does your end-user environment require: capacitive or resistive? Have a look at this before you decide on a panel type.
• Peripheral Requirements: Does the module include all the circuits you require for your product — speaker, RGB LED, photosensor, DHT11 — or will you need to add extra components?
• Development environment compatibility – Ensure that the module works well with the current toolchain of your team. ESP32-3248S035C supports Arduino IDE, ESP-IDF, MicroPython, and Mixly.
• Supplier Documentation Quality: Poor documentation = slow integration. Before ordering a volume, ask for sample documentation.
• OTA and Remote Update Support: Products deployed at scale greatly benefit from the ability to update firmware wirelessly.

Certification and Compliance: Check that your product meets RoHS standards and any certifications necessary for your target market.
Going through this checklist with the GUITION ESP32-3248S035C shows that it satisfies each criterion for industrial, medical, smart home, and commercial terminal applications.

Conclusion

The GUITION ESP32-3248S035C is a good spec 3.5 inch ESP32 display module designed for the realities of OEM manufacturing. It satisfies the hardware needs of industrial control panels, medical monitors, smart home appliances, and IoT terminals, equipped with a 240MHz dual-core CPU, 520KB SRAM, 4MB Flash, a 320×480 TFT display controlled by ST7796, capacitive touch, and integrated peripheral circuits. When combined with Guition’s visual development tools and multi-platform IDE compatibility, it minimizes engineering hours from prototype to production. OEMs concerned with supply dependability, quality of technical documentation, and hardware performance should seriously examine this module.

FAQ

1. What resolution does the GUITION ESP32-3248S035C support?

The module features a 320×480 pixel resolution TFT LCD driven by the ST7796 chip, supporting 65K colors at 16-bit color depth. This resolution is well-suited for HMI panels in industrial and commercial applications.

2. Which development environments are compatible with this ESP32 display board?

The ESP32-3248S035C supports Arduino IDE, ESP-IDF, MicroPython, and Mixly. Guition's proprietary visual development software also works with the module, allowing drag-and-drop UI design without low-level coding.

3. Does the module support OTA firmware updates?

Yes. Built-in Wi-Fi on the ESP32 MCU enables over-the-air firmware updates. OEMs can push UI changes and logic updates to deployed devices remotely, reducing field service costs.

4. What peripheral interfaces does the module include?

The module includes a TF card slot, UART serial interface, DHT11 sensor interface, reserved GPIO expansion pins, backlight control, speaker driver, photosensitive circuit, and RGB-LED control — all on one board.

5. What is the typical power consumption?

With Wi-Fi active and the backlight at full brightness, expect approximately 250–300mA at 5V. The ESP32 supports deep sleep modes that drop consumption to the microamp range when the backlight circuit is also powered down.

Partner with Guition for Your Next ESP32 HMI Project

Guition offers the ESP32-3248S035C as a production-grade 3.5 inch ESP32 display module for sale, backed by full technical documentation, multi-platform development support, and OTA upgrade capability. Whether you need a single sample or a volume production run, our team is ready to assist. Contact Us at david@guition.com to discuss your project requirements and request a quote today.
