Which Driver ICs Are Best for an SPI LCD Display?

Getting the appropriate driver IC for an SPI LCD Display may make or break your embedded project. Whether you’re designing a 3D printer interface, a medical monitoring device, or an industrial control panel, the driver IC underlying your TFT screen is responsible for refresh behavior, color output, and communication dependability. Based on the hardware datasheets and real-world engineering deployments, the ST7796, ILI9341, ST7735, and SSD1351 are the most popular driver ICs for SPI LCD display modules of all sizes and performance levels.

Understanding SPI LCD Displays and Their Driver ICs

SPI LCD displays use a serial peripheral interface to communicate; therefore, they need as few as four lines of GPIO pins to push full-color images. That’s a big thing when your MCU already has sensors, relays, or wireless stacks.

What a Driver IC Actually Does

The driver IC receives pixel data and control signals from your host MCU and converts them into the proper voltage sequences to turn on LCD cells. It takes care of the time of refresh, gamma correction and color mapping. Without glass, the panel is just a pane.

Key Parameters to Evaluate

In each SPI LCD display project, there are three characteristics defining driver IC performance: clock frequency support, maximum resolution, and color depth. Most industrial drivers operate with 20 MHz to 80 MHz SPI clocks. The higher the clock speed, the quicker the frame refreshes and the lower the perceived latency in touch-based interfaces.

Why ILI9341 Became an Industry Standard

The ILI9341 is compatible with 240×320 resolution and 16-bit RGB565 color. It works well with Arduino, STM32, and ESP32. The thorough documentation and the wide base of open-source libraries reduce integration time dramatically. This is why it is found in millions of deployed units.

Top Driver ICs for SPI LCD Displays — Comparison and Insights

Not every SPI LCD display project calls for the same chip. Matching driver IC capability to application requirements avoids over-engineering and cost waste.

ST7796 — High Resolution for Industrial Use

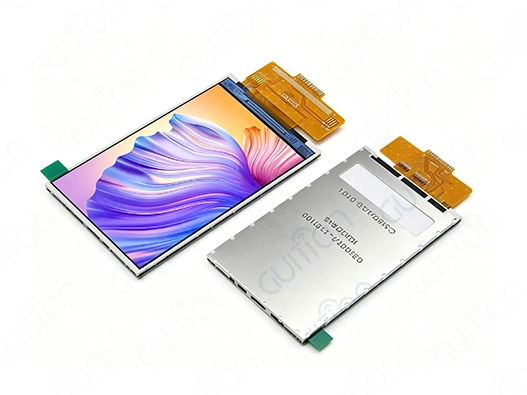

The ST7796 provides 320×480 resolution with 65K RGB565 color output and a maximum SPI rate of 80 MHz. It is primarily targeted for bigger TFT screens in the 3.5-inch to 4.0-inch size range. The GUITION JC3248A035C module is powered by the ST7796 to drive a crisp 3.5-inch capacitive touch screen that can operate from -20°C to 70°C. That makes it a good fit for 3D printers, charging stations, medical esthetics equipment and industrial control panels where color quality and heat endurance are both important.

ILI9341 vs. ST7735 — A Direct Comparison

The ILI9341 is for 320×240 at rather fast frame rates, while the ST7735 is for smaller 1.8″ panels at 160×128. The ILI9341 sucks a little more current but has better color fidelity on bigger panels. ST7735 is ideal for battery-driven mobile devices where power economy is more important than resolution.

SSD1351 for OLED-Based Projects

The SSD1351 is capable of driving 128×128 OLED displays in full 65K color (16-bit depth). OLED panels do not need any electricity for backlighting, which may cut overall system consumption by 30-40% in display-heavy systems, compared to LCD-based SPI modules. However, OLED burn-in restricts its longevity in always-on industrial applications.

How to Choose the Best Driver IC for Your SPI LCD Display

Choosing a driver IC is not just a technical decision but also affects the cost of your product, development time and long term performance.

These are the major considerations in the evaluation:

• ST7796 has 320x480 resolution and fits 3.5-inch screens. ILI9341 is 320x240 resolution and fits 2.4 inch and 2.8 inch panels. ST7735 is suited for panels under 2 inches.
• MCU platform compatibility: Make sure the driver IC contains libraries that have been tested for your target platform, whether it's Arduino, ESP-IDF, or STM32 HAL.
• SPI Clock Ceiling: Match your IC’s maximum clock rate to the speed of your MCU’s SPI peripheral. If there is a mismatch, the data becomes corrupted, or you see artifacts on the screen.
• Touch controller coupling: If you require capacitive touch, just make sure the driver IC couples well with the touch controllers like FT6236, GT911, etc. GUITION JC3248A035C already pairs well with these in a proven combination.
• Supplier documentation quality: Bad data sheets increase engineering hours. Select modules from providers that offer initialization code, register mappings, and sample projects.

These guidelines assist engineering teams to prevent costly redesigns that arise too late in the product development process. The correct driver IC may reduce system start-up from days to hours, and iterations between hardware modifications can be quicker.

Common Issues with SPI LCD Driver ICs and Practical Troubleshooting Tips

Even experts with a lot of experience have trouble putting SPI LCD Display units together. Most problems can be traced back to three main reasons.

Pinout Mismatches and Voltage Incompatibilities

Many 3.3V driver ICs can't directly handle 5V SPI inputs. When you connect to 5V MCUs, you should always add level shifters. Before you turn on the board, look at the specs to see what the logic voltage range is.

Communication Errors and Tearing Artifacts

When the MCU writes frame data faster than the monitor updates, this is called "tearing." To fix it, connect the driver IC's TE output pin to an MCU interrupt and time the write cycles to match the display's vertical blanking interval. This is needed for fast-scrolling UIs to look right.

Initialization Sequence Failures

When they are first turned on, some driver ICs, like the ST7796, need a specific power-on reset sequence and a certain amount of time between register writes. If you skip or shorten these delays, the monitor will either show bad data or be blank. Before making changes, you should always follow the manufacturer's setup code example exactly.

Future Trends in SPI LCD Driver IC Technology

Higher integration and better power management are trends in the SPI LCD Display market today. Driver IC makers are putting gamma correction, partial refresh control, and power gating right on the chip, which cuts down on the number of external parts needed and the bill of materials (BOM) costs.

Rising Demand from IoT and Industrial Automation

Mordor Intelligence research from 2023 shows that the global TFT LCD driver IC market will grow at a rate of 6.8% per year until 2028. This growth will be mainly caused by the adoption of industrial automation and IoT devices. This puts pressure on buyers to get supplies from reliable, long-term suppliers.

Smarter Drivers with Integrated Touch Control

Touch scanning and driving displays are now both built into new generations of driver ICs. This cuts the size of the PCB by about 20% and gets rid of inter-chip communication delay, which makes dynamic HMI displays work better.

What Procurement Teams Should Do Now

Make deals with suppliers that carry a variety of driver integrated circuits to set up qualification and safety stock agreements. When modules like the GUITION JC3248A035C are shipped with a tried-and-true ST7796 + capacitive touch configuration, they give procurement teams a tried-and-true starting point for 3.5-inch display applications that don't require any extra driver development work.

Conclusion

When choosing the right driver IC for an SPI LCD Display, you need to make sure that the resolution, clock speed, and MCU support all work with the needs of your application. The ST7796 is the best for 3.5-inch industrial panels, the ILI9341 is still a solid choice for mid-size screens, and the ST7735 is best for small, low-power gadgets. Modules like the GUITION JC3248A035C combine the driver IC, touch controller, and panel into a single tested unit. This lowers the engineering risk that comes with getting each part separately. Set your requirements early on, make sure of the quality of the supplier's paperwork, and make sure the supply chain is stable.

FAQ

What is the difference between SPI and I2C driver ICs?

I2C's fastest speed in fast-plus mode is only 3.4 MHz, while SPI can support full-duplex communication at much higher clock speeds, usually 20 to 80 MHz. This speed benefit is very important for SPI LCD Display apps that use color graphics.

Is the ST7796 compatible with Arduino and ESP32?

Yes. The TFT_eSPI library works with Arduino, ESP32, and STM32, so it can be used with the ST7796. This driver IC is used by the GUITION JC3248A035C and has detailed initialization code that makes it easy to add to current development platforms.

How do I verify a driver IC supports my required refresh rate?

Look at the part on display time in the datasheet. Find out if the available bandwidth times the SPI clock speed can give a full frame within the time you want it to. A speed of at least 74 Mbps is needed for 320x480 at 16-bit color and 30 frames per second.

Can SPI LCD modules handle outdoor or industrial environments?

Most driver ICs are designed for industrial temperatures between -20°C and 70°C. This requirement is met by the GUITION JC3248A035C. For use outside, check the panel's brightness in nits and the clarity of the cover glass in direct sunlight.

Explore GUITION SPI LCD Display Modules — Talk to Our Team

The JC3248A035C from GUITION can be bought straight from Jingcai Intelligent Technology by businesses. This 3.5-inch SPI LCD Display module is made for industrial use. It has a resolution of 320x480, 65K colors, and capacitive touch. It also has the ST7796 driver. Our team helps with cross-platform integration, secondary development, and making sure that OTA upgrades work. Get in touch with us right away to ask for samples or talk about bulk prices. Please email our team at david@guition.com or visit https://jingcaizhineng.aixdb.cn/ to get a price and start your review.
